Product Overview

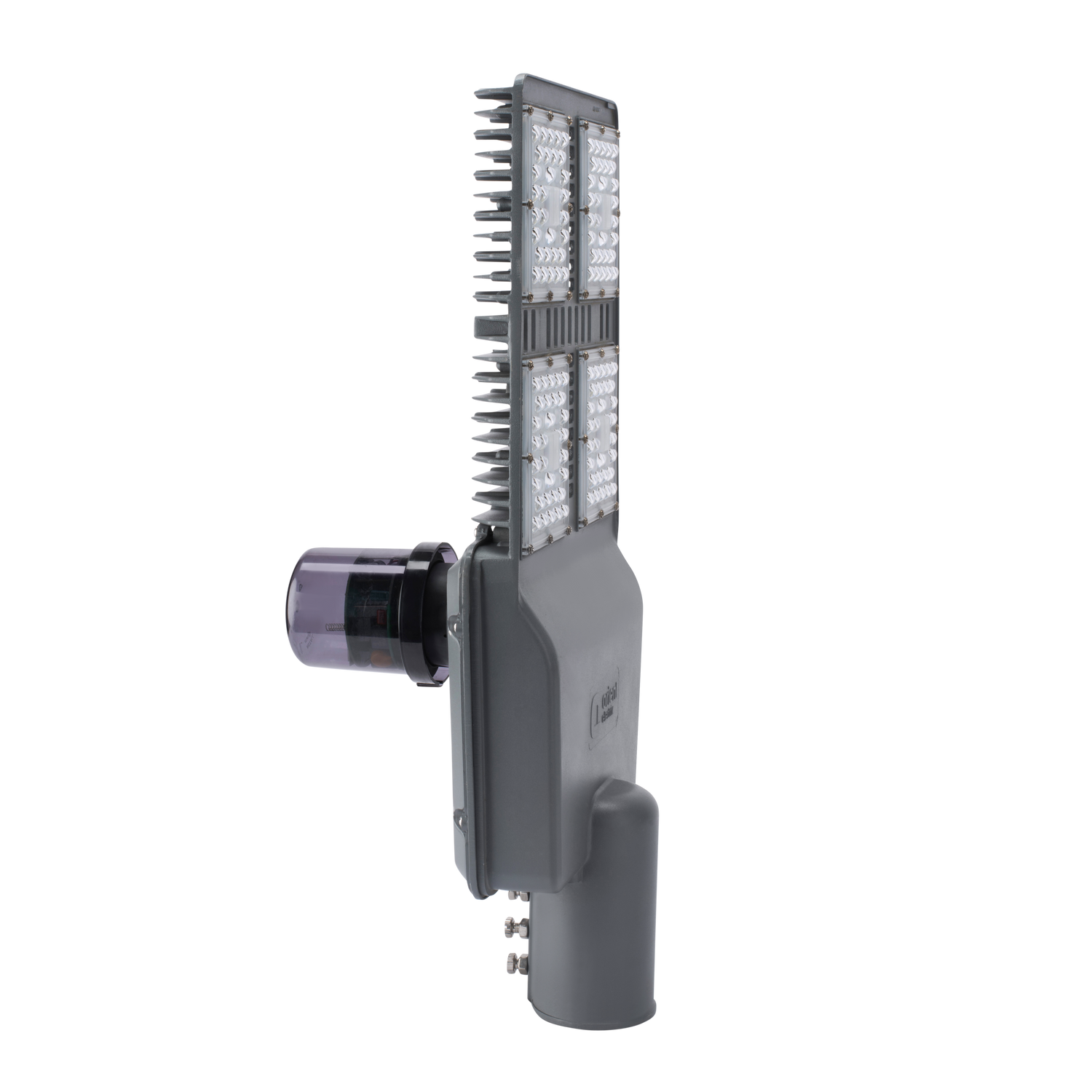

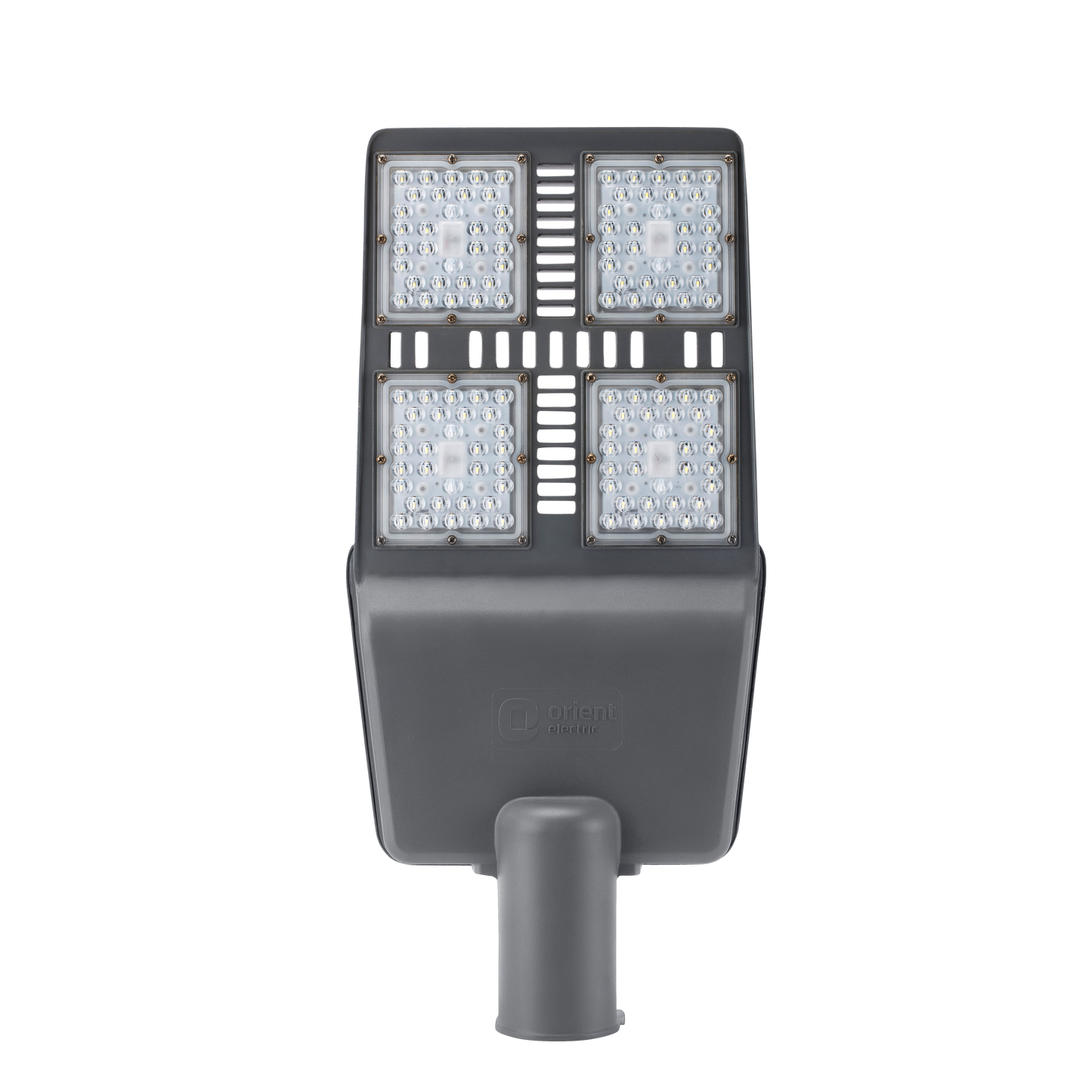

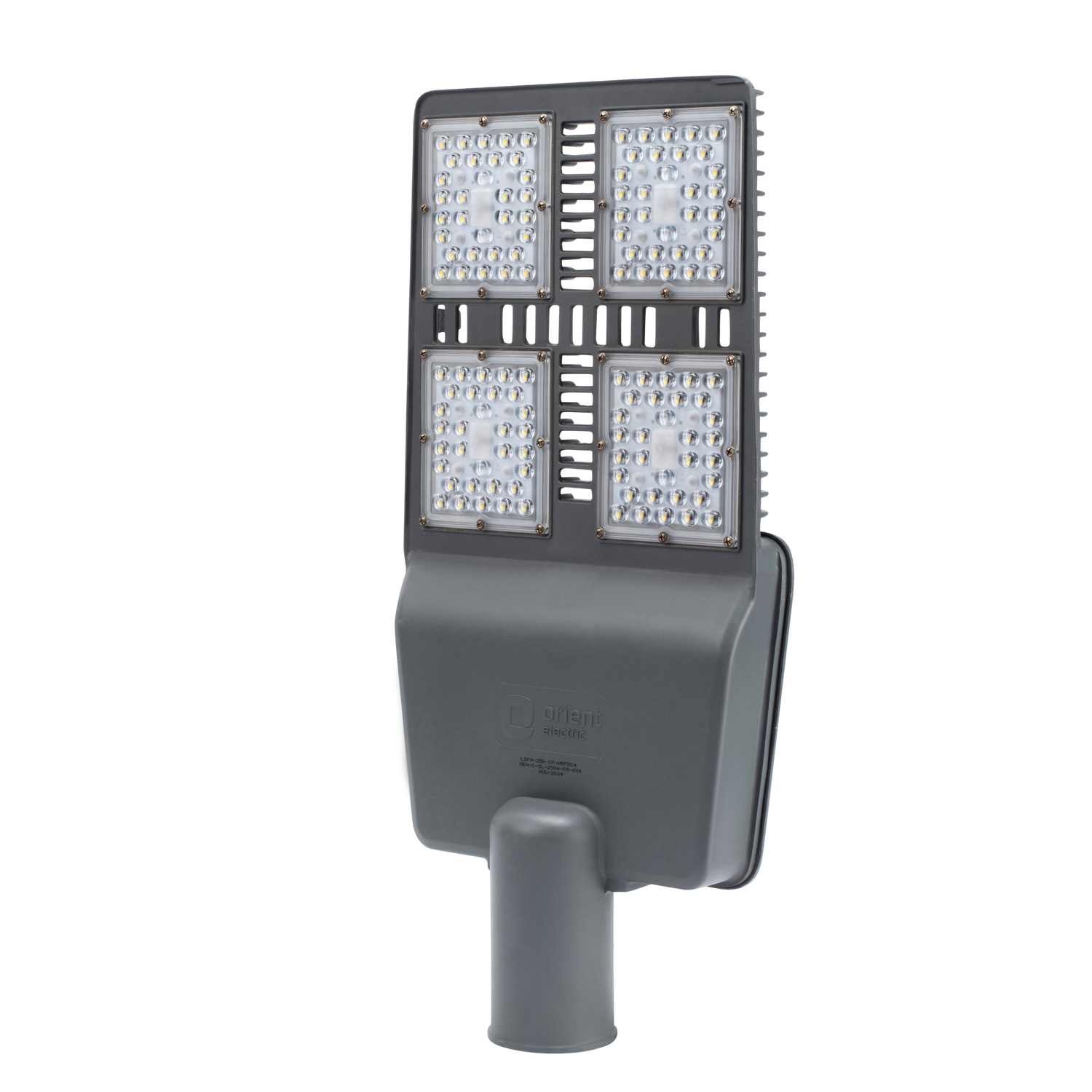

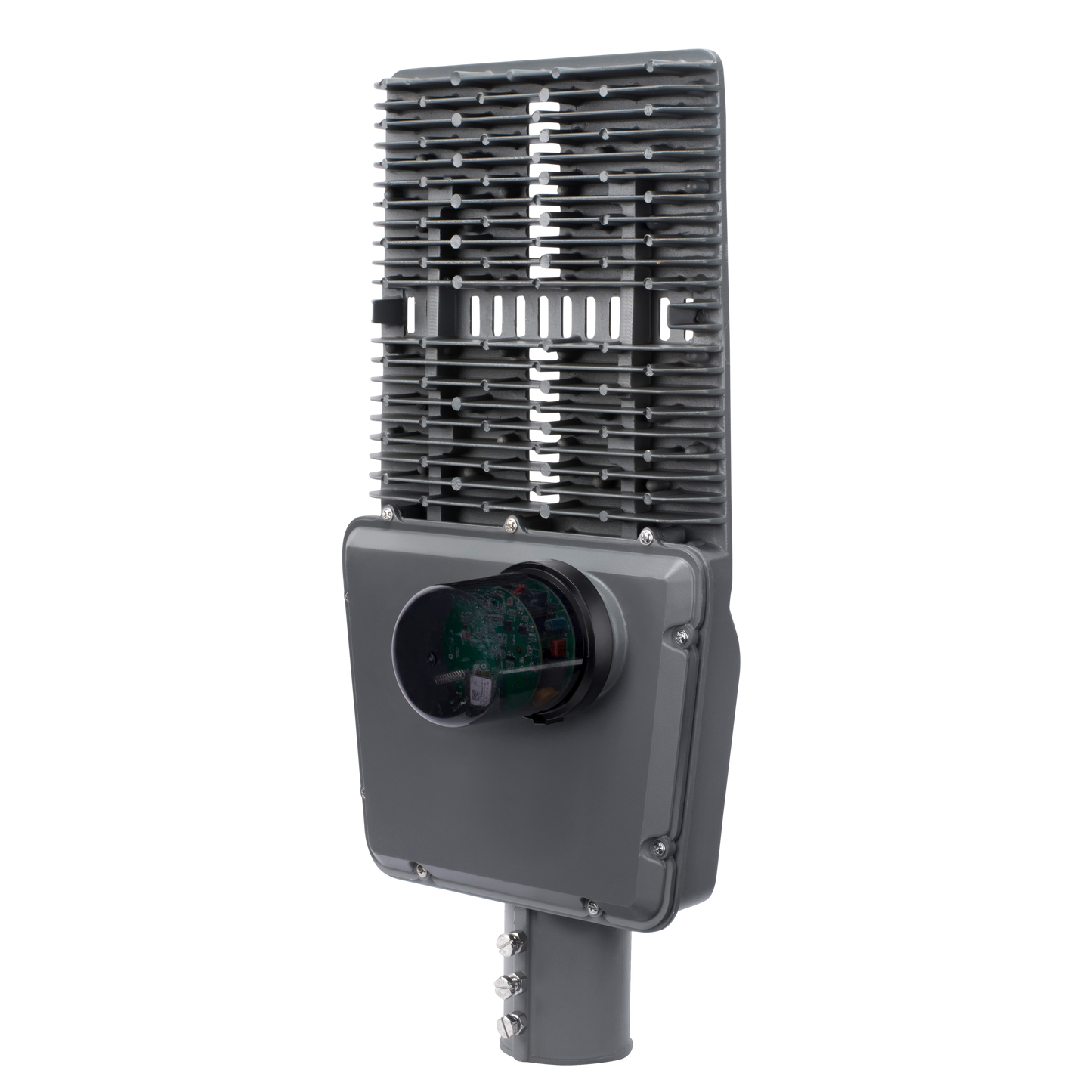

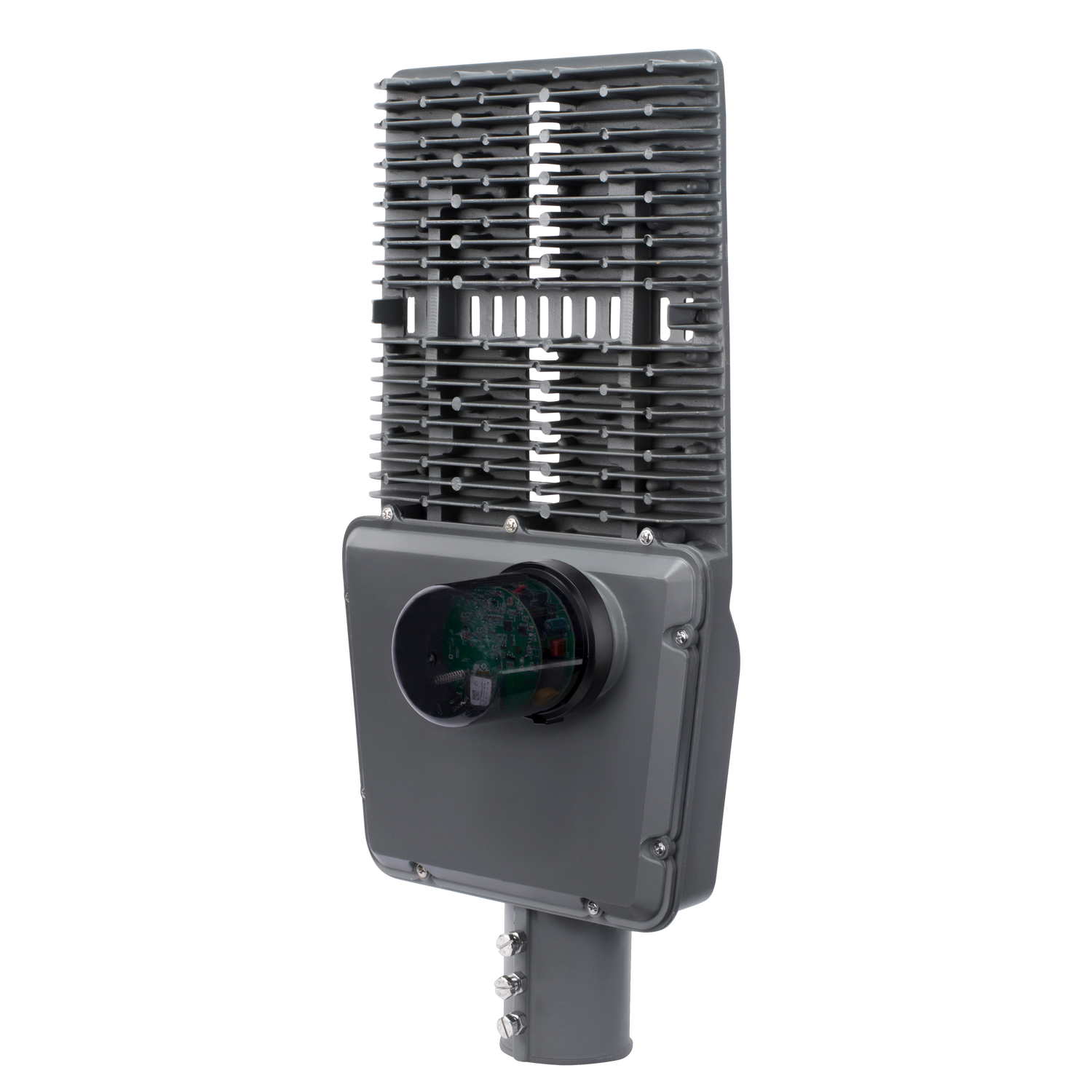

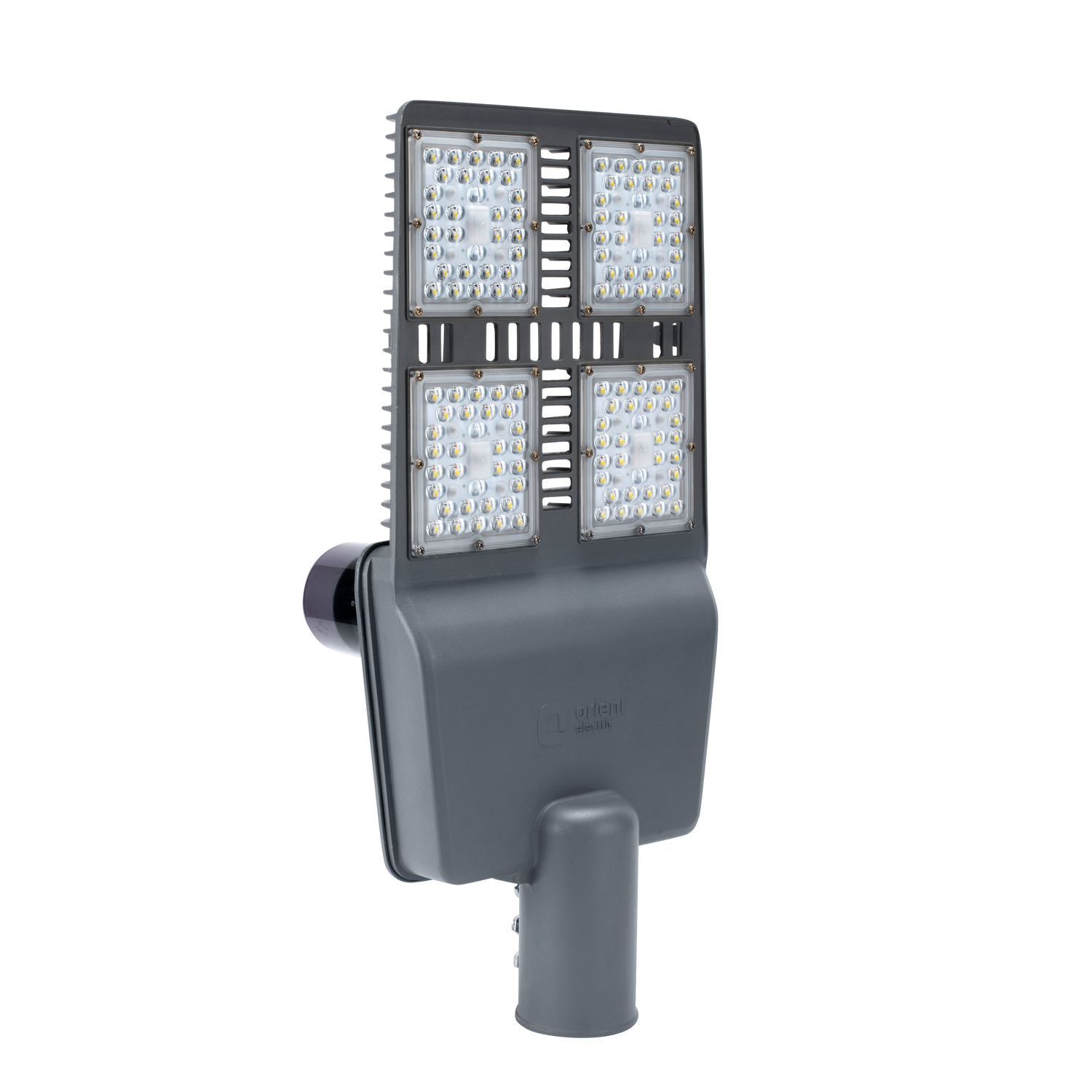

Highly efficient IP66 LED smart streetlight featuring auto notification of fault, energy measurement, astro timer, schedule controlling with NEMA controller to monitor and control the lighting node as per user demand or fix schedule. Aluminium pressure die-cast housing with PC lens in the front for batwing light distribution to ensure uniform light distribution and higher spacing between poles.

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing.
    Optics PC diffuser with integrated Lens
    Mounting Pole mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (optional 10 KV SPD)
    IP 66
  • Technical Specifications
    System Wattage 100W, 150W, 200W, 250W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥120 , ≥110
Roadsmart variants
Product Variants
Roadsmart
LSFSS-100-C-PC
Roadsmart
LSFSS-100-W-PC
Roadsmart
LSFSS-150-C-PC
Roadsmart
LSFSS-150-W-PC
Roadsmart
LSFSS-200-C-PC
Roadsmart
LSFSS-200-W-PC
Roadsmart
LSFSS-250-C-PC
Roadsmart
LSFSS-250-W-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
Pole OD (in mm)
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
595
285
117
64
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
595
285
117
64
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
595
285
117
64
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
595
285
117
64
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
595
285
117
64
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
595
285
117
64
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
595
285
117
64
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
595
285
117
64
