Product Overview

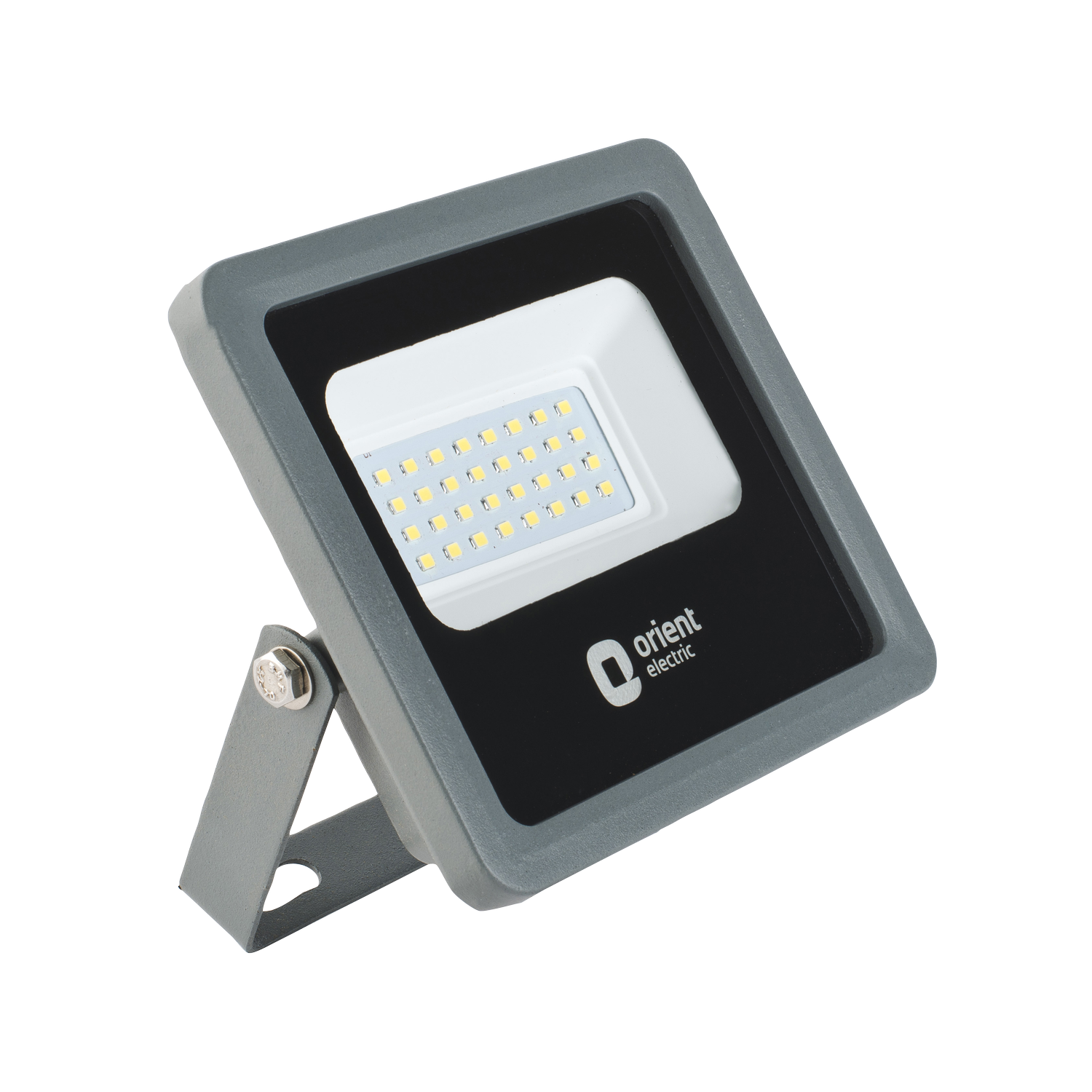

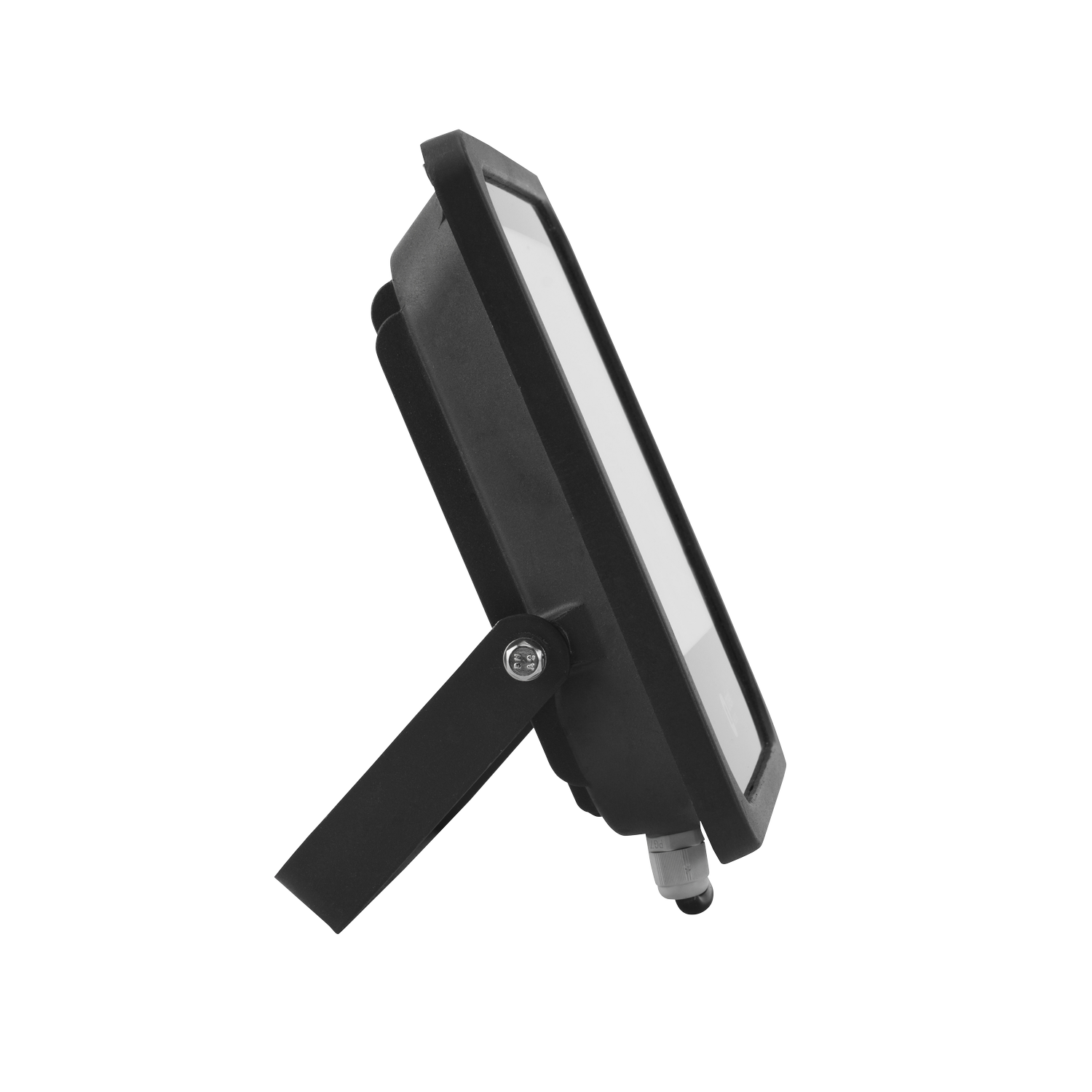

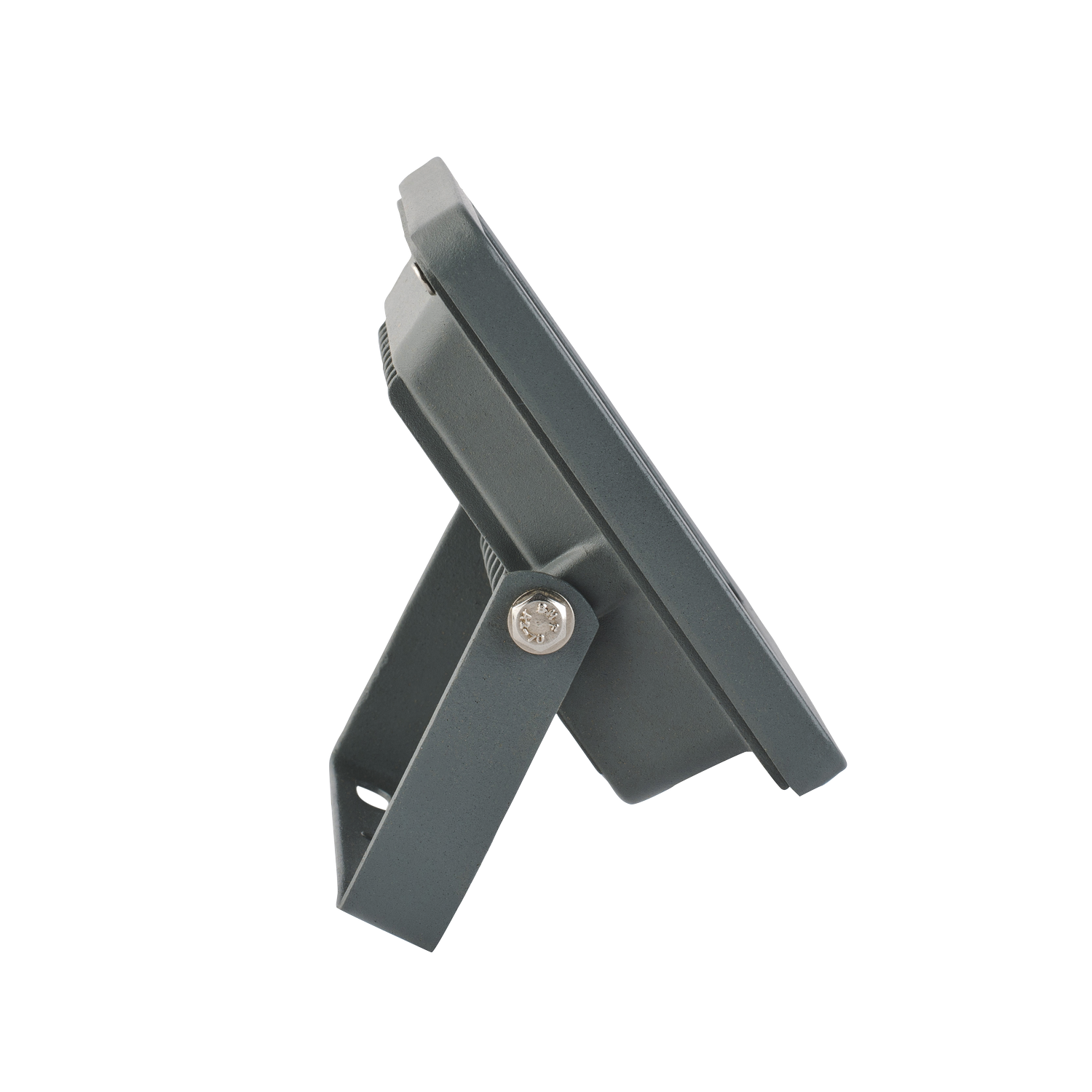

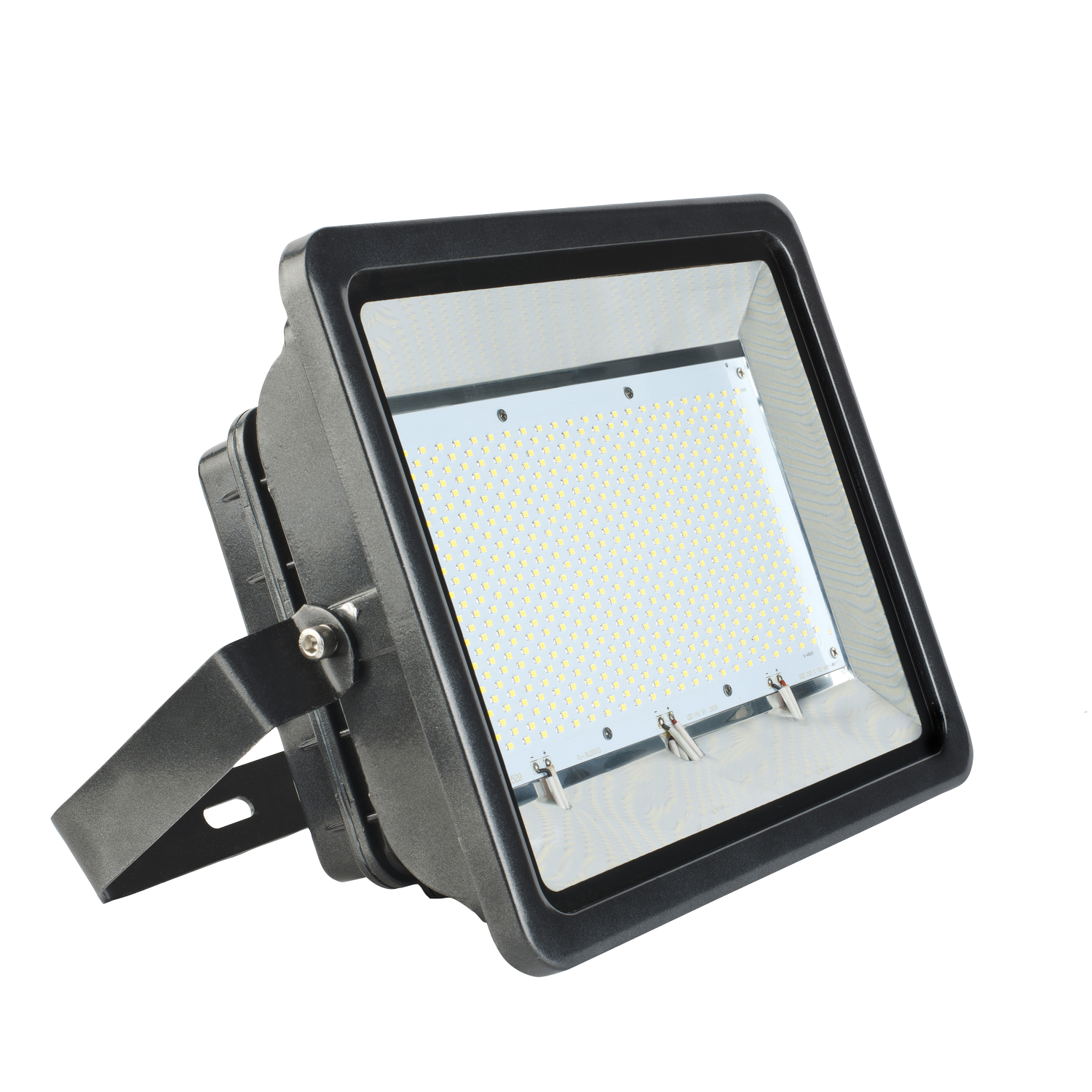

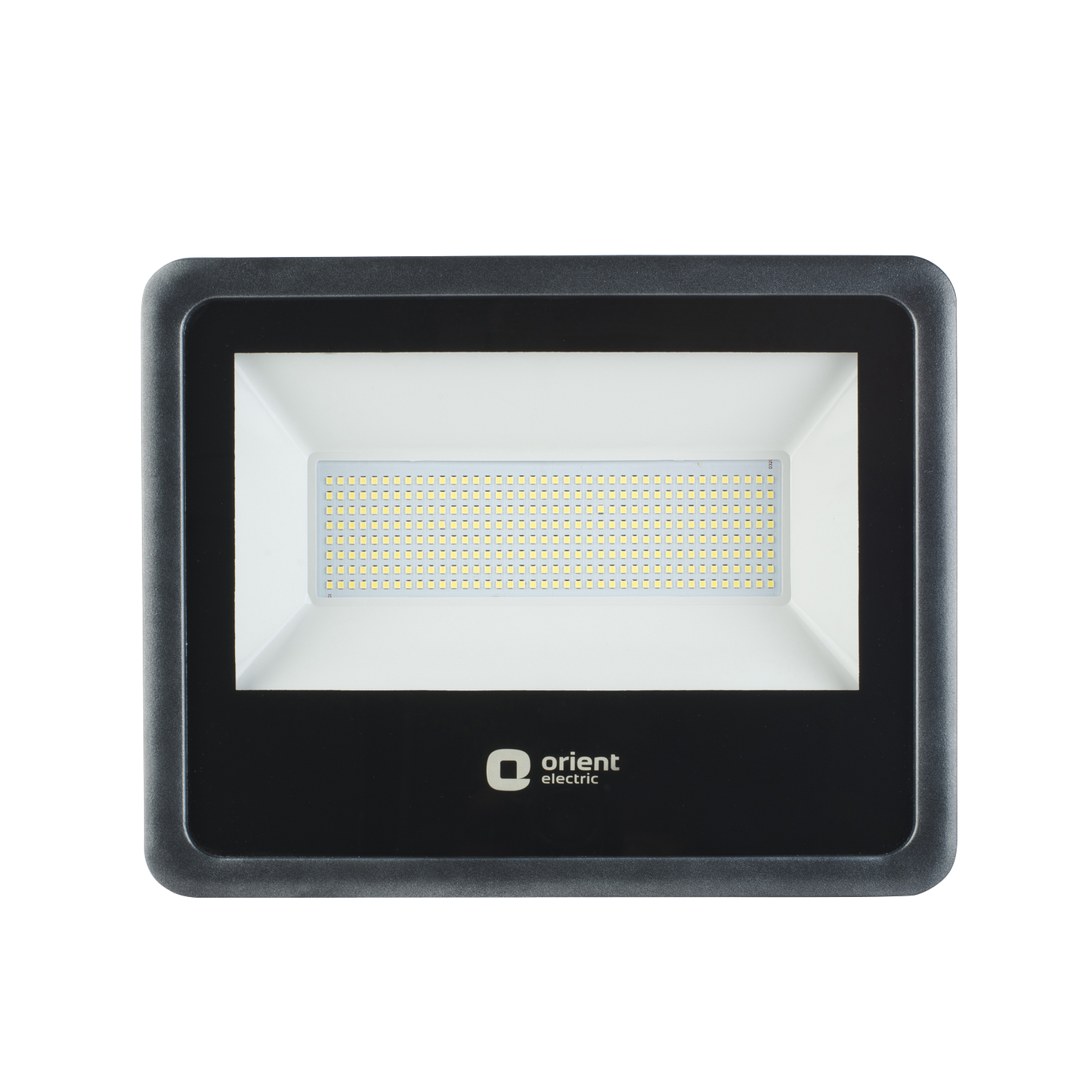

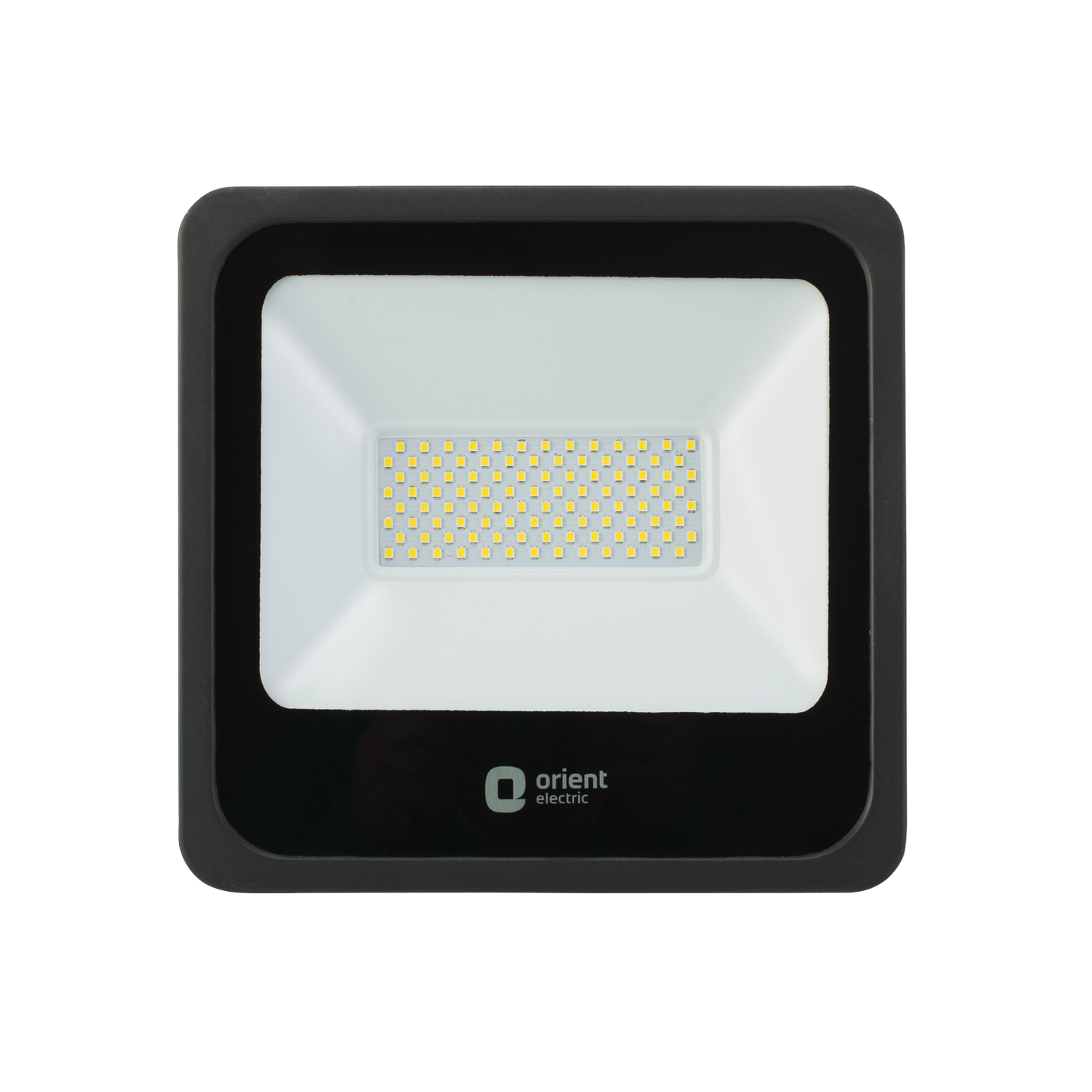

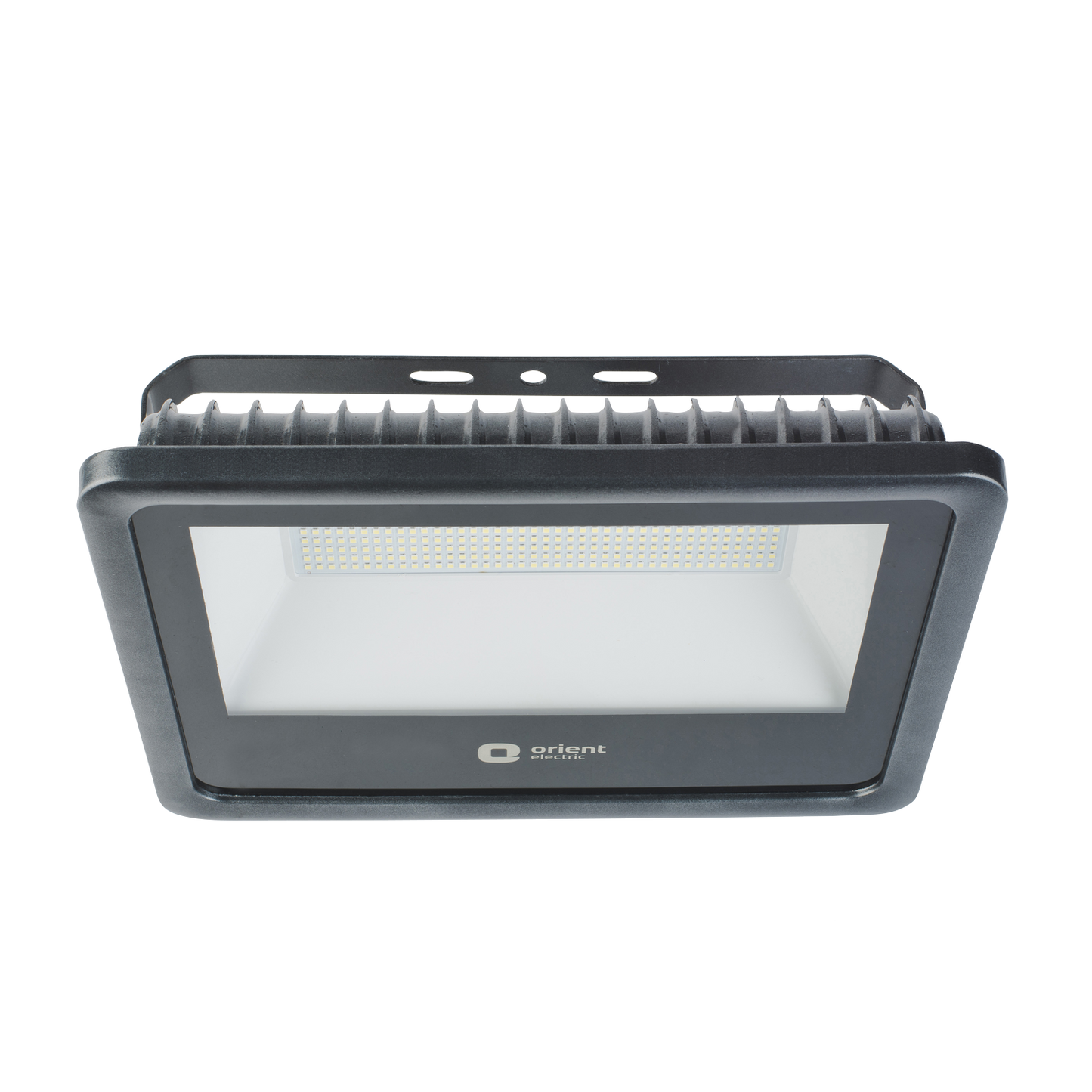

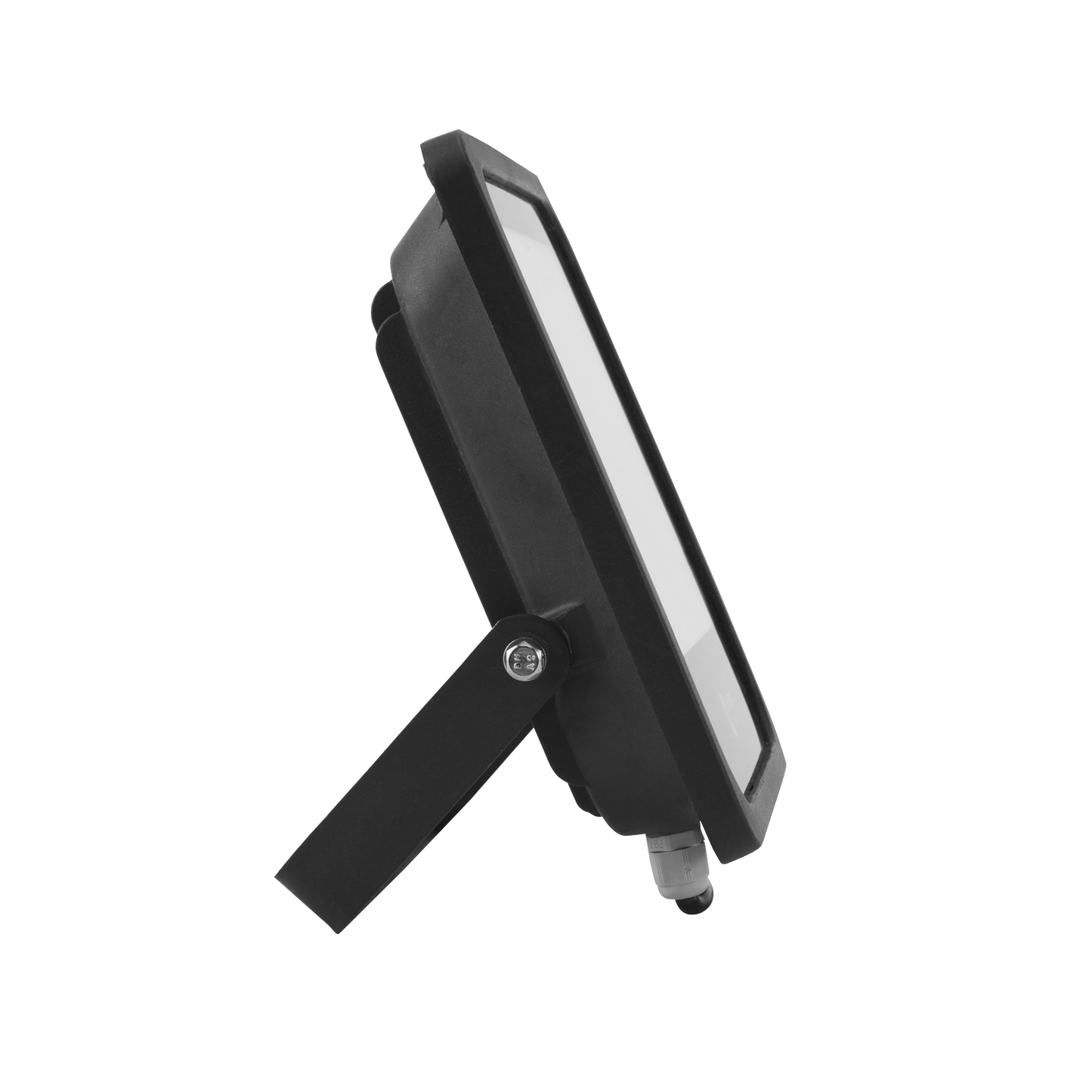

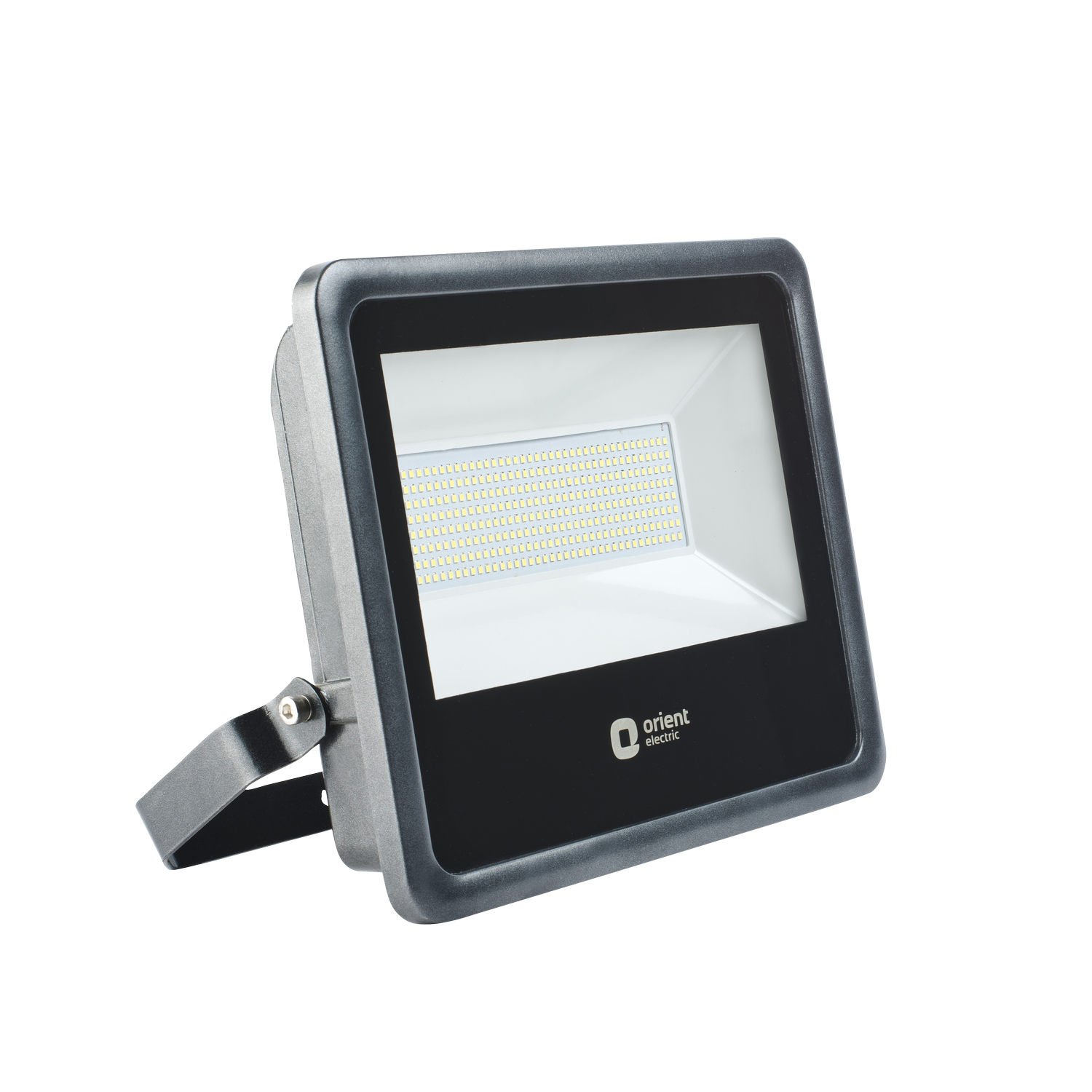

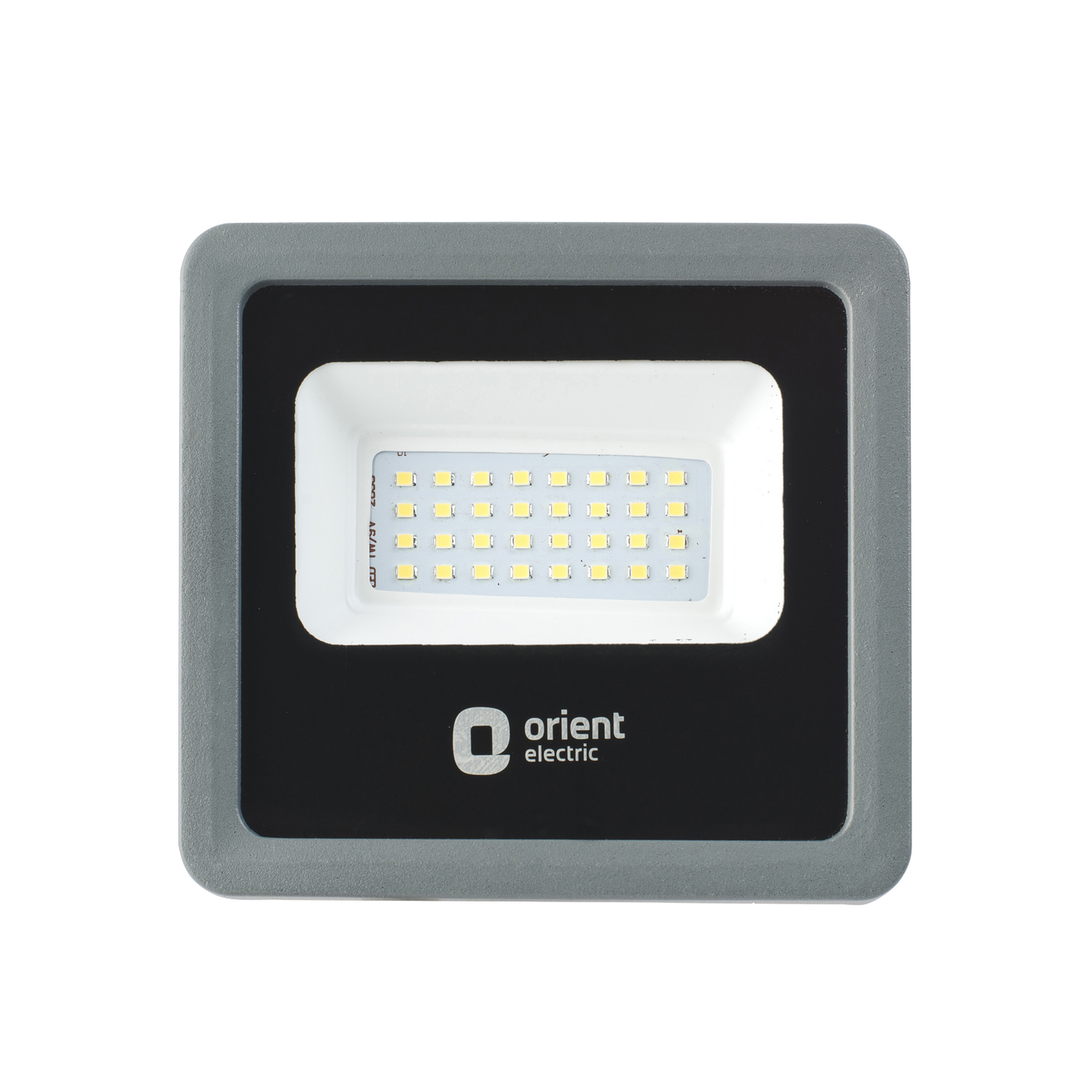

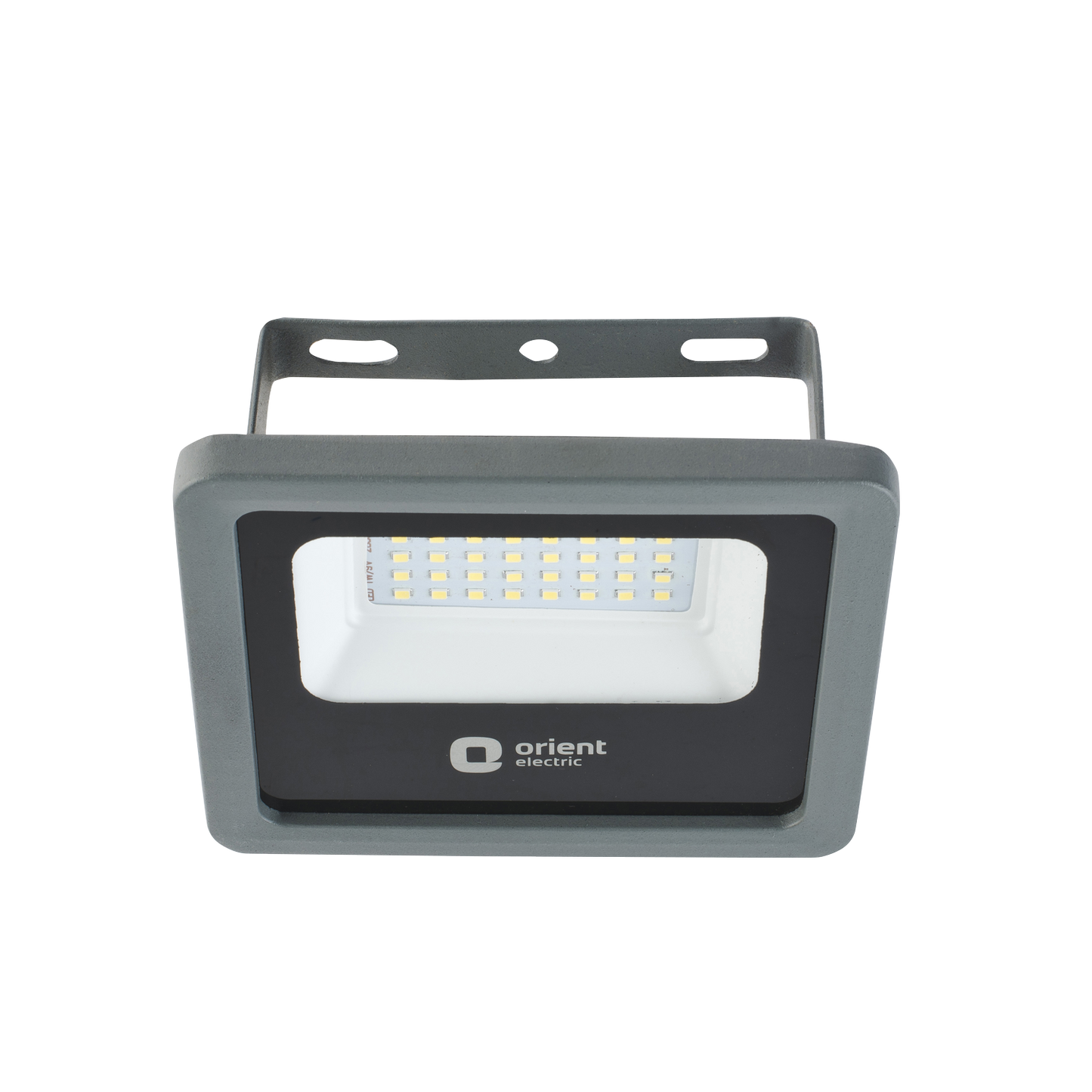

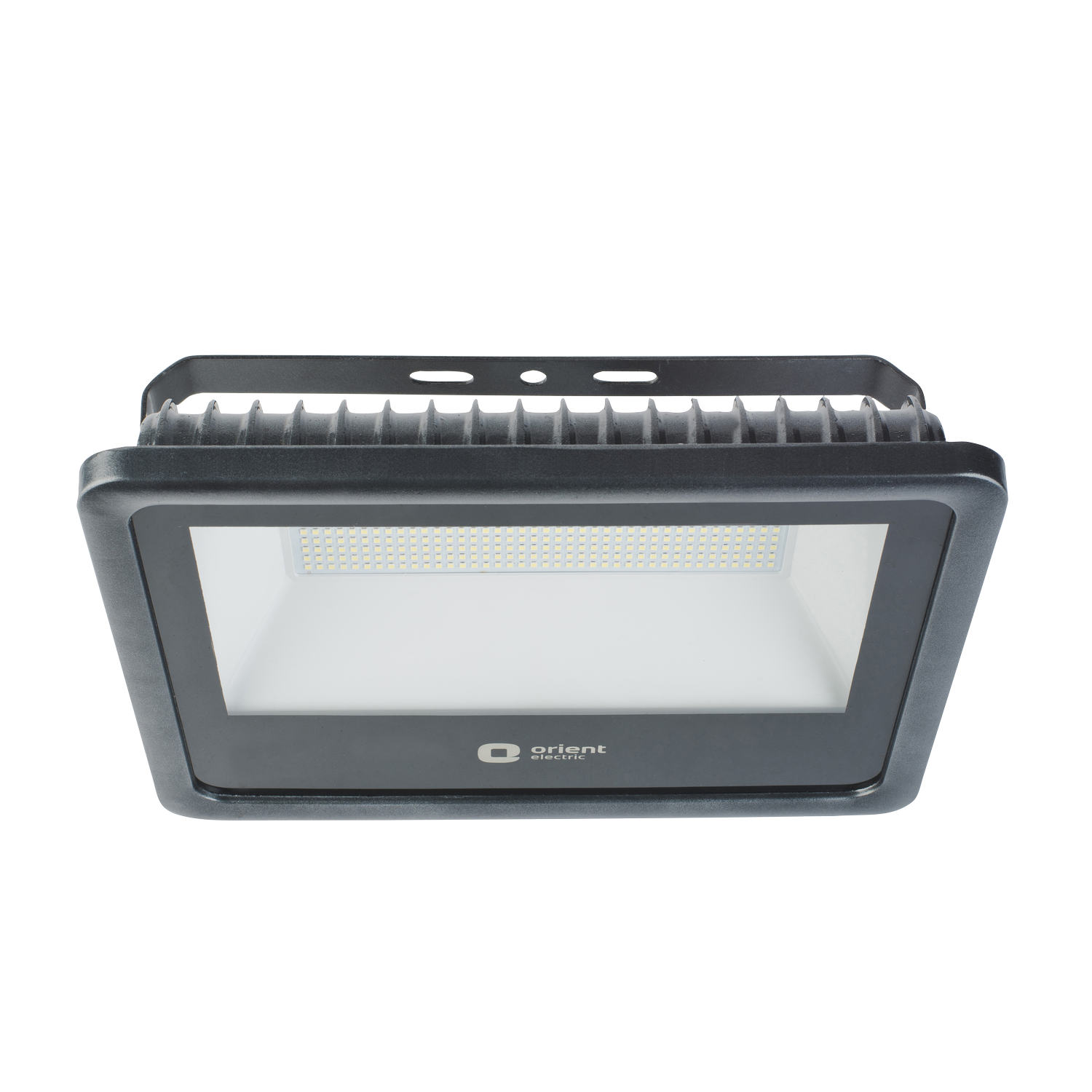

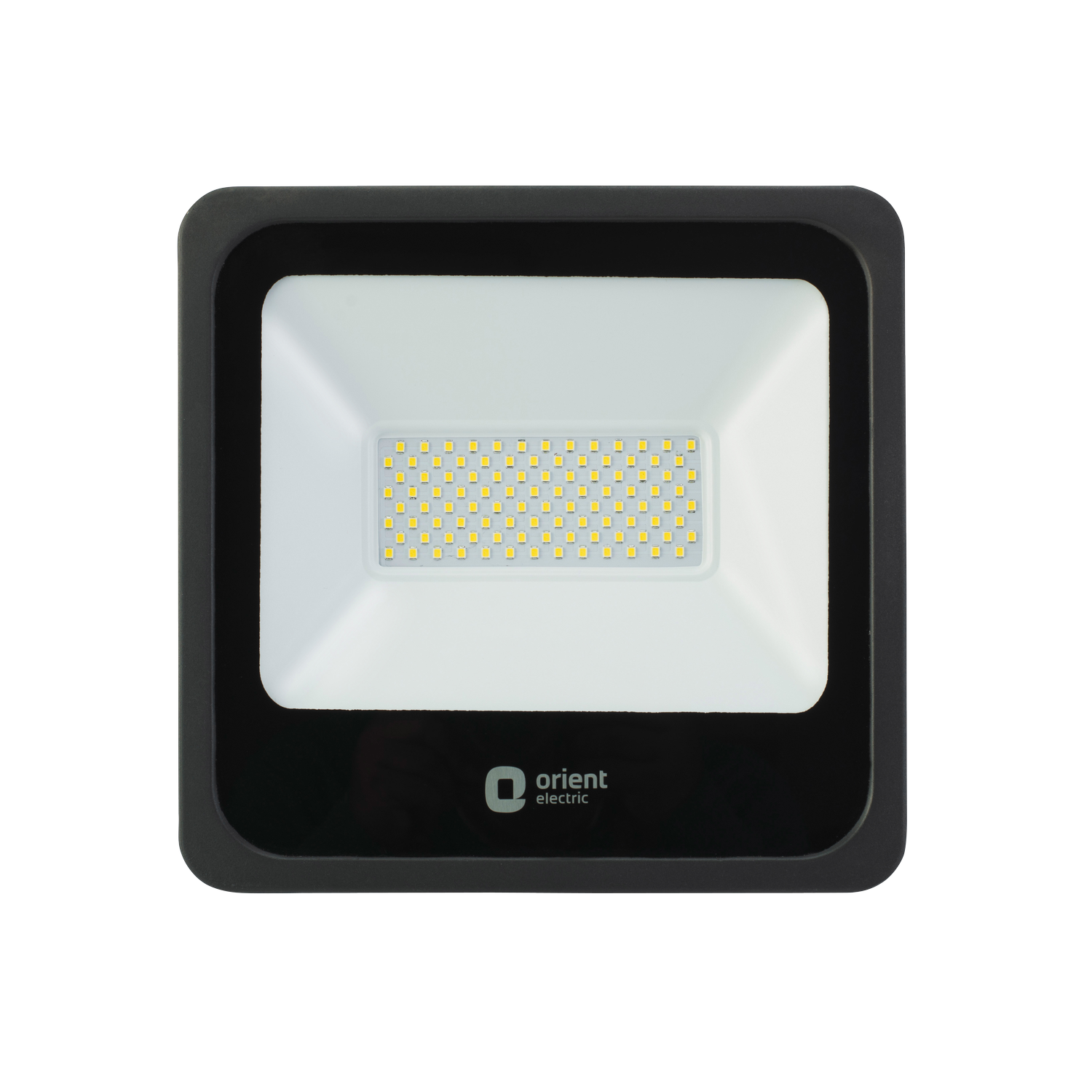

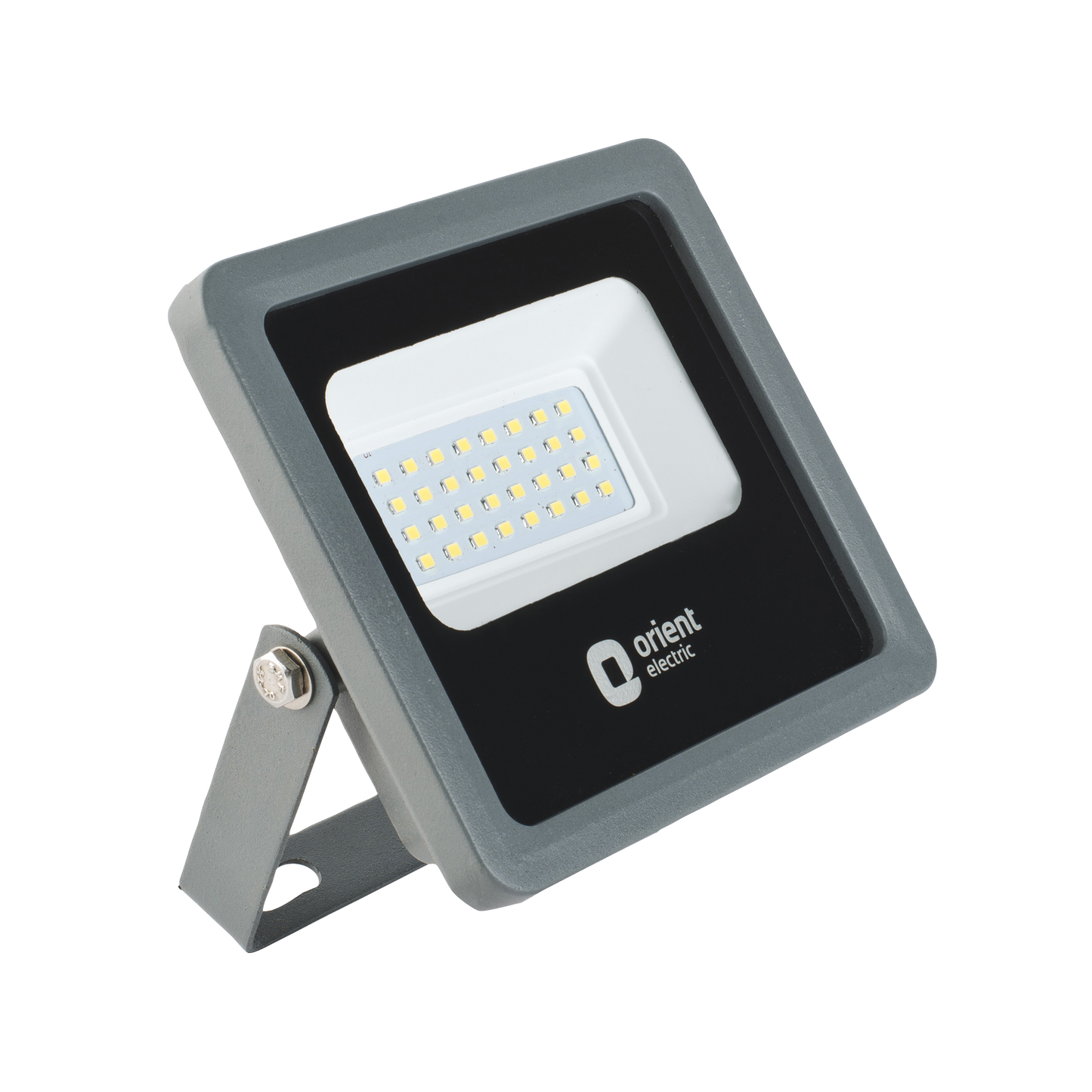

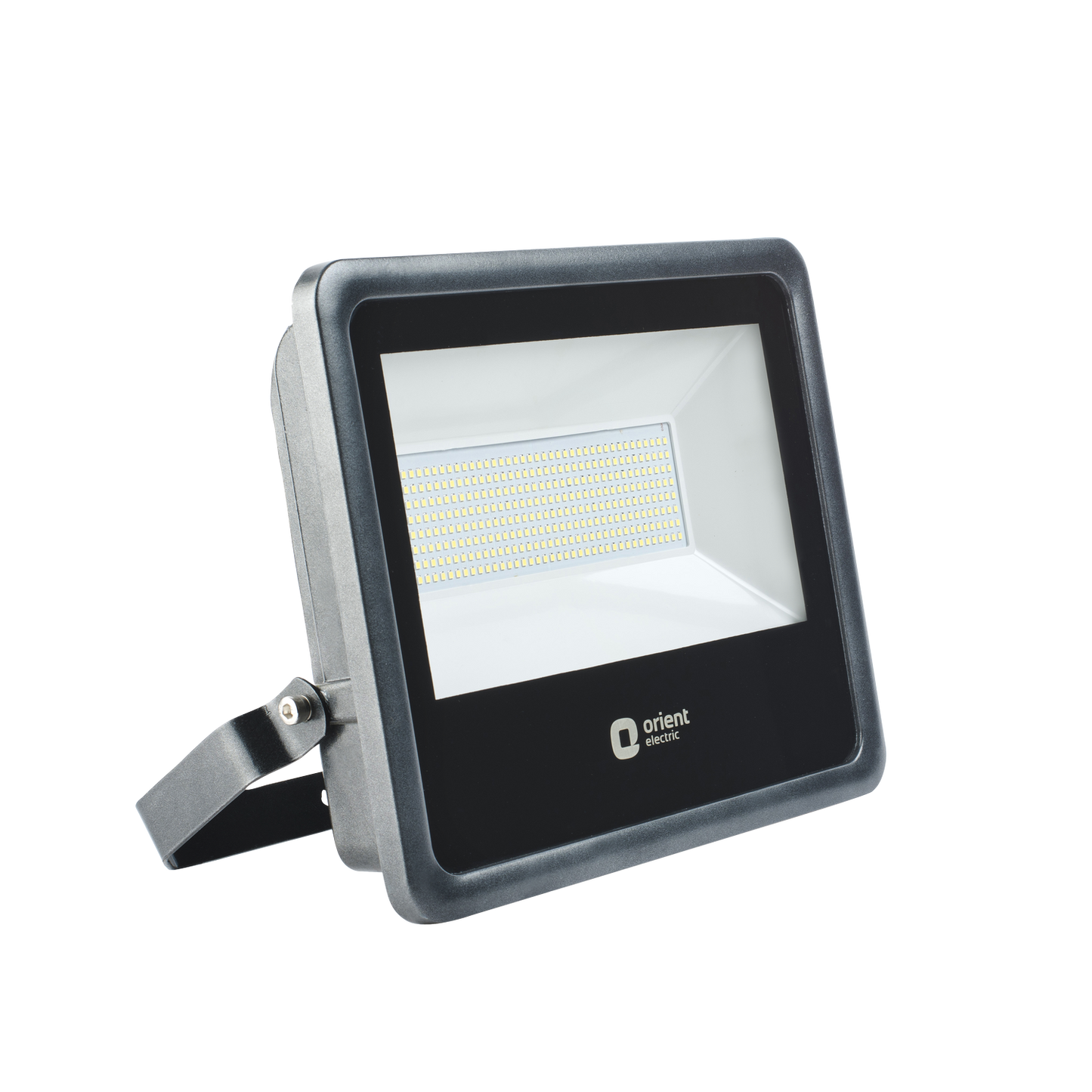

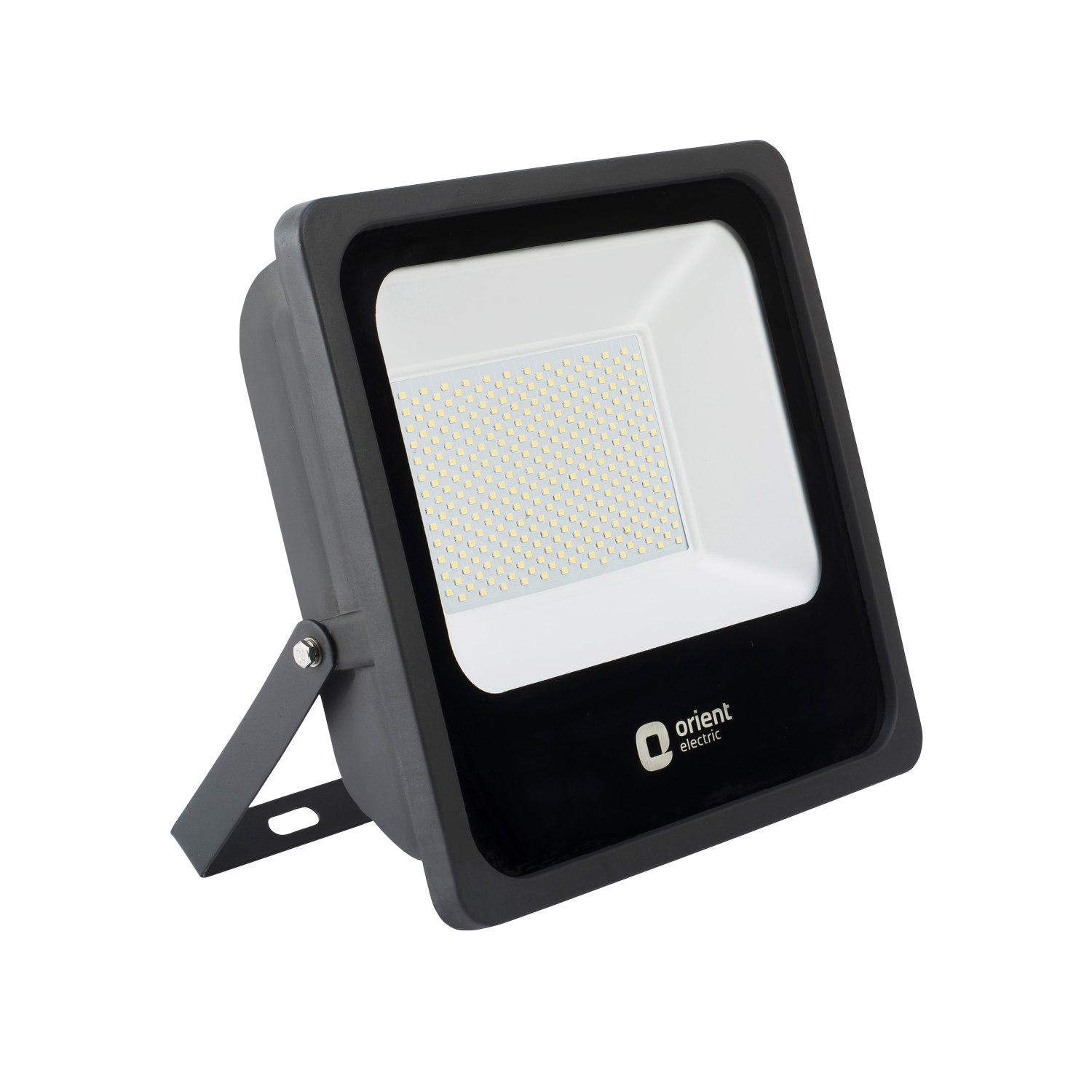

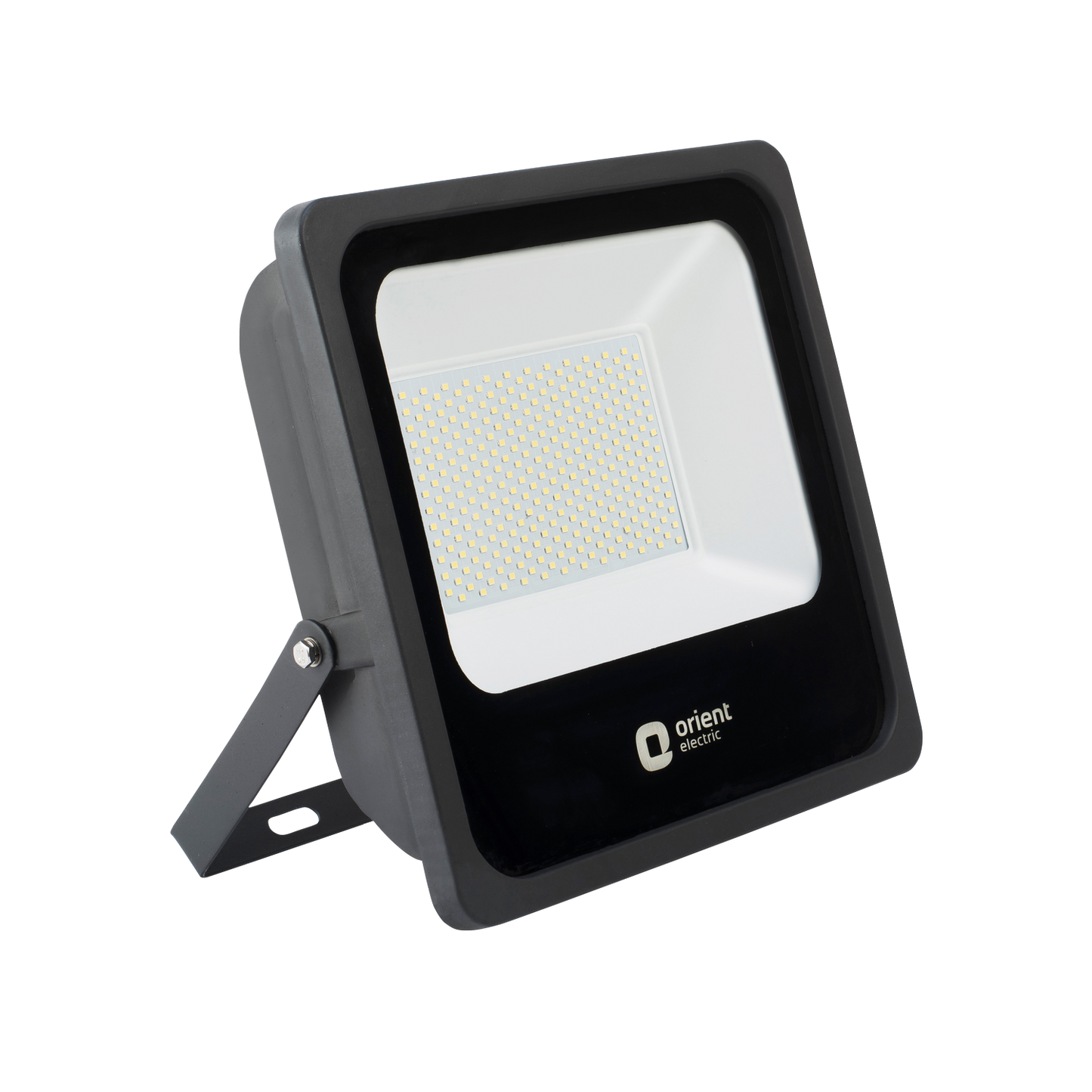

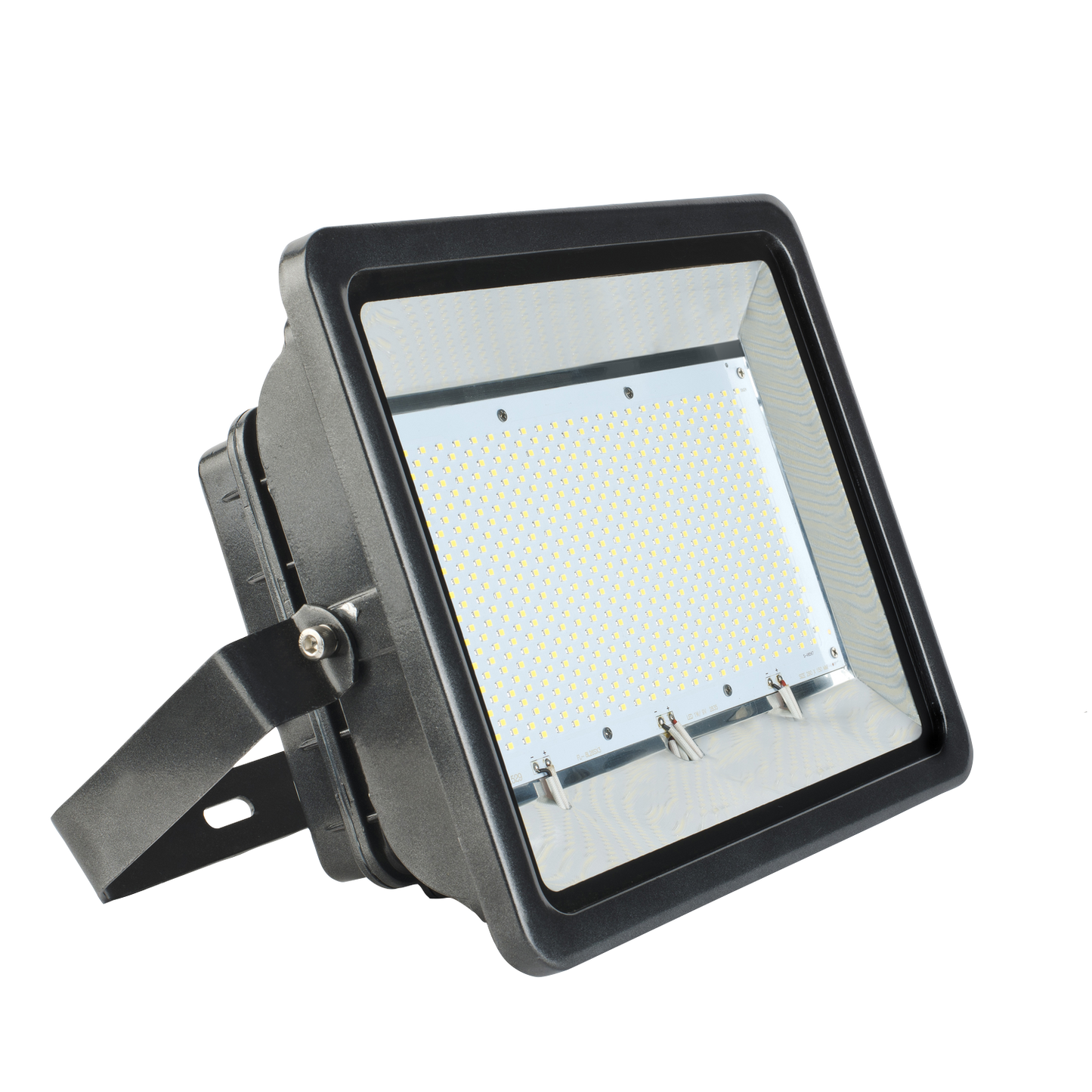

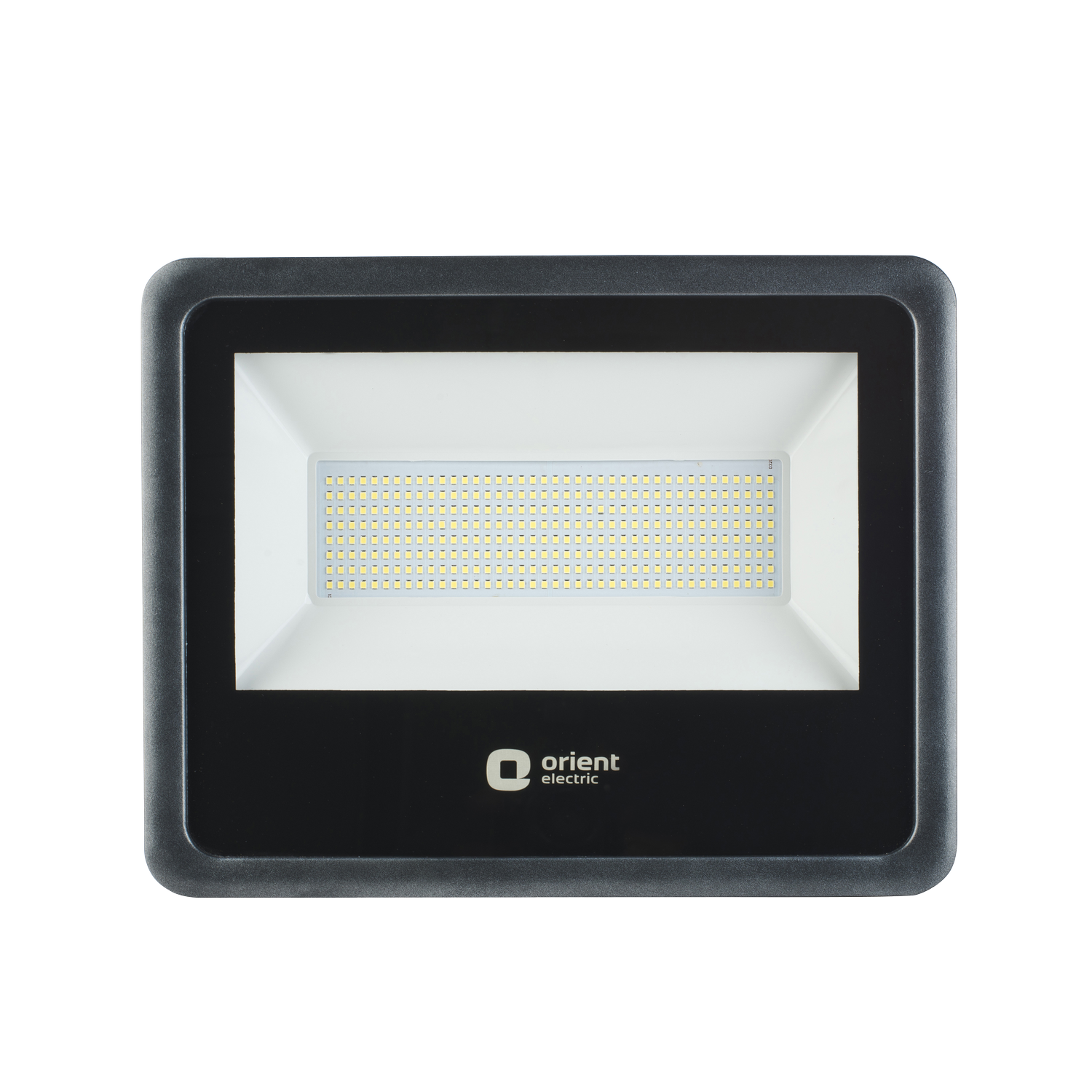

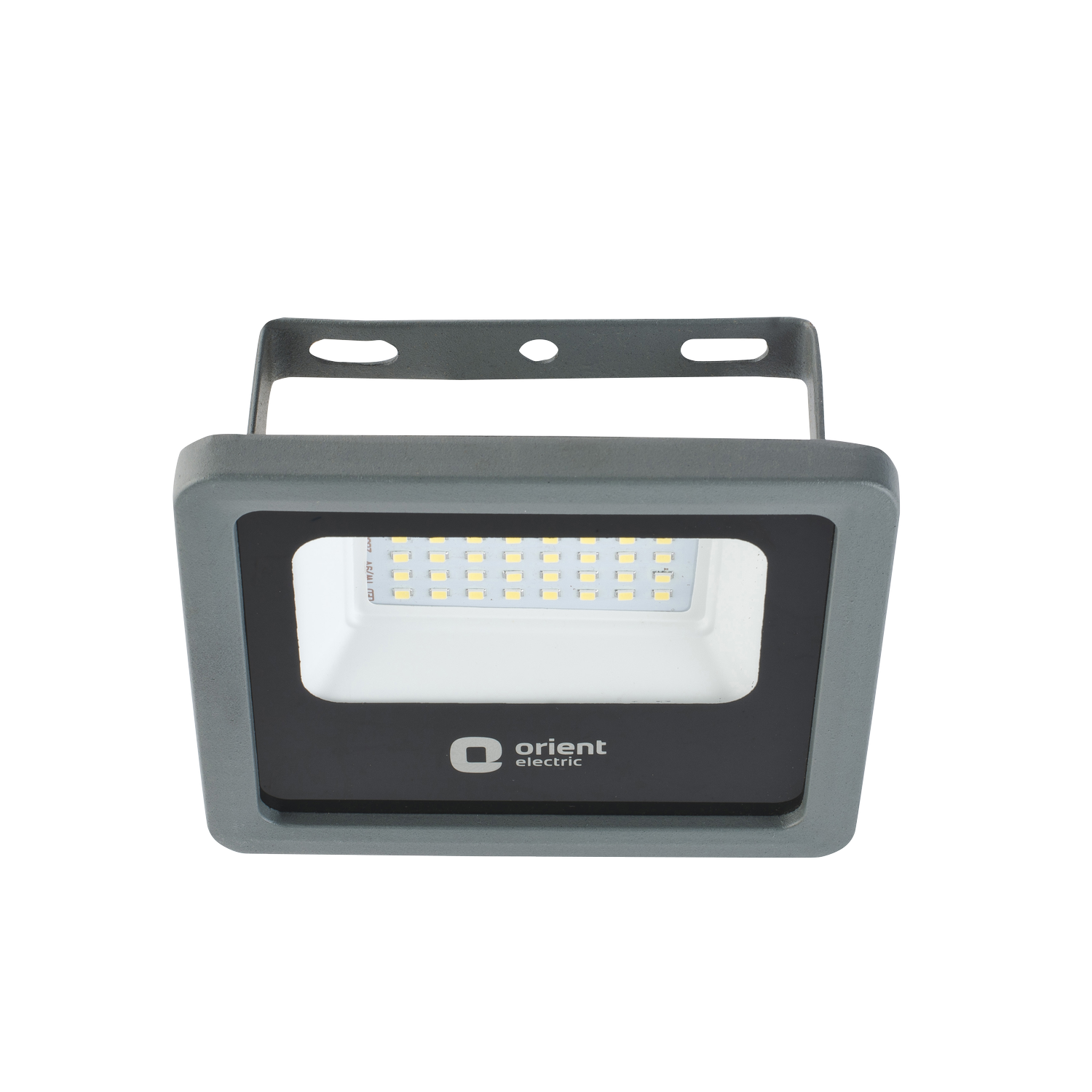

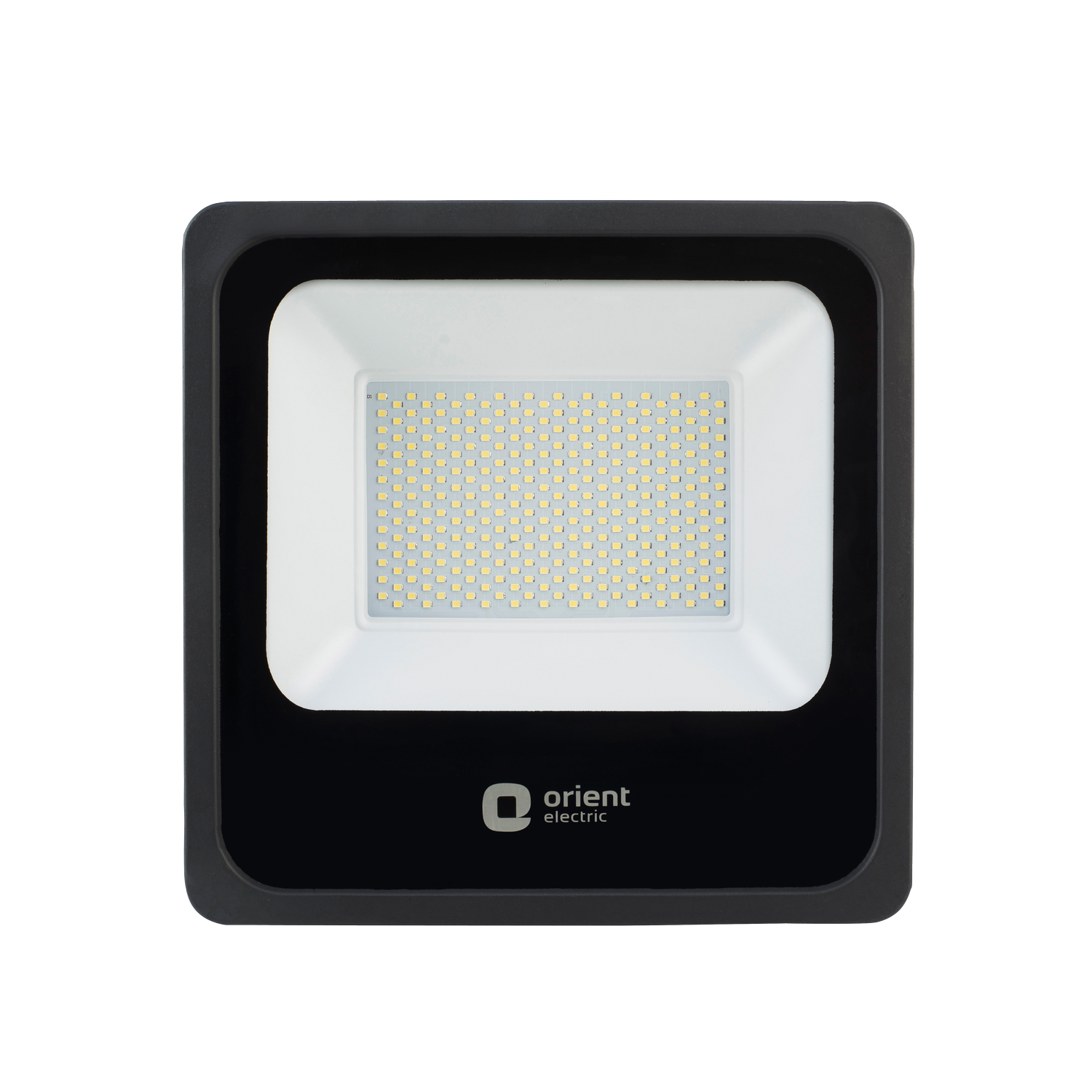

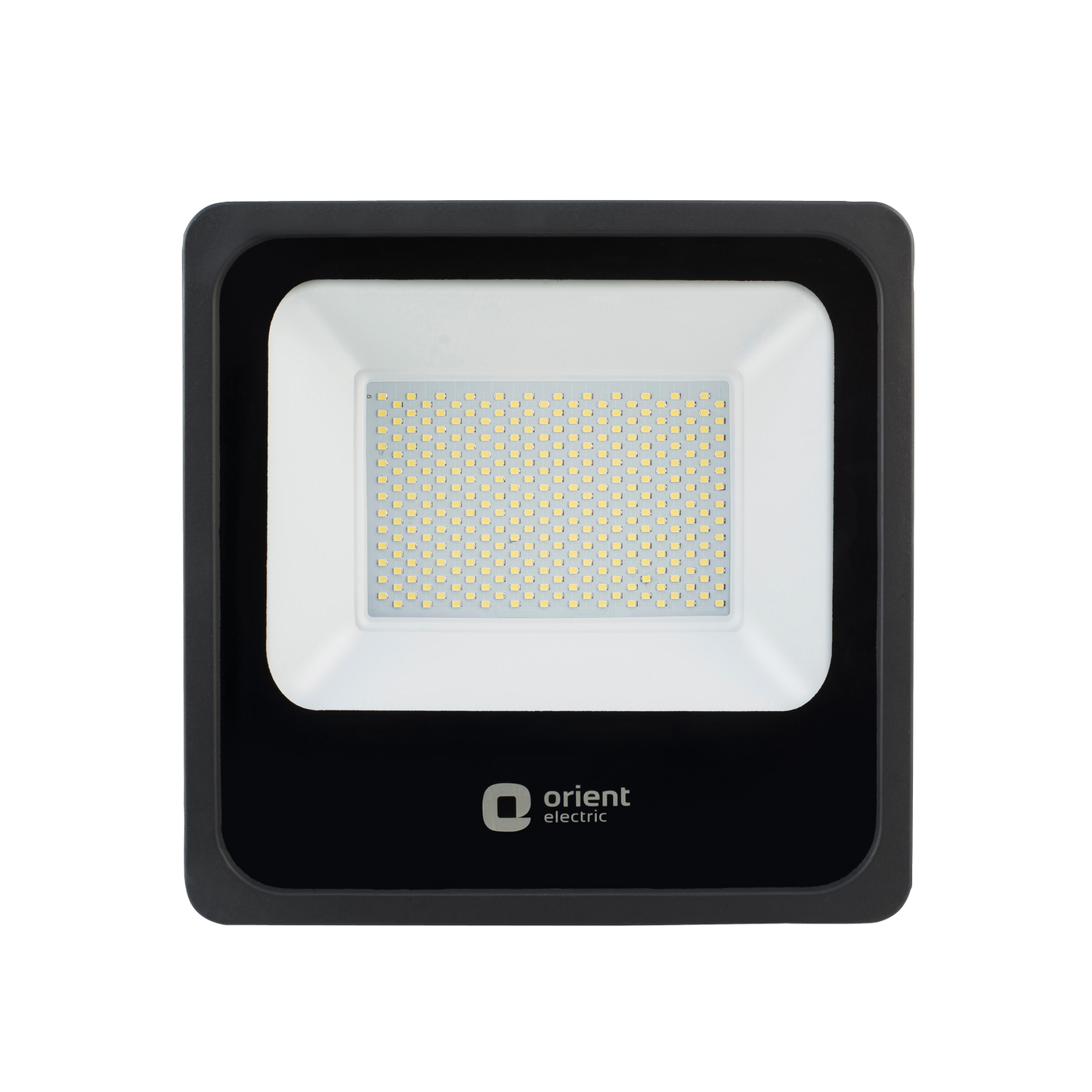

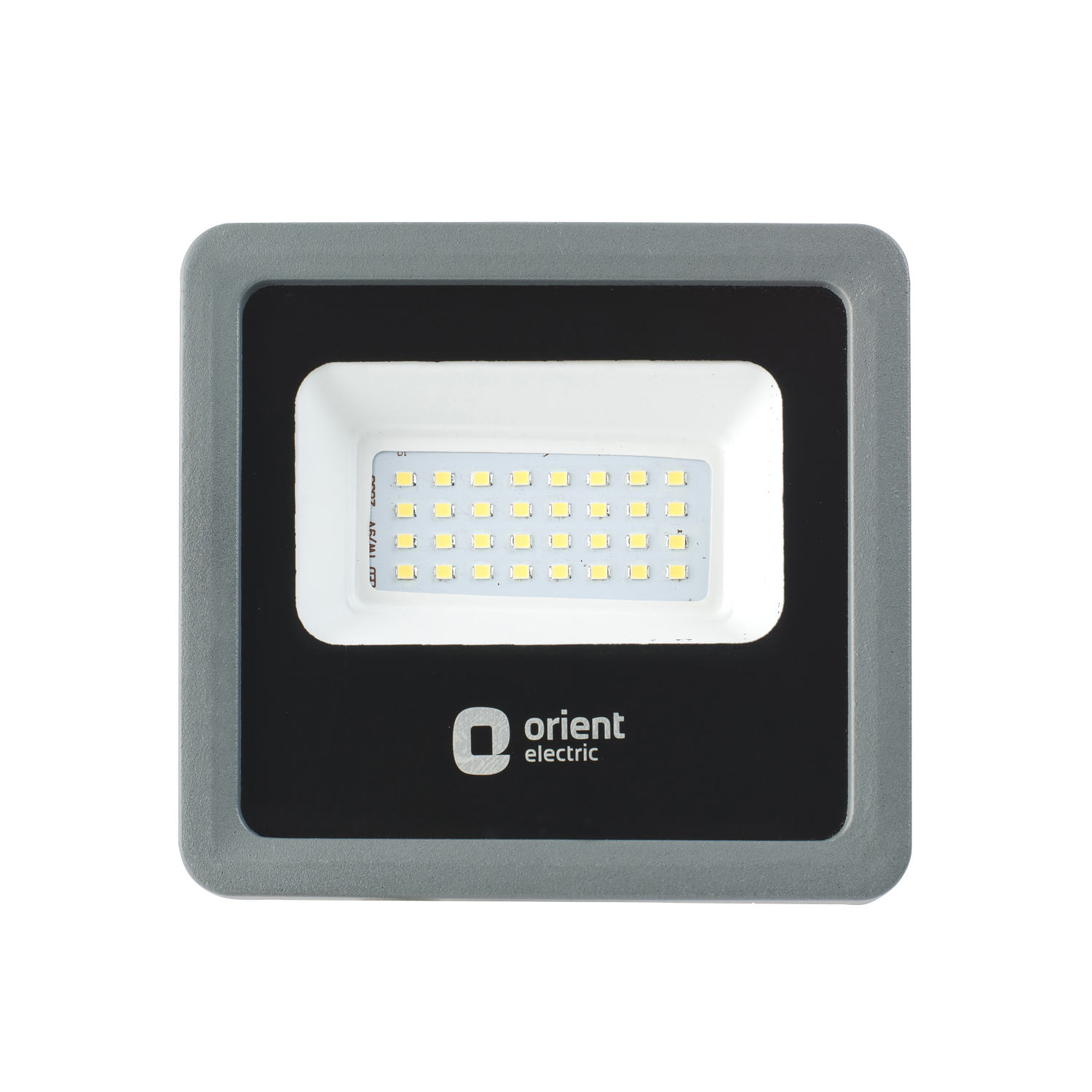

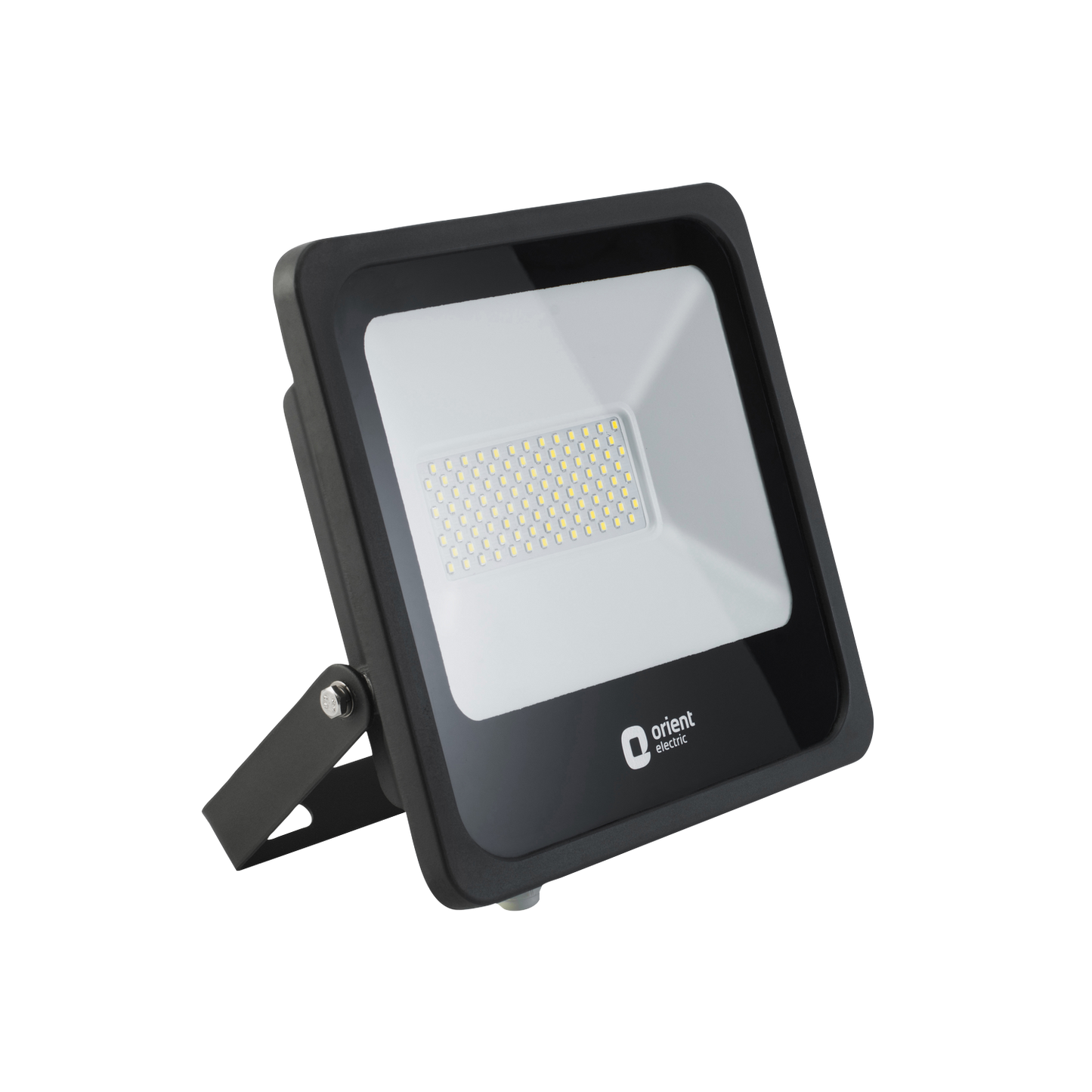

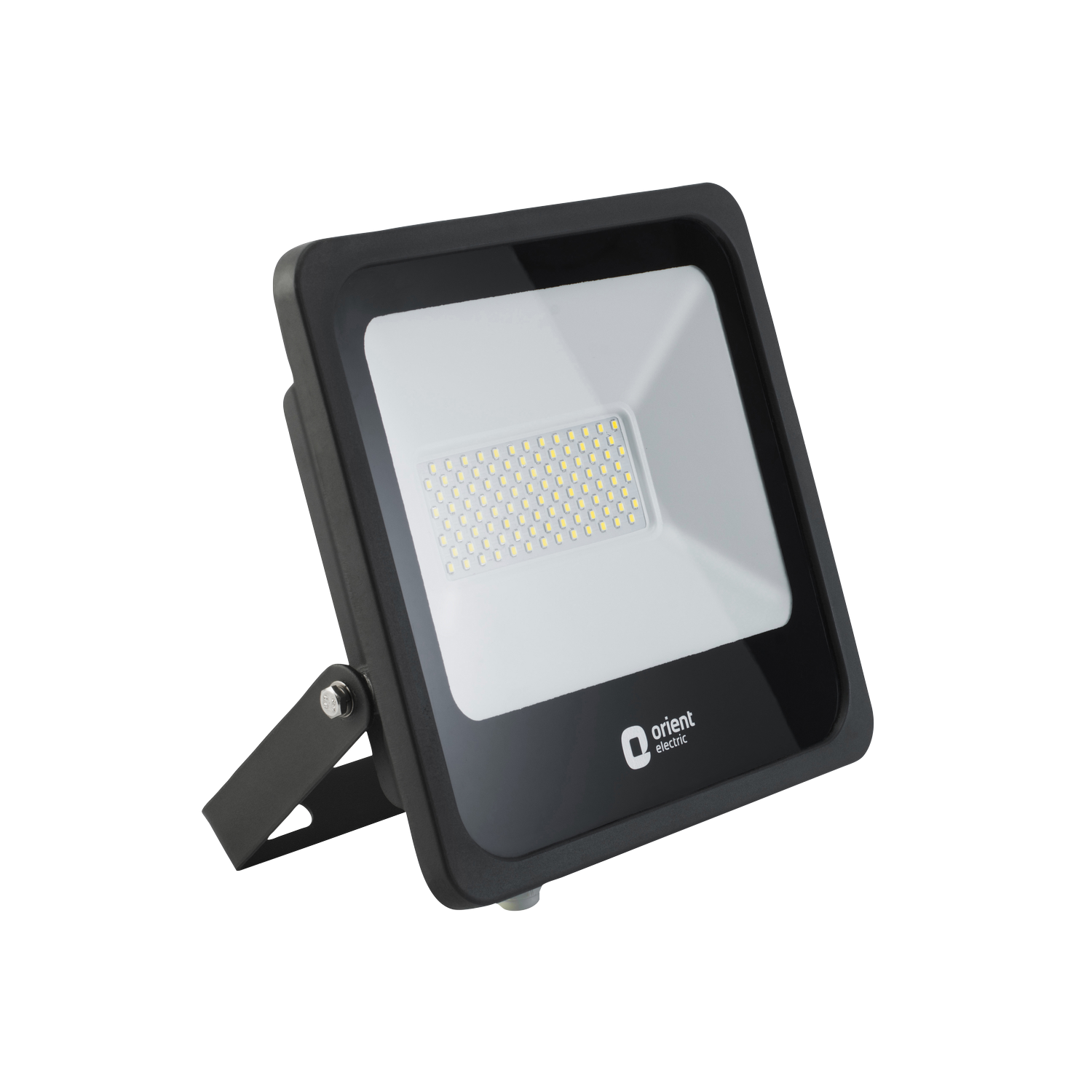

LED Floodlight designed with excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating and fitted with clear toughened glass cover in front.

View full details
  • General specification

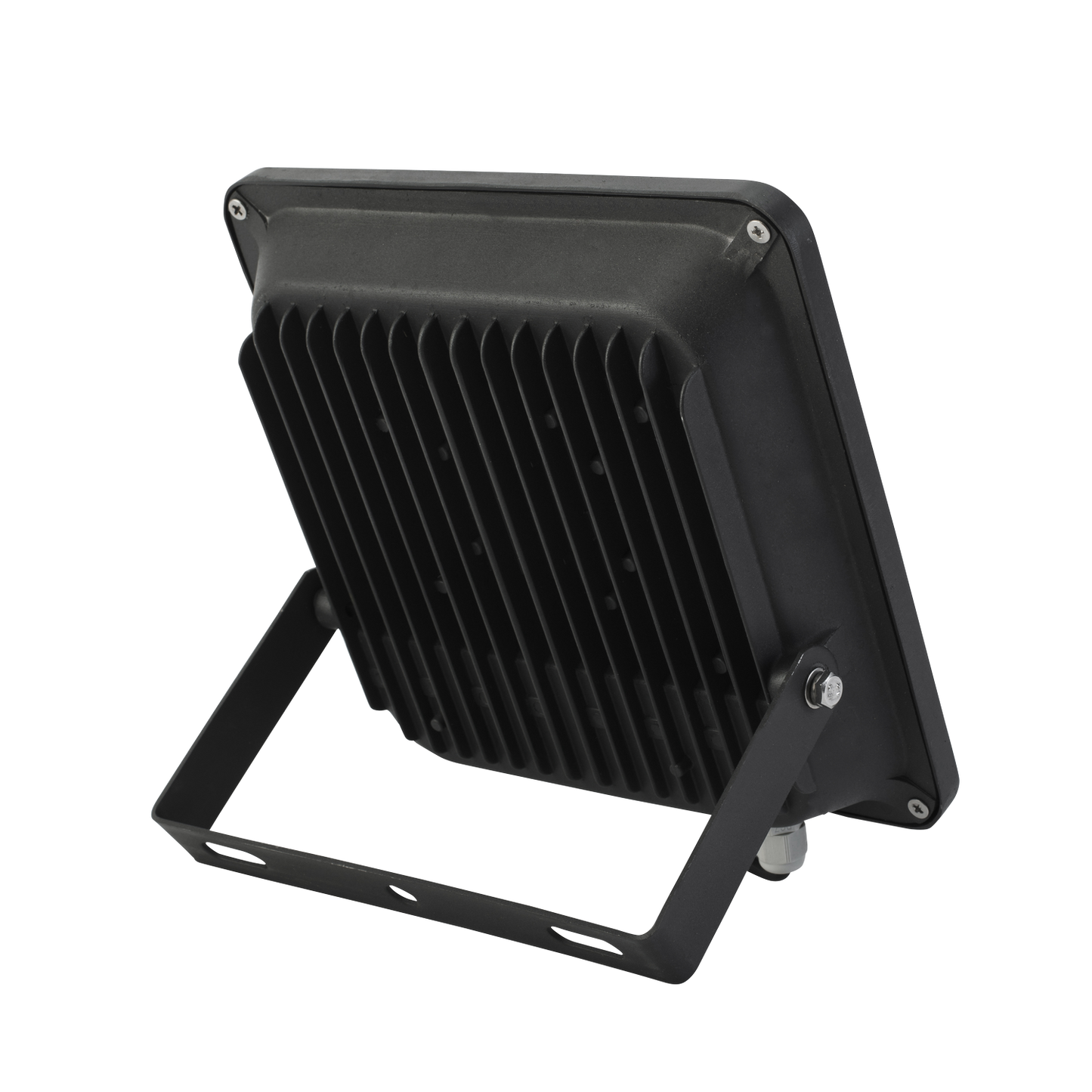

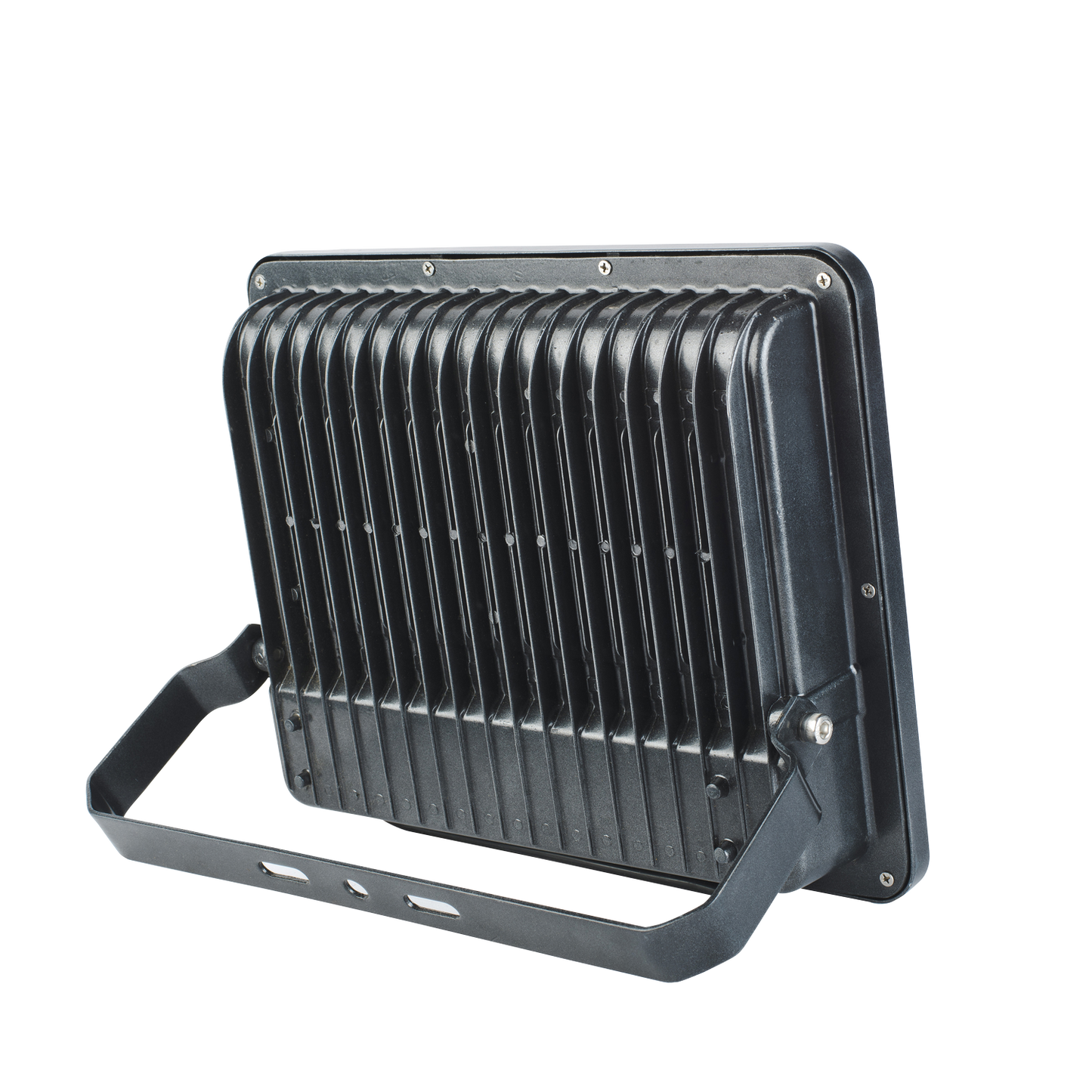

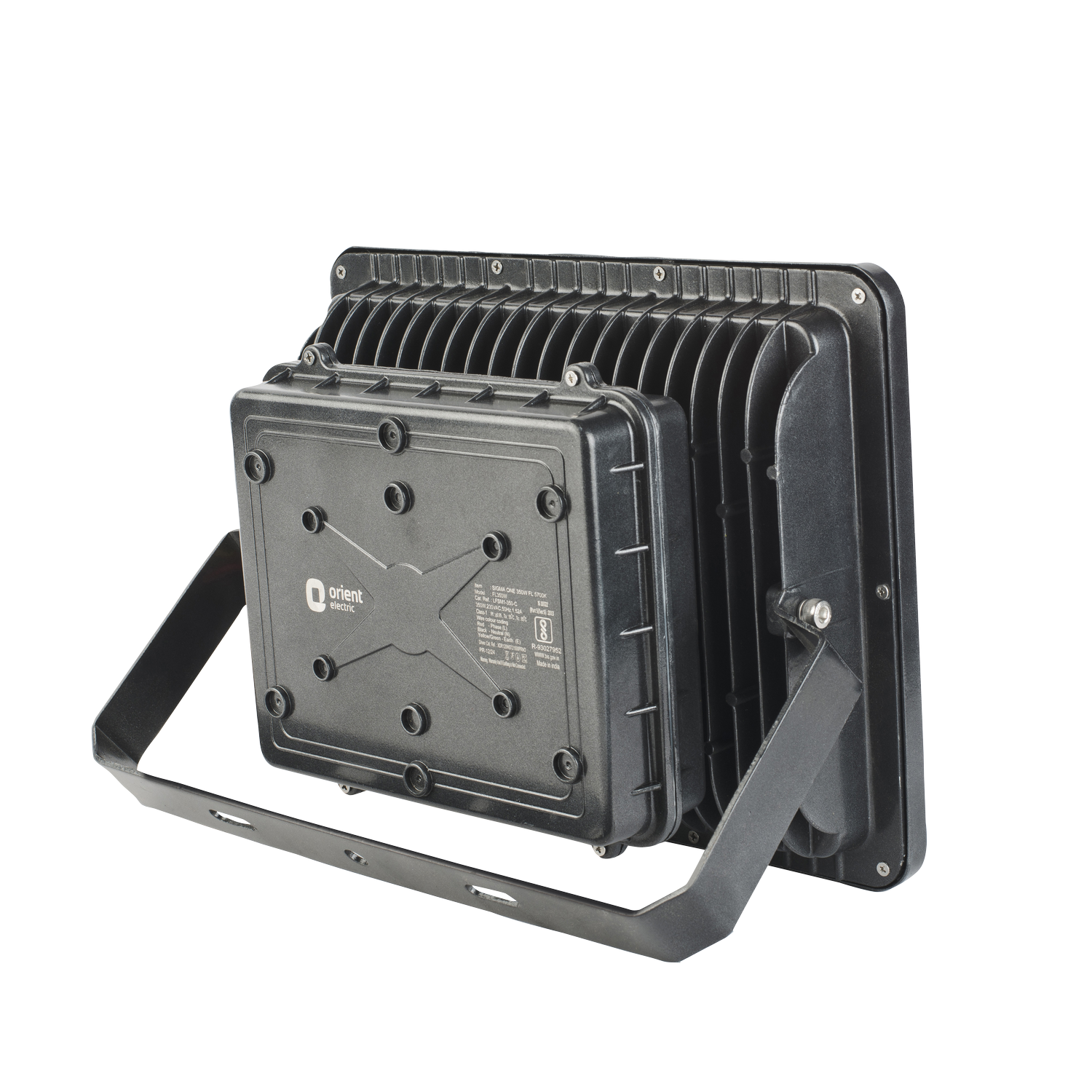

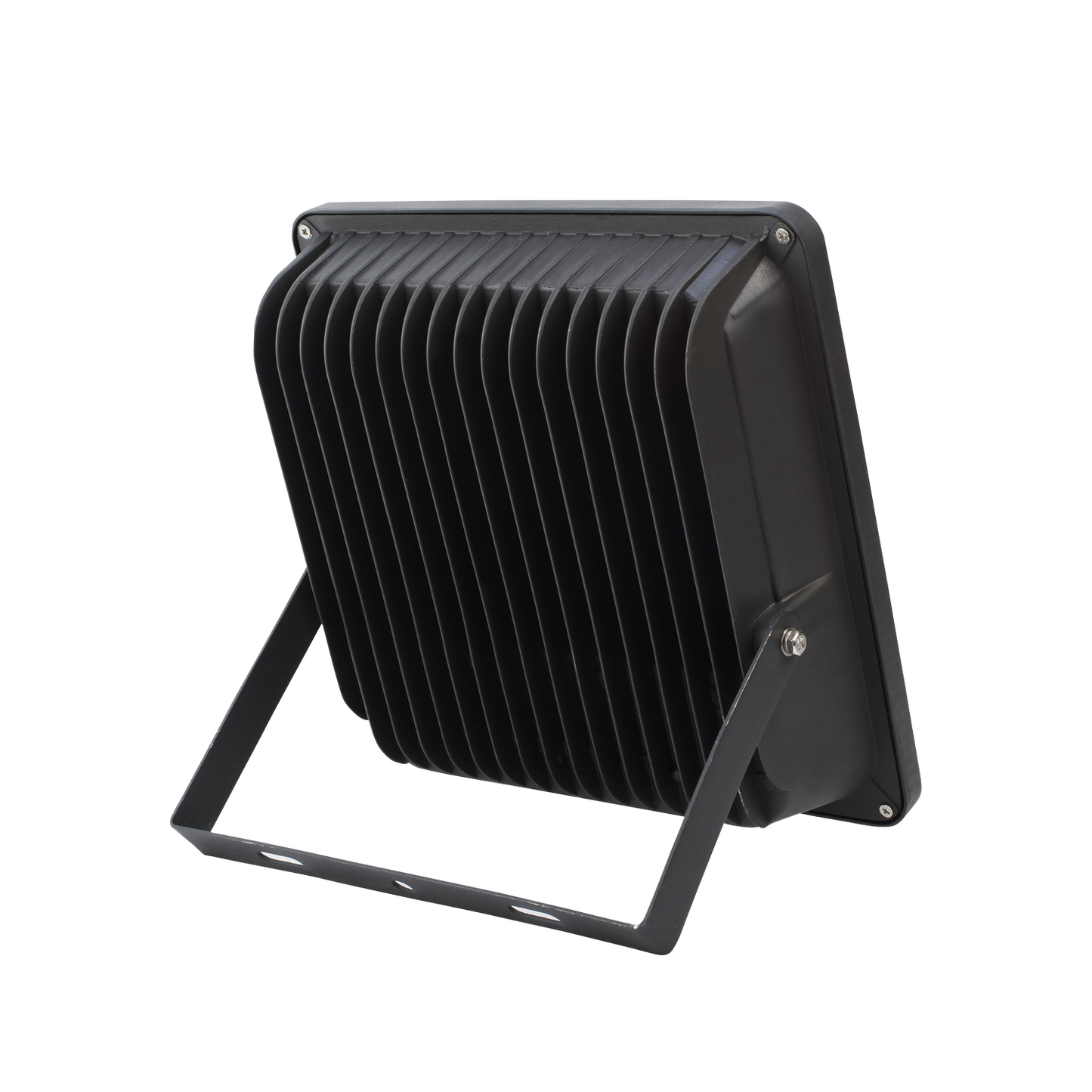

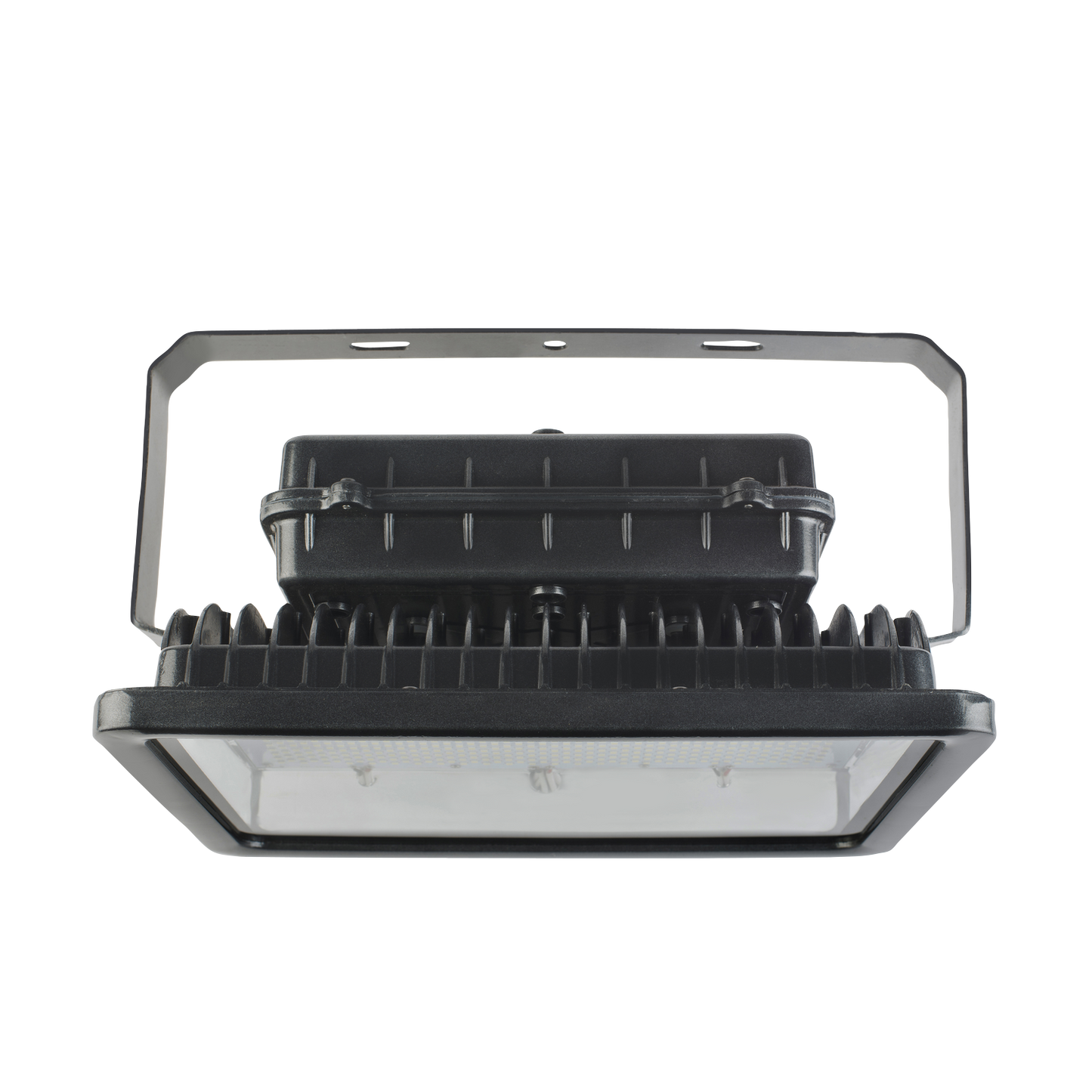

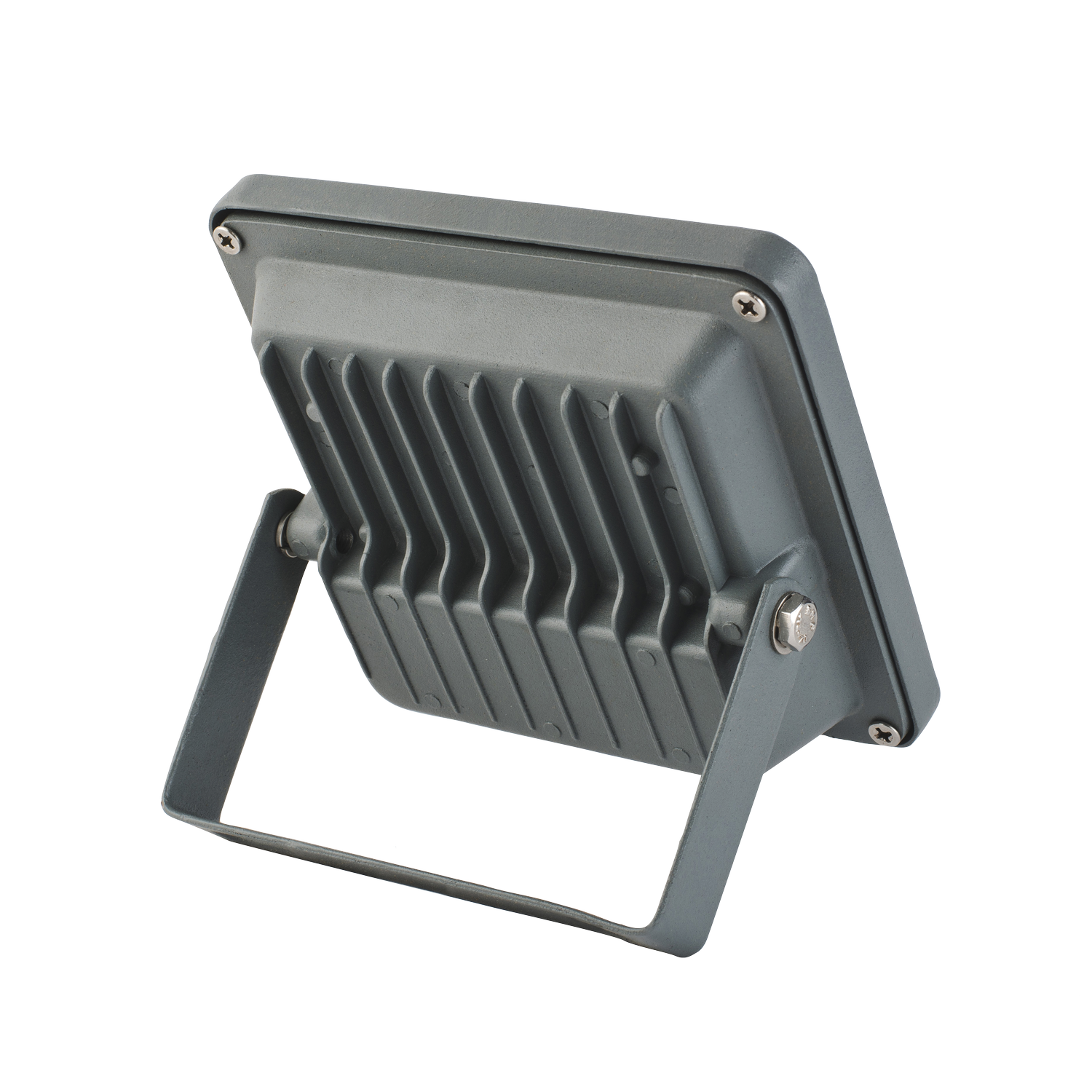

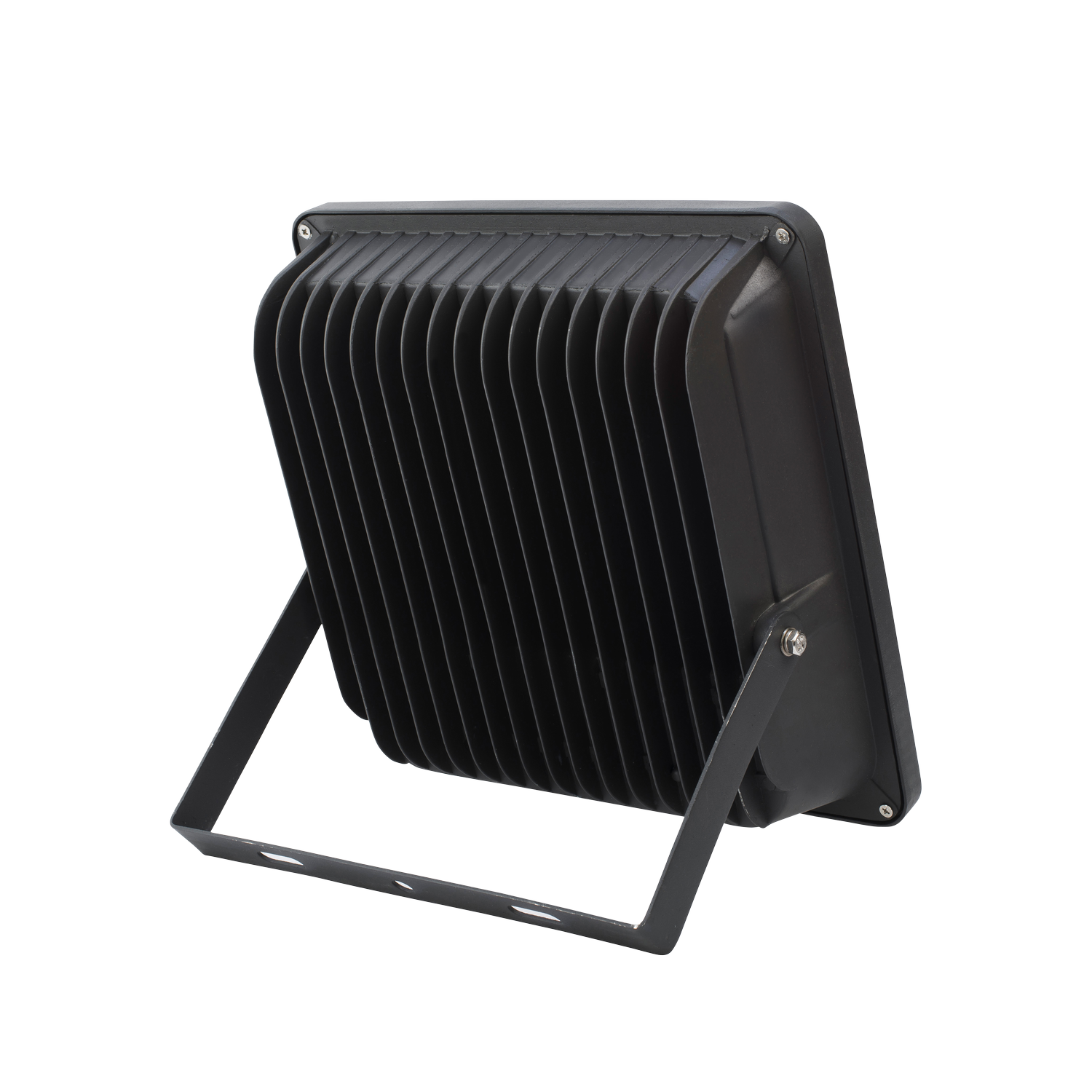

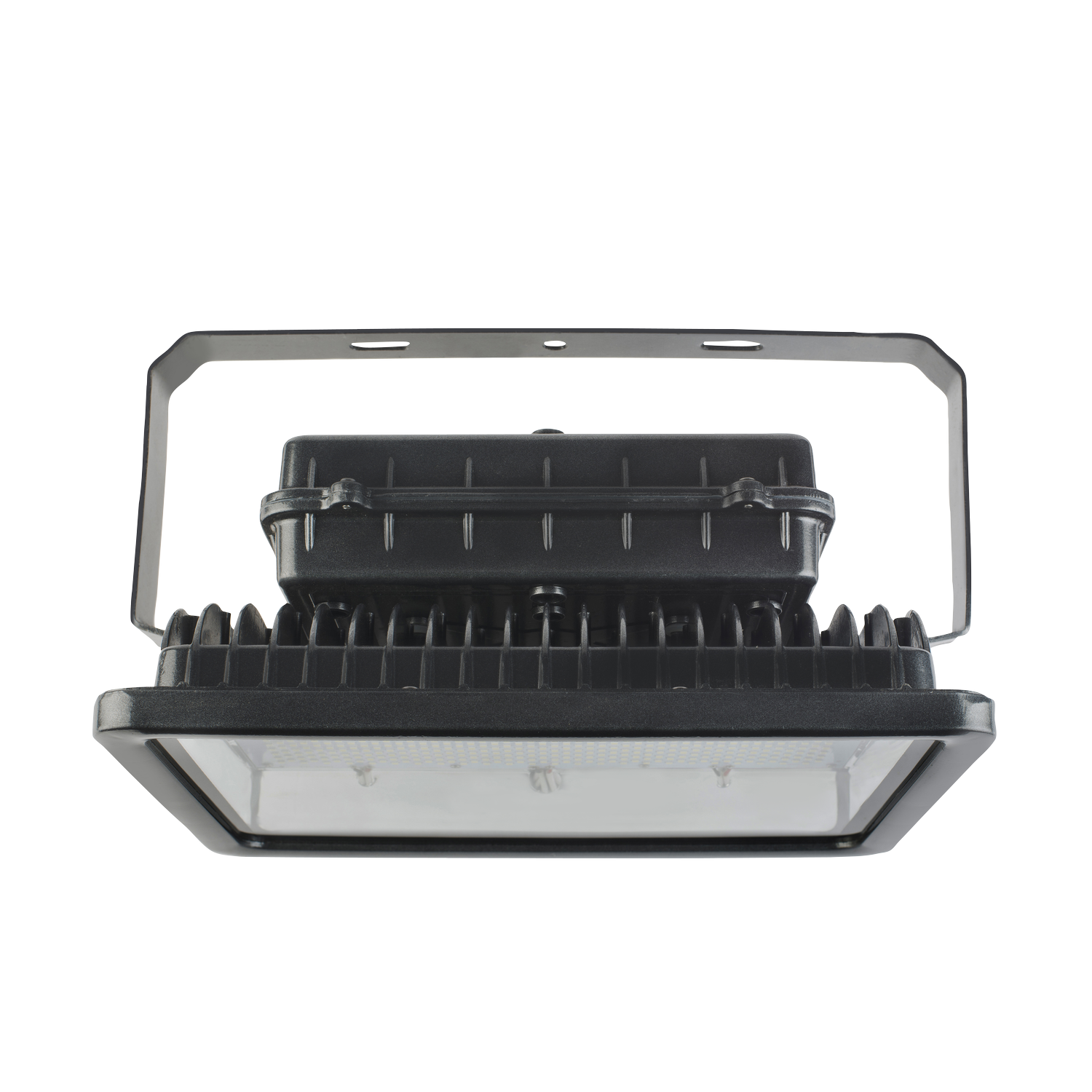

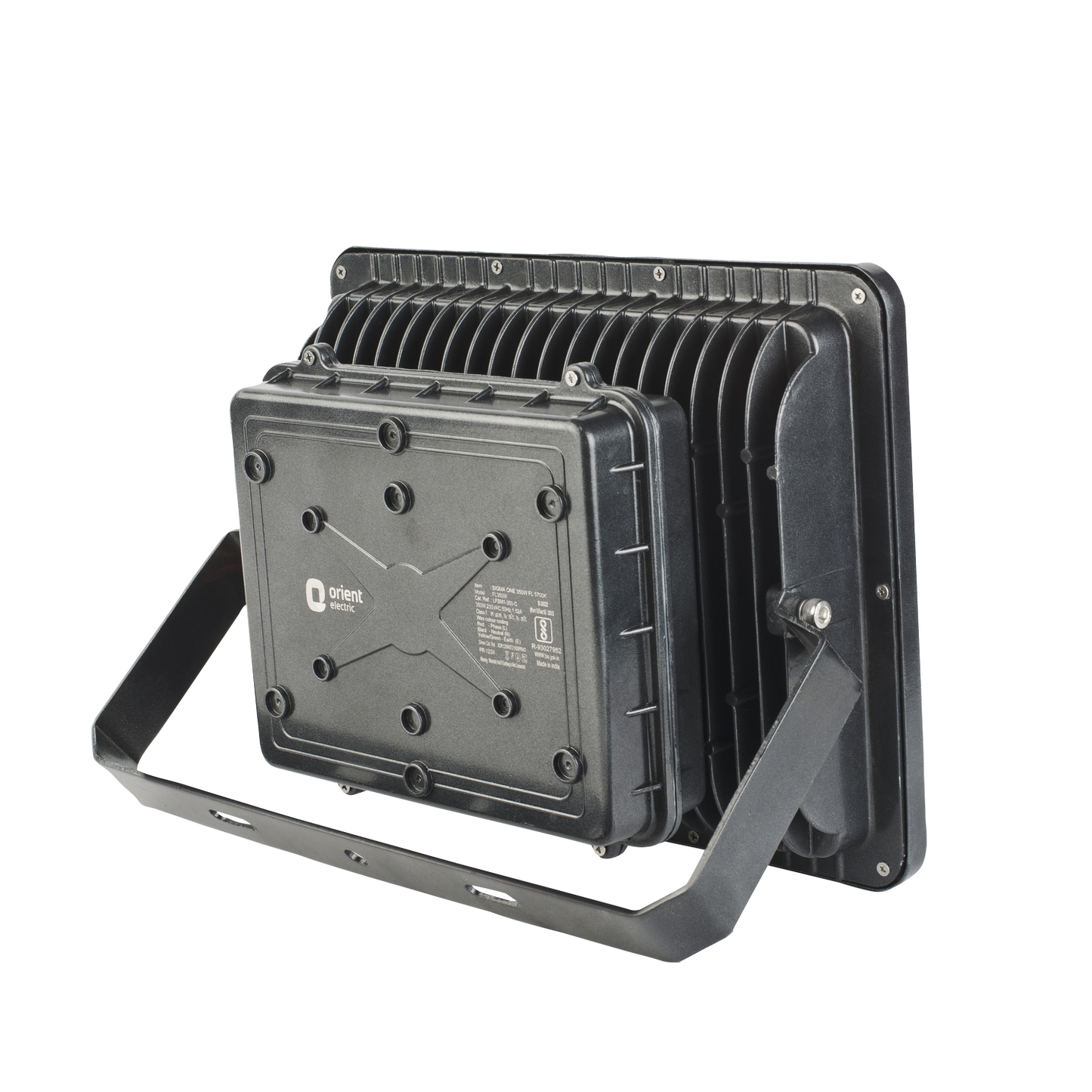

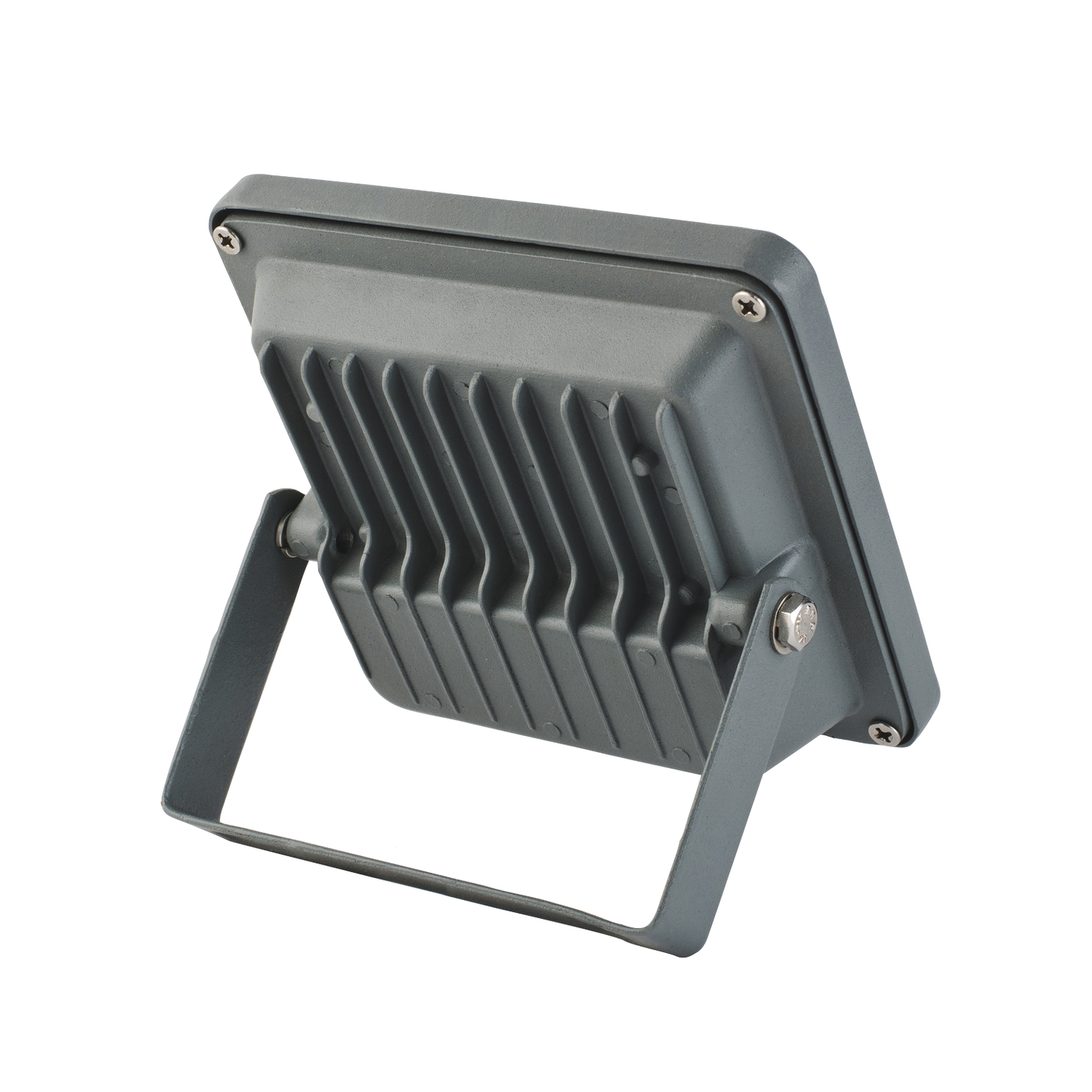

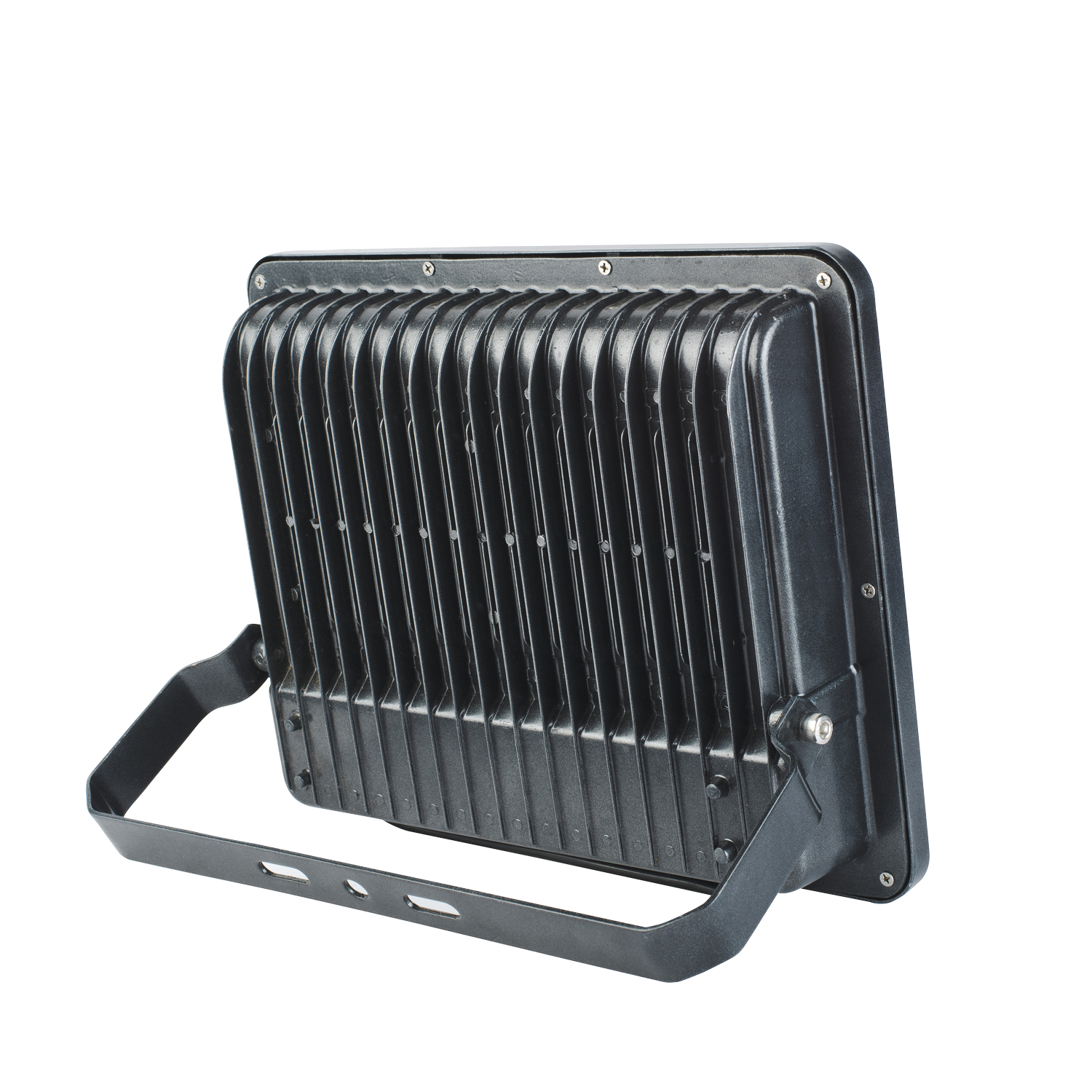

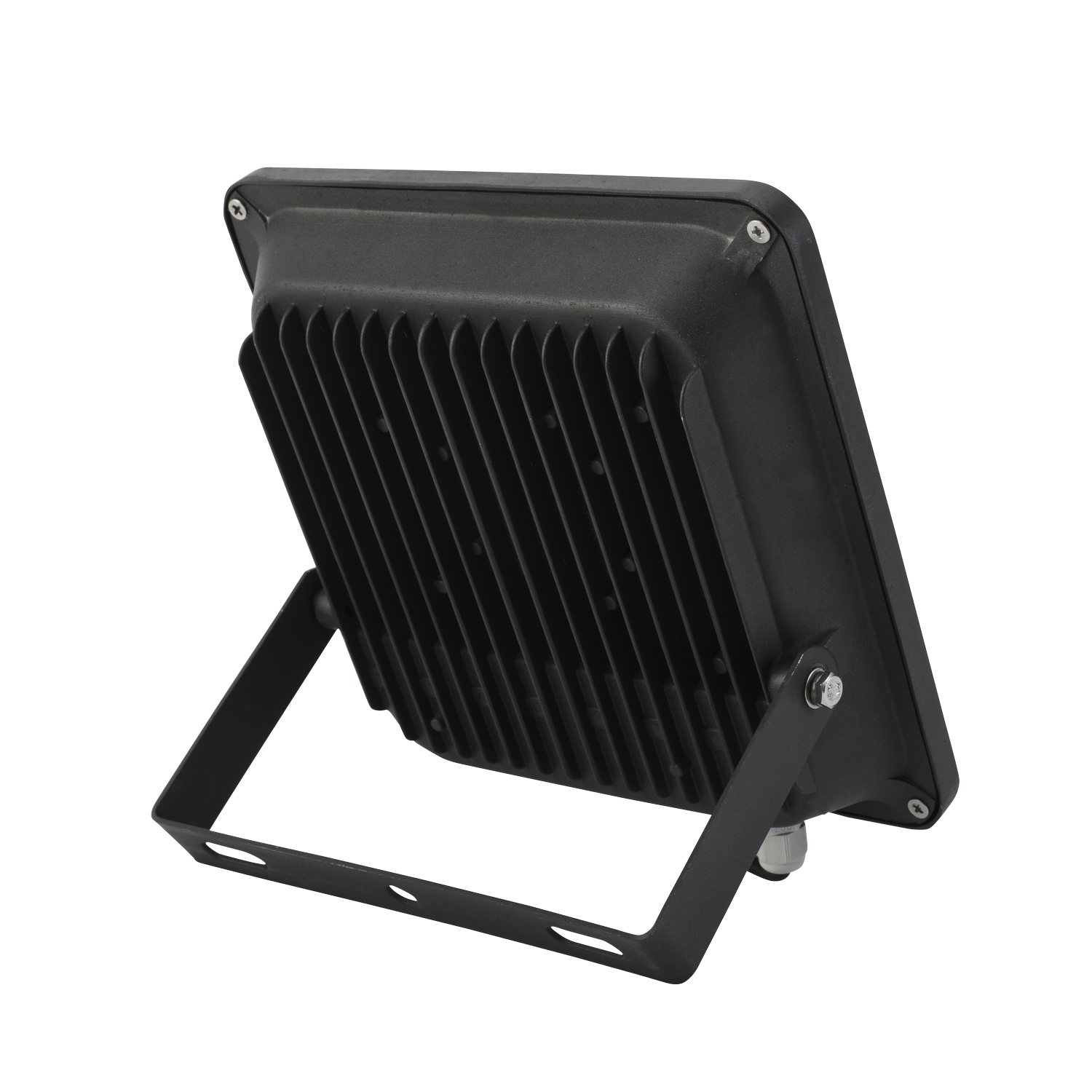

    Housing Excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating.
    Optics High lumen efficacy LED Module with SMD LED Package fitted with clear toughened glass cover in front.

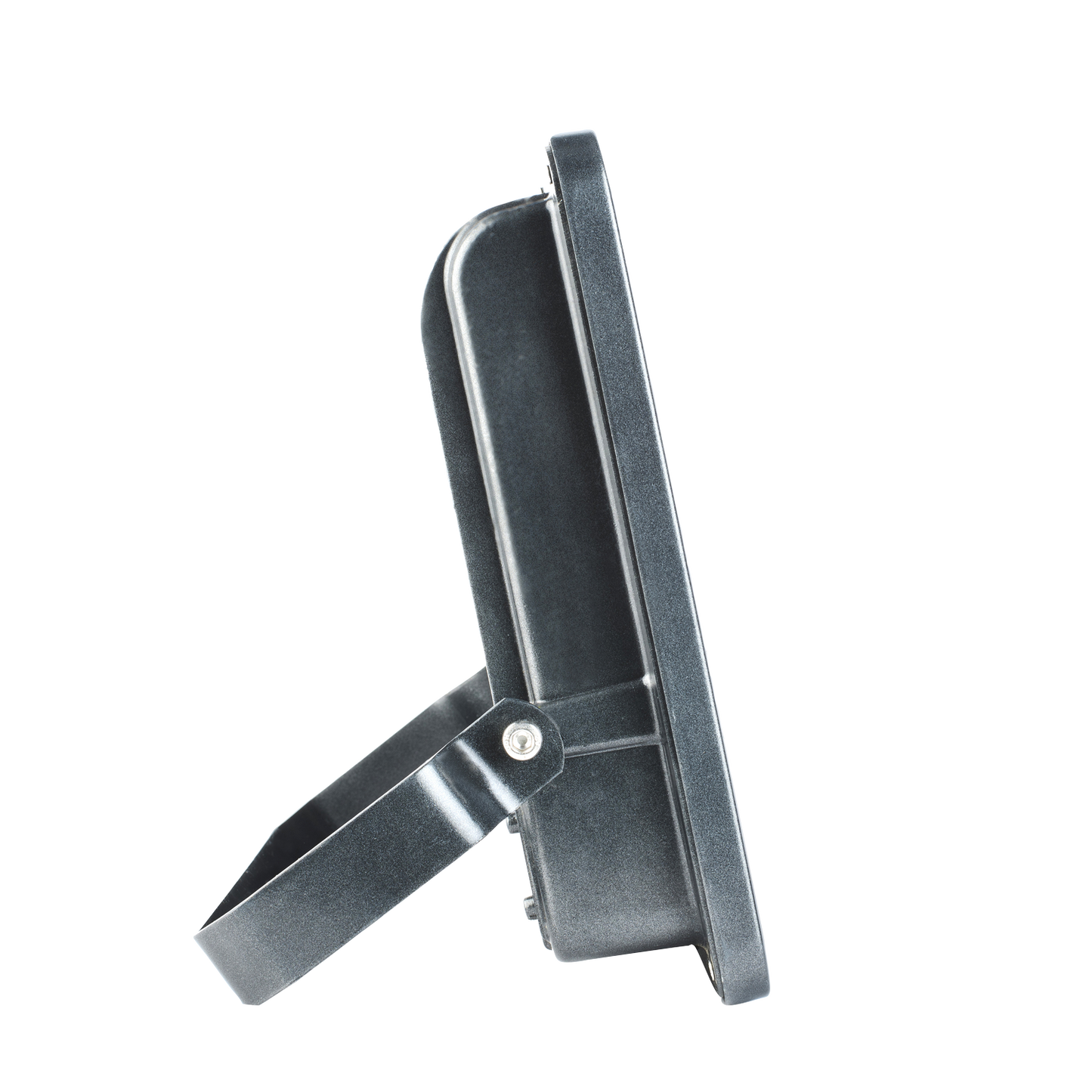

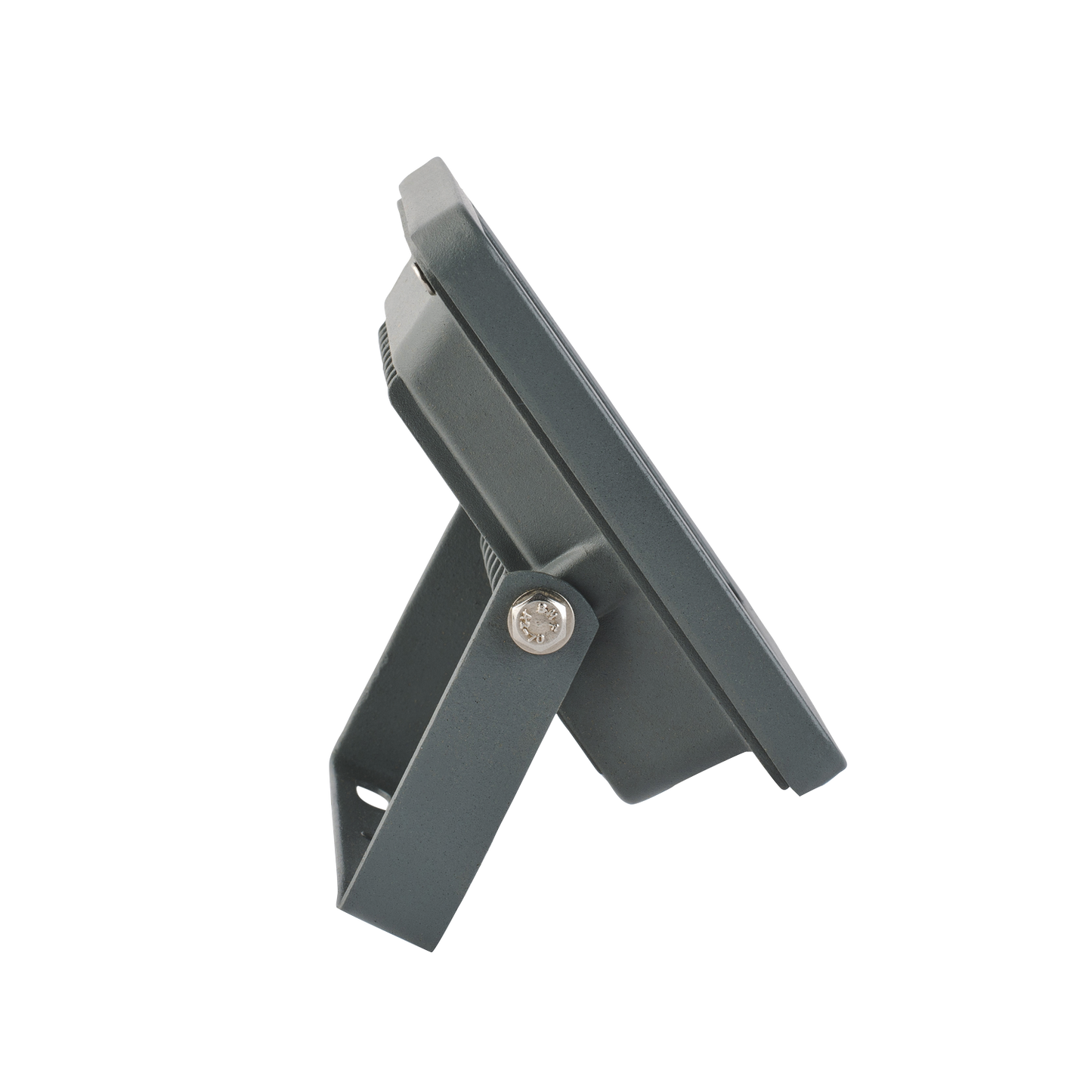

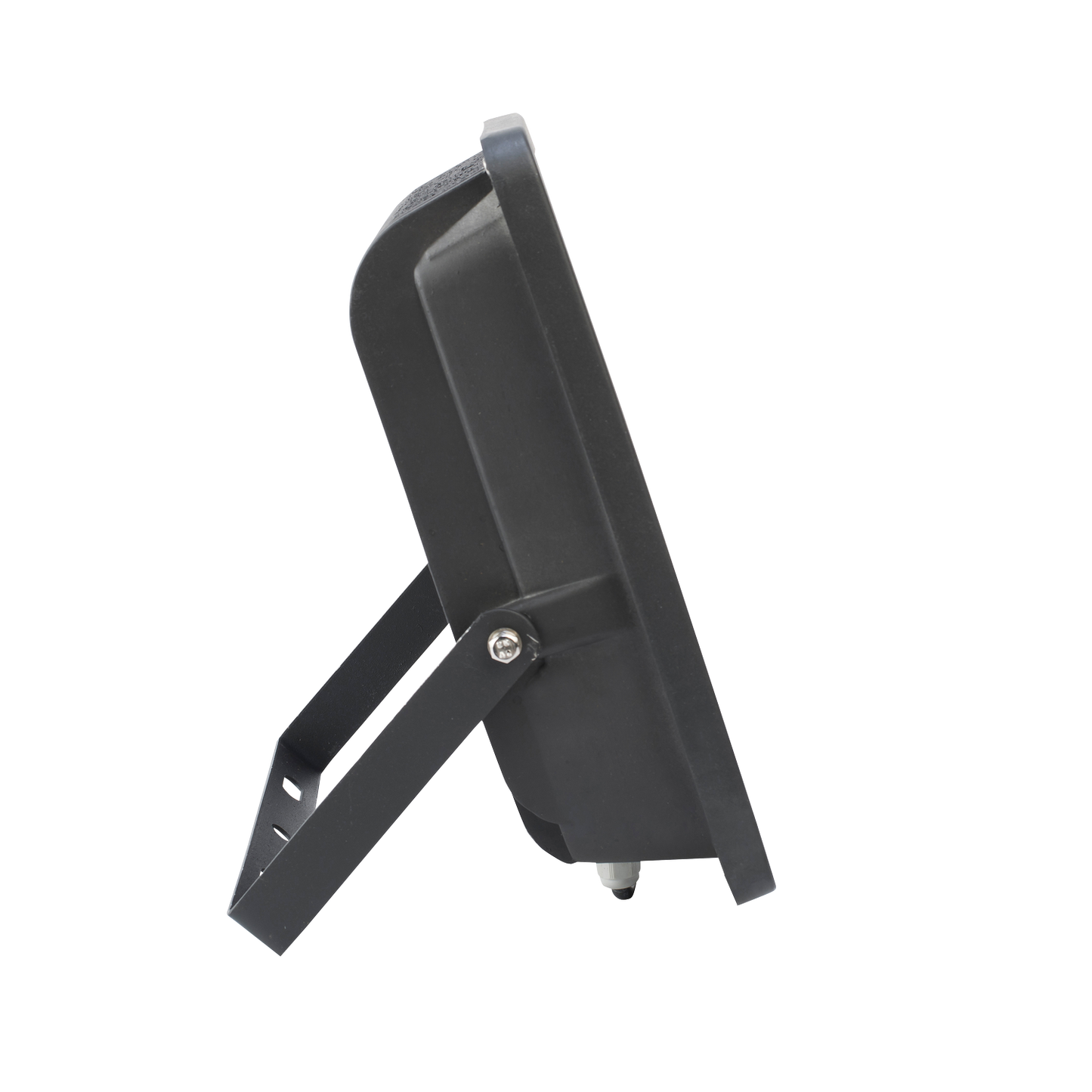

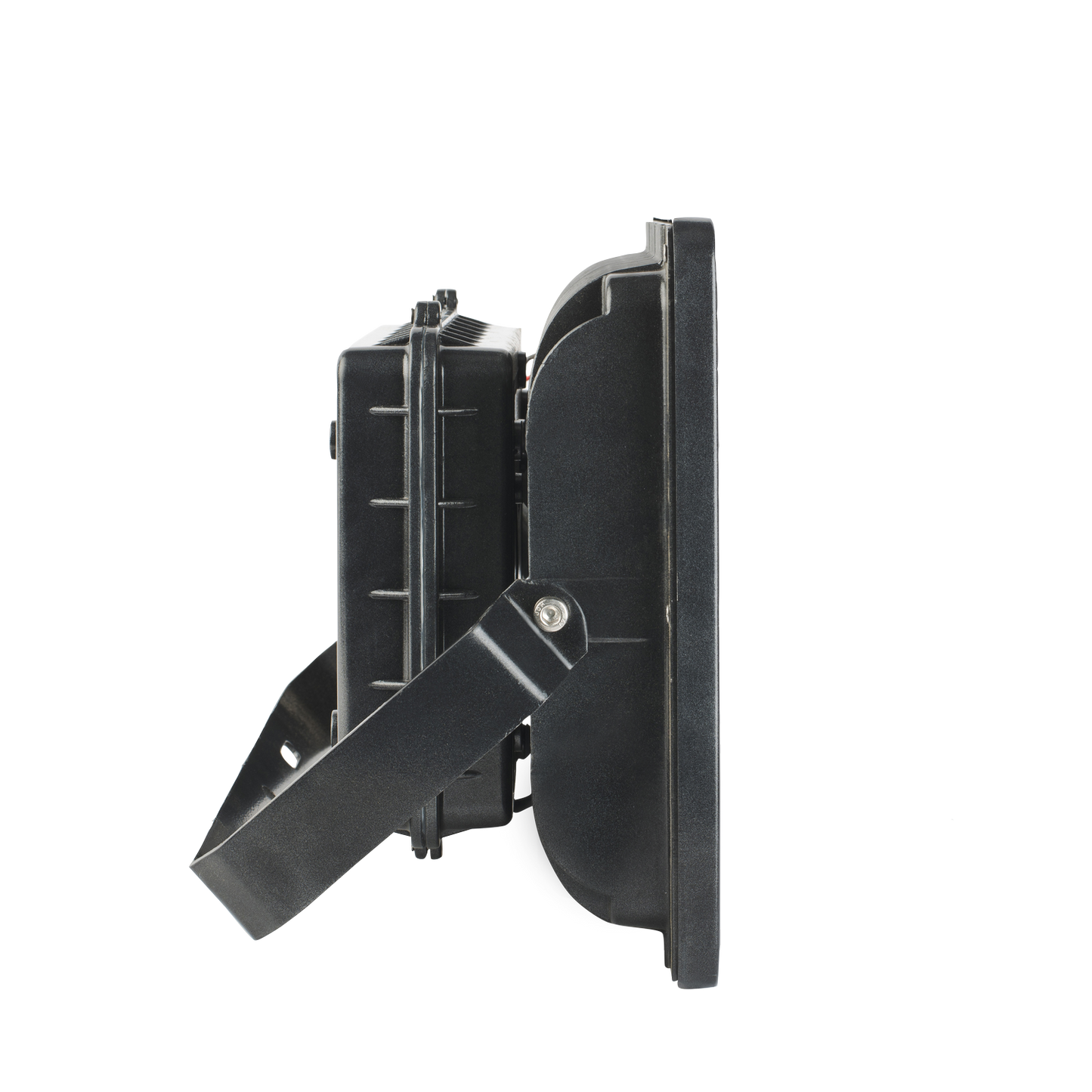

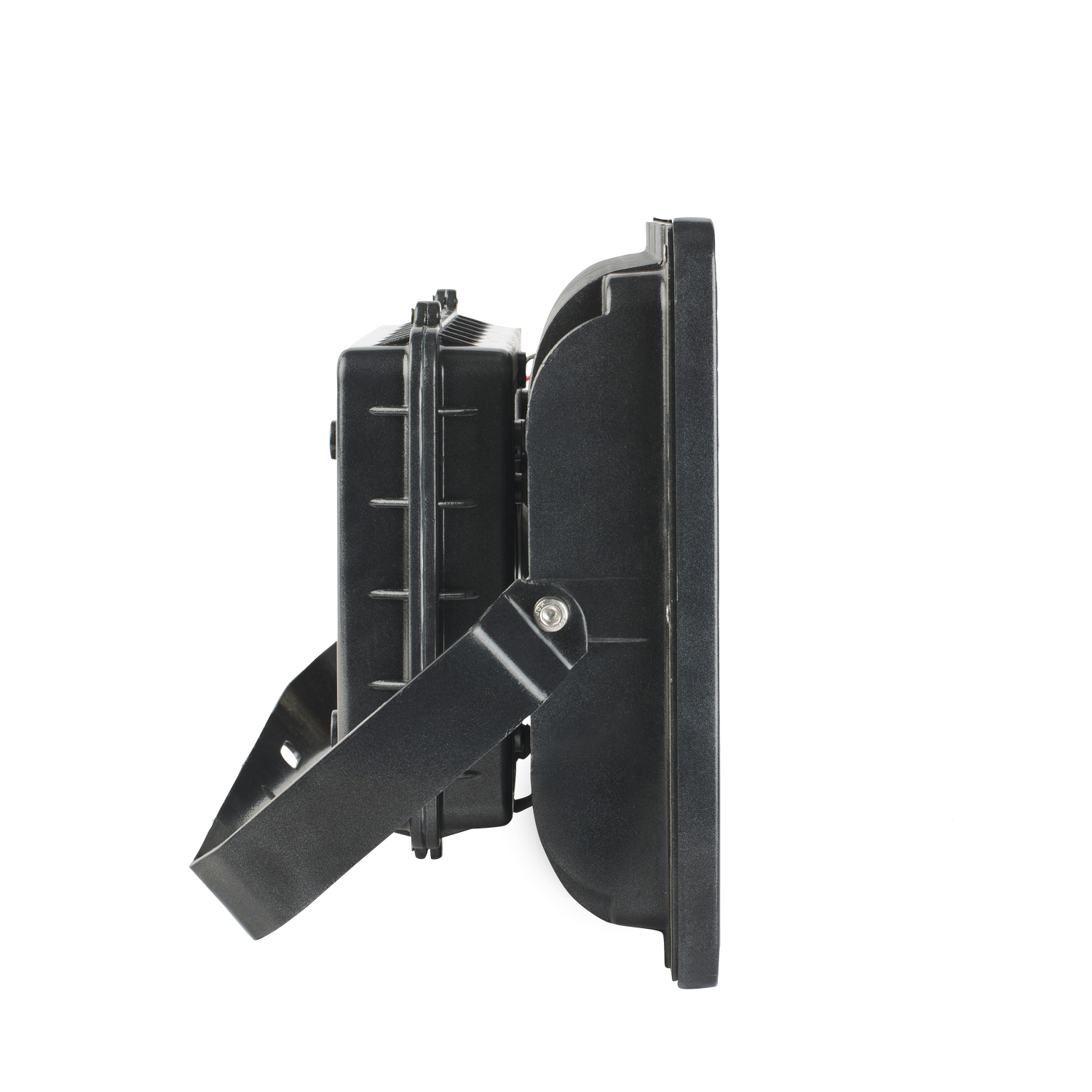

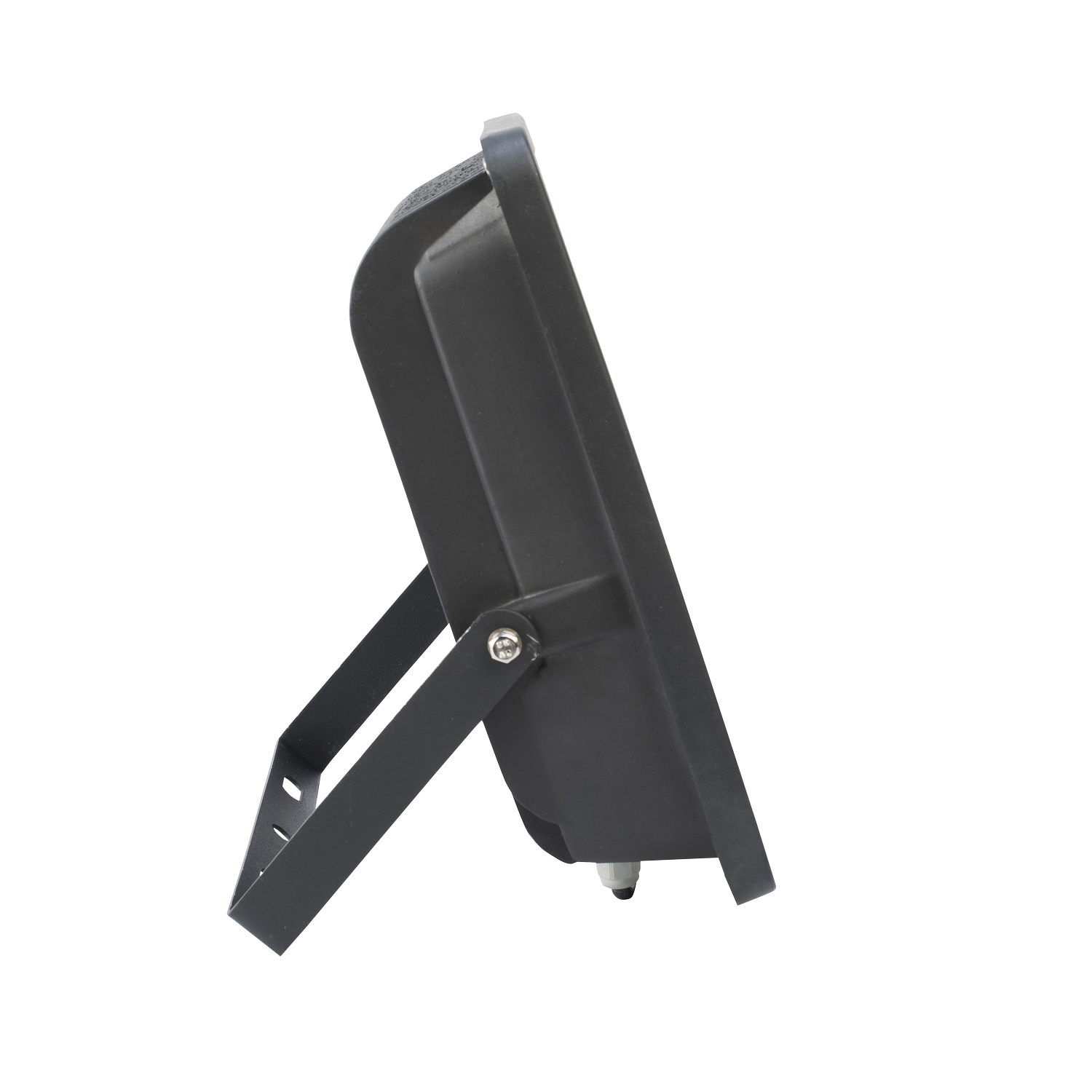

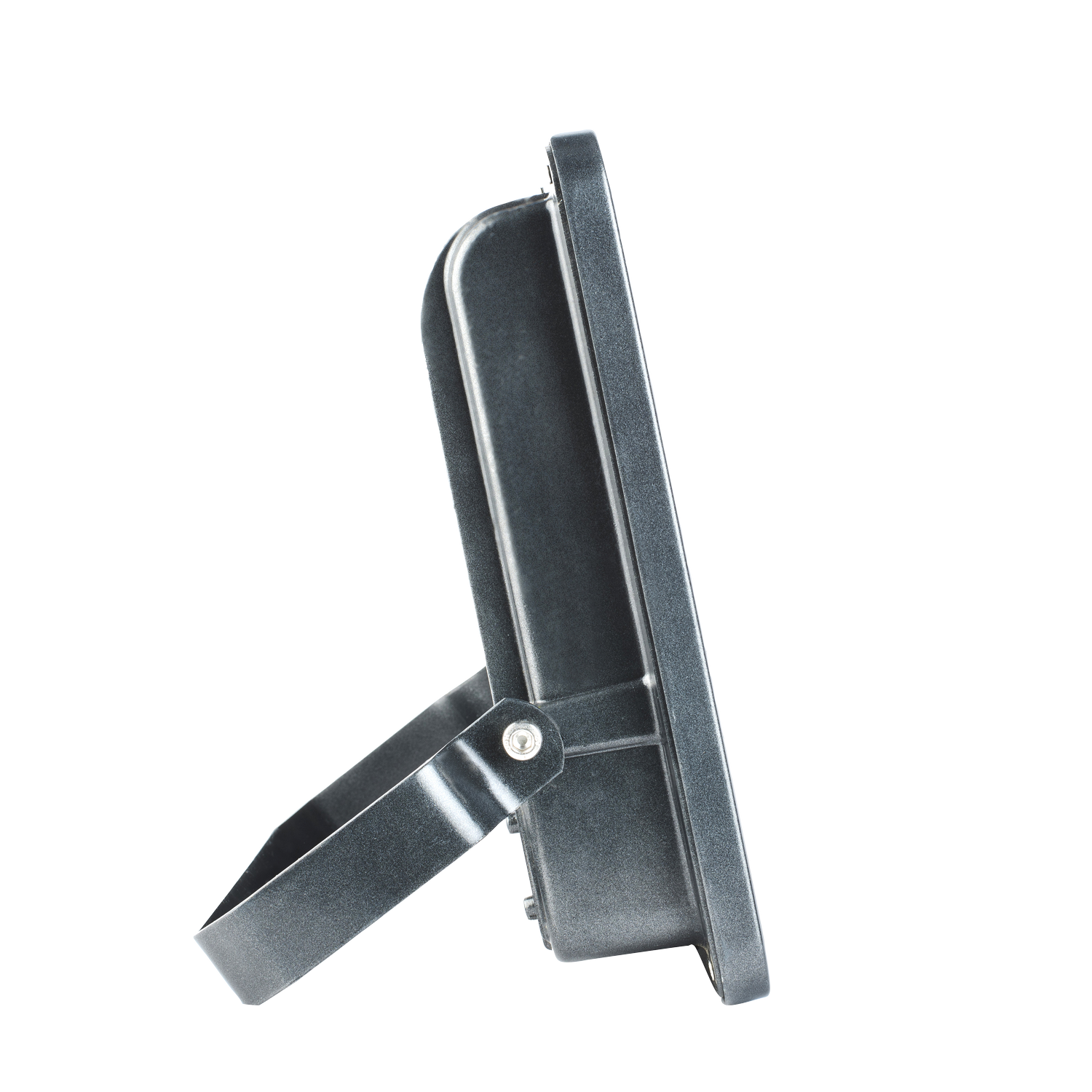

    Mounting Mounting using adjustable cradle
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (internal)
    IP 66
  • Technical Specifications
    System Wattage 20W, 30W, 40W, 50W, 60W, 70W, 80W, 100W, 120W, 150W, 200W, 250W, 300W, 350W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥100, ≥90
Sigma variants
Product Variants
Sigma
LFSM1-020-C
Sigma
LFSM1-020-W
Sigma
LFSM1-030-C
Sigma
LFSM1-030-W
Sigma
LFSM1-040-C
Sigma
LFSM1-040-W
Sigma
LFSM1-050-C
Sigma
LFSM1-050-W
Sigma
LFSM1-060-C
Sigma
LFSM1-060-W
Sigma
LFSM1-070-C
Sigma
LFSM1-070-W
Sigma
LFSM1-080-C
Sigma
LFSM1-080-W
Sigma
LFSM1-100-C
Sigma
LFSM1-100-W
Sigma
LFSM1-120-C
Sigma
LFSM1-120-W
Sigma
LFSM1-150-C
Sigma
LFSM1-150-W
Sigma
LFSM1-200-C
Sigma
LFSM1-200-W
Sigma
LFSM1-250-C
Sigma
LFSM1-250-W
Sigma
LFSM1-300-C
Sigma
LFSM1-300-W
Sigma
LFSM1-350-C
Sigma
LFSM1-350-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
180
185
50
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
180
185
50
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
180
185
50
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
180
185
50
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
220
225
80
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
220
225
80
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
220
225
80
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
220
225
80
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
220
225
80
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
220
225
80
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
270
282
90
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
270
282
90
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
270
282
90
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
270
282
90
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
270
282
90
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
270
282
90
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
270
282
90
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
270
282
90
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
287
287
102
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
287
287
102
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
287
355
105
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
287
355
105
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
287
355
105
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
287
355
105
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
330
422
77
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
330
422
77
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
287
353
150
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
287
353
150
