Sigma PC

Sigma PC

Sigma PC

Product Overview

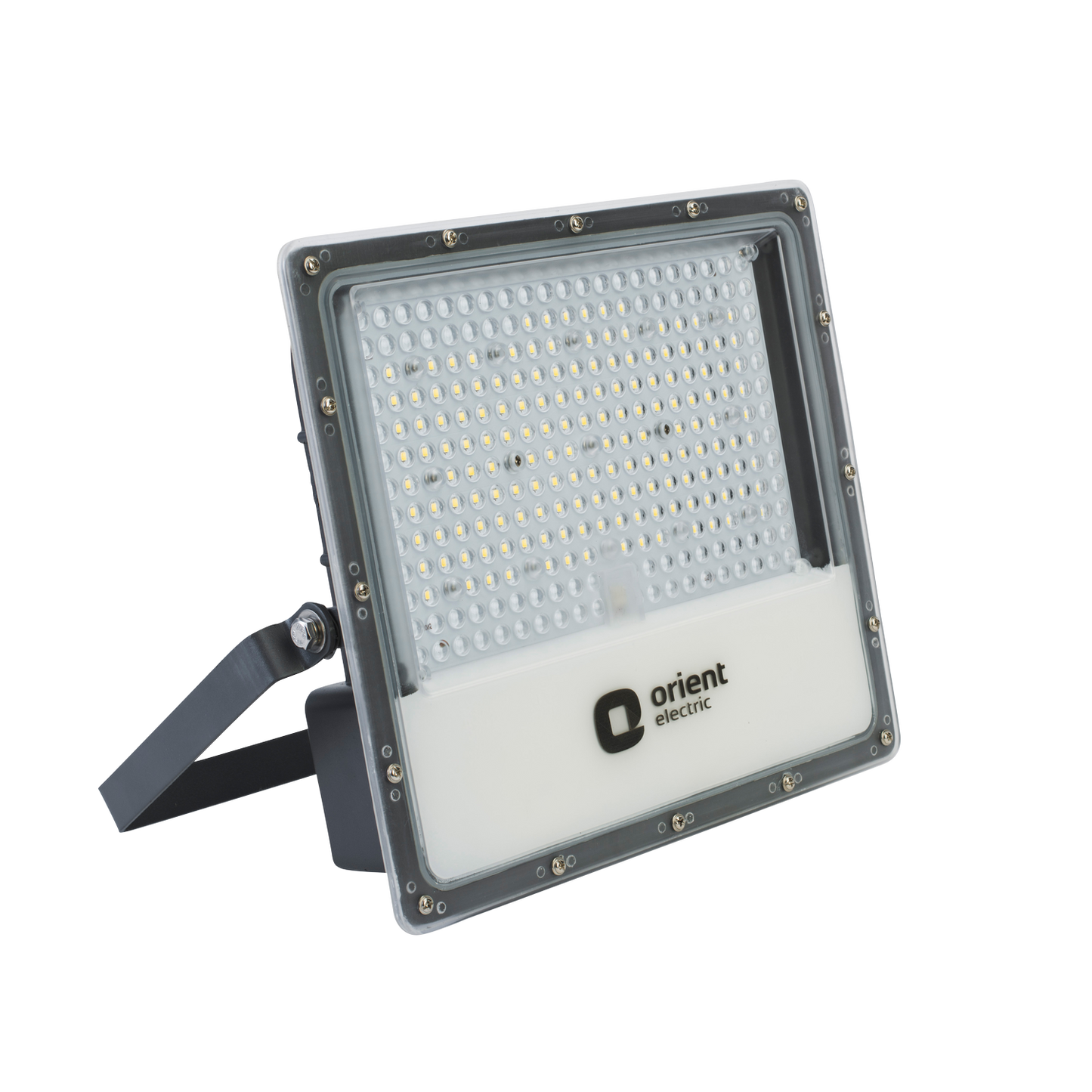

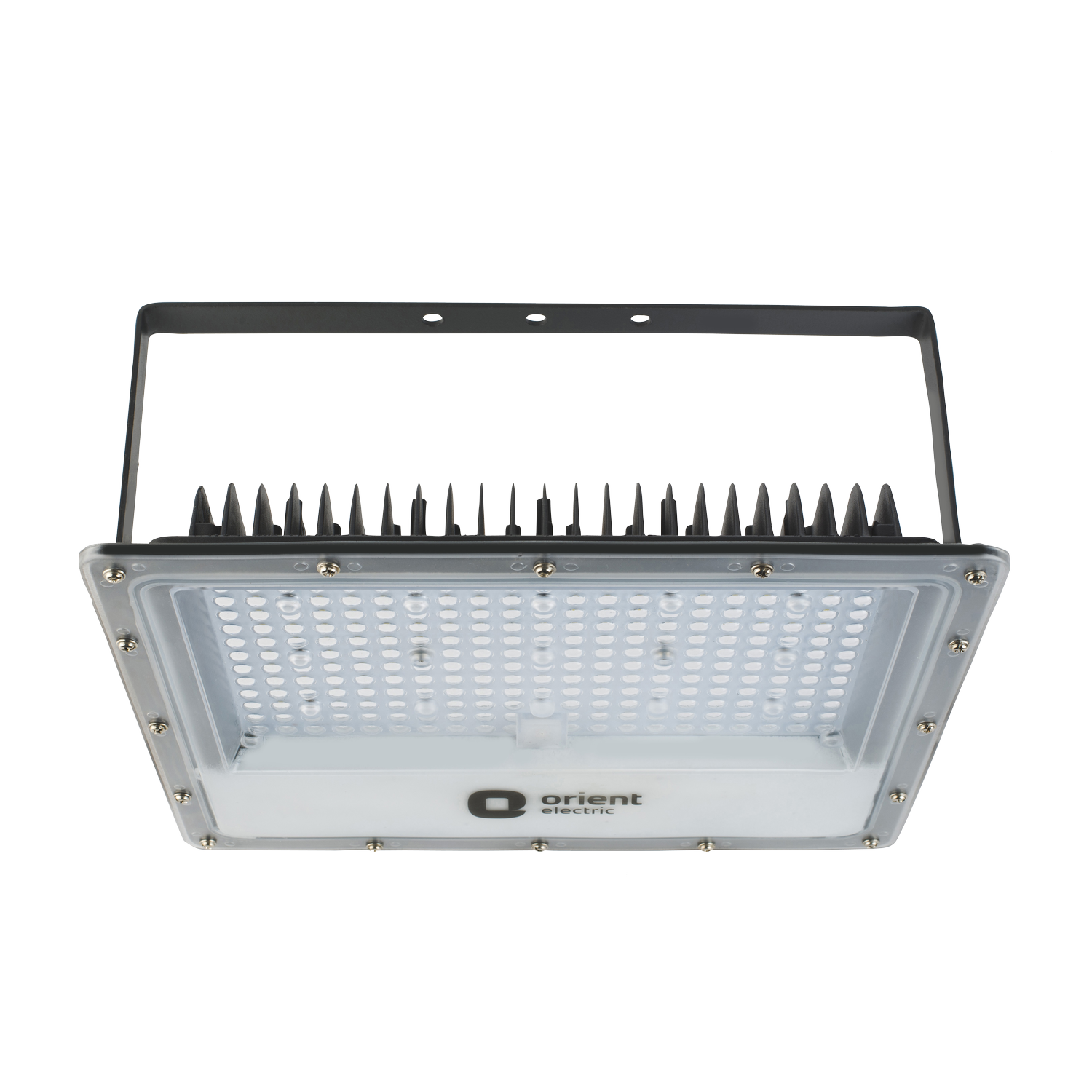

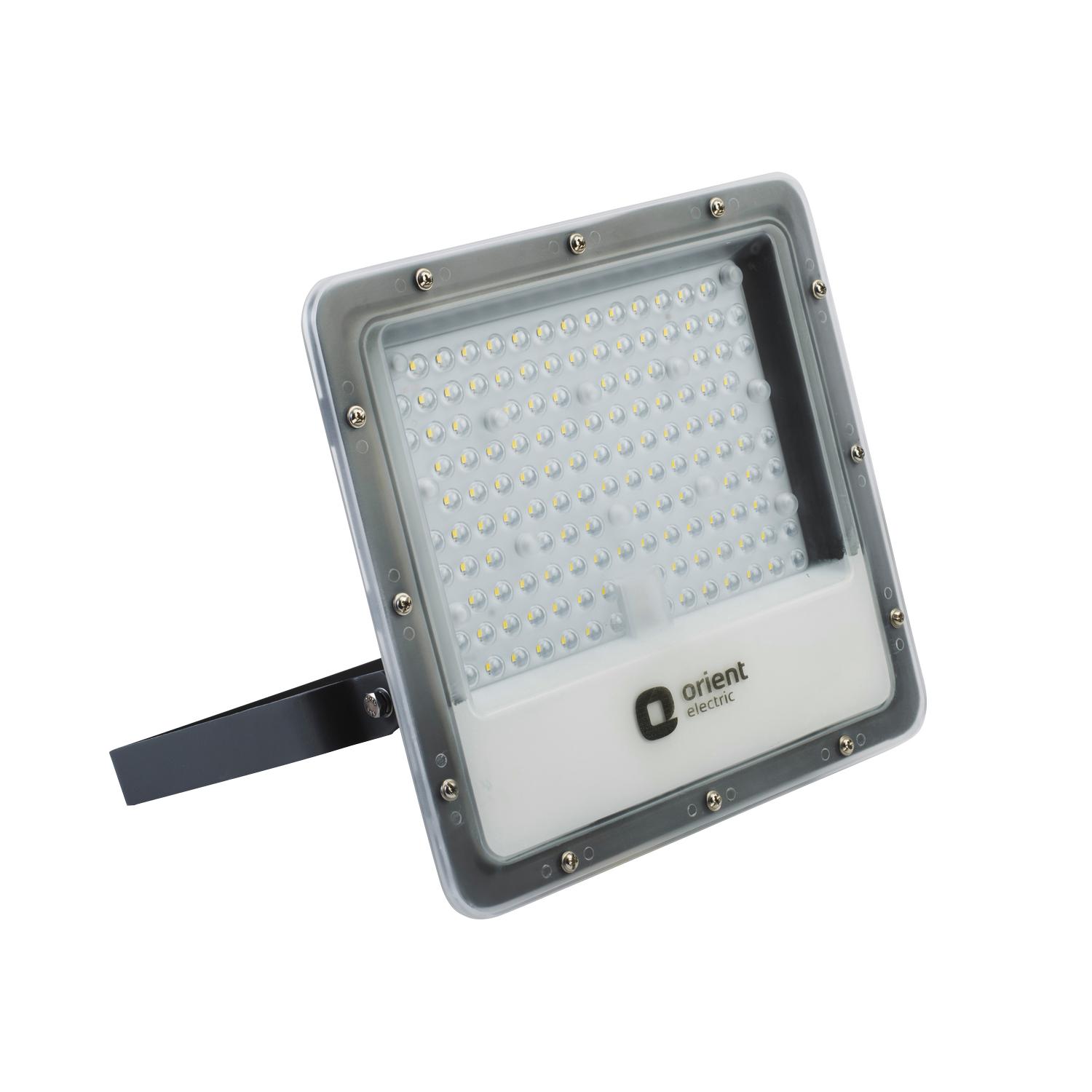

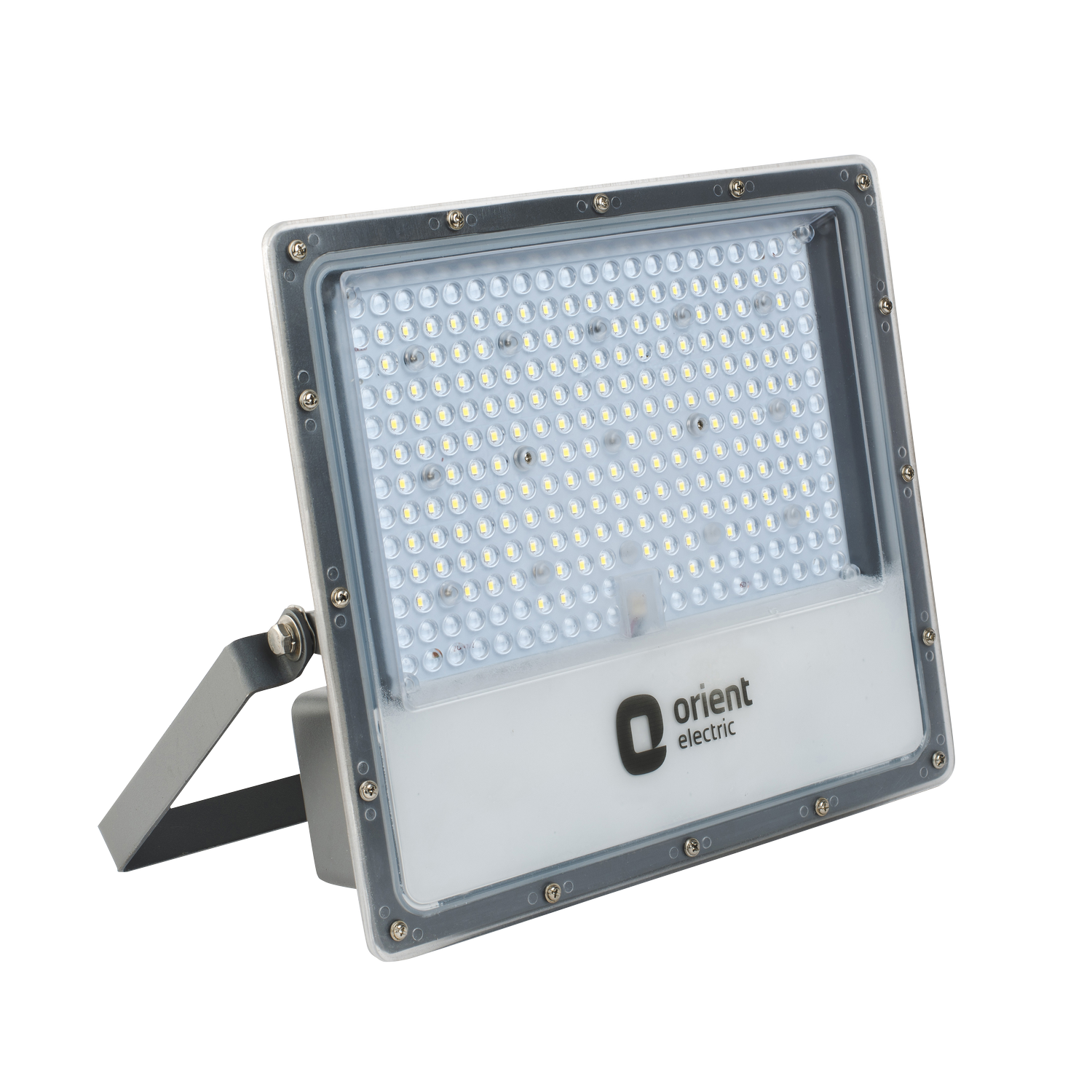

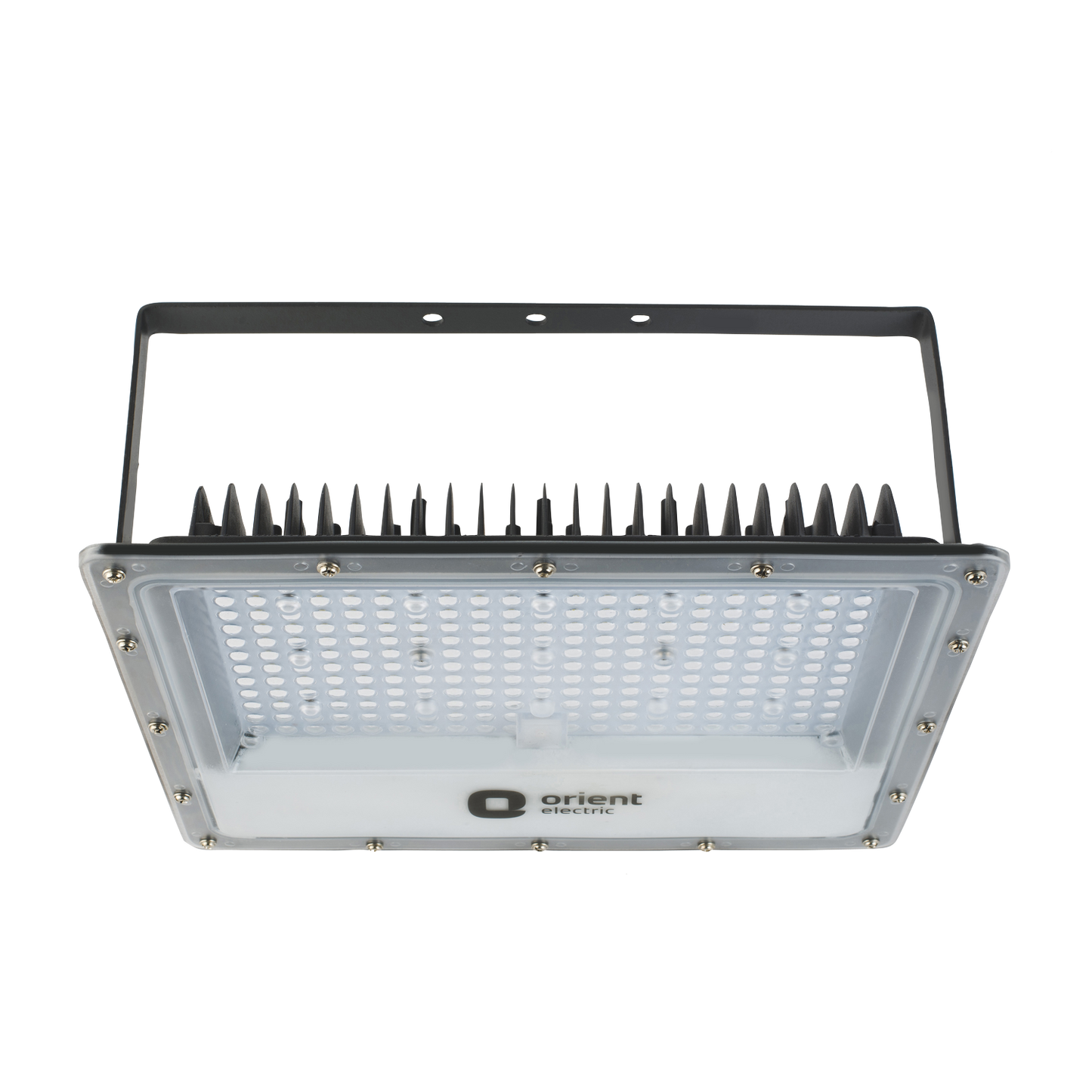

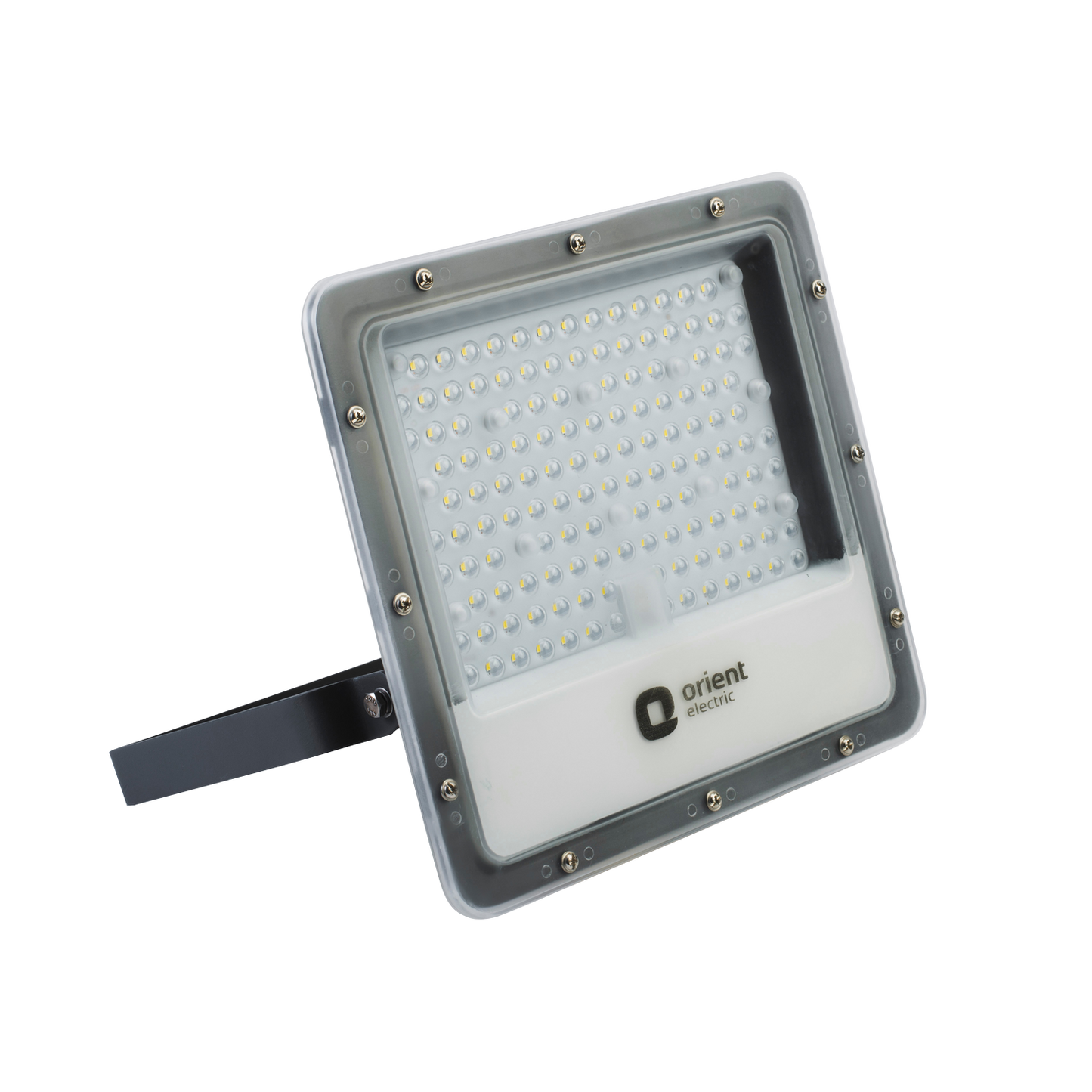

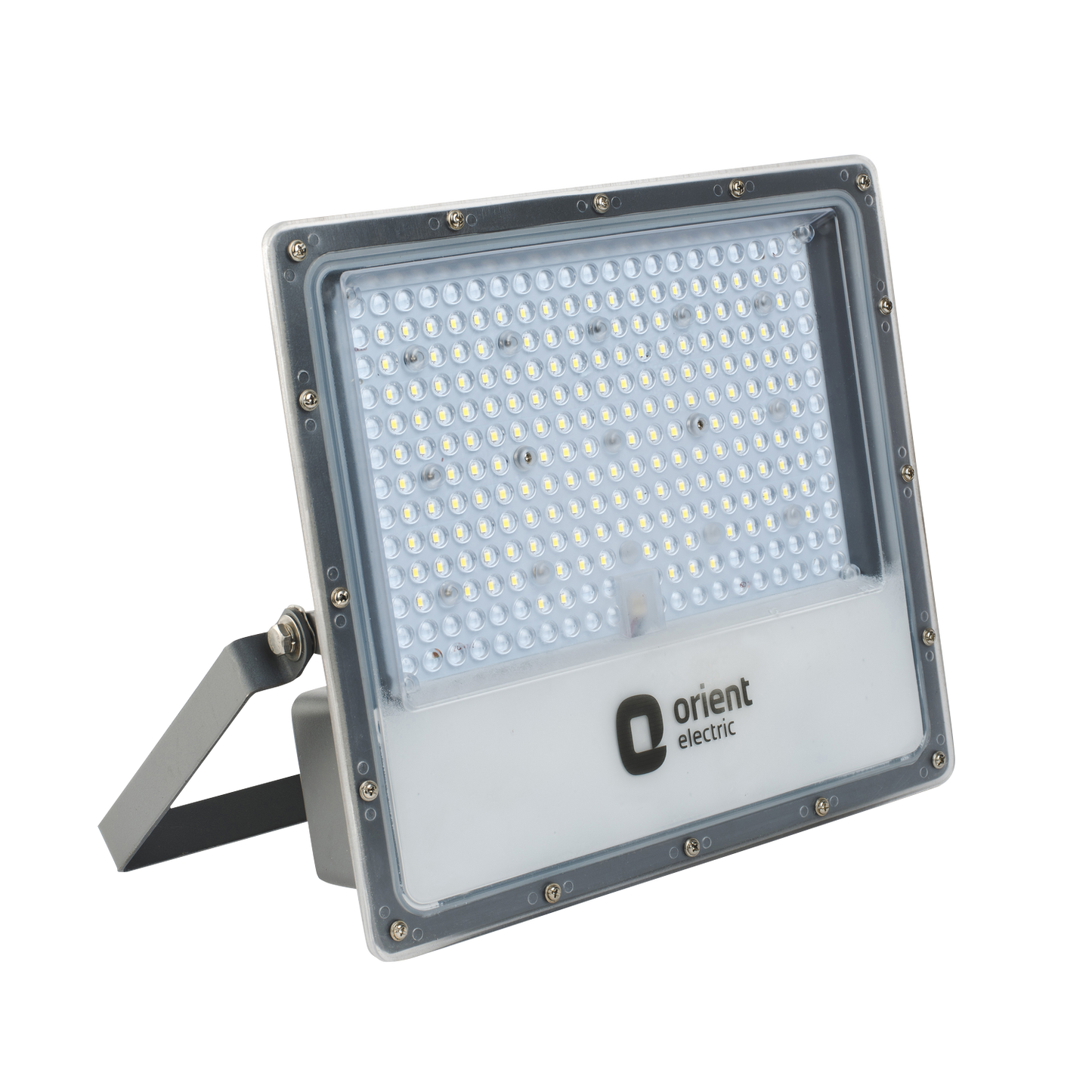

LED Floodlight designed with excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating and fitted with polycarbonate lens cover.

Best suited for

Yard Lighting

Road Junctions

Area Lighting

Safety & Security Lighting

View full details
  • General specification

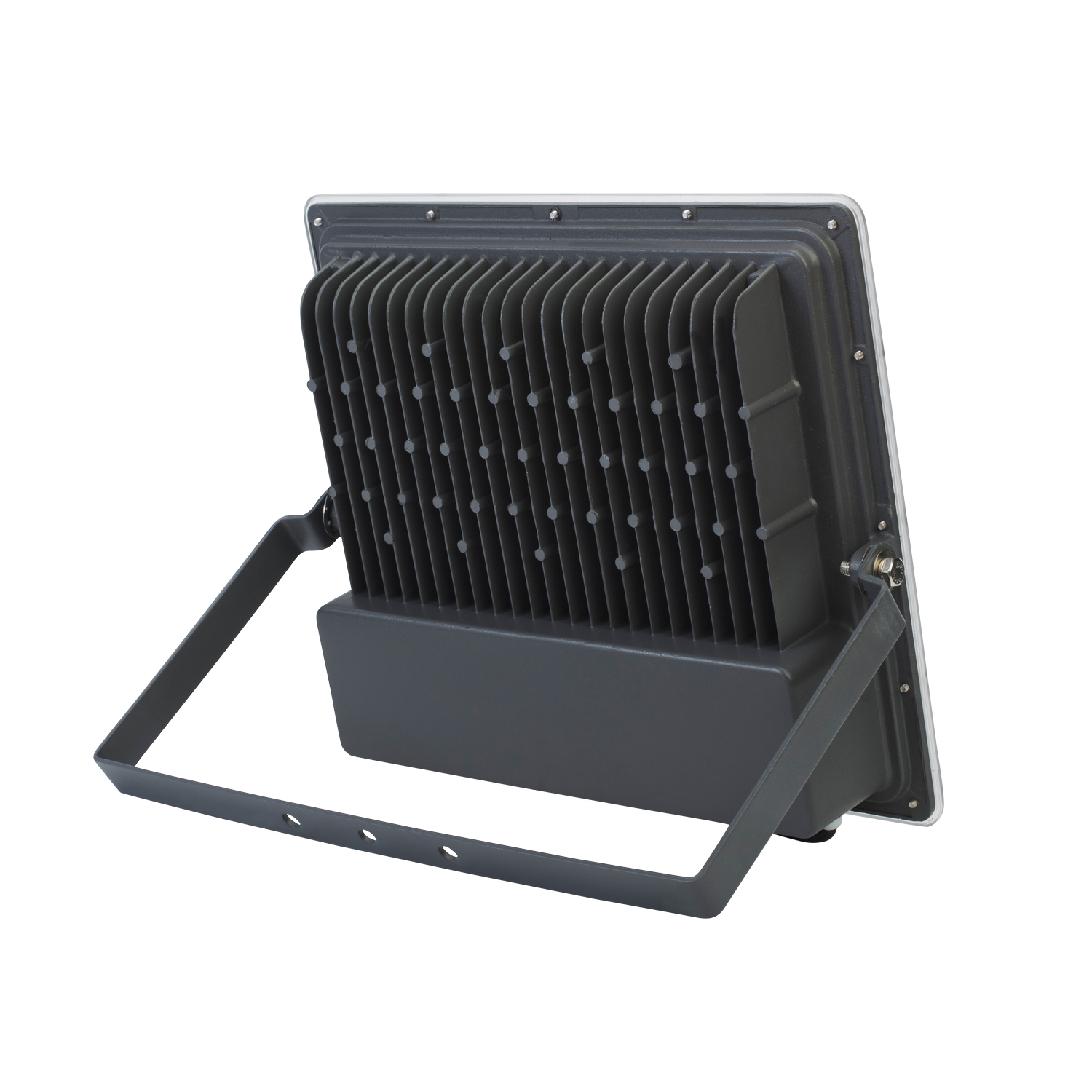

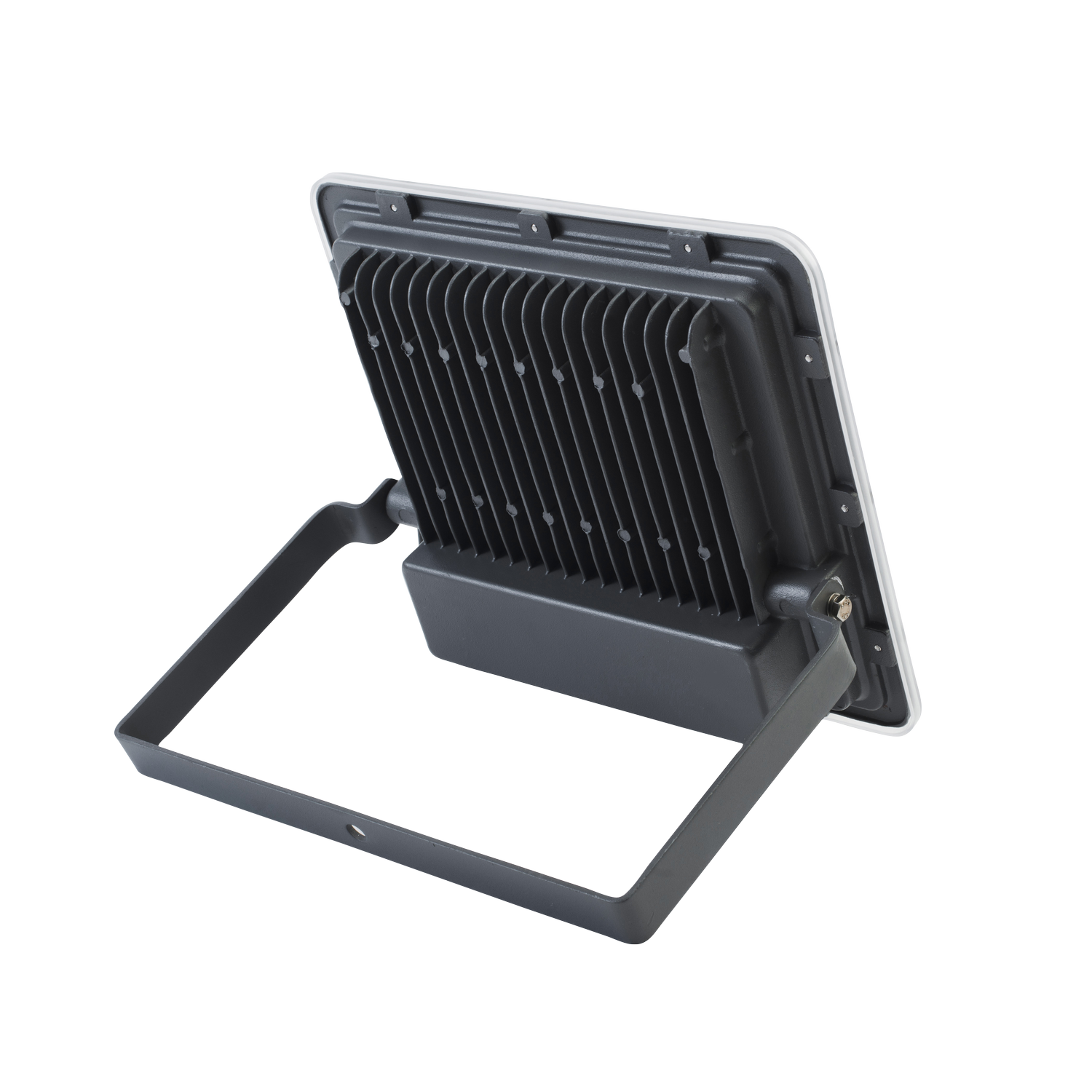

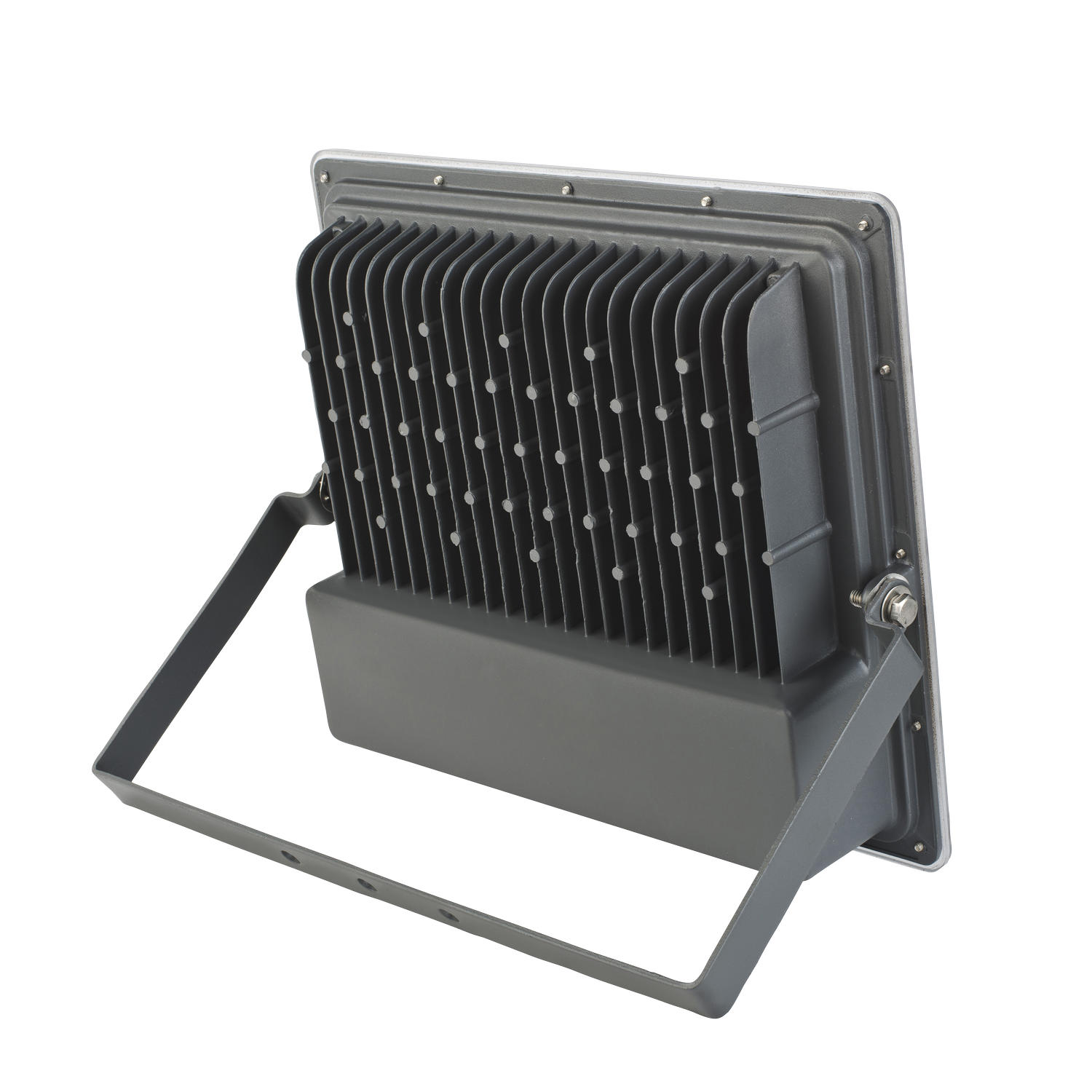

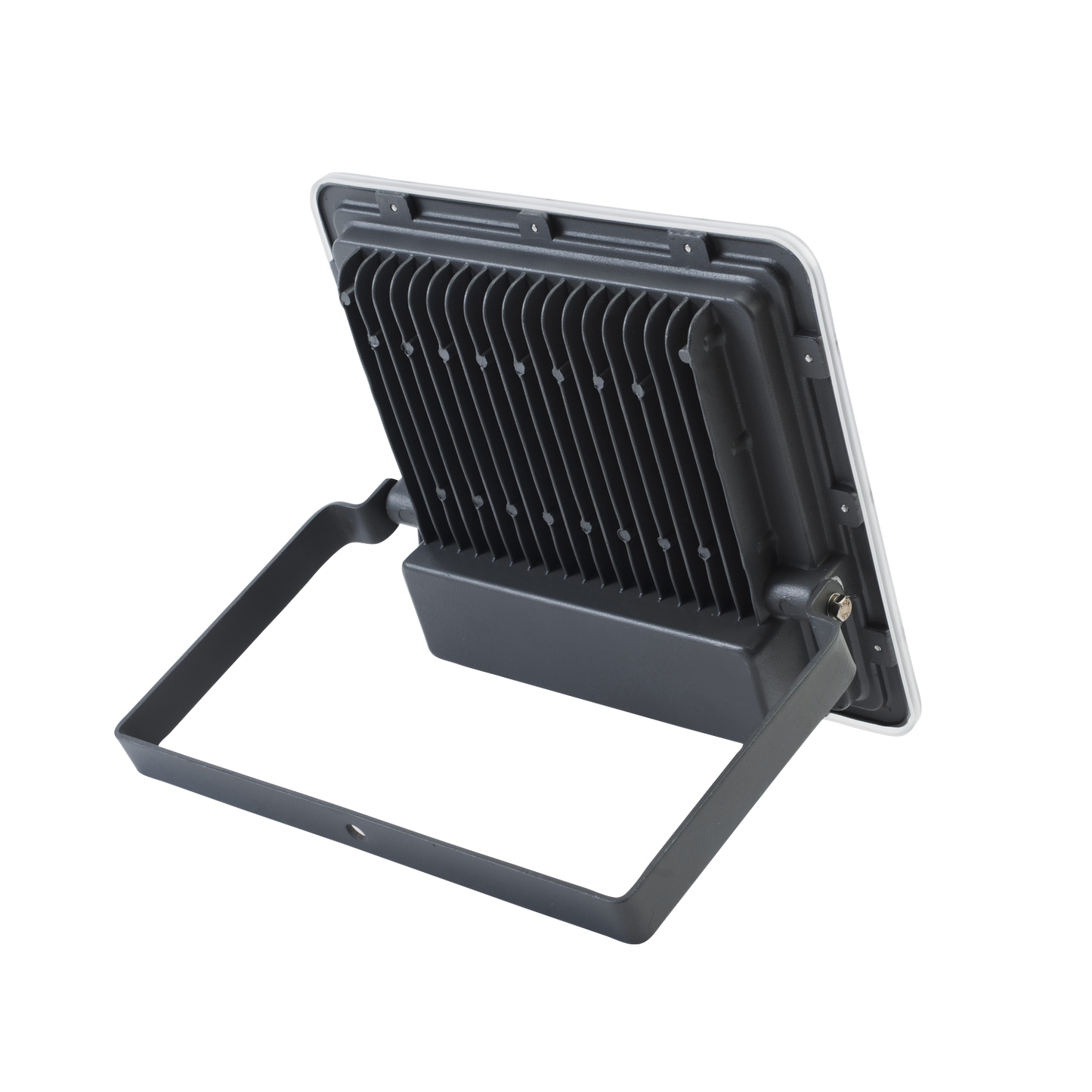

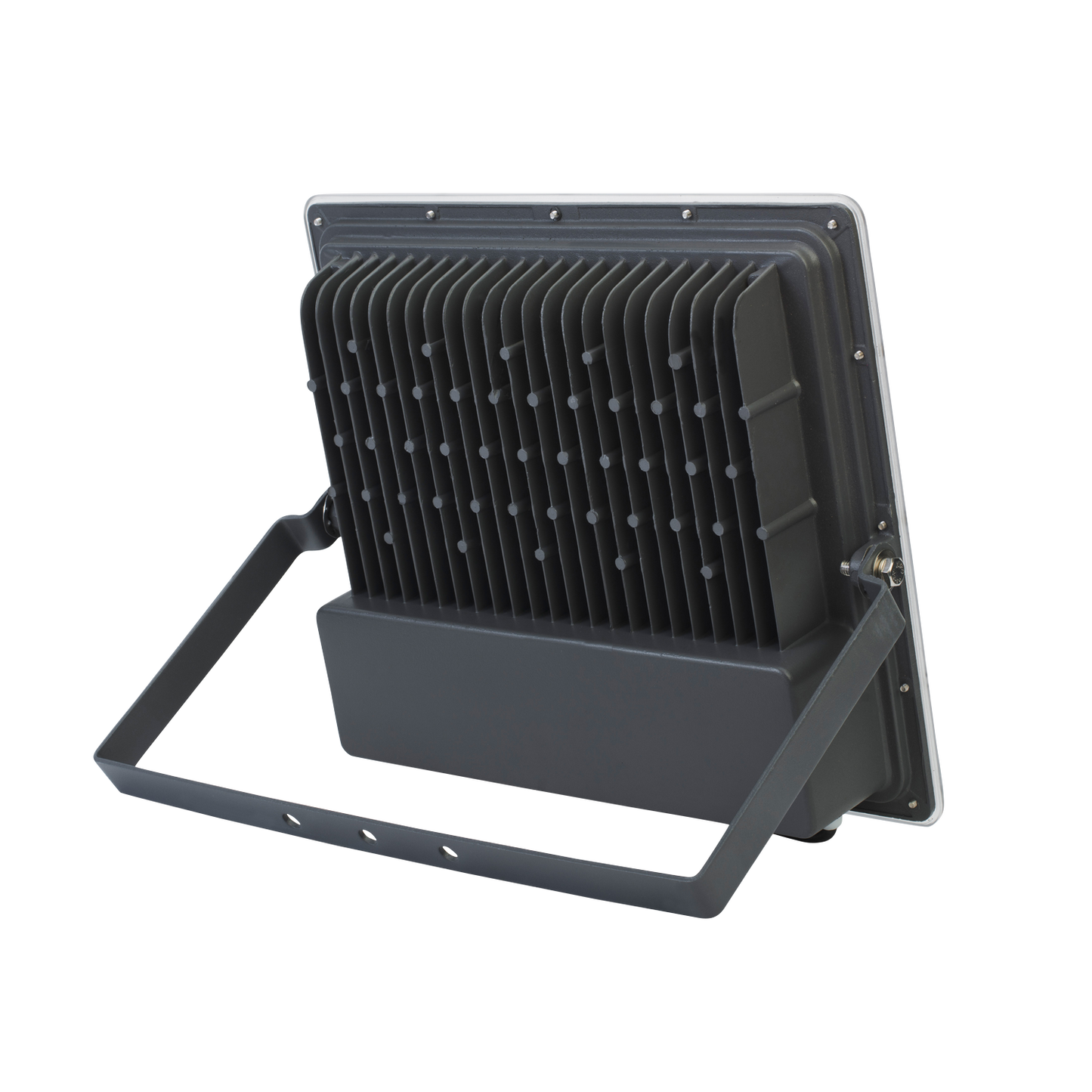

    Housing Excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating.

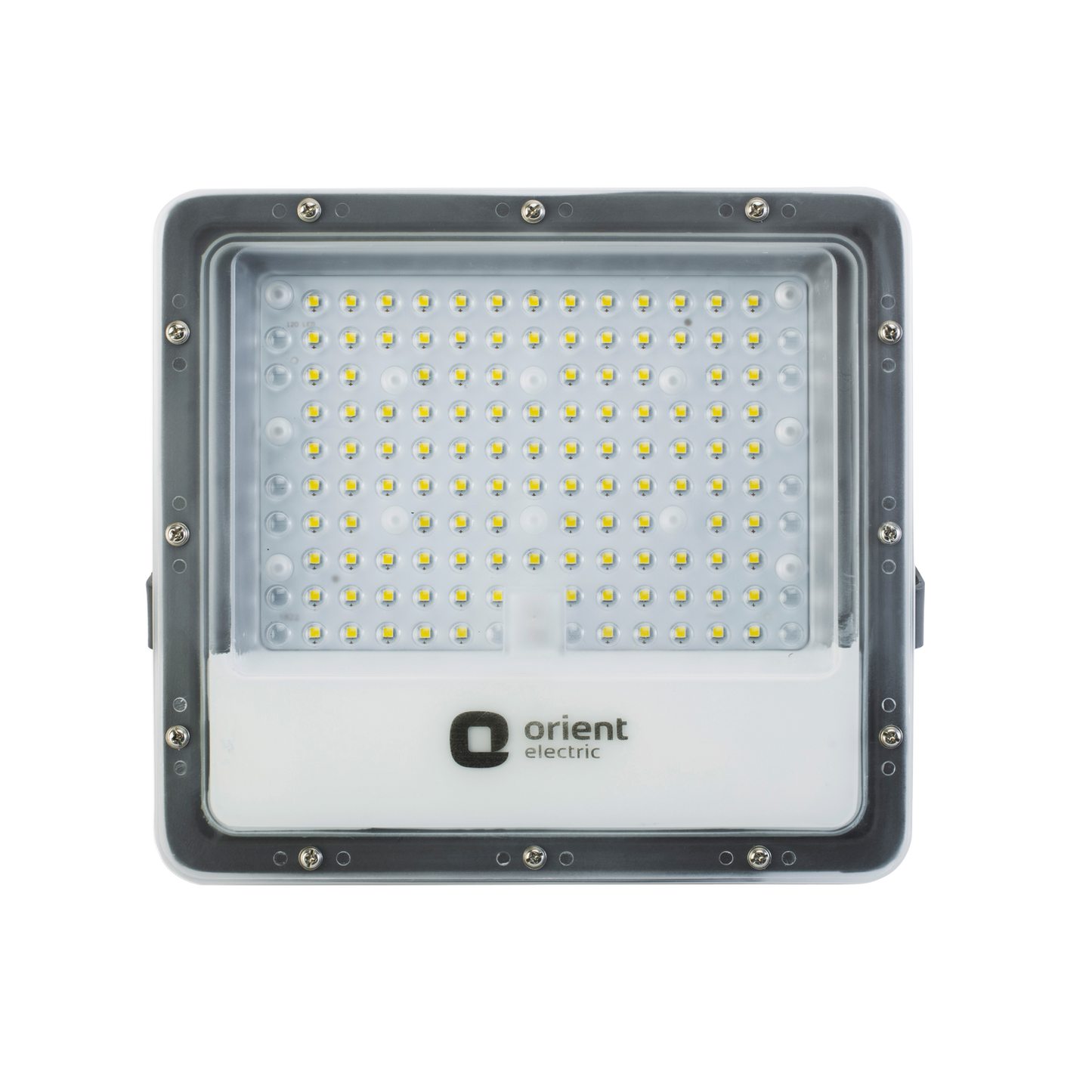

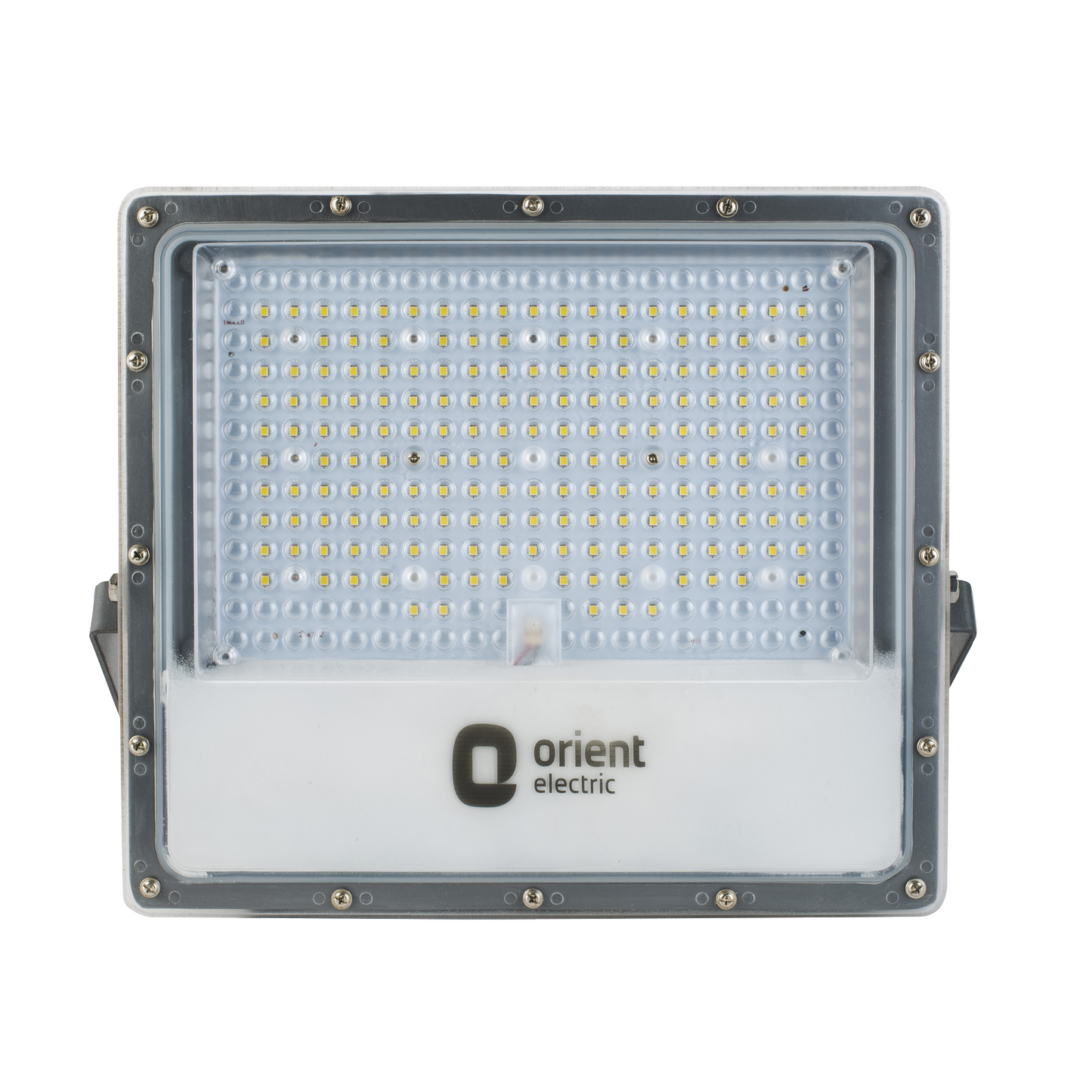

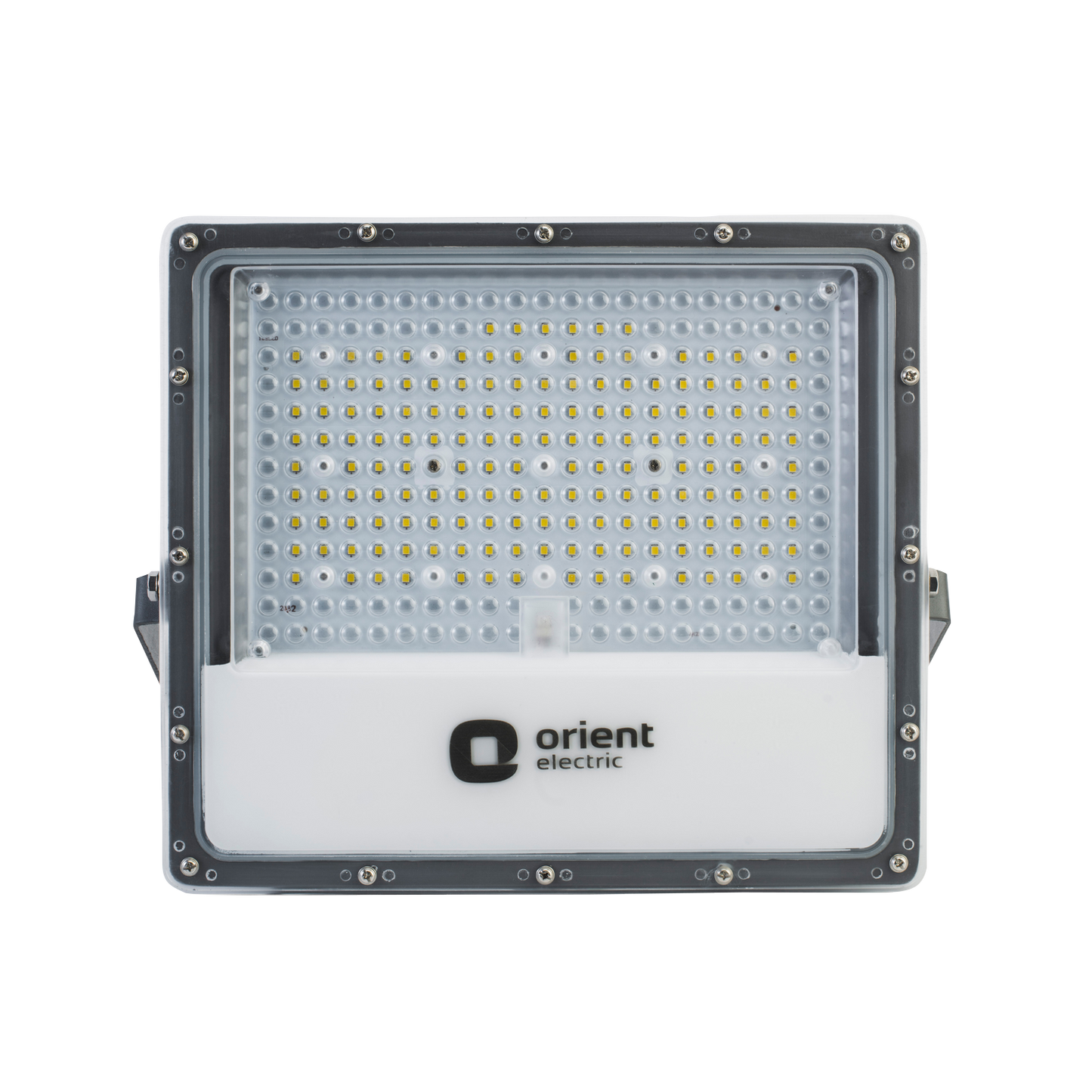

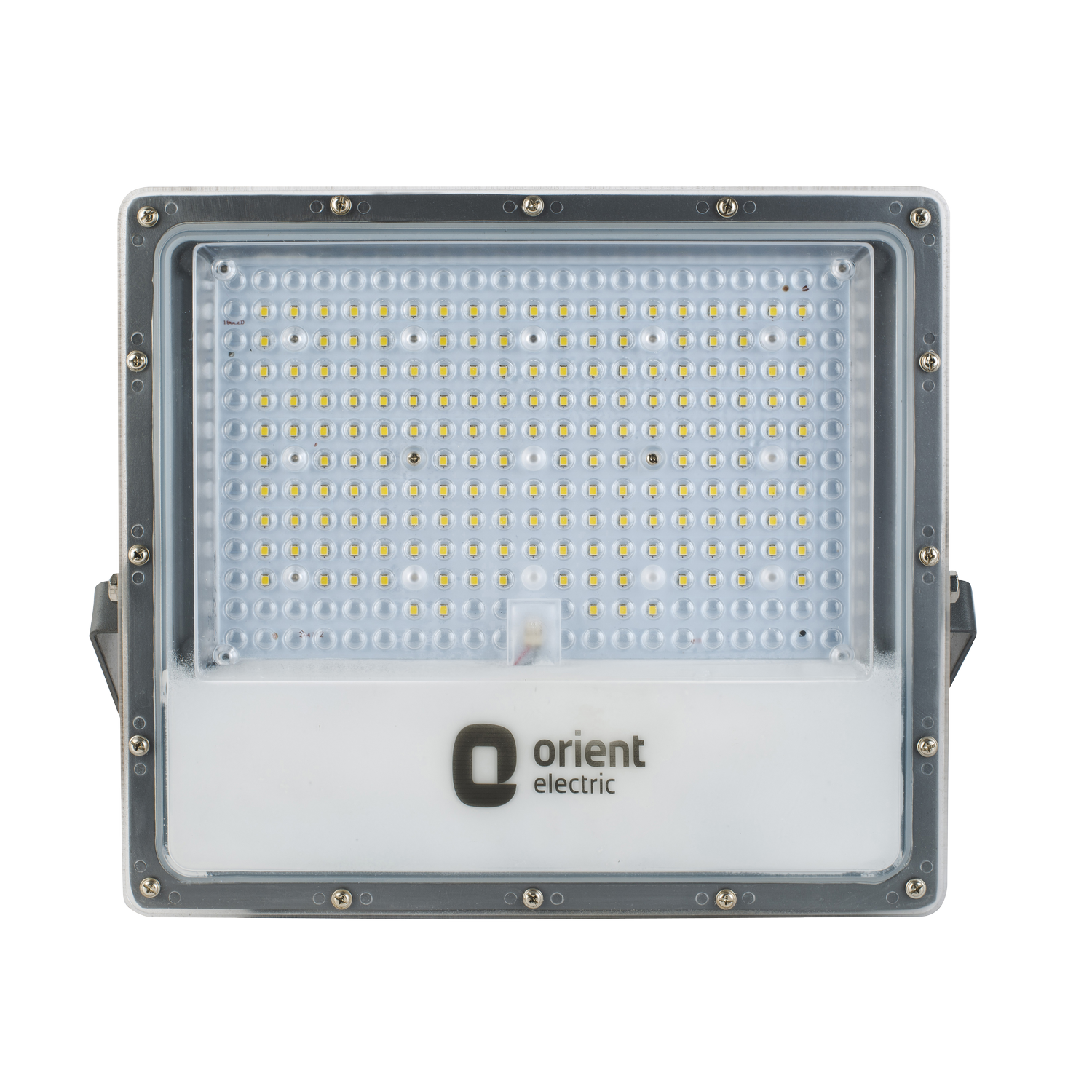

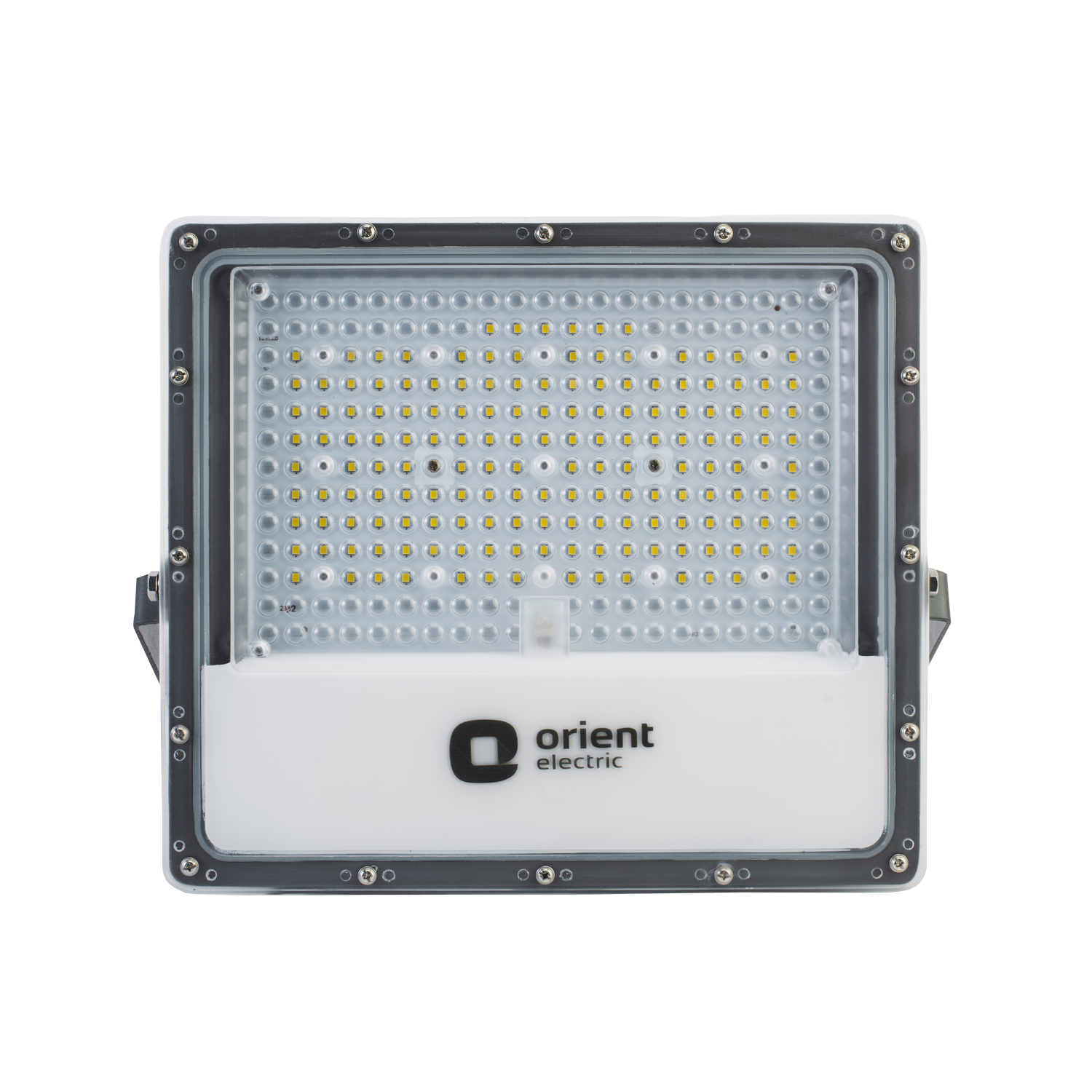

    Optics High lumen efficacy LED Module with SMD LED Package mounted with PC lens cover to ensure better uniformity.Available in 60° and 90°.

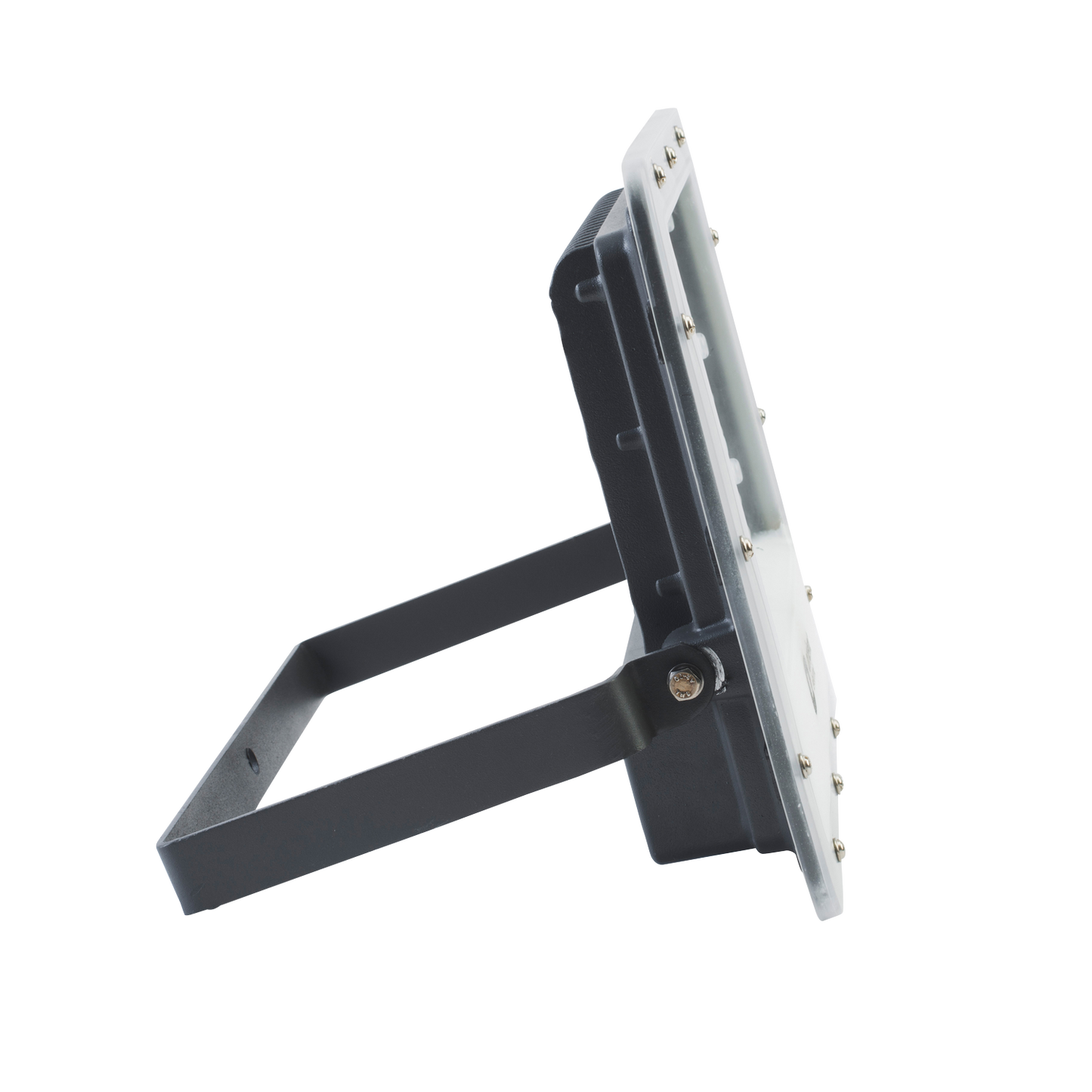

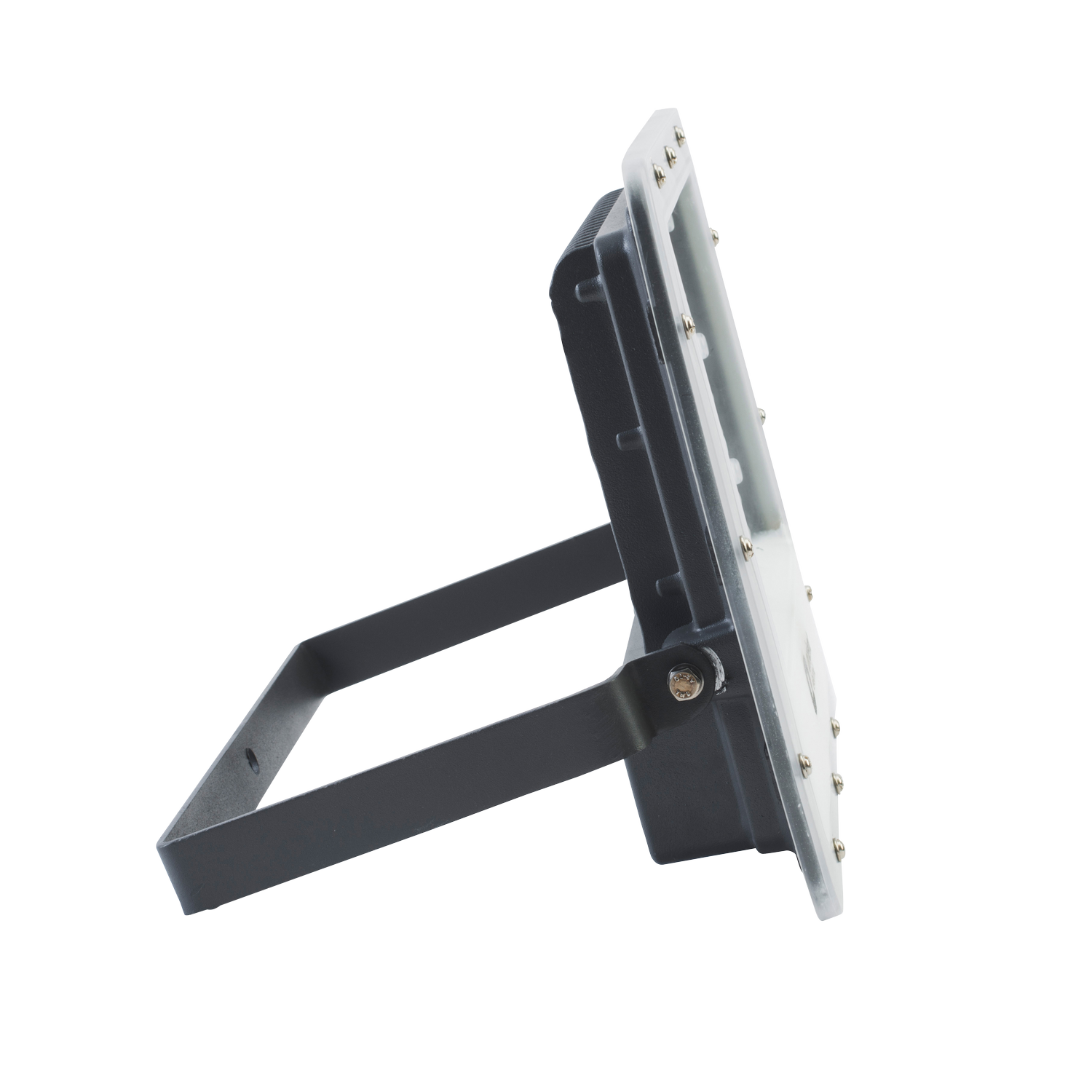

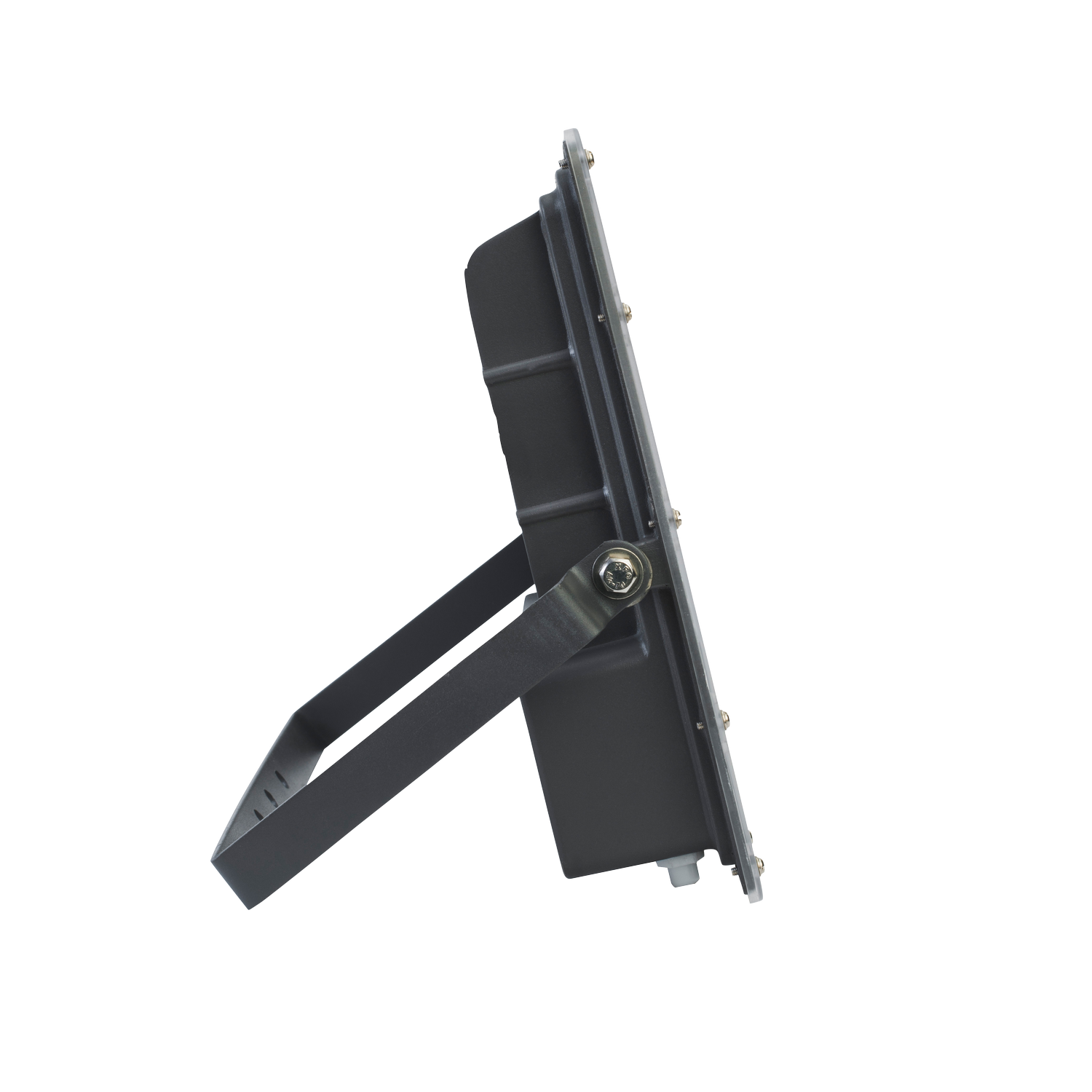

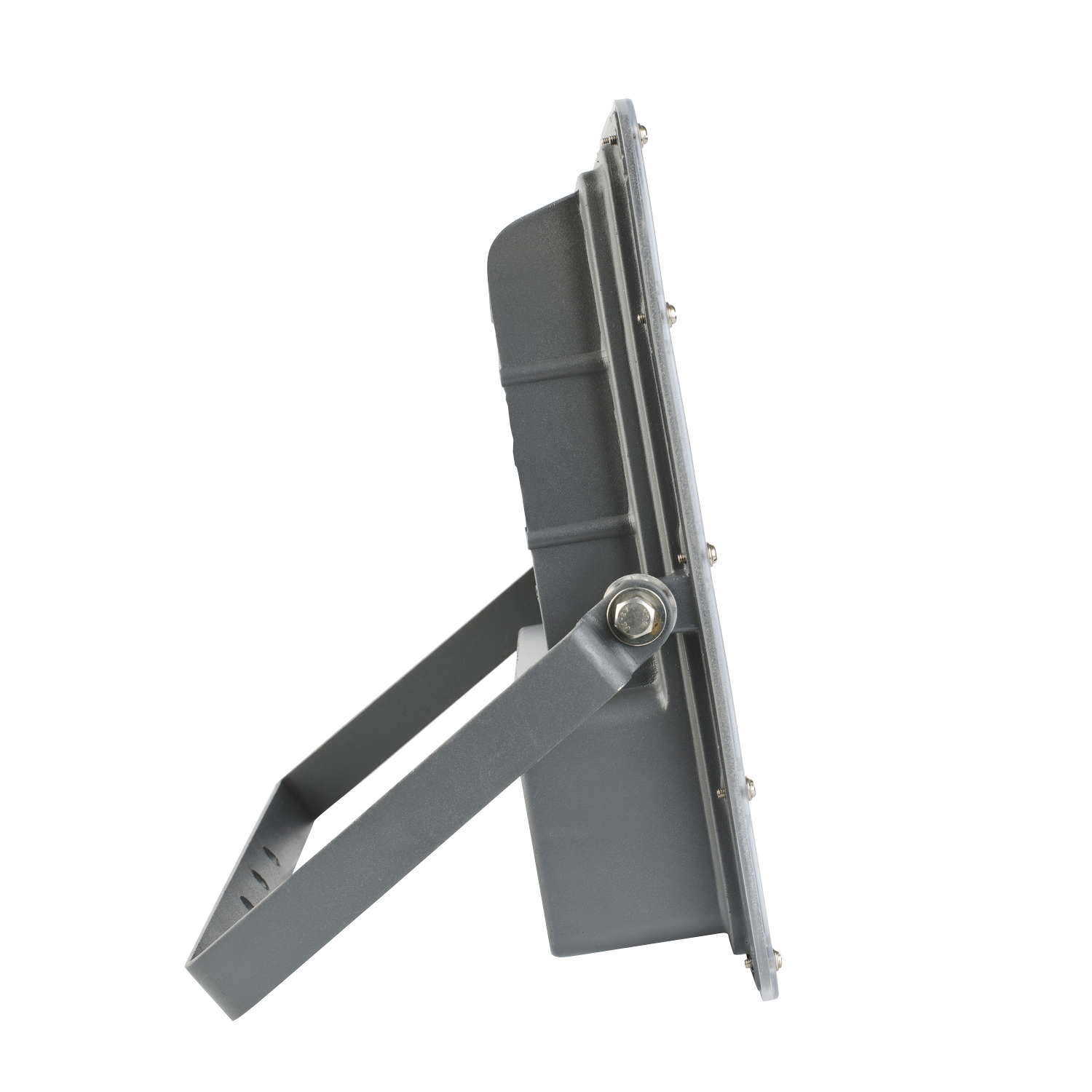

    Mounting Mounting using adjustable cradle
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (internal) 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 70W, 80W, 100W, 120W, 150W, 200W, 250W, 300W, 350W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥100, ≥90
Sigma PC variants
Product Variants
Sigma PC
LFSM-070-C-PC
Sigma PC
LFSM-070-W-PC
Sigma PC
LFSM-080-C-PC
Sigma PC
LFSM-080-W-PC
Sigma PC
LFSM-100-C-PC
Sigma PC
LFSM-100-W-PC
Sigma PC
LFSM-120-C-PC
Sigma PC
LFSM-120-W-PC
Sigma PC
LFSM-150-C-PC
Sigma PC
LFSM-150-W-PC
Sigma PC
LFSM-200-C-PC
Sigma PC
LFSM-200-W-PC
Sigma PC
LFSM-250-C-PC
Sigma PC
LFSM-250-W-PC
Sigma PC
LFSM-300-C-PC
Sigma PC
LFSM-300-W-PC
Sigma PC
LFSM-350-C-PC
Sigma PC
LFSM-350-W-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
214
173
43
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
214
173
43
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
278
254
54
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
278
254
54
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
278
254
55
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
278
254
55
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
353
311
76
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
353
311
76
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
353
311
76
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
353
311
76
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
353
311
76
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
353
311
76
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
353
311
76
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
353
311
76
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
