Sigma Plus HL

Sigma Plus HL

Sigma Plus HL

Product Overview

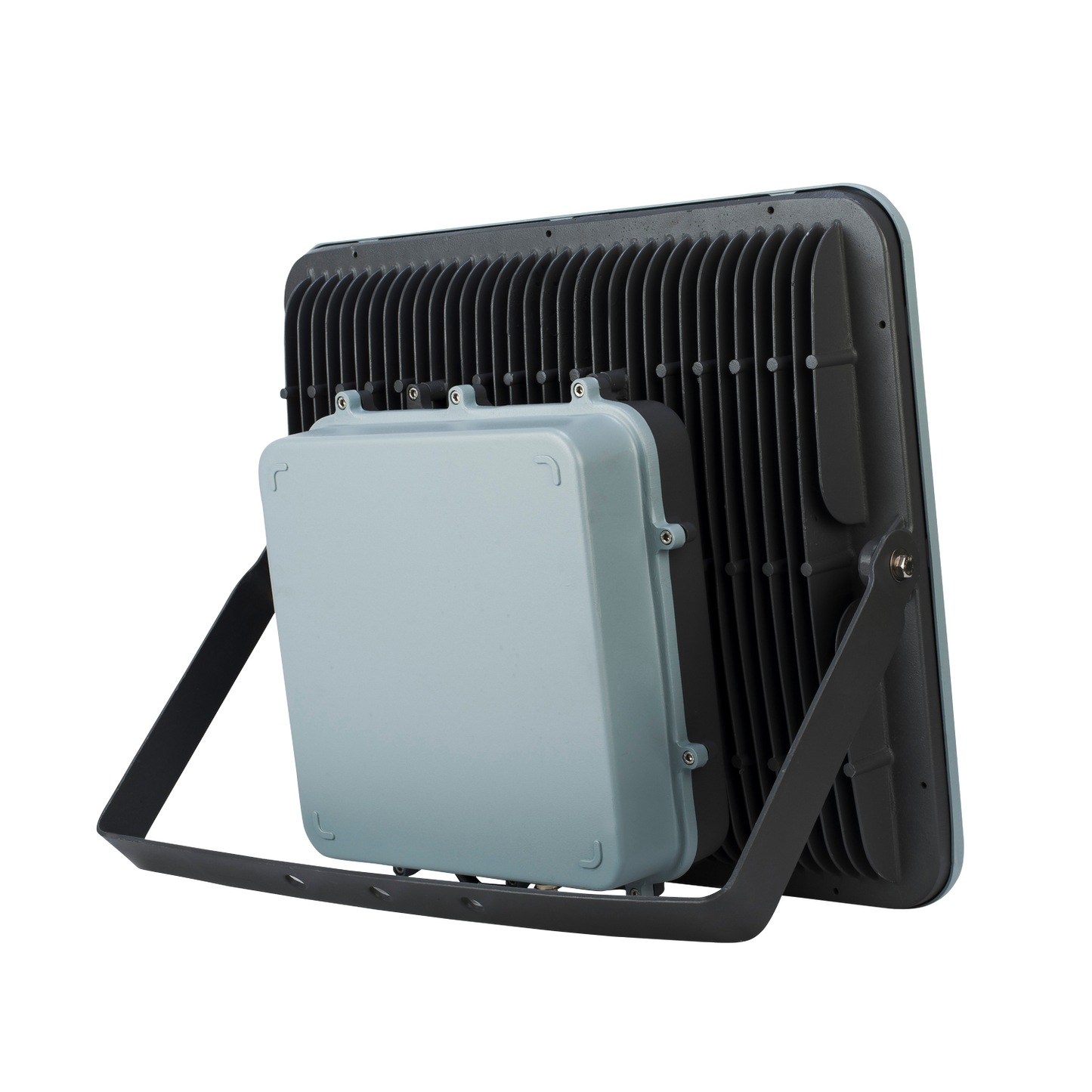

LED Floodlight designed with high efficacy of ≥110lm/W with excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating and fitted with polycarbonate lens covered with clear toughened glass

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating.
    Optics High lumen efficacy LED Module with SMD LED Package mounted with PC lens covered with clear toughened glass to ensure better uniformity.Available in 60° and 90°.
    Mounting Mounting using adjustable cradle
    Control Gear circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 4 KV (internal) 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 50W, 60W, 70W, 80W, 100W, 120W, 150W, 200W, 250W, 300W, 350W, 400W, 450W, 500W
    CCT 5700K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥110
Sigma Plus HL variants
Product Variants
Sigma Plus HL
LFSMP-050-C-HL
Sigma Plus HL
LFSMP-050-W-HL
Sigma Plus HL
LFSMP-060-C-HL
Sigma Plus HL
LFSMP-060-W-HL
Sigma Plus HL
LFSMP-070-C-HL
Sigma Plus HL
LFSMP-070-W-HL
Sigma Plus HL
LFSMP-080-C-HL
Sigma Plus HL
LFSMP-080-W-HL
Sigma Plus HL
LFSMP-100-C-HL
Sigma Plus HL
LFSMP-100-W-HL
Sigma Plus HL
LFSMP-120-C-HL
Sigma Plus HL
LFSMP-120-W-HL
Sigma Plus HL
LFSMP-150-C-HL
Sigma Plus HL
LFSMP-150-W-HL
Sigma Plus HL
LFSMP1-200-C-HL
Sigma Plus HL
LFSMP1-200-W-HL
Sigma Plus HL
LFSMP1-250-C-V1-HL
Sigma Plus HL
LFSMP1-250-W-V1-HL
Sigma Plus HL
LFSMP-300-C-HL
Sigma Plus HL
LFSMP-300-W-HL
Sigma Plus HL
LFSMP-350-C-HL
Sigma Plus HL
LFSMP-350-W-HL
Sigma Plus HL
LFSMP-400-C-HL
Sigma Plus HL
LFSMP-400-W-HL
Sigma Plus HL
LFSMP-450-C-HL
Sigma Plus HL
LFSMP-450-W-HL
Sigma Plus HL
LFSMP-500-C-HL
Sigma Plus HL
LFSMP-500-W-HL
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
252
196
75
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
252
196
75
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
252
196
75
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
252
196
75
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
252
196
75
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
252
196
75
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
252
196
75
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
252
196
75
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
405
258
70
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
405
258
70
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
405
258
70
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
405
258
70
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
405
258
70
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
405
258
70
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
405
258
70
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
405
258
70
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
405
258
70
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
405
258
70
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
346
503
75
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
346
503
75
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
503
346
75
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
400W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
503
346
75
400W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
450W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
441
522
187
450W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
441
522
187
500W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
441
522
187
500W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
441
522
187
