Sigma Plus PC

Sigma Plus PC

Sigma Plus PC

Product Overview

LED Floodlight designed with excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating and fitted with integrated polycarbonate lens cover.

Best suited for

Yard Lighting

Road Junctions

Area Lighting

Safety & Security Lighting

View full details
  • General specification

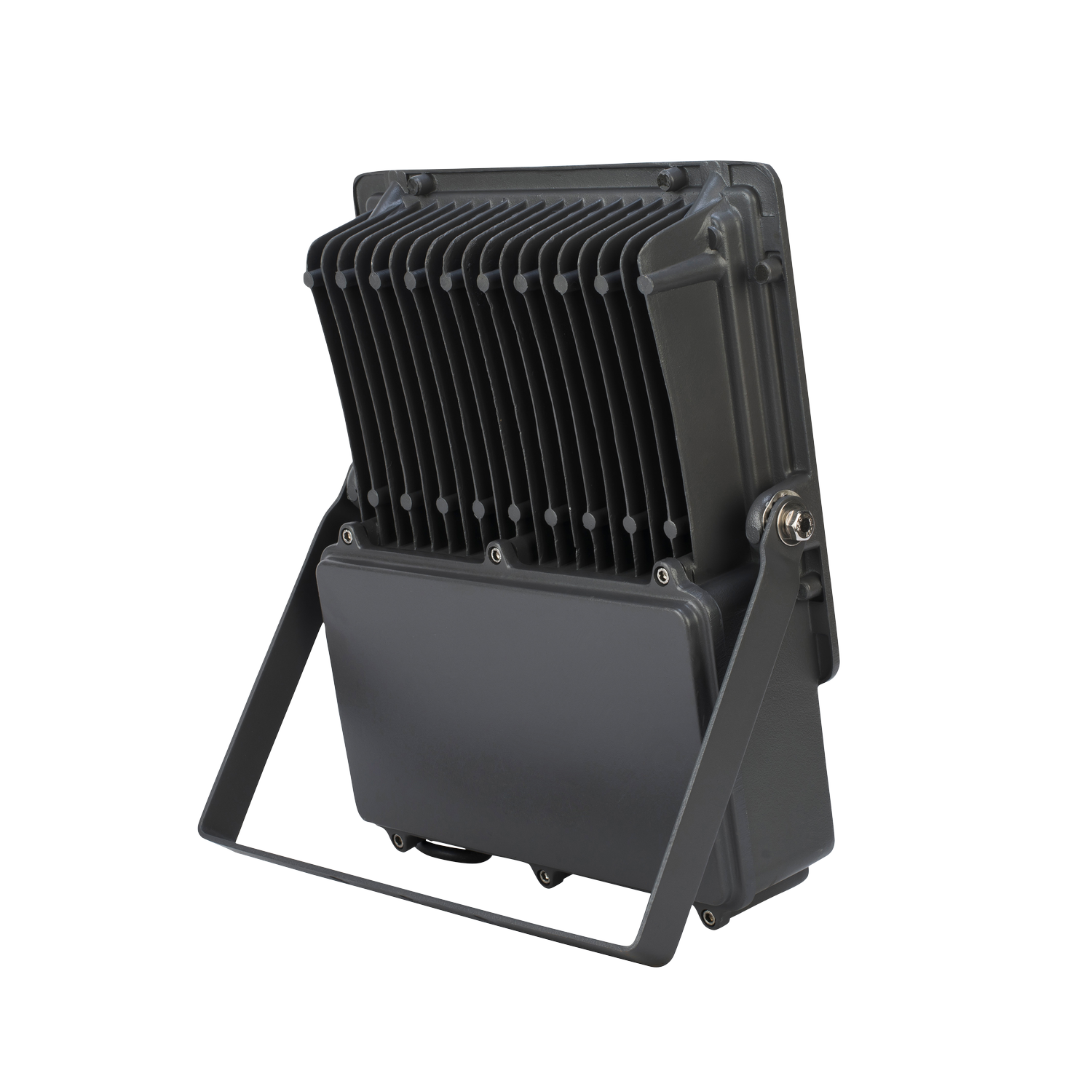

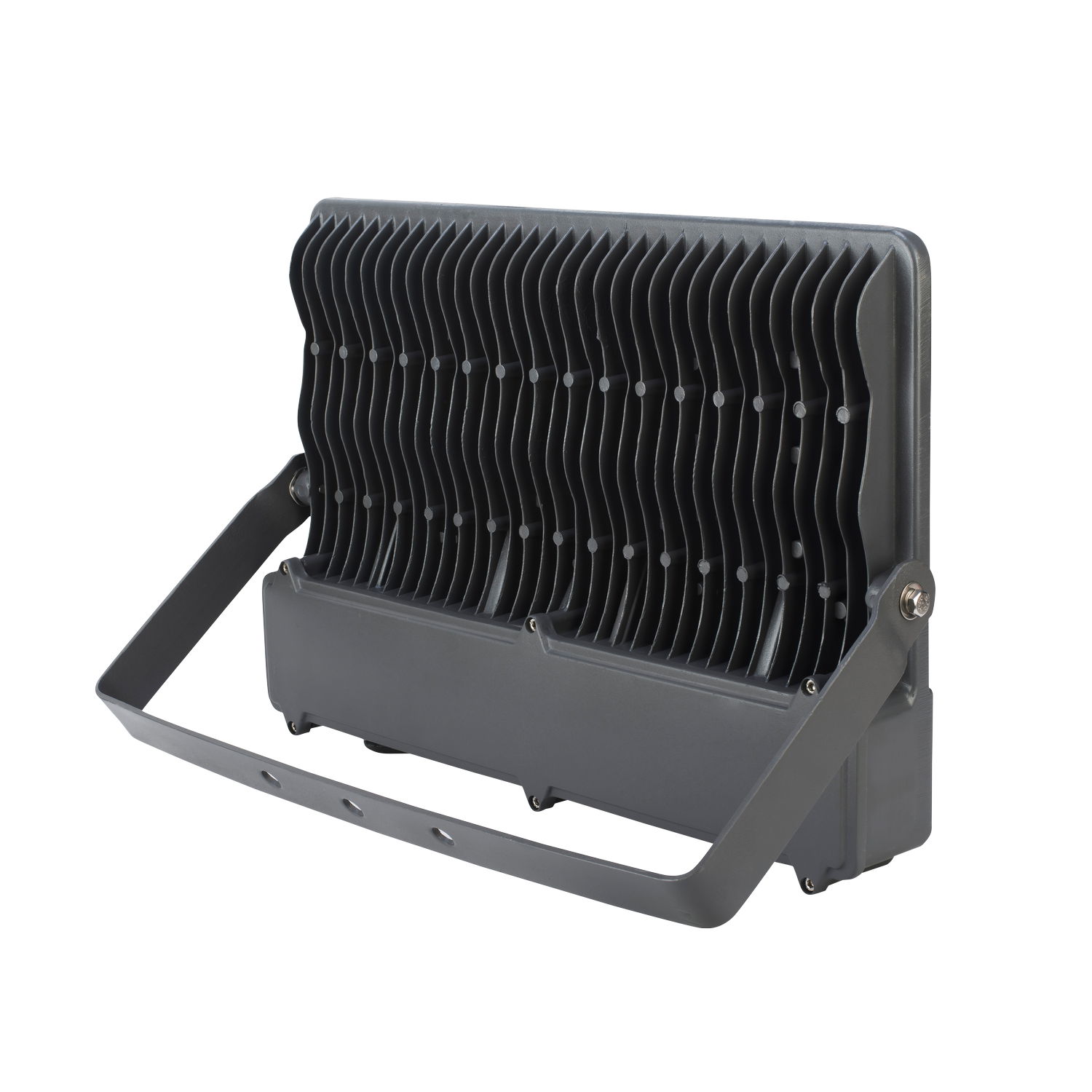

    Housing Excellent thermally managed aluminium die cast housing having larger surface area with satin finish powder coating.

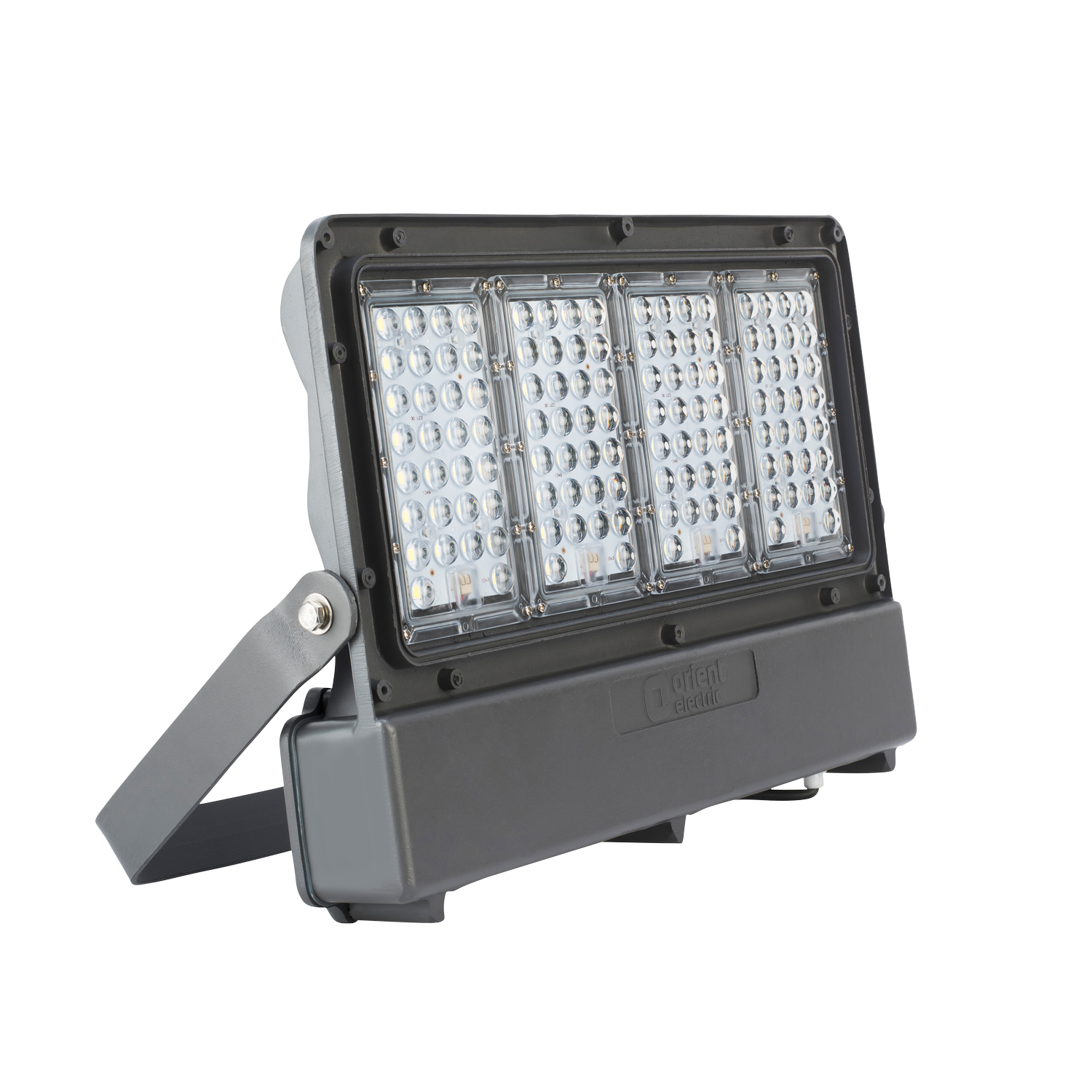

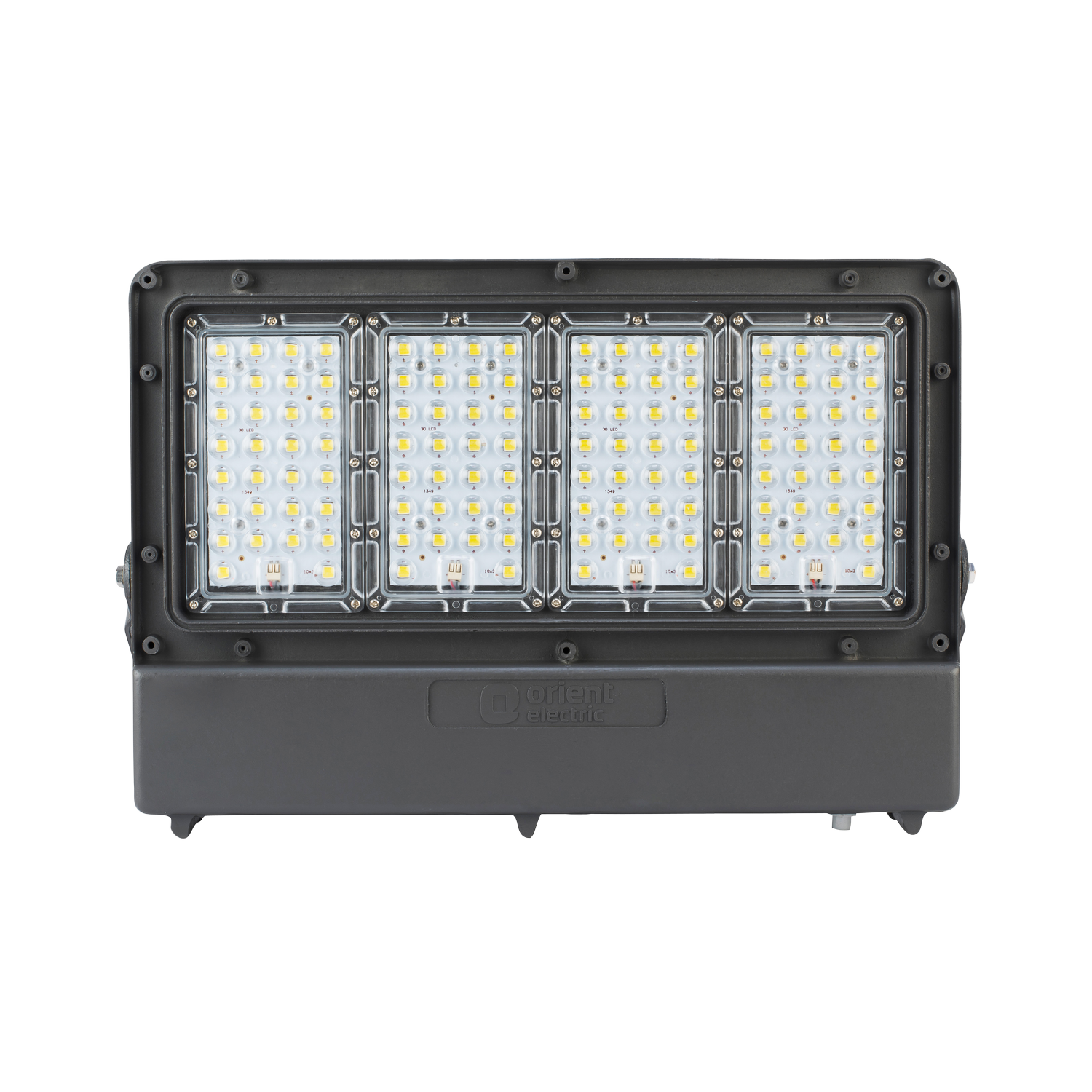

    Optics High lumen efficacy LED Module with SMD LED Package mounted with integrated PC lens cover to ensure better uniformity.Available in 60° and 90°.

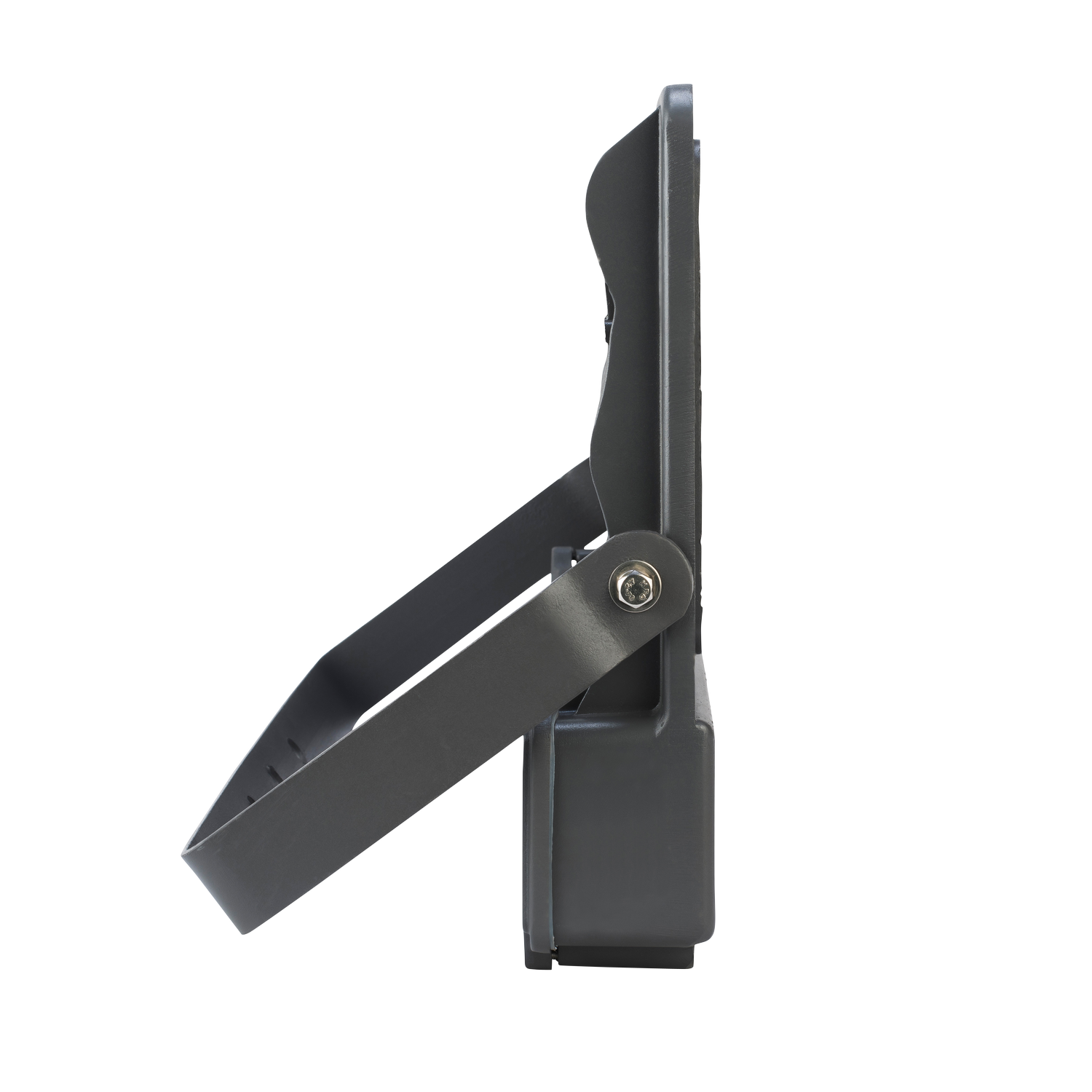

    Mounting Mounting using adjustable cradle
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV (internal) 10KV (external)
    IP 66
  • Technical Specifications
    System Wattage 50W, 60W, 70W, 80W, 100W, 120W, 150W, 200W, 250W, 300W, 350W, 400W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥100, ≥90
Sigma Plus PC variants
Product Variants
Sigma Plus PC
LFSMP-050-C-PC
Sigma Plus PC
LFSMP-050-W-PC
Sigma Plus PC
LFSMP-060-C-PC
Sigma Plus PC
LFSMP-060-W-PC
Sigma Plus PC
LFSMP-070-C-PC
Sigma Plus PC
LFSMP-070-W-PC
Sigma Plus PC
LFSMP-080-C-PC
Sigma Plus PC
LFSMP-080-W-PC
Sigma Plus PC
LFSMP-100-C-PC
Sigma Plus PC
LFSMP-100-W-PC
Sigma Plus PC
LFSMP-120-C-PC
Sigma Plus PC
LFSMP-120-W-PC
Sigma Plus PC
LFSMP-150-C-PC
Sigma Plus PC
LFSMP-150-W-PC
Sigma Plus PC
LFSMP-200-C-PC
Sigma Plus PC
LFSMP-200-W-PC
Sigma Plus PC
LFSMP-250-C-PC
Sigma Plus PC
LFSMP-250-W-PC
Sigma Plus PC
LFSMP-300-C-PC
Sigma Plus PC
LFSMP-300-W-PC
Sigma Plus PC
LFSMP-350-C-PC
Sigma Plus PC
LFSMP-350-W-PC
Sigma Plus PC
LFSMP-400-C-PC
Sigma Plus PC
LFSMP-400-W-PC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
60W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
60W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
70W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
70W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
221
169
65
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
221
169
65
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
339
299
79
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
339
299
79
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
339
299
79
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
339
299
79
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
300W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
300W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
350W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
350W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
400W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
503
346
75
400W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
503
346
75
