Product Overview

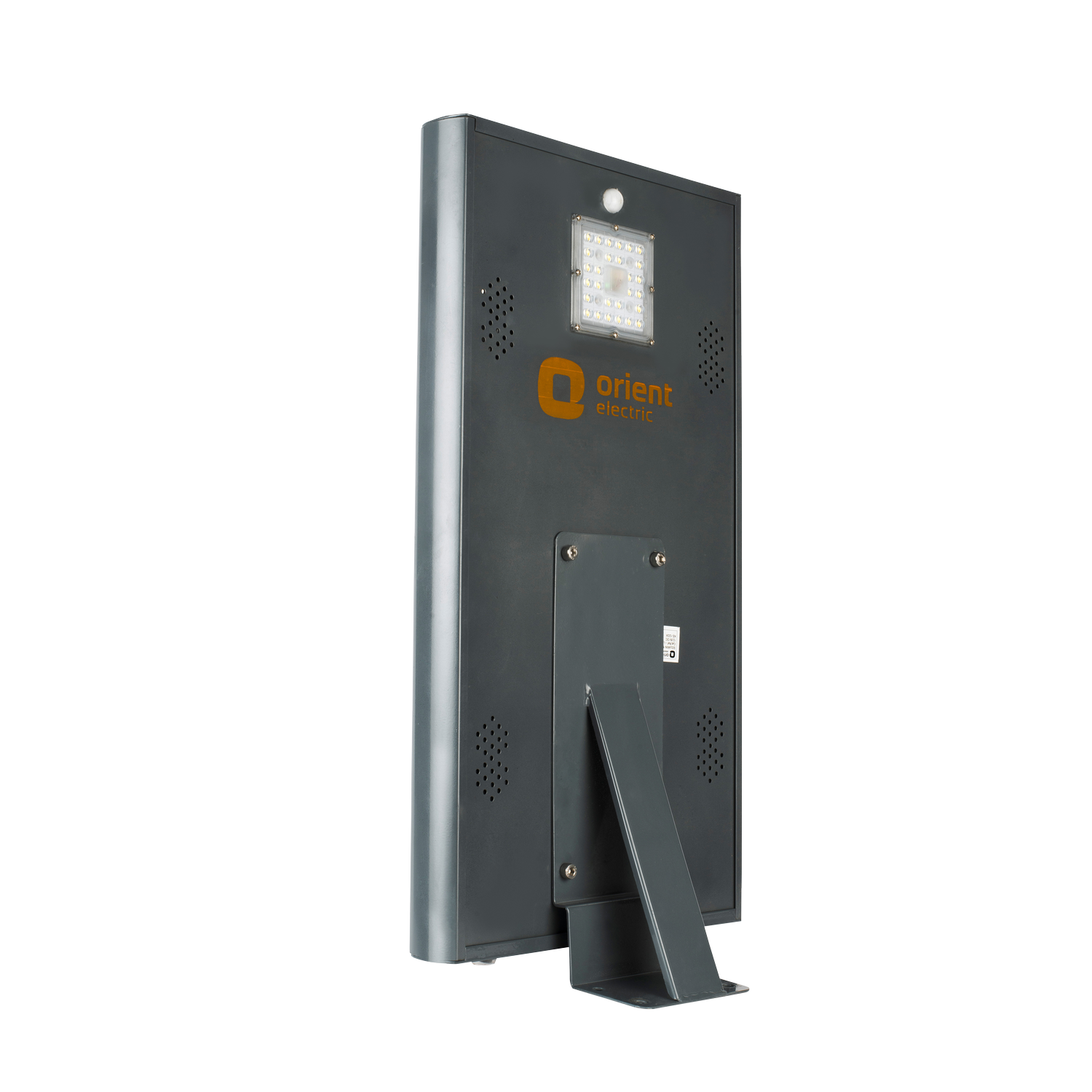

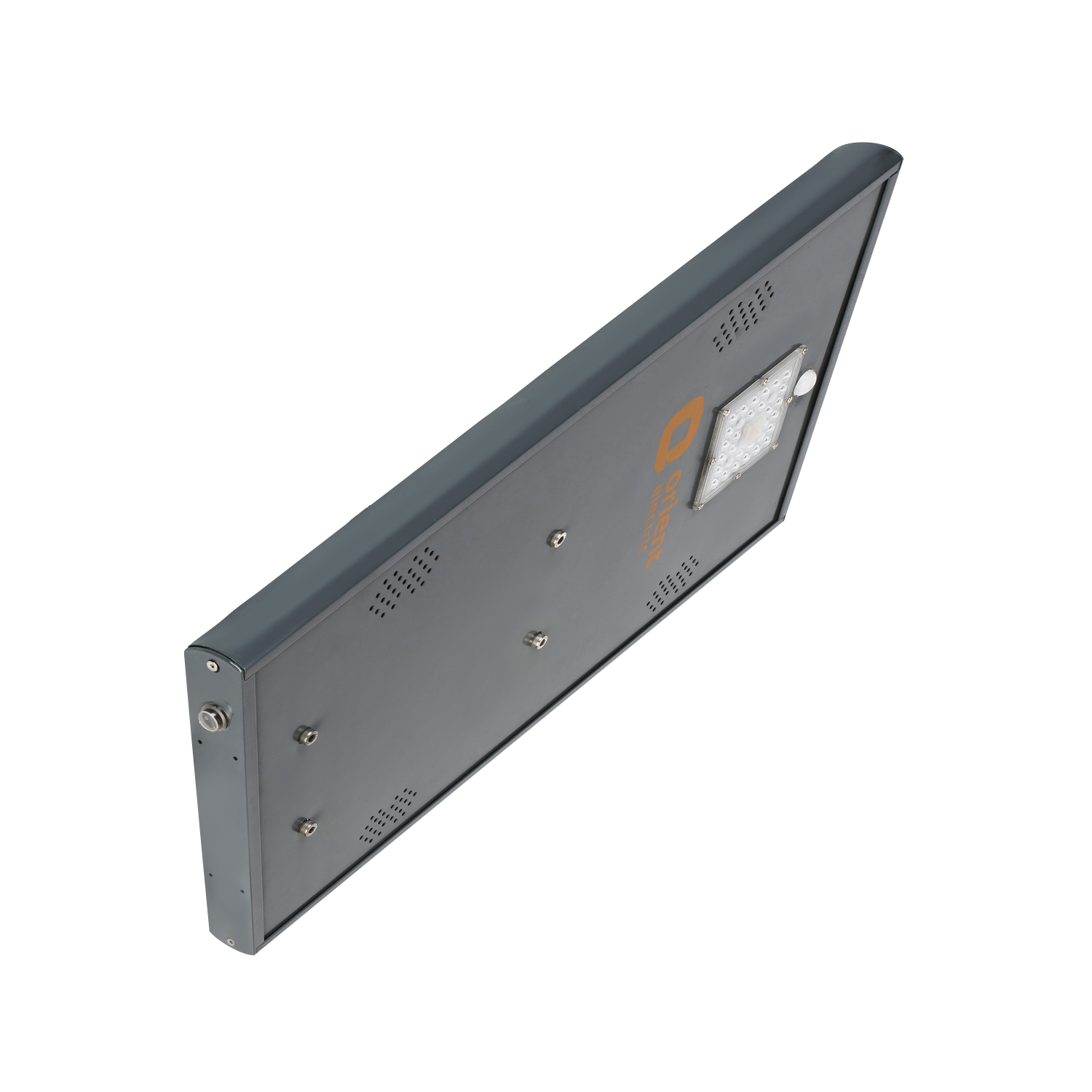

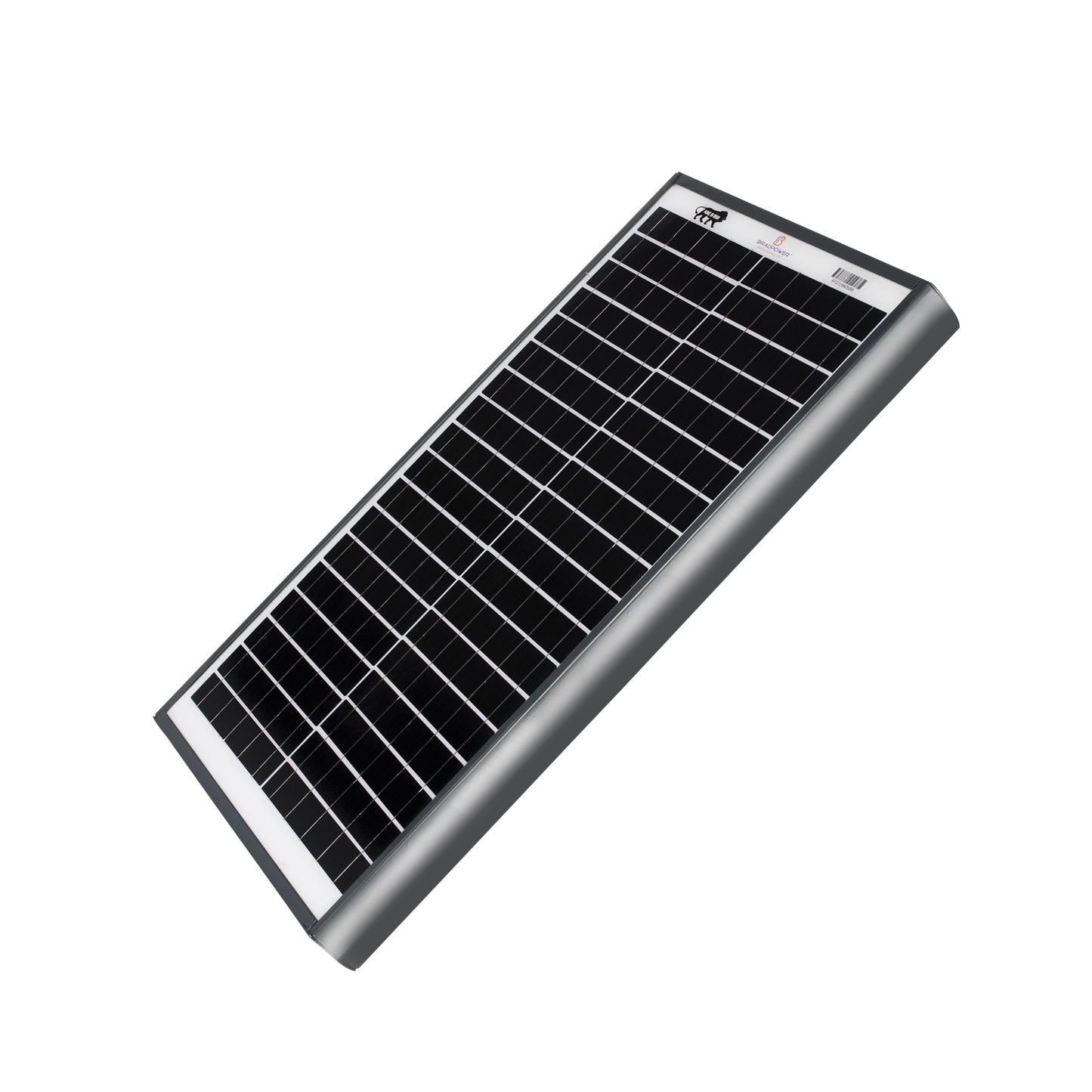

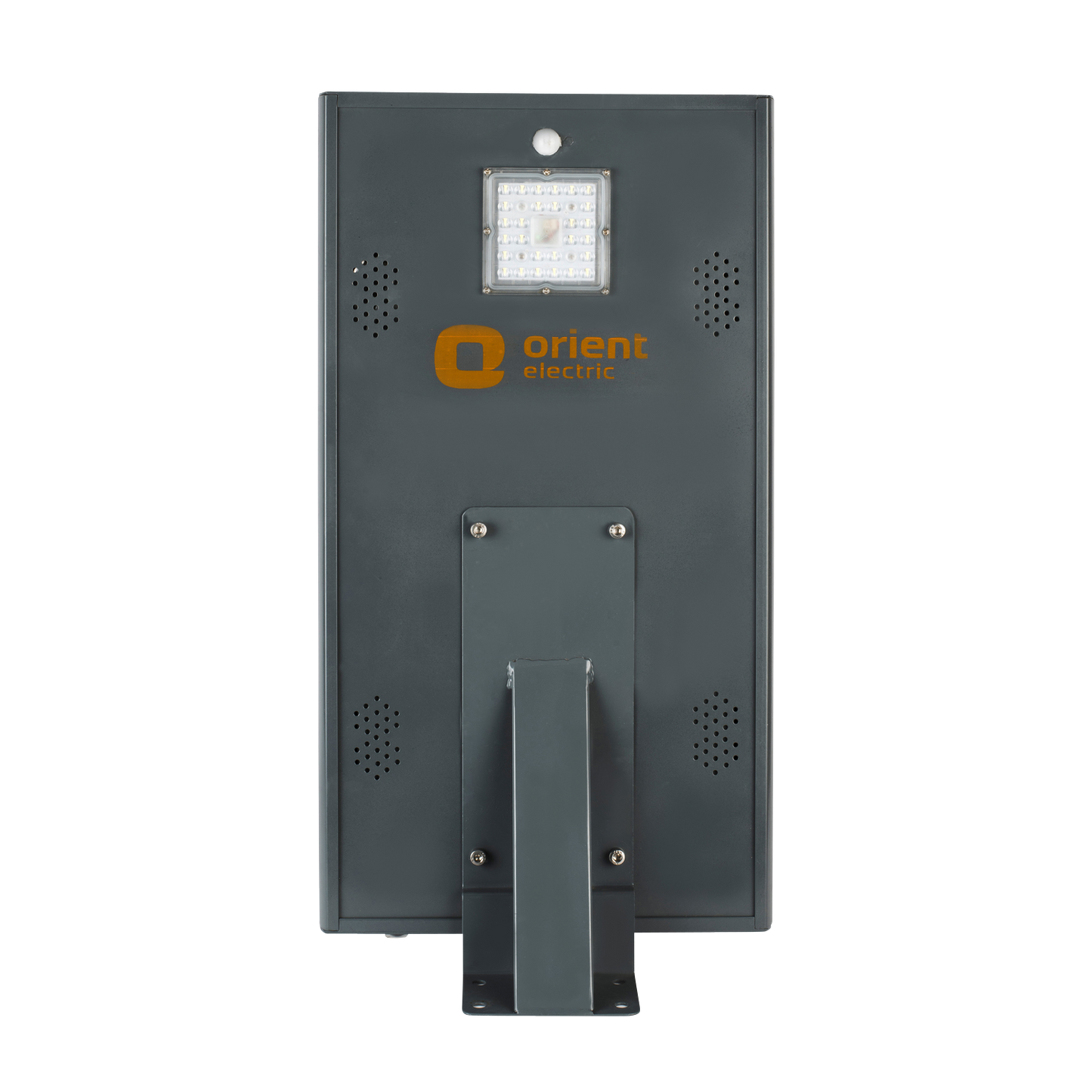

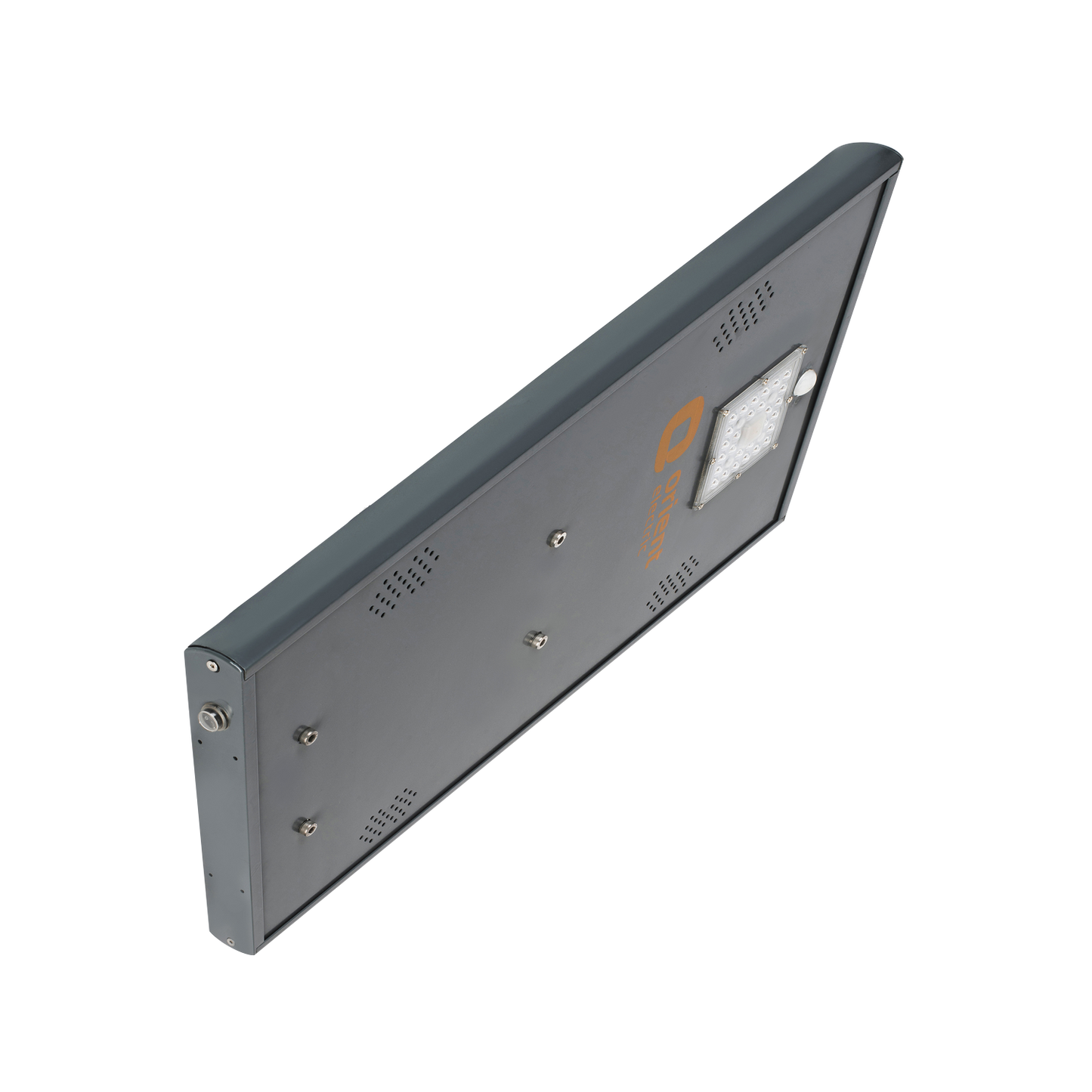

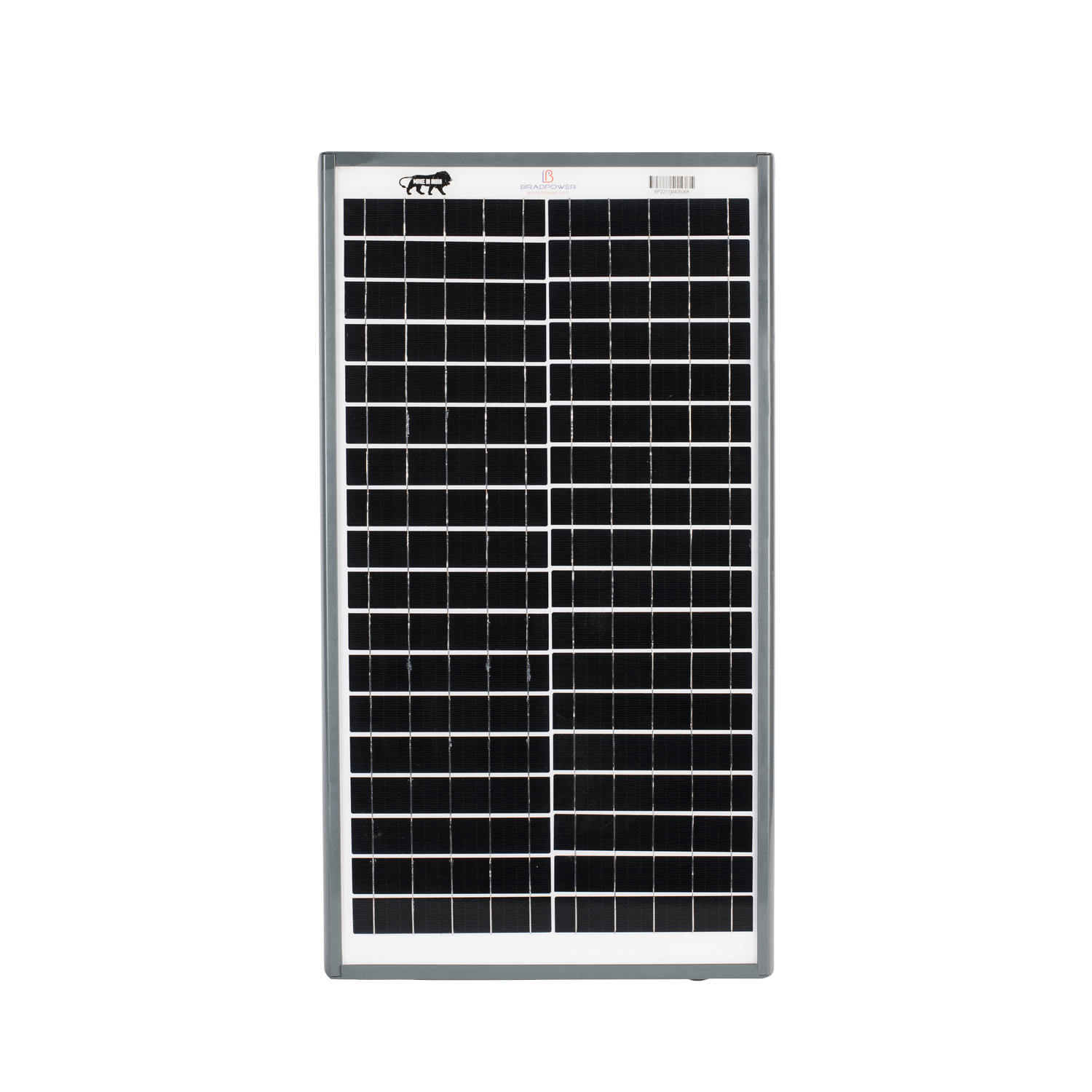

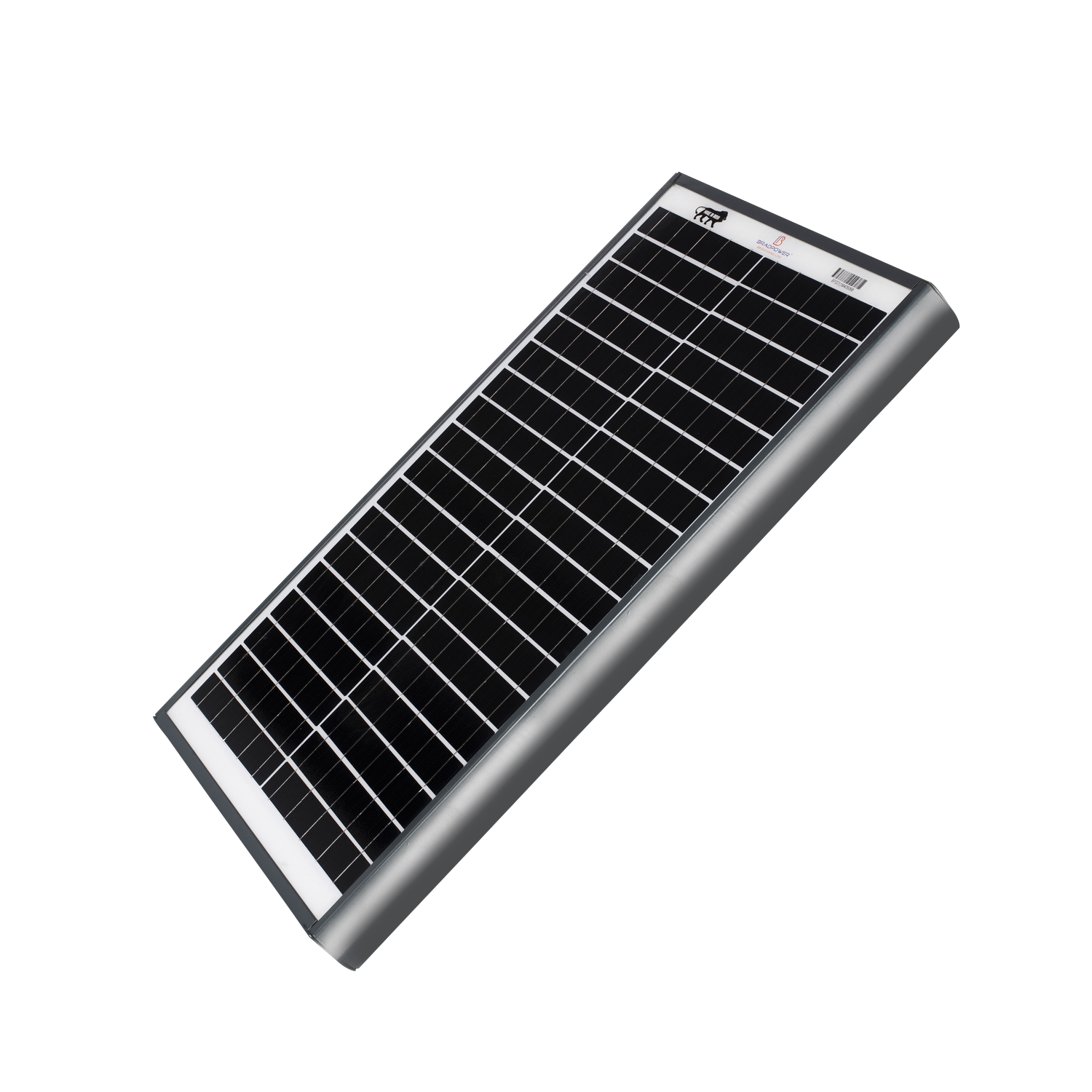

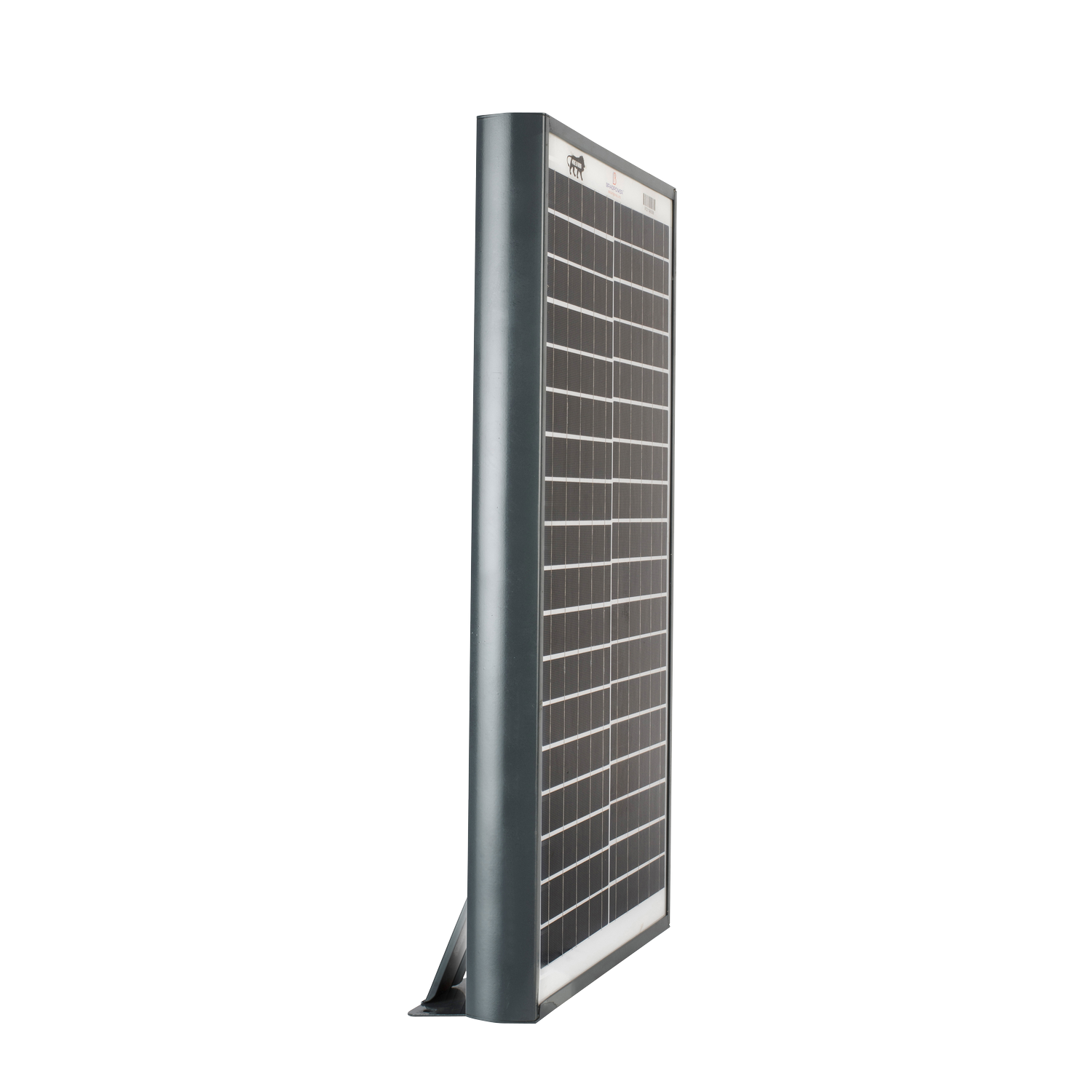

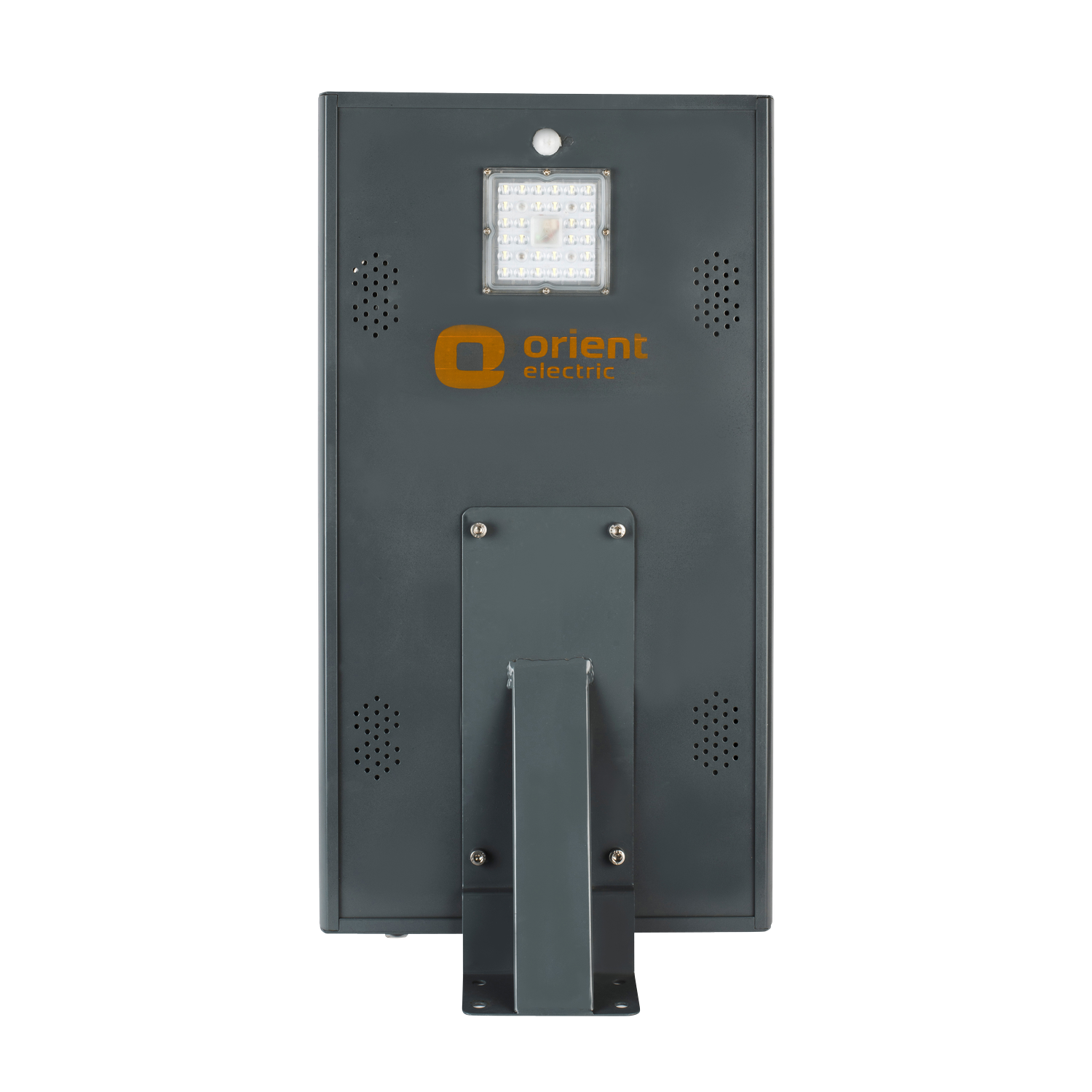

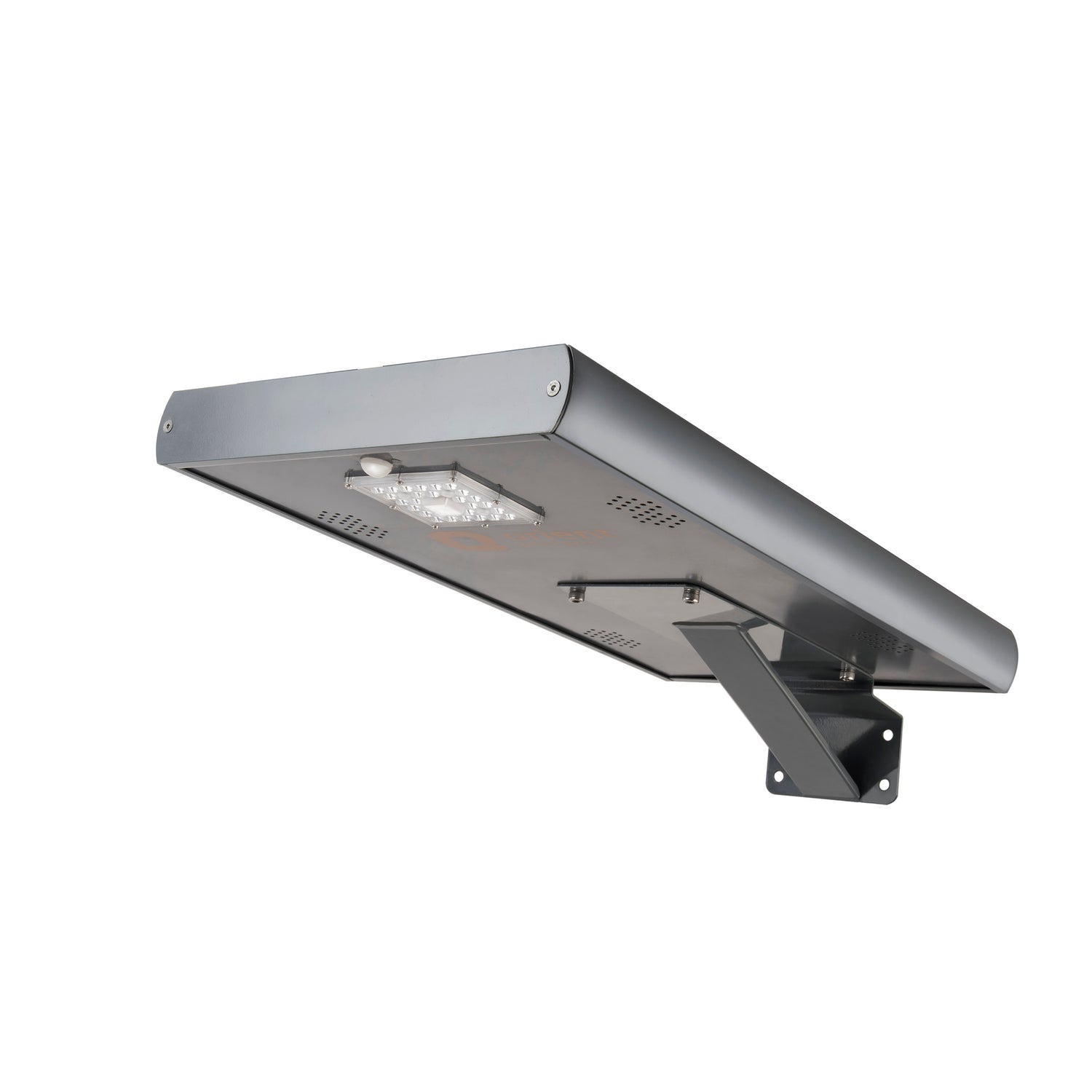

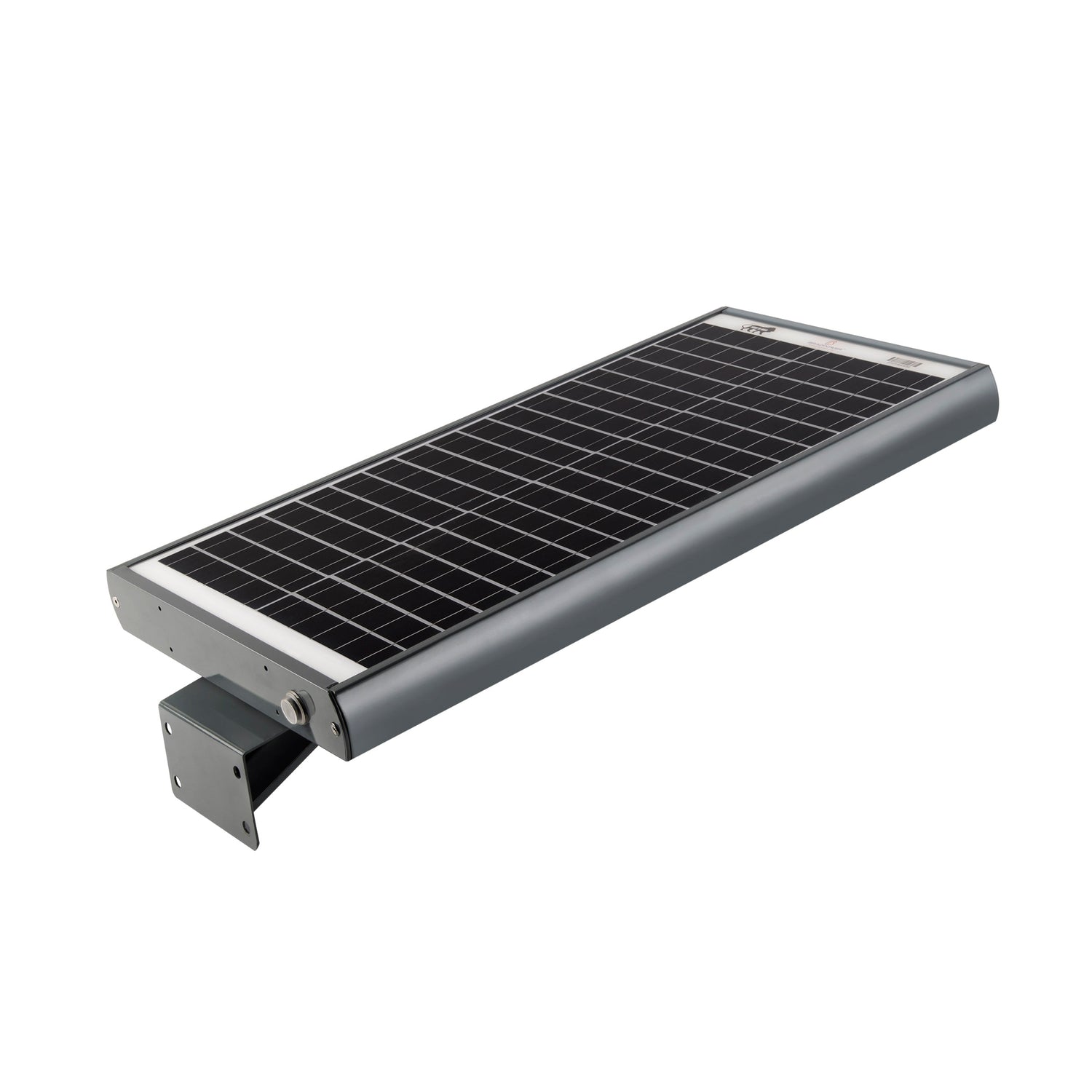

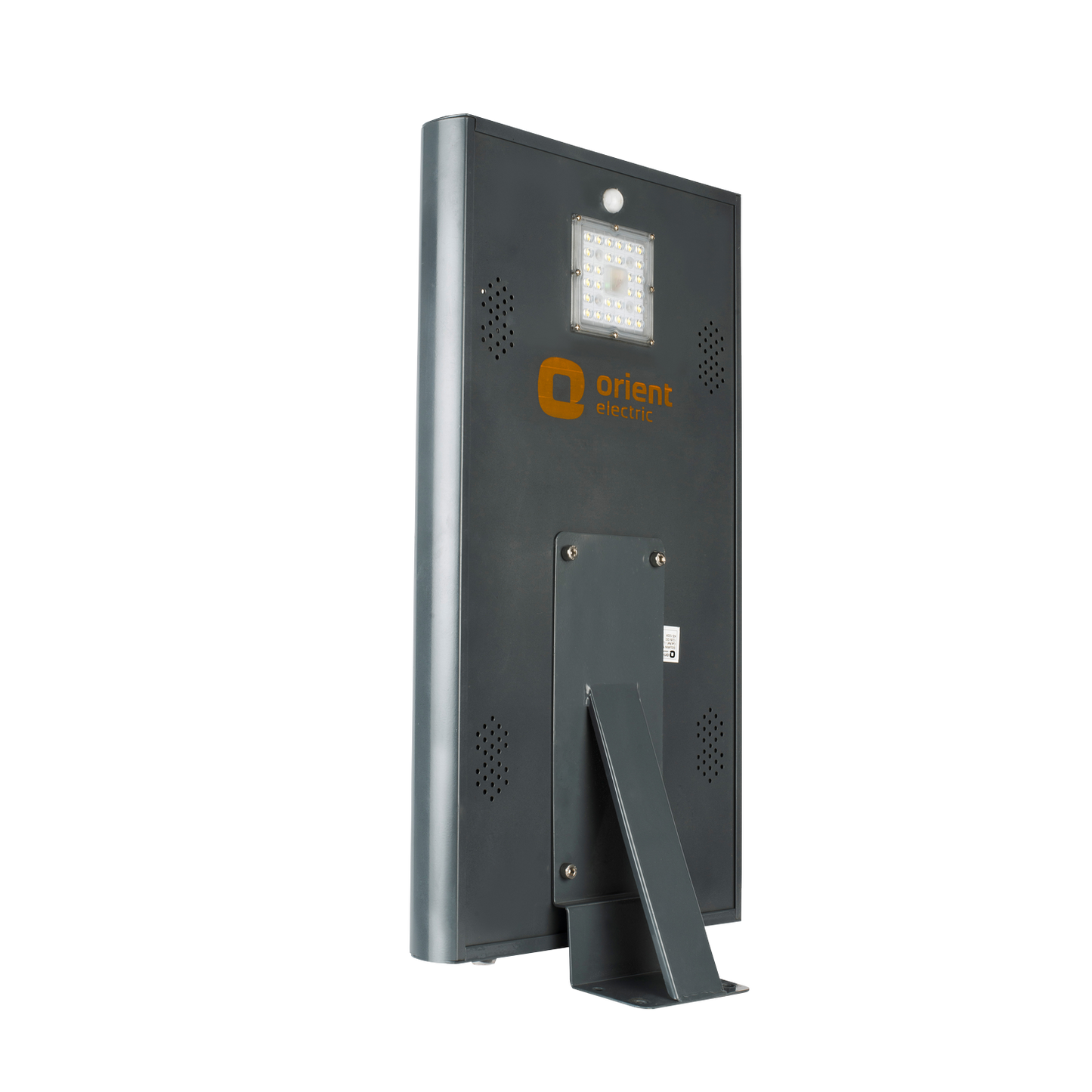

Highly efficient IP65 LED Solar Lighting System with built-in high-efficiency Solar Panel, LED Light and long-life Lithium-ion with high-efficiency microprocessor-based charge controller and a motion sensor. Due to compact size, it's easy to mount on a pole top. The light has automatic dusk-to-dawn operation. (Note: Pole is not a part of the product but can be supplied on request at an additional cost.)

View full details
  • General specification
    Housing Excellent thermally managed aluminum extrusion frame.
    Optics 135° x 85° PC Lens
    Mounting Pole Mounting

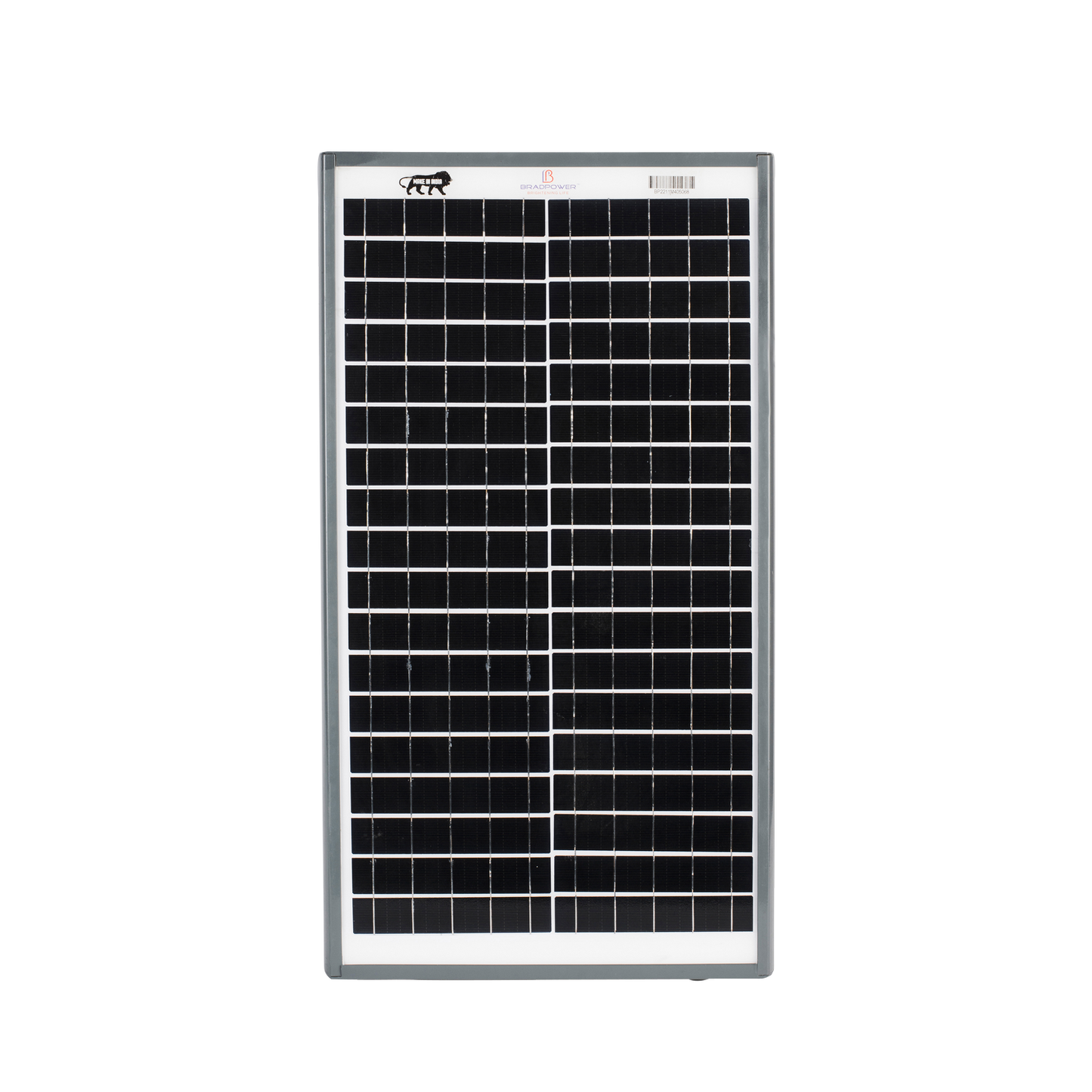

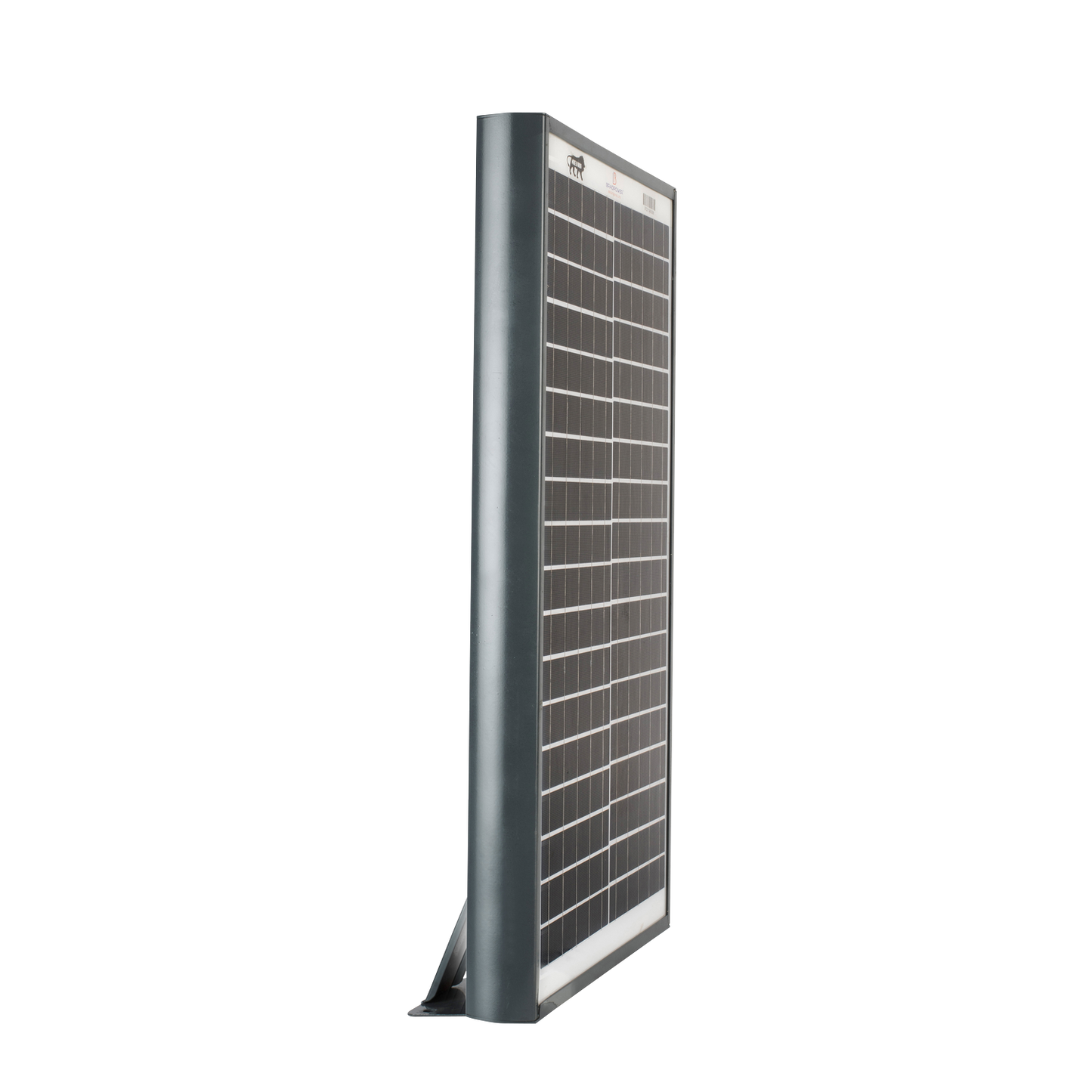

    Panel Solar Photovoltaic panel
    Battery Type Lithium
    IP 65
  • Technical Specifications
    System Wattage 9W, 12W, 15W, 20W, 24W, 30W, 40W, 50W, 60W
    CCT 5700K , 3000K
    CRI ≥70
    Solar Panel 40W (Mono)
    Battery capacity 12.8V 12 Ah
    System efficacy (lm/W) ≥100, ≥90
Solarin variants
Product Variants
Solarin
LSSN-09C40-12P
Solarin
LSSN-09W40-12P
Solarin
LSSN-12C50-18P
Solarin
LSSN-12W50-18P
Solarin
LSSN-15C60-18P
Solarin
LSSN-15W60-18P
Solarin
LSSN-20C60-18P
Solarin
LSSN-20W60-18P
Solarin
LSSN-24C90-30P
Solarin
LSSN-24W90-30P
Solarin
LSSN-30C100-36P
Solarin
LSSN-30W100-36P
Solarin
LSSN-40C120-42P
Solarin
LSSN-40W120-42P
Solarin
LSSN-50C150-48P
Solarin
LSSN-50W150-48P
Solarin
LSSN-60C200-60P
Solarin
LSSN-60W200-60P
System Wattage
CCT
CRI
Solar Panel
Battery capacity
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
9W
5700K
≥70
40W (Mono)
12.8V/12 Ah
≥100
670
365
55
9W
3000K
≥70
40W (Mono)
12.8V/12 Ah
≥90
670
365
55
12W
5700K
≥70
50W (Mono)
12.8V/12 Ah
≥100
795
365
55
12W
3000K
≥70
50W (Mono)
12.8V/12 Ah
≥90
795
365
55
15W
5700K
≥70
60W (Mono)
12.8V/12 Ah
≥100
985
380
55
15W
5700K
≥70
60W (Mono)
12.8V/12 Ah
≥100
985
380
55
20W
5700K
≥70
60W (Mono)
12.8V/12 Ah
≥100
985
380
55
20W
3000K
≥70
60W (Mono)
12.8V/12 Ah
≥90
985
380
55
24W
5700K
≥70
100W (Mono)
12.8V/12 Ah
≥100
1060
525
55
24W
3000K
≥70
90W (Mono)
12.8V/12 Ah
≥90
1060
525
55
30W
5700K
≥70
100W (Mono)
12.8V/12 Ah
≥100
1060
525
55
30W
3000K
≥70
100W (Mono)
12.8V/12 Ah
≥90
1060
525
55
40W
5700K
≥70
120W (Mono)
12.8V/12 Ah
≥100
1270
525
55
40W
3000K
≥70
120W (Mono)
12.8V/12 Ah
≥90
1270
525
55
50W
5700K
≥70
150W (Mono)
12.8V/12 Ah
≥100
1170
695
55
50W
3000K
≥70
150W (Mono)
12.8V/12 Ah
≥90
1170
695
55
60W
5700K
≥70
200W (Mono)
12.8V/12 Ah
≥100
1470
695
55
60W
3000K
≥70
200W (Mono)
12.8V/12 Ah
≥90
1470
695
55
