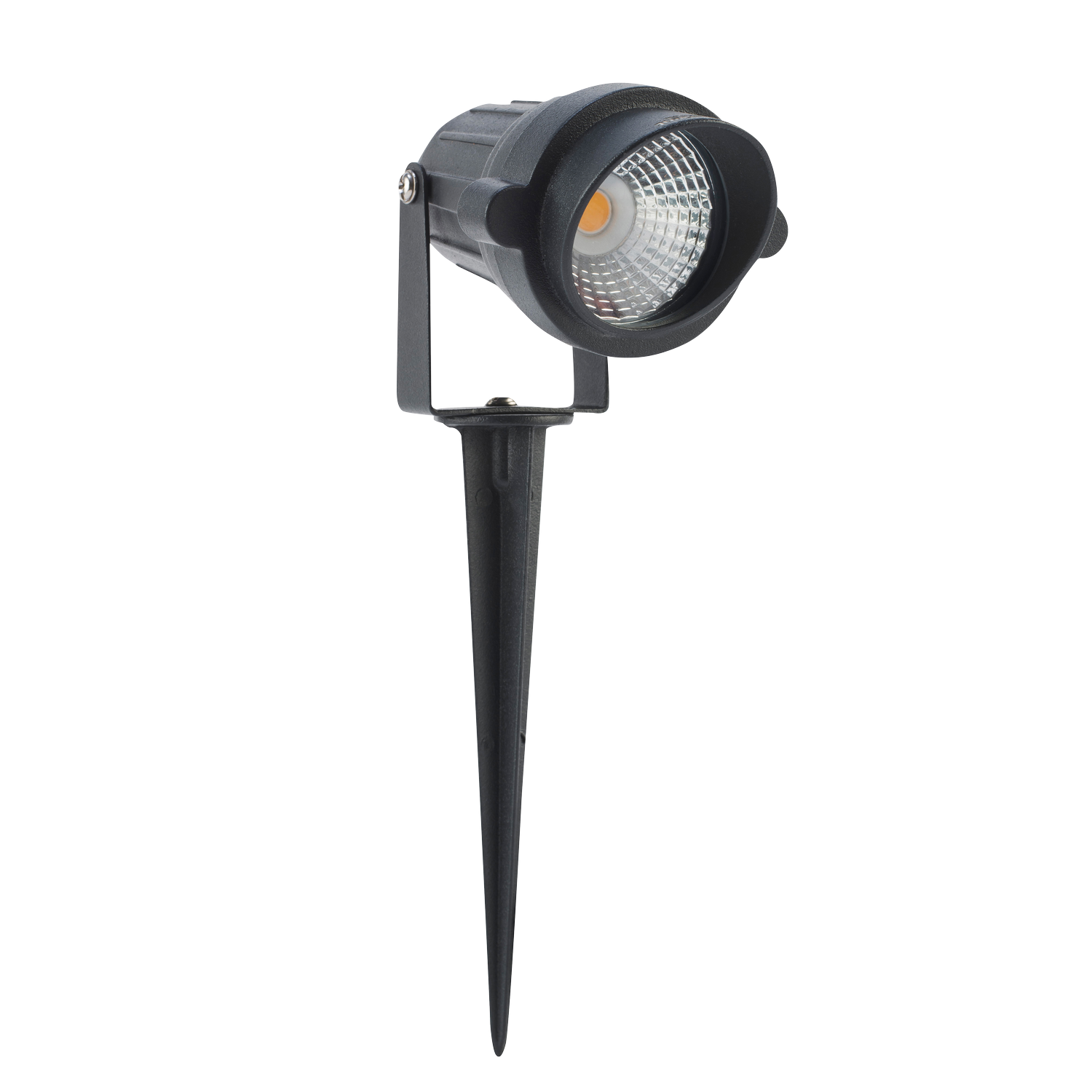

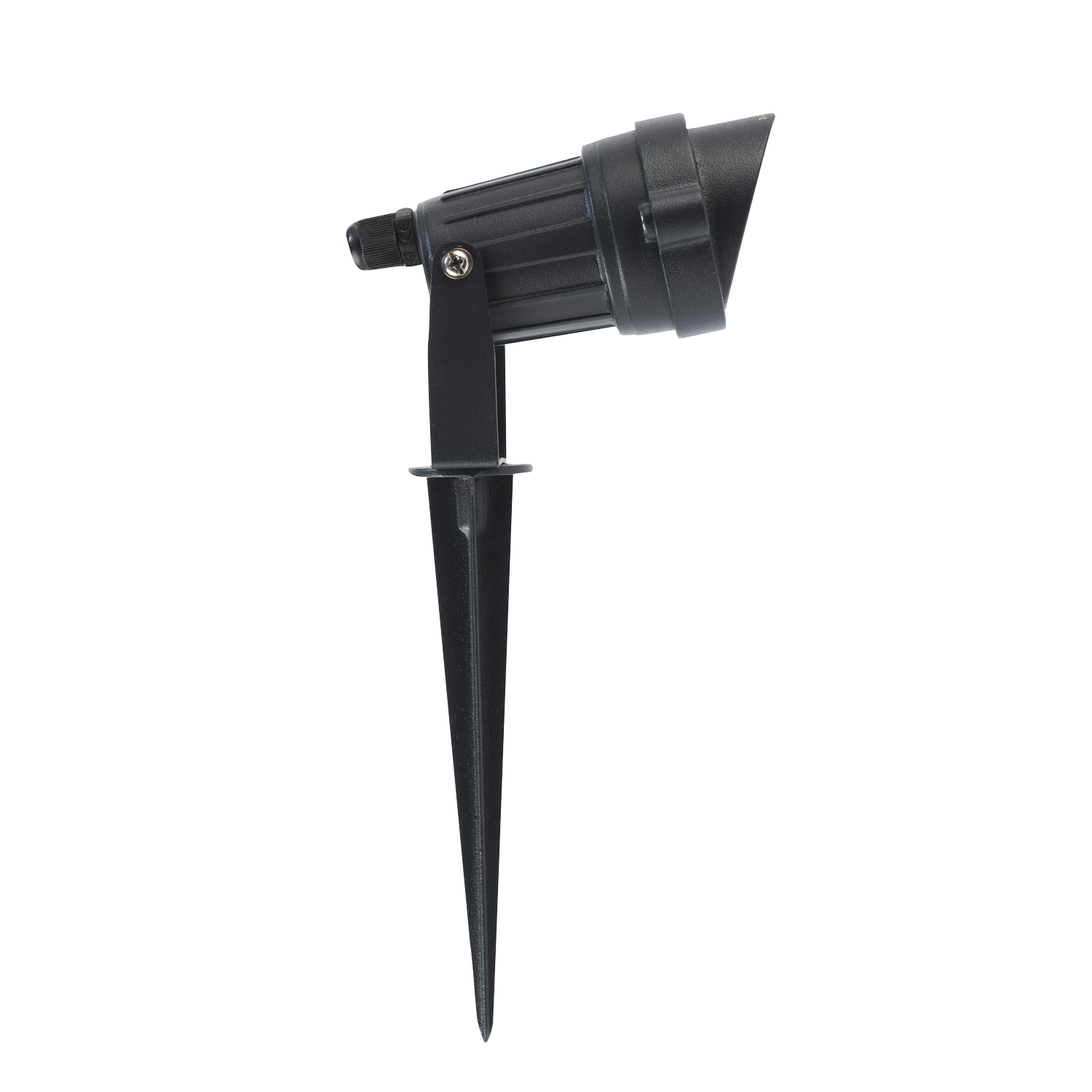

Spike light

Spike light

Spike light

Product Overview

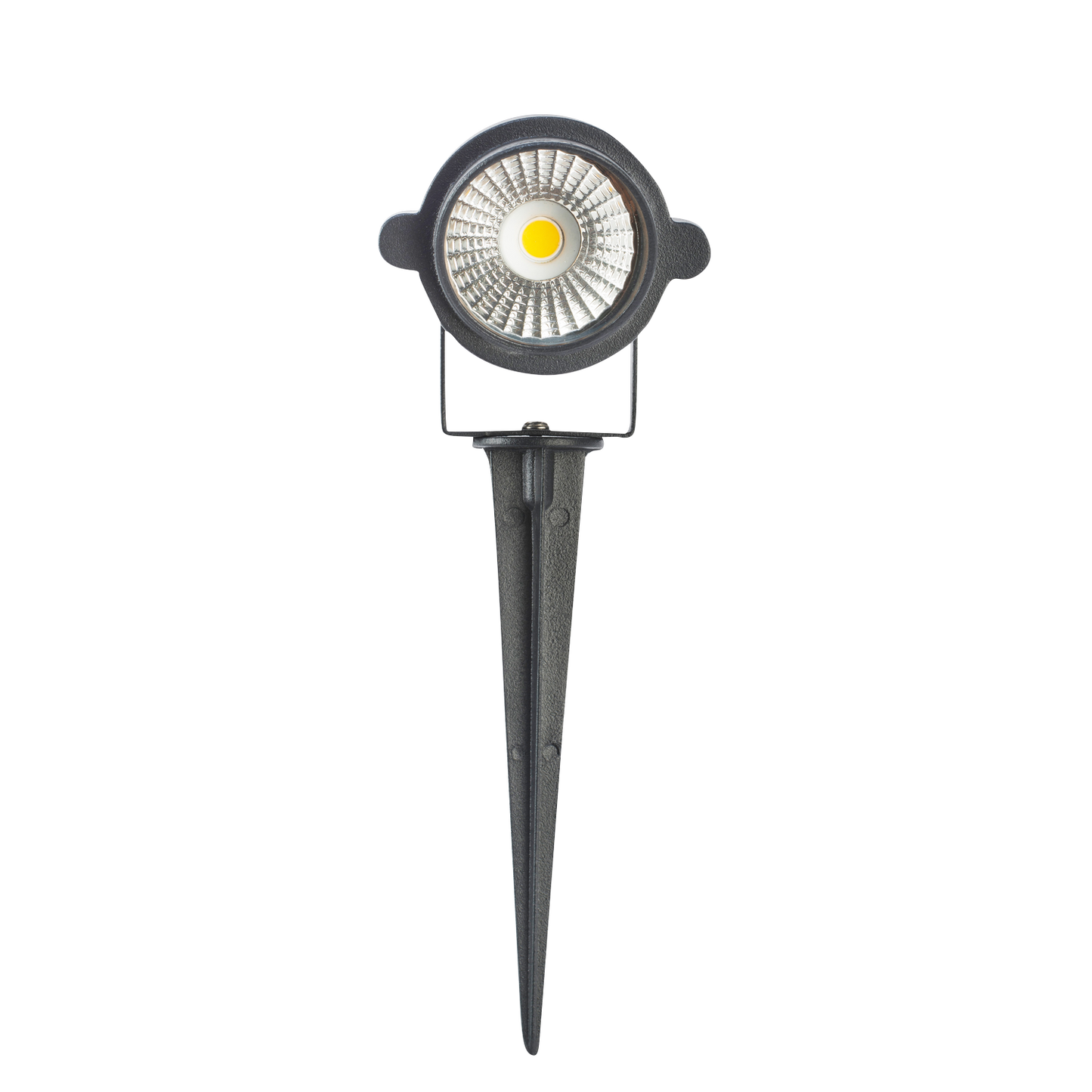

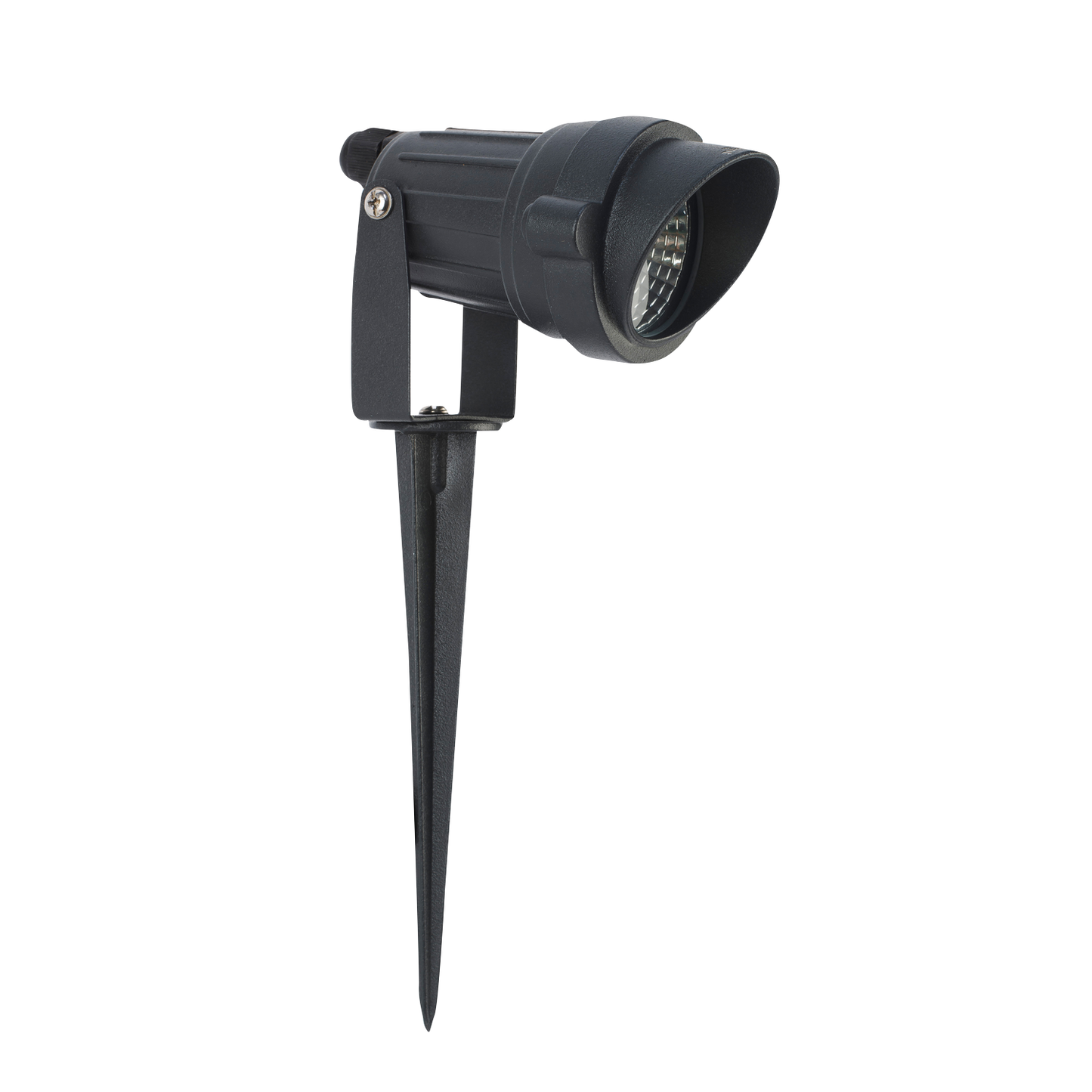

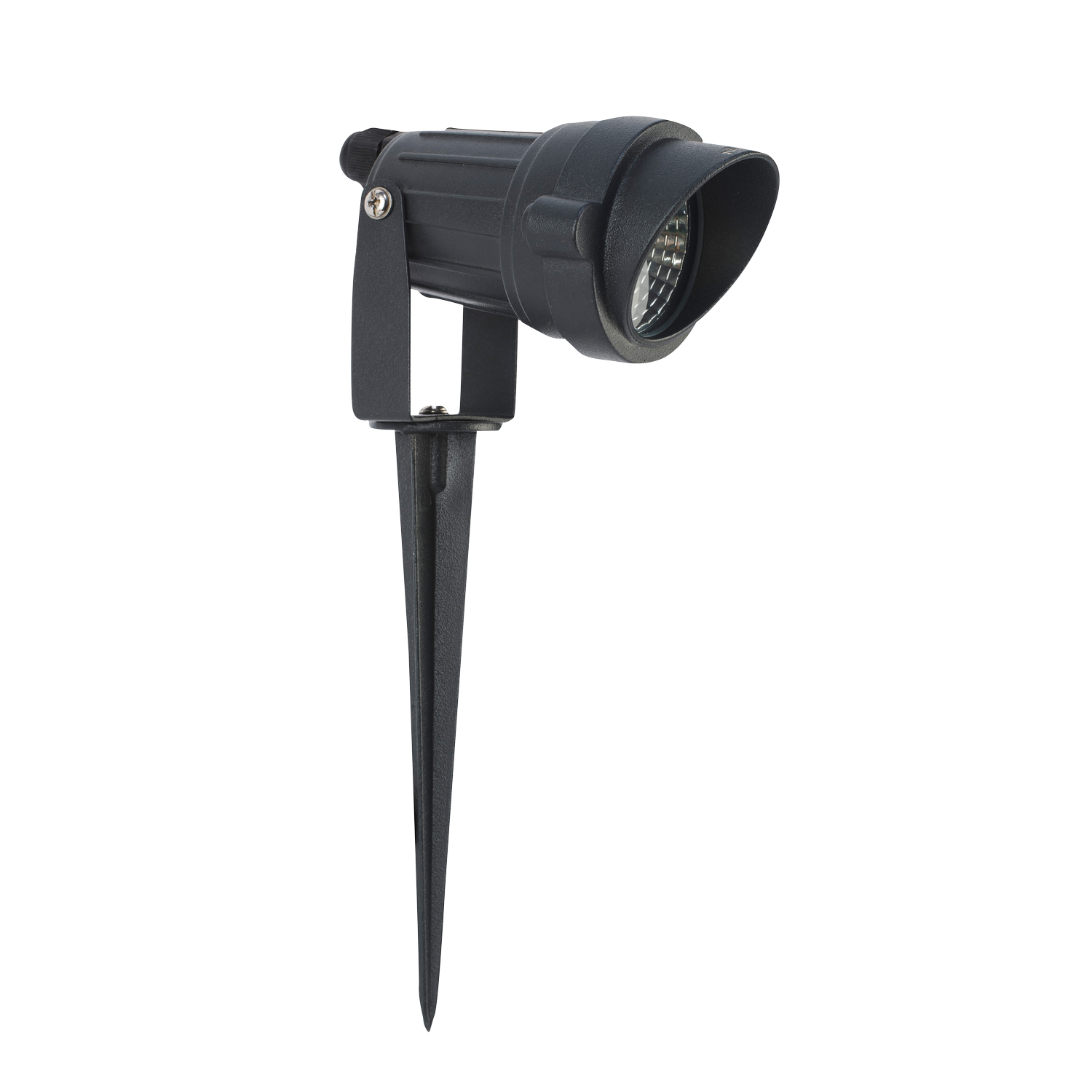

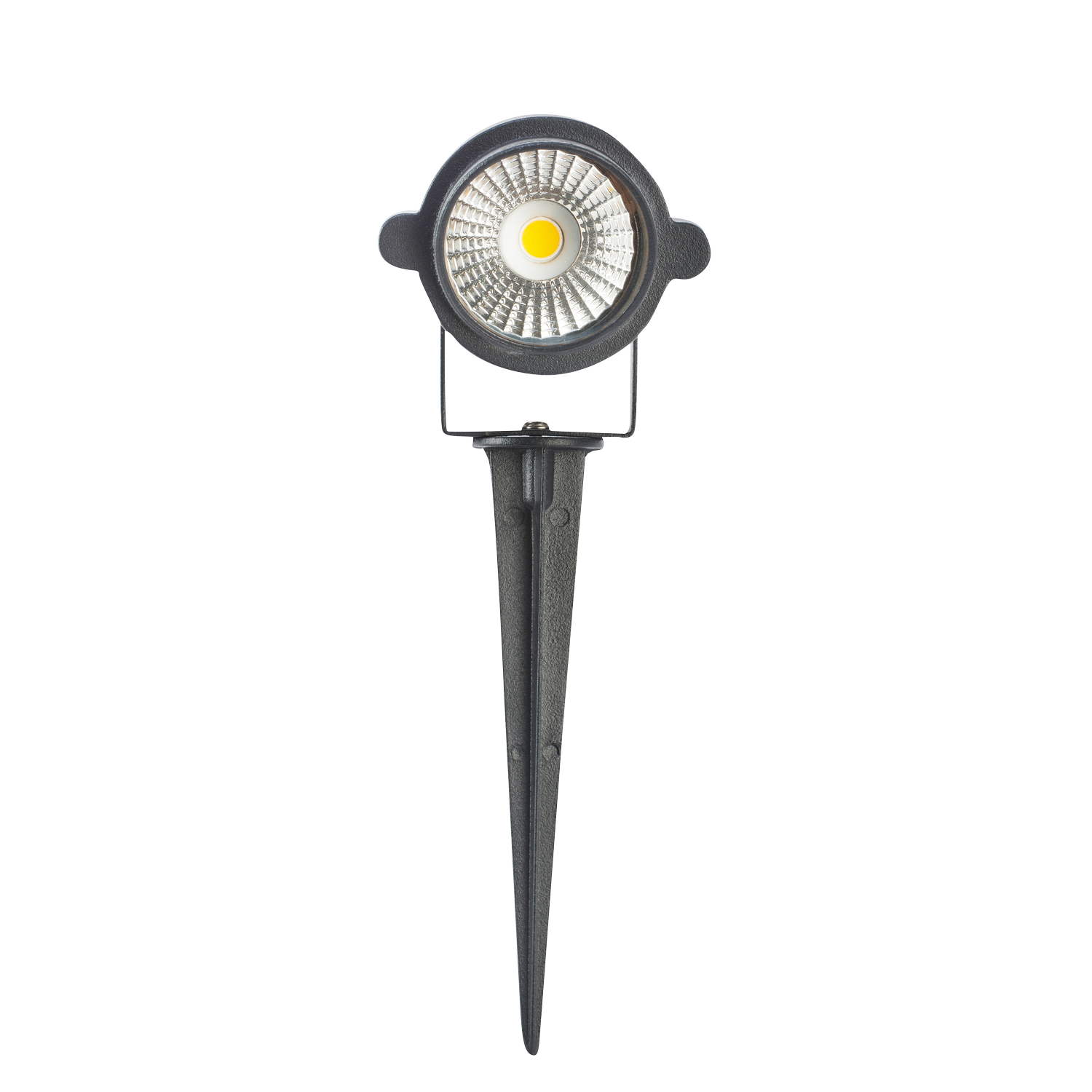

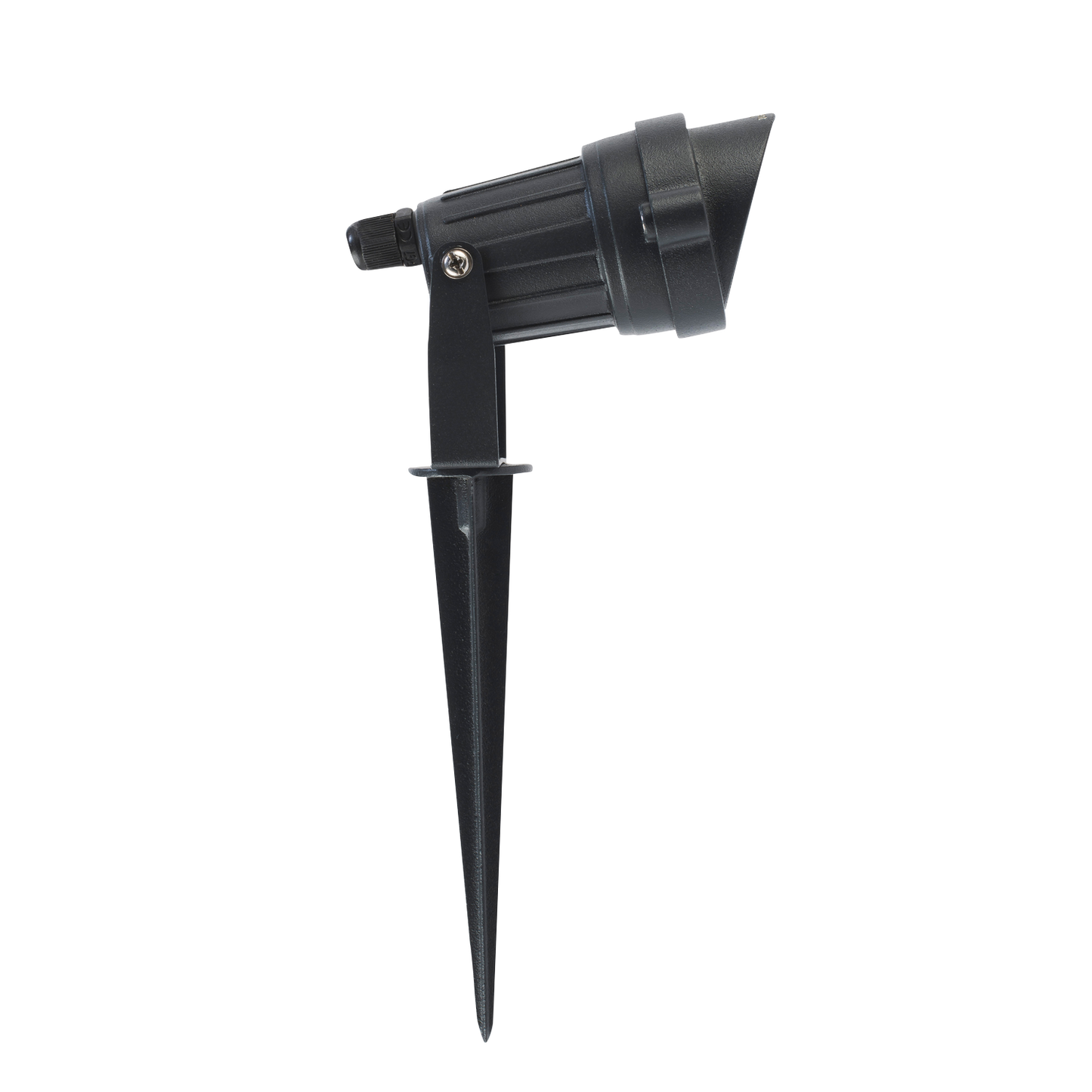

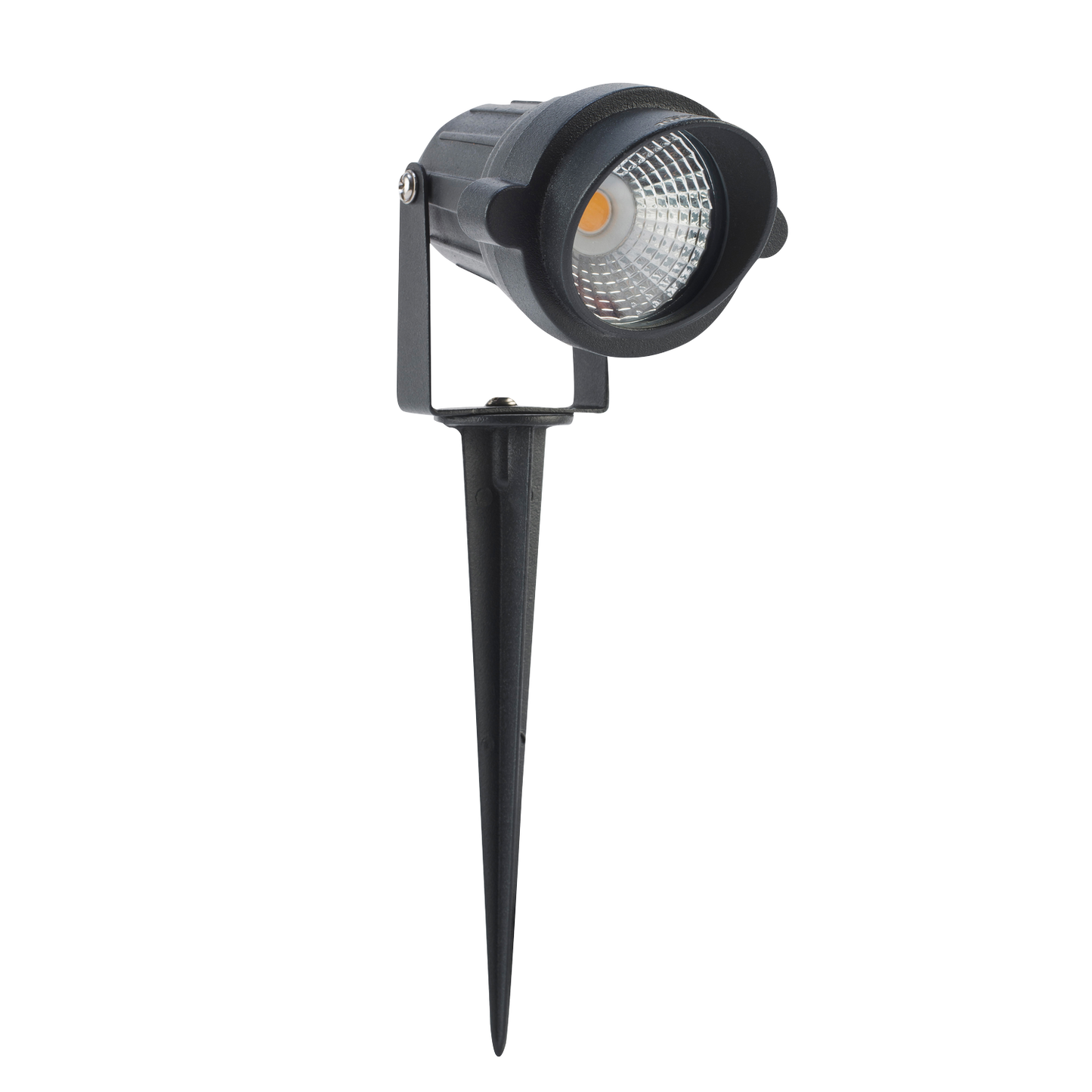

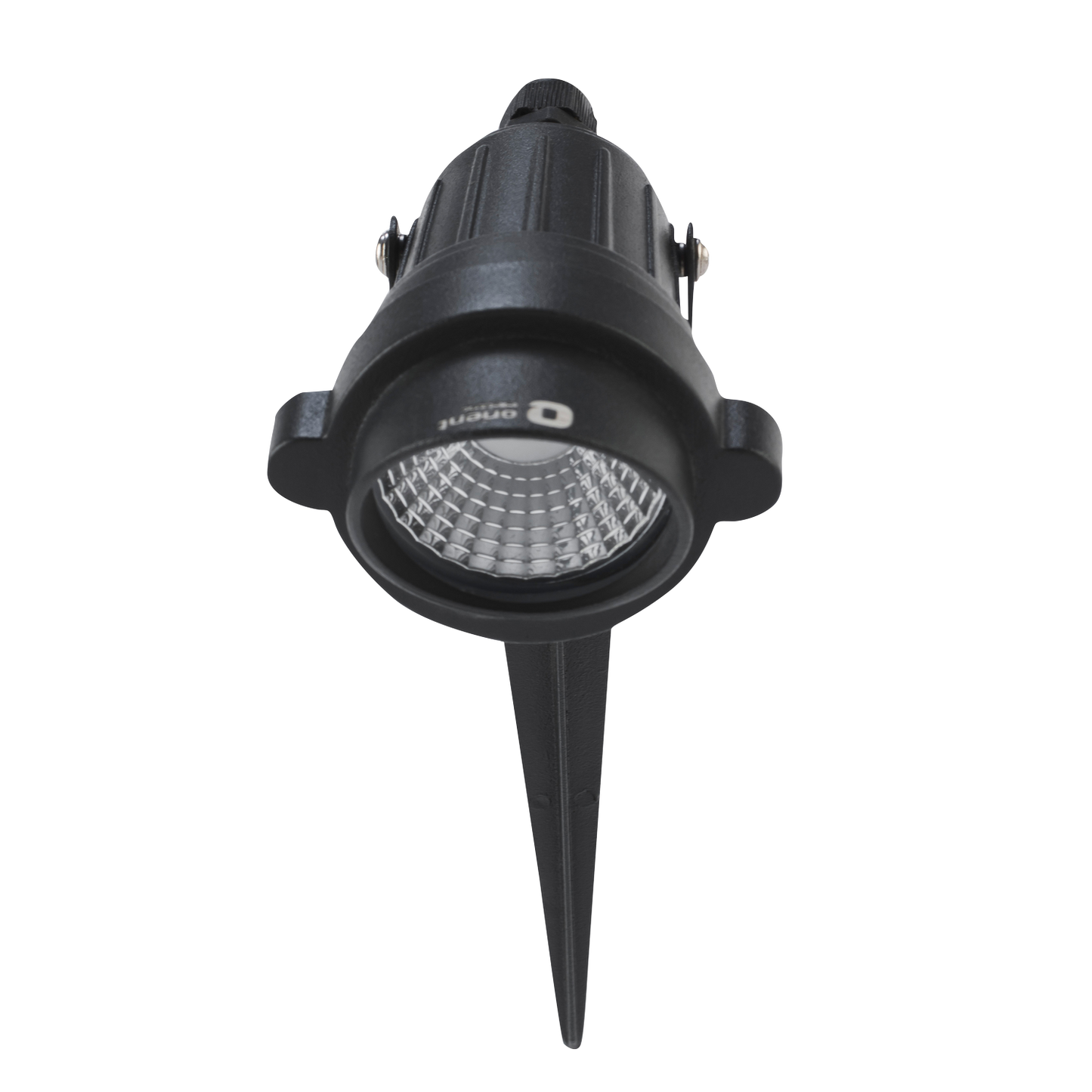

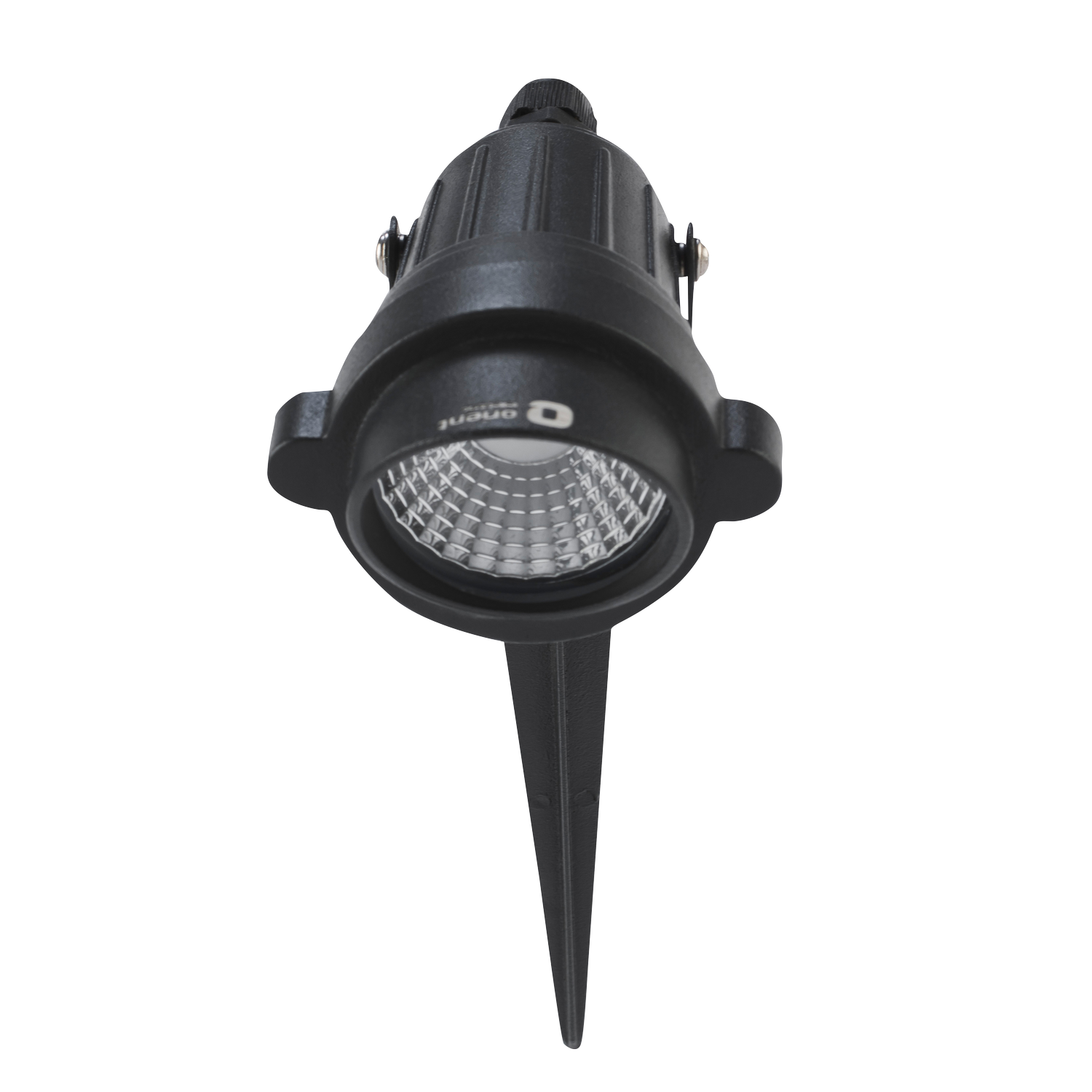

Spike light IP65 in pressure die-cast aluminium housing best suitable for bush lighting.

View full details
  • General specification
    Housing Elegantly designed pressure die-cast aluminum housing and PDC spigot
    Optics High-quality aluminum reflector that provides Standard 45° beam angle
    Mounting On ground (with spike) and On wall (without spike)
    Control gear Powered by built in potted electronic LED driver
    Surge Protection Upto 4 kV in-built SPD
    IP 66
  • Technical Specifications
    System Wattage 3W, 6W, 9W, 12W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240AC
    Power Factor ≥0.95
    THD ≤20%
    System efficacy (lm/W) ≥60
Spike light variants
Product Variants
Spike light
LLSL-03-C-V1
Spike light
LLSL-03-W-V1
Spike light
LLSL-06-C-V1
Spike light
LLSL-06-W-V1
Spike light
LLSL-09-C-V1
Spike light
LLSL-09-W-V1
Spike light
LLSL-12-C-V1
Spike light
LLSL-12-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
3W
5700K
≥70
240AC
≥0.95
≤20%
≥70
145
78
61
3W
3000K
≥70
240AC
≥0.95
≤20%
≥60
145
78
61
6W
5700K
≥70
240AC
≥0.95
≤20%
≥70
145
78
61
6W
3000K
≥70
240AC
≥0.95
≤20%
≥60
145
78
61
9W
5700K
≥70
240AC
≥0.95
≤20%
≥70
150
88
70
9W
3000K
≥70
240AC
≥0.95
≤20%
≥60
150
88
70
12W
5700K
≥70
240AC
≥0.95
≤20%
≥70
150
88
70
12W
3000K
≥70
240AC
≥0.95
≤20%
≥60
150
88
70
