Product Overview

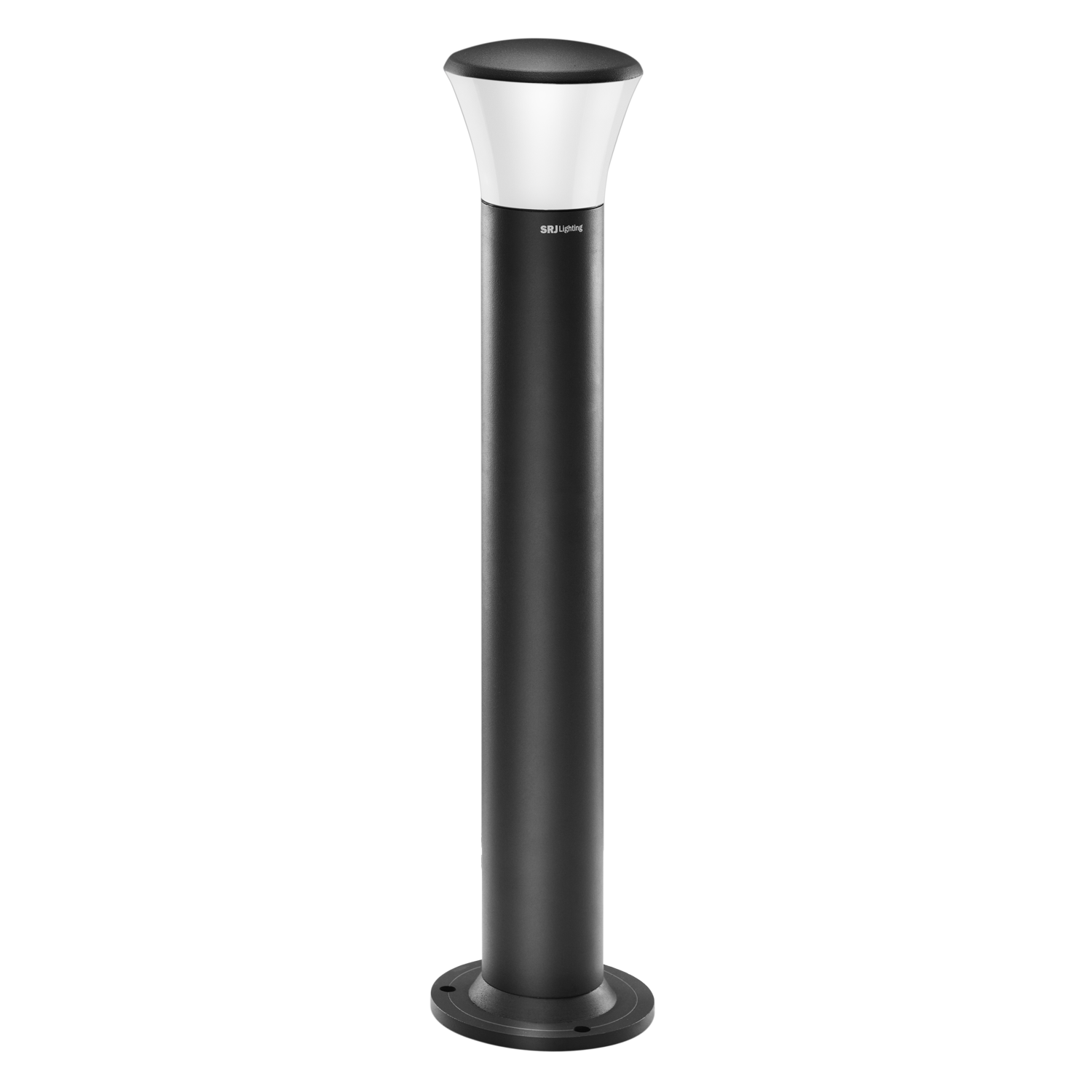

LED bollard made in aluminium housing with top cover in pressure die cast for restricting upward light output ratio with opal polycarbonate cover for glare-free symmetric light with minimum ULOR. Best suitable to illuminate walkways, steps or pathways.

View full details
  • General specification
    Housing Excellent thermally managed Aluminium housing with top in pressure die cast.
    Optics Polycarbonate diffuser for glare free symmetric light with minimum ULOR.
    Mounting Fixed on Ground
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 65
  • Technical Specifications
    System Wattage 10W, 15W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥90, ≥80
Step variants
Product Variants
Step
LLSBL-10-C
Step
LLSBL-10-W
Step
LLSBL-10-C-B
Step
LLSBL-10-W-B
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Diameter (in mm)
Height (in mm)
10W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
120
600
10W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
120
600
15W
5700K
≥70
240V AC
≥0.95
≤10%
≥90
120
800
15W
3000K
≥70
240V AC
≥0.95
≤10%
≥80
120
800
