Product Overview

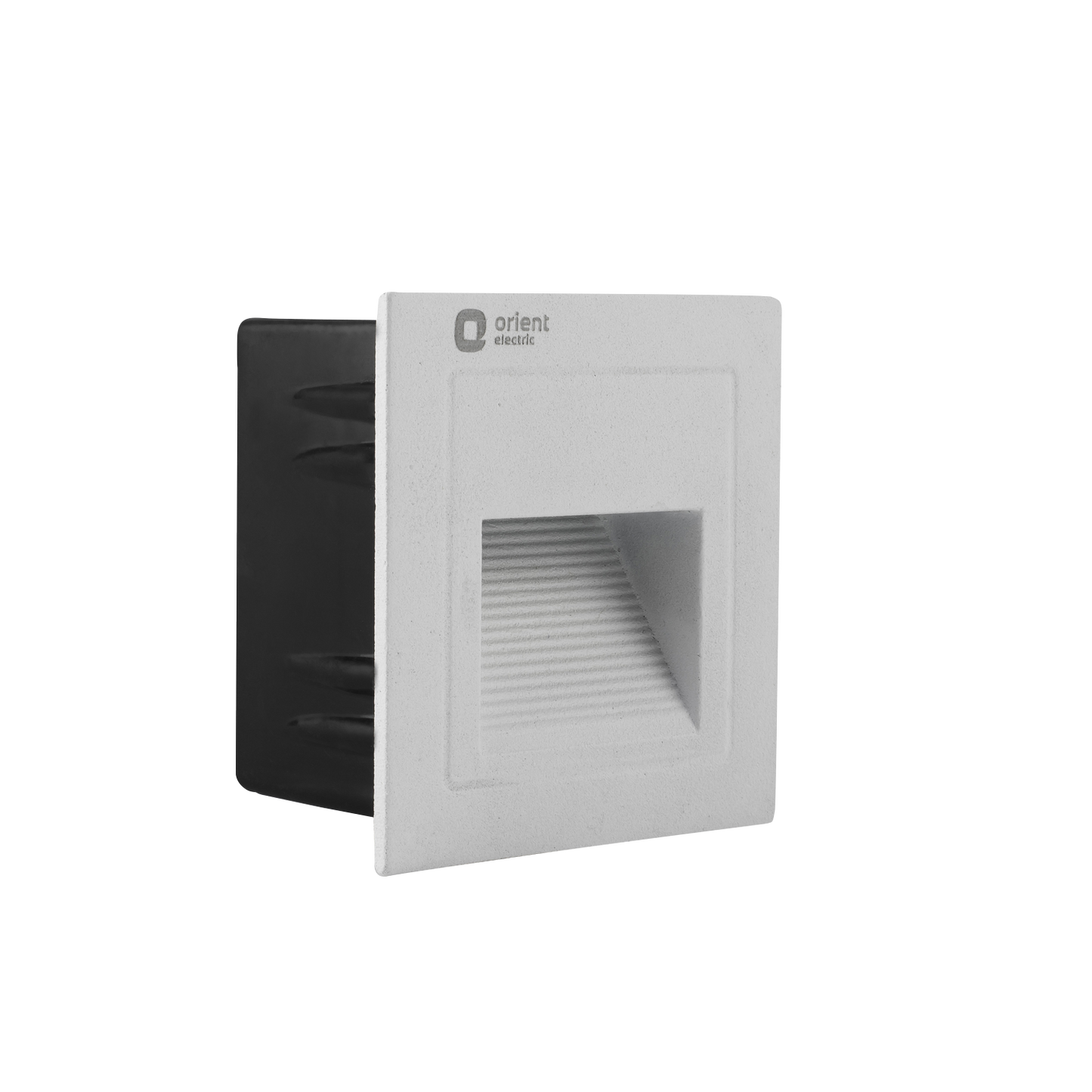

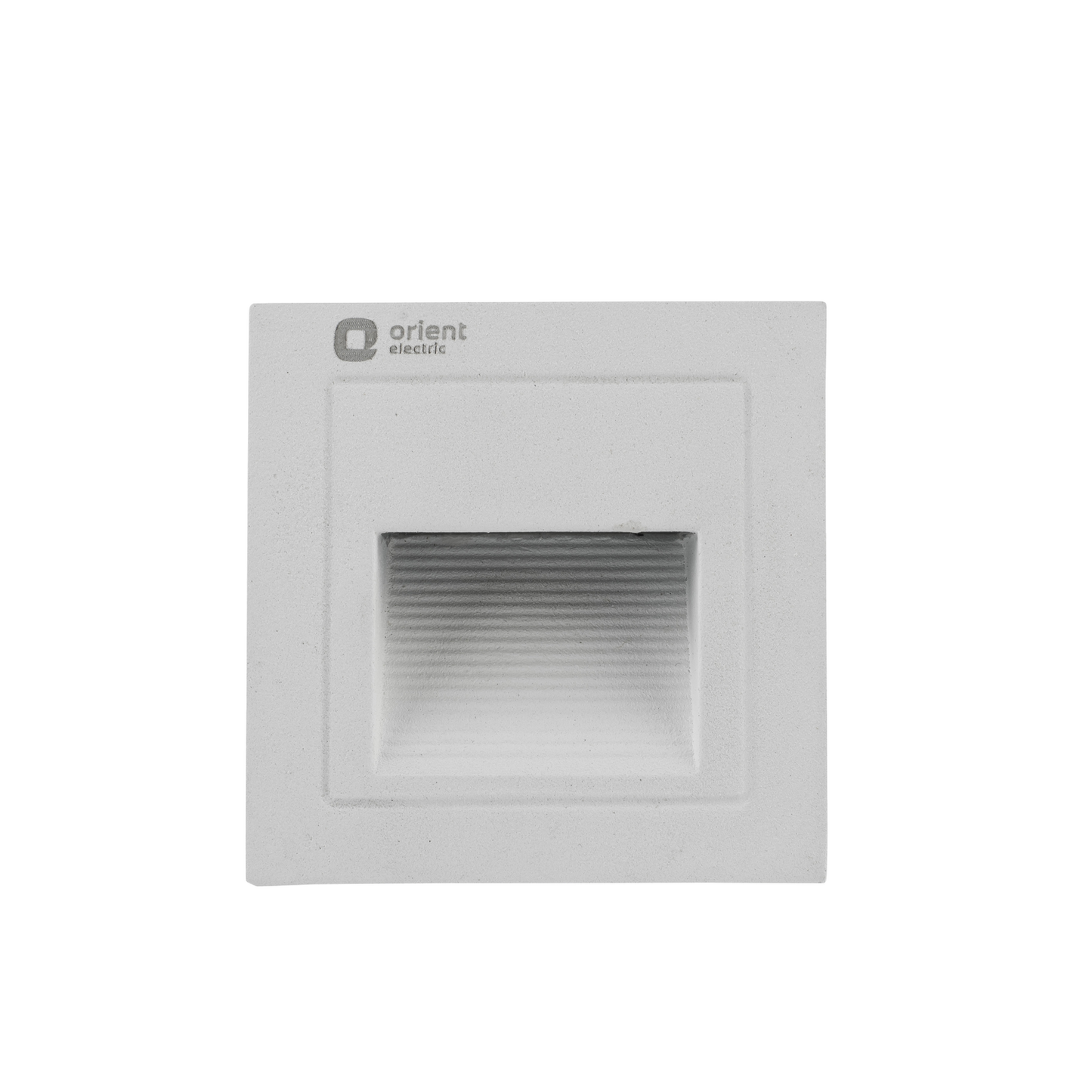

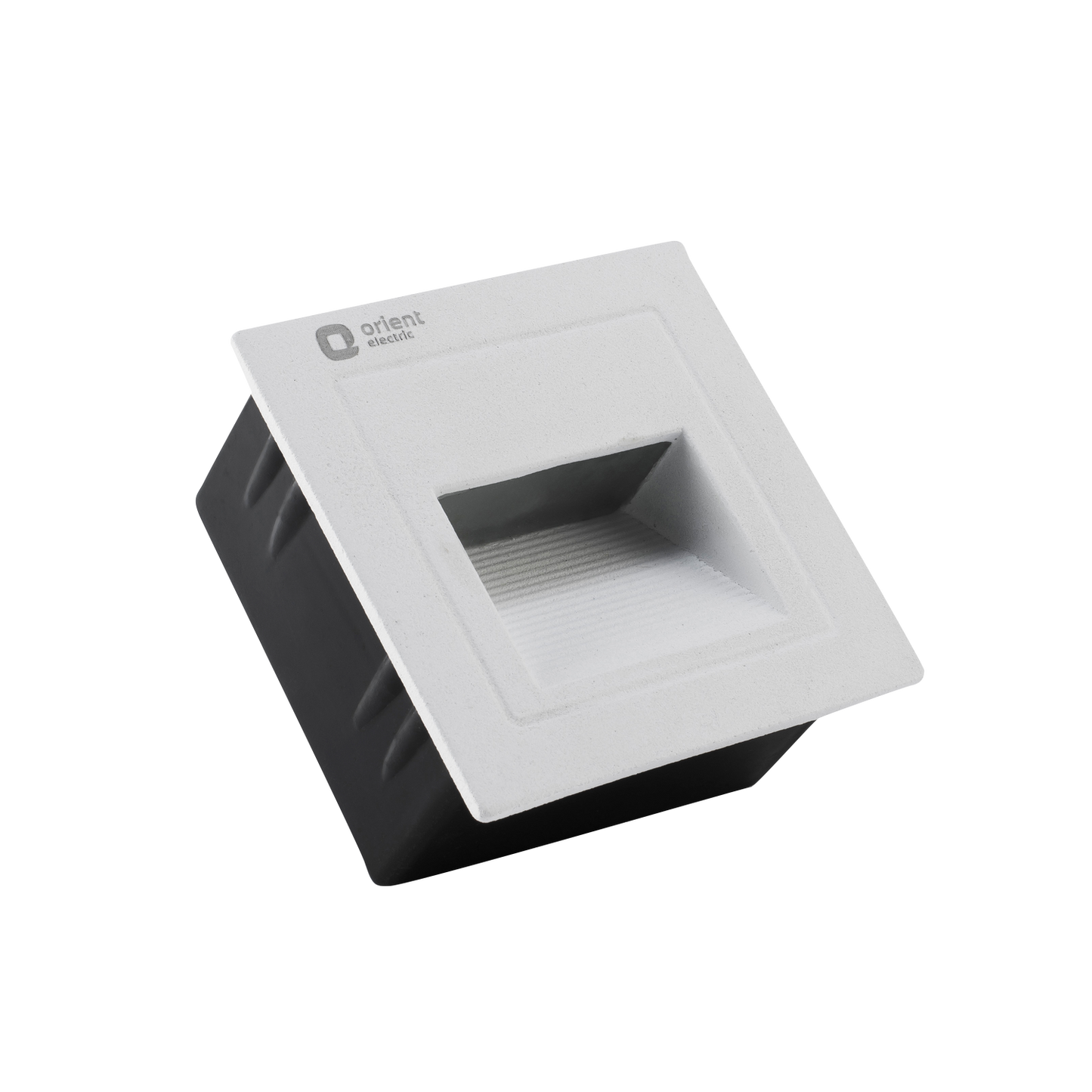

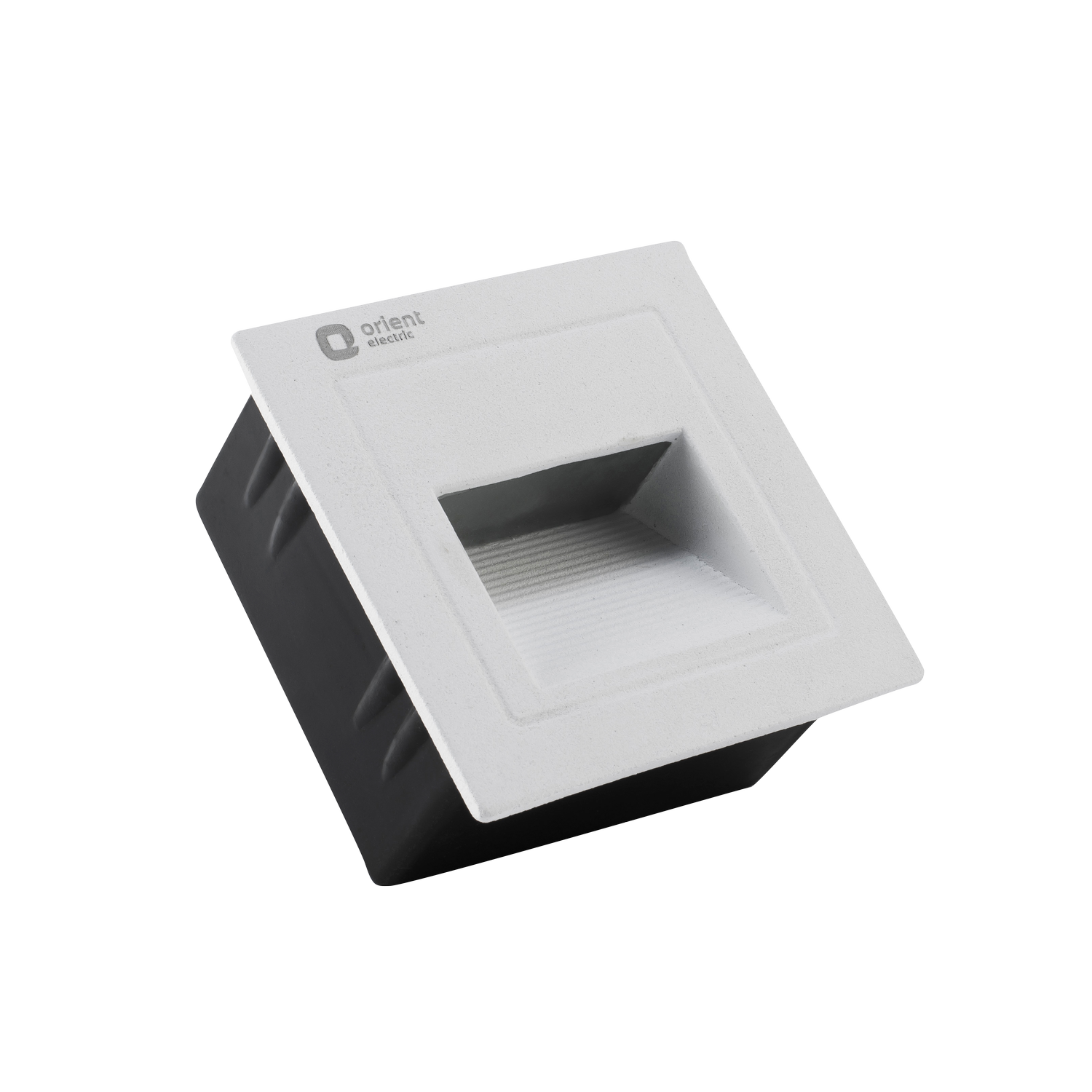

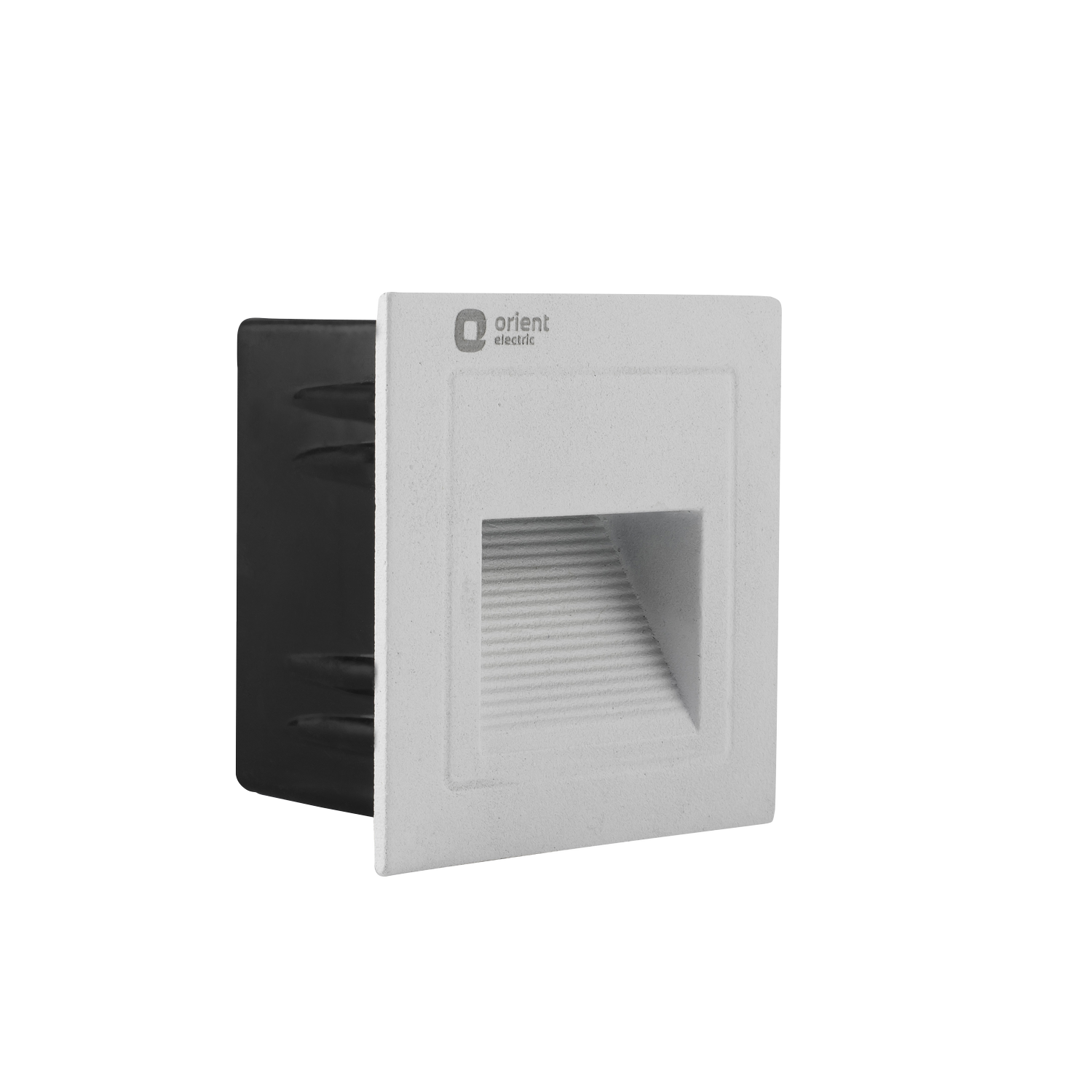

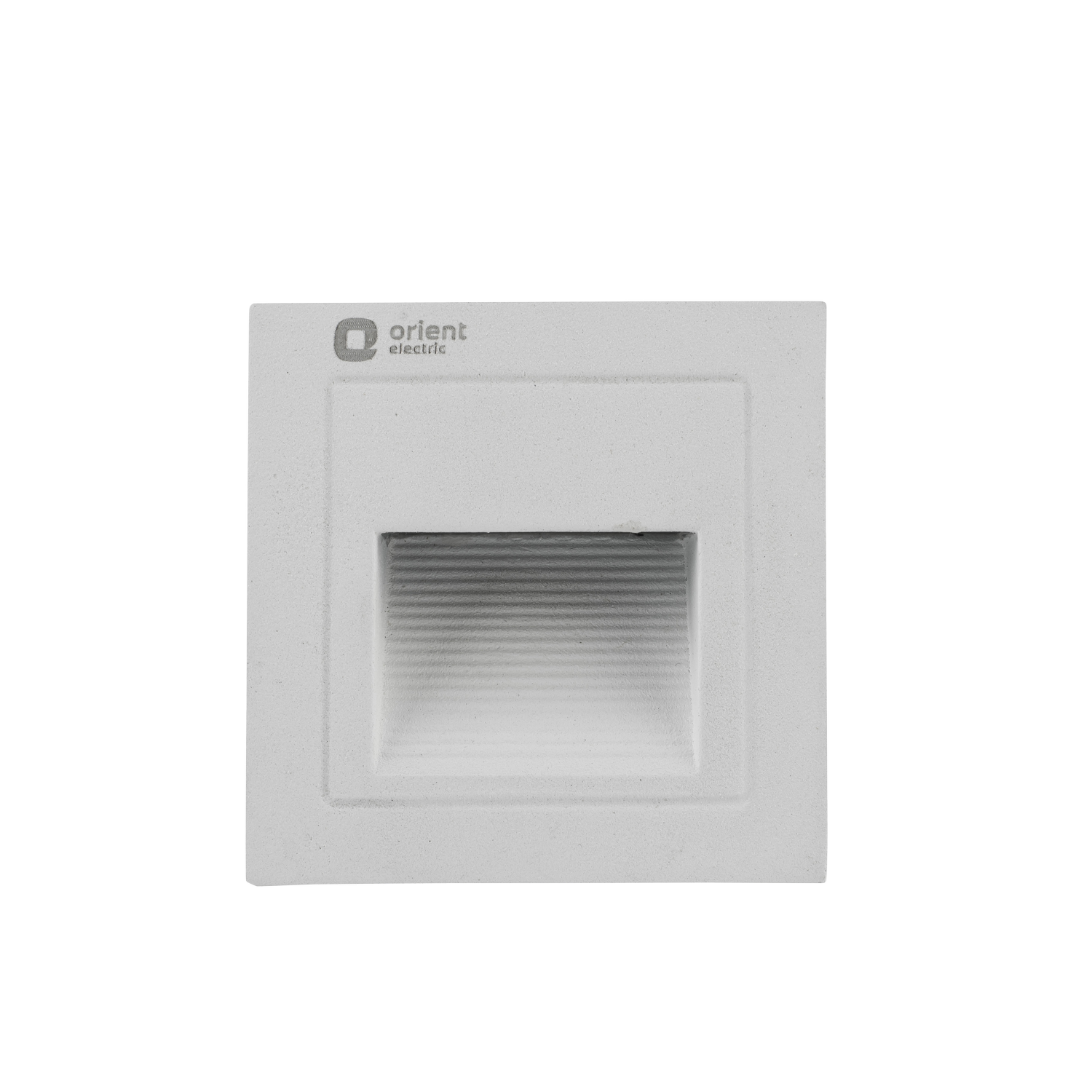

LED step light in slim and modern design that blends seamlessly into stairs, walkways, and hallways.

View full details
  • General specification
    Housing Excellent thermally managed aluminium housing for sturdiness and corrosion resistance.
    Optics Diffuser for glare free light. Housing constructed to ensure minimum ULOR.
    Mounting Recessed in Wall
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2 KV
    IP 54
  • Technical Specifications
    System Wattage 3W, 6W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤20%
    System efficacy (lm/W) ≥70, ≥60
Step light variants
Product Variants
Step light
LLSP-03-C-V1
Step light
LLSP-03-W-V1
Step light
LLSP-06-C-V1
Step light
LLSP-06-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
3W
5700K
≥70
240V AC
≥0.95
≤20%
≥70
82
82
30
3W
3000K
≥70
240V AC
≥0.95
≤20%
≥60
82
82
30
6W
5700K
≥70
240V AC
≥0.95
≤20%
≥70
82
82
30
6W
3000K
≥70
240V AC
≥0.95
≤20%
≥60
82
82
30
