Taskline SQ

Taskline SQ

Taskline SQ

Product Overview

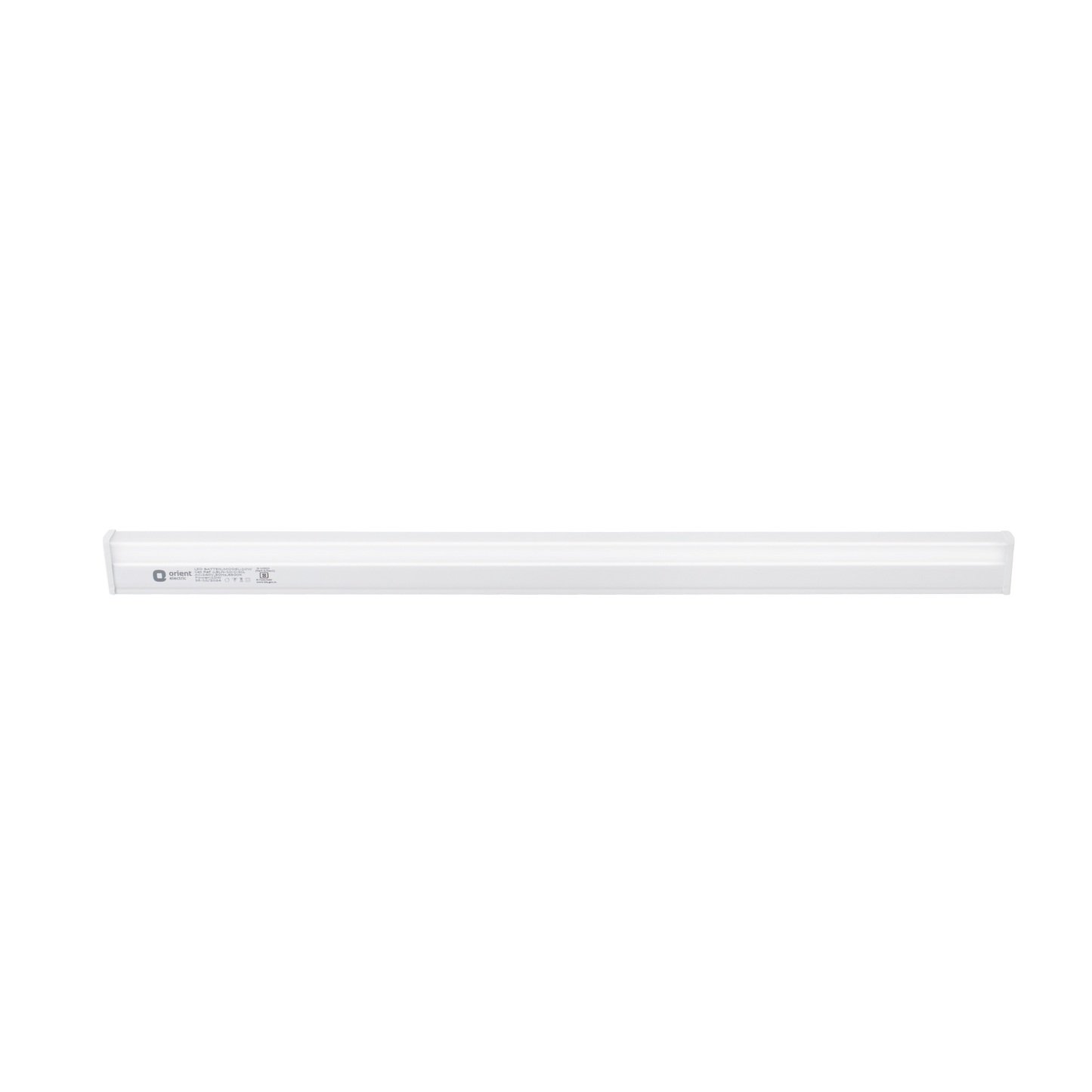

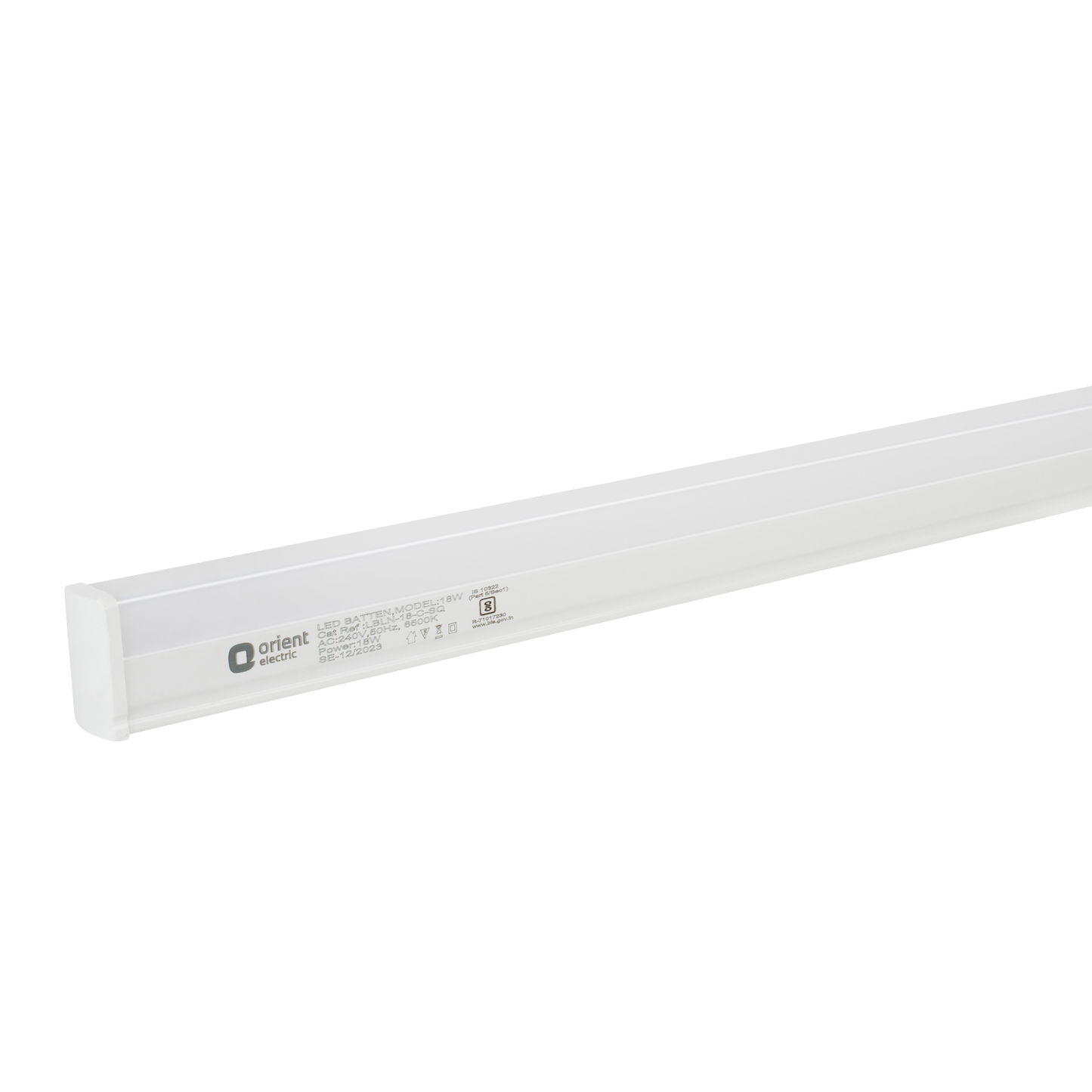

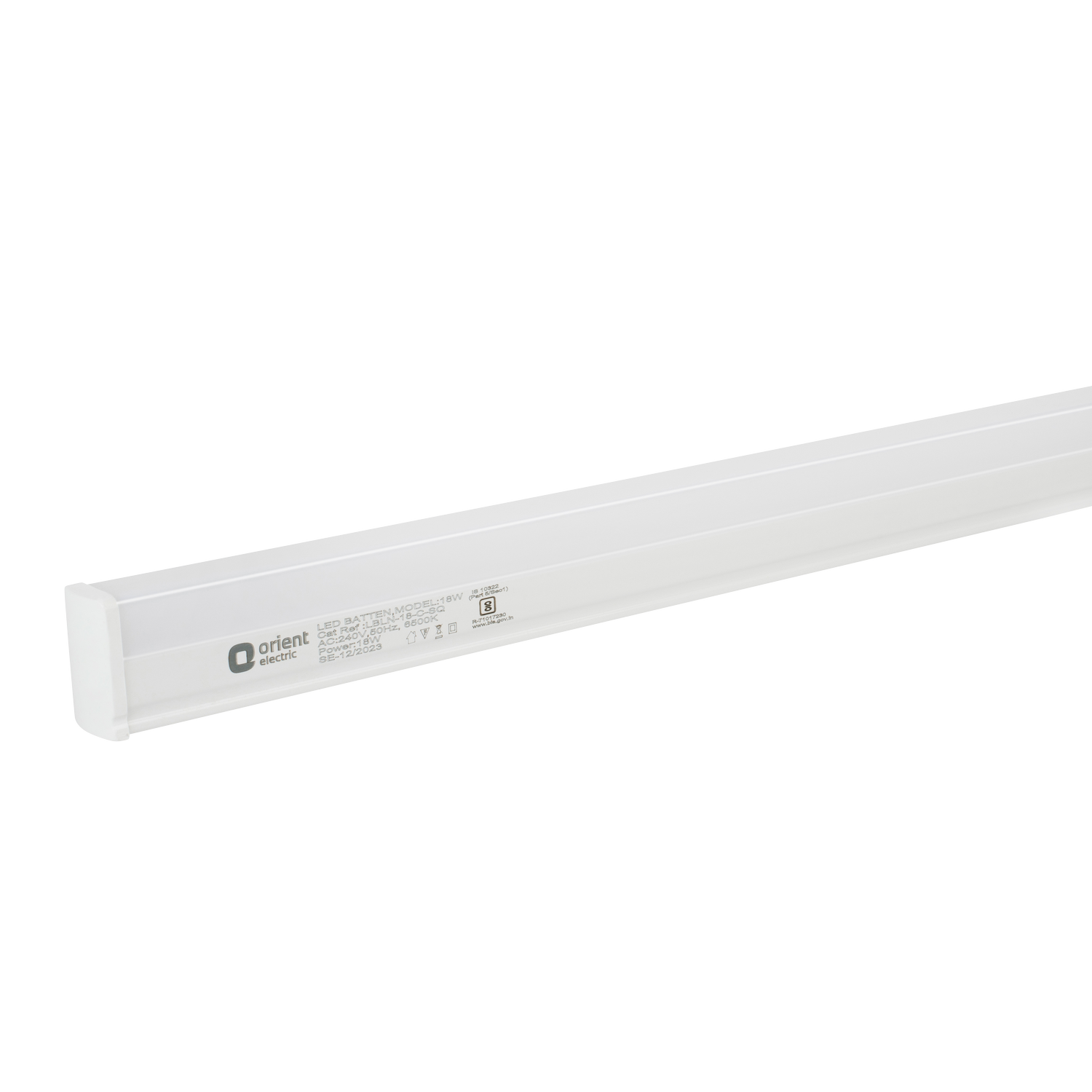

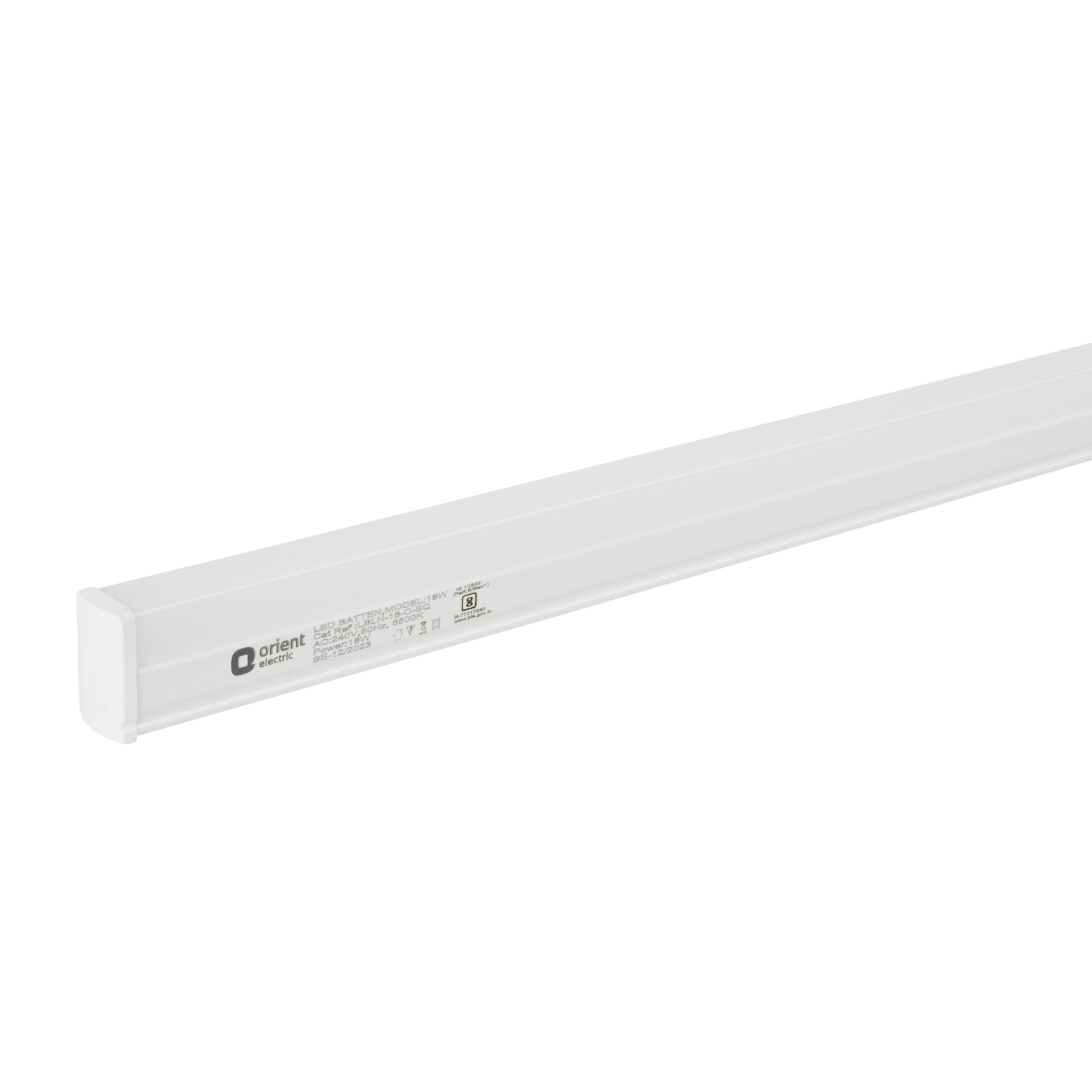

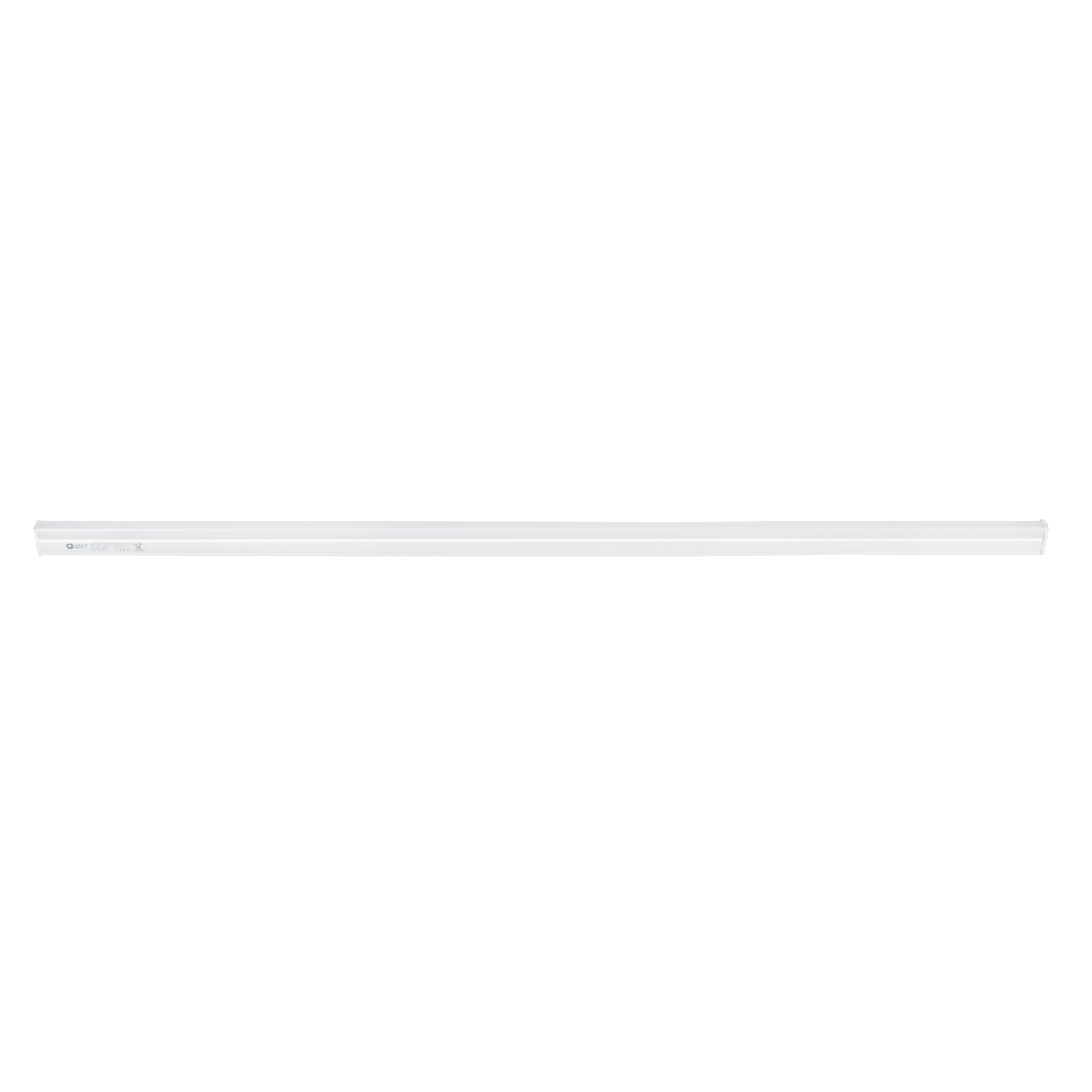

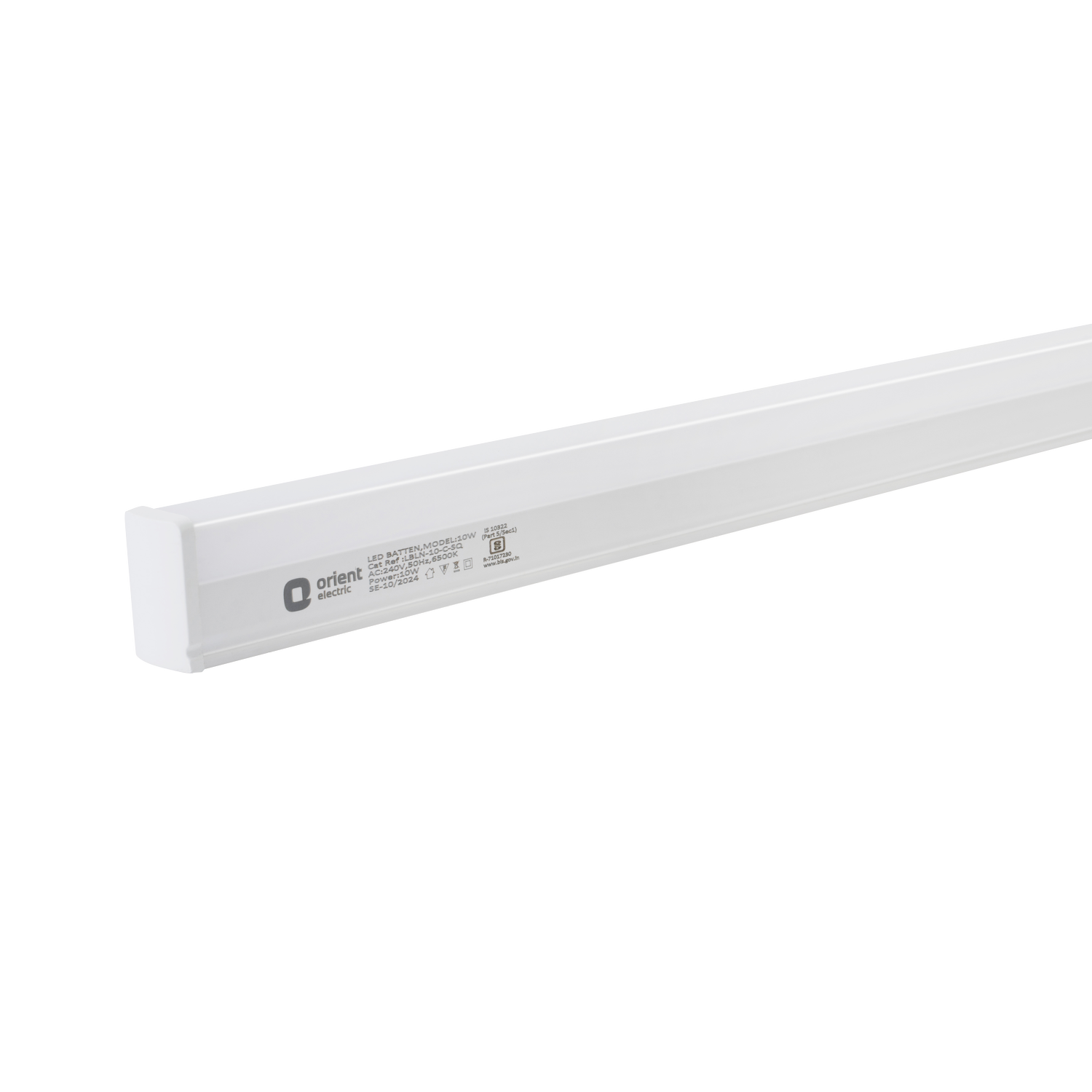

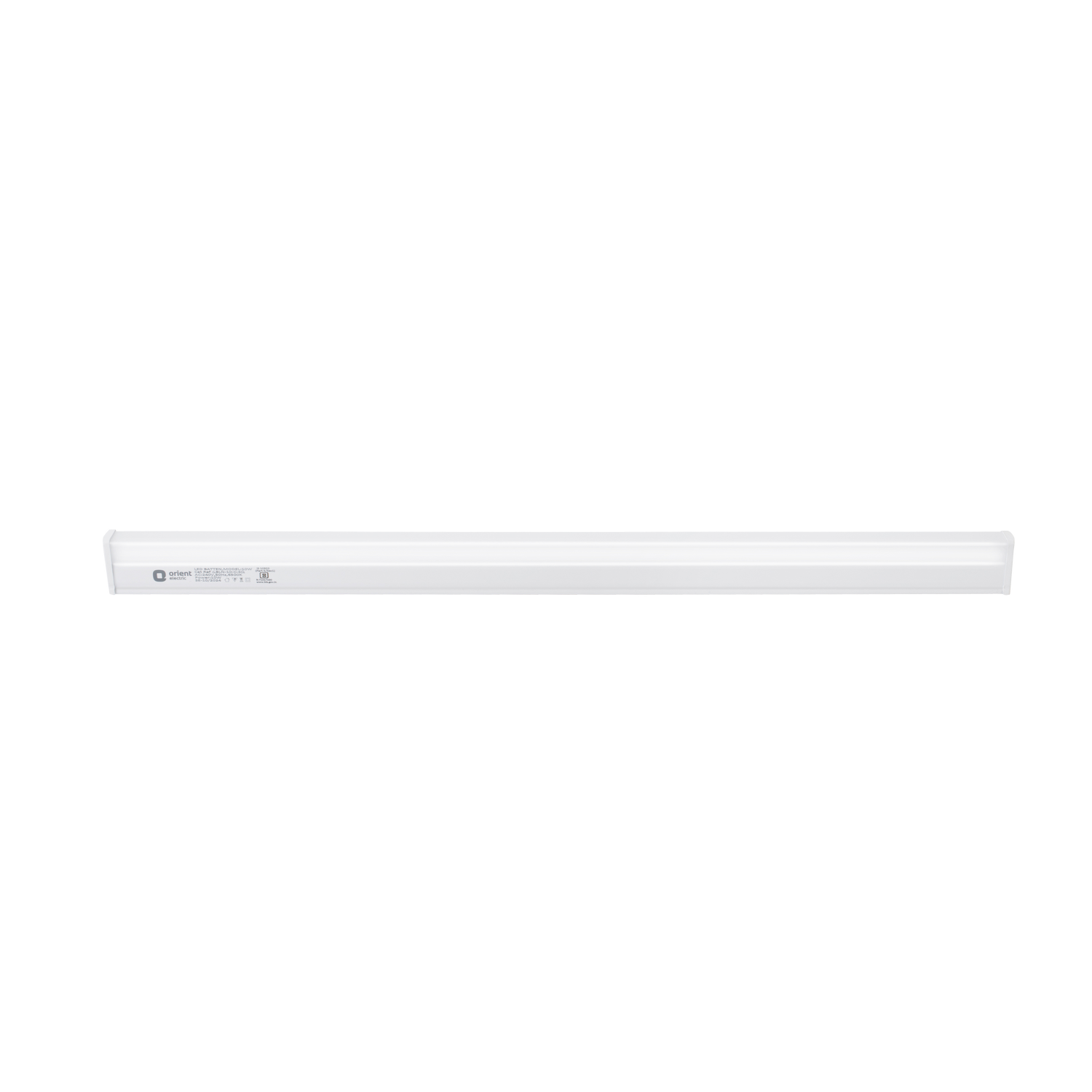

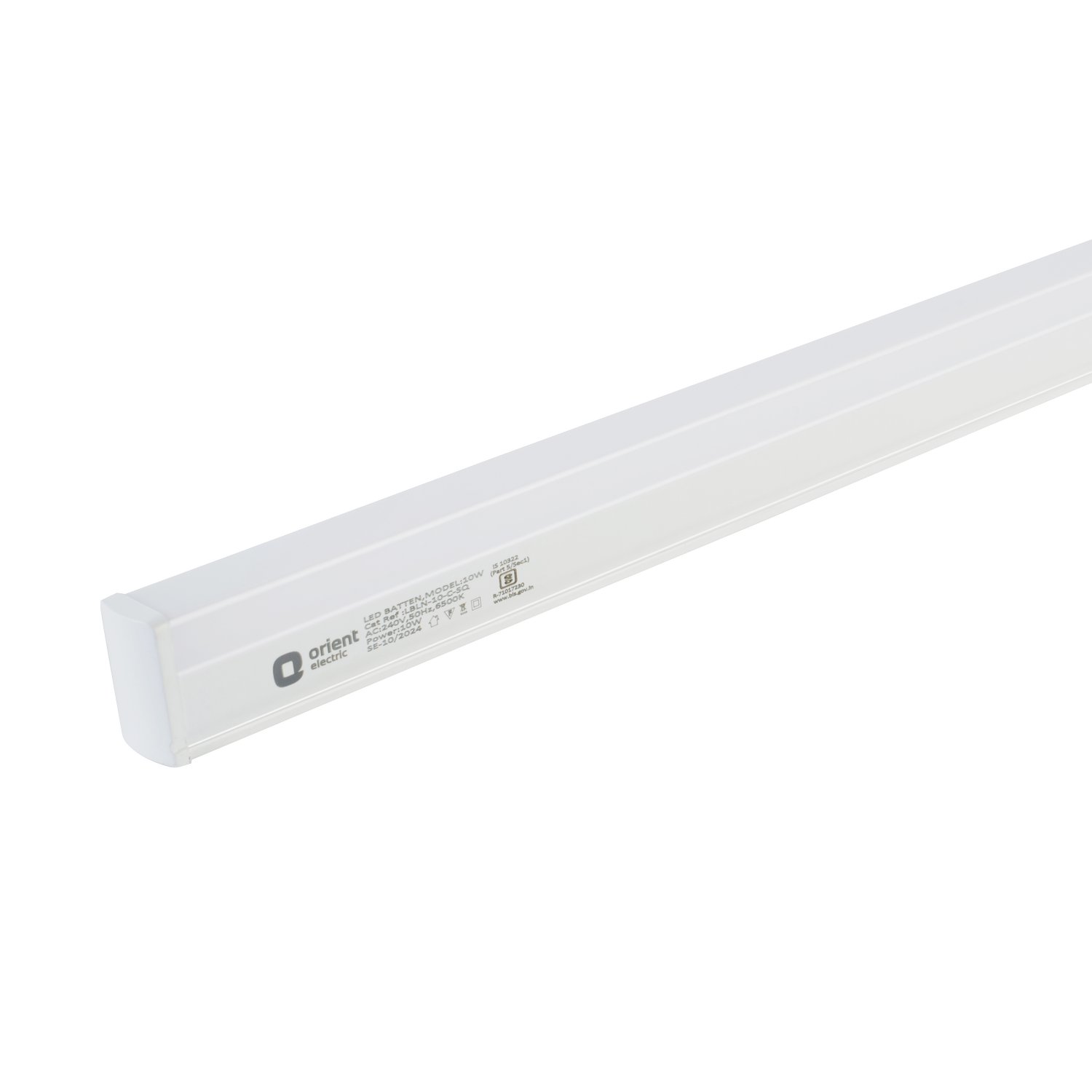

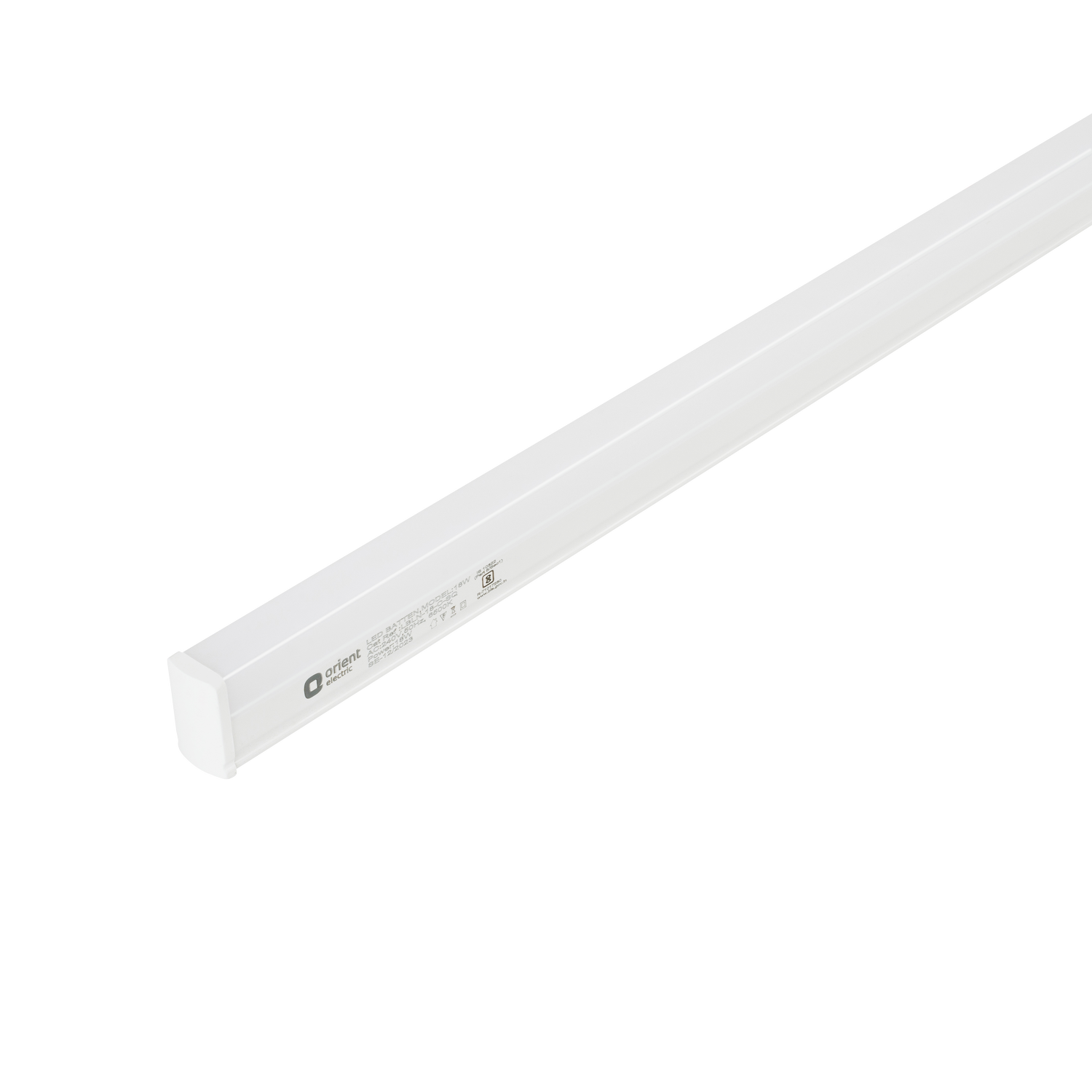

Slim LED batten with polycarbonate housing and diffuser is an ideal replacement solution for existing battens / fluorescent lamps with elegantly designed end caps.

View full details
  • General specification
    Housing Made of ultra-slim co-extruded polycarbonate channel with housing part in white finish & diffuser part in opal finish. White finish ABS end caps with decorative square polycarbonate cap are snap-fitted on the end cap to enhance the aesthetic of the fixture.
    Optics Polycarbonate diffuser to provide glare - free uniform light distribution. High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Fix directly into the wall/ceiling by means of mounting SS clips provided with fixture.
    Control Gear Powered by an integral constant current driver suitable for 120-280 V AC working range.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 10W, 18W, 20W, 22W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy (lm/W) ≥100 , ≥90 , ≥85
Taskline SQ variants
Product Variants
Taskline SQ
LBLN-10-C-SQ
Taskline SQ
LBLN-10-N-SQ
Taskline SQ
LBLN-10-W-SQ
Taskline SQ
LBLN-18-C-SQ
Taskline SQ
LBLN-18-N-SQ
Taskline SQ
LBLN-18-W-SQ
Taskline SQ
LBLN-20-C-SQ
Taskline SQ
LBLN-20-N-SQ
Taskline SQ
LBLN-20-W-SQ
Taskline SQ
LBLN-22-C-SQ
Taskline SQ
LBLN-22-N-SQ
Taskline SQ
LBLN-22-W-SQ
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
10W
6500K
≥80
240V AC
≥0.95
<15%
≥100
595
22
36
10W
4000K
≥80
240V AC
≥0.95
<15%
≥90
595
22
36
10W
3000K
≥80
240V AC
≥0.95
<15%
≥85
595
22
36
18W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1175
22
36
18W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1175
22
36
18W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1175
22
36
20W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1175
22
36
20W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1175
22
36
20W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1175
22
36
22W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1175
22
36
22W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1175
22
36
22W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1175
22
36
