Taskline SQ AL

Taskline SQ AL

Taskline SQ AL

Product Overview

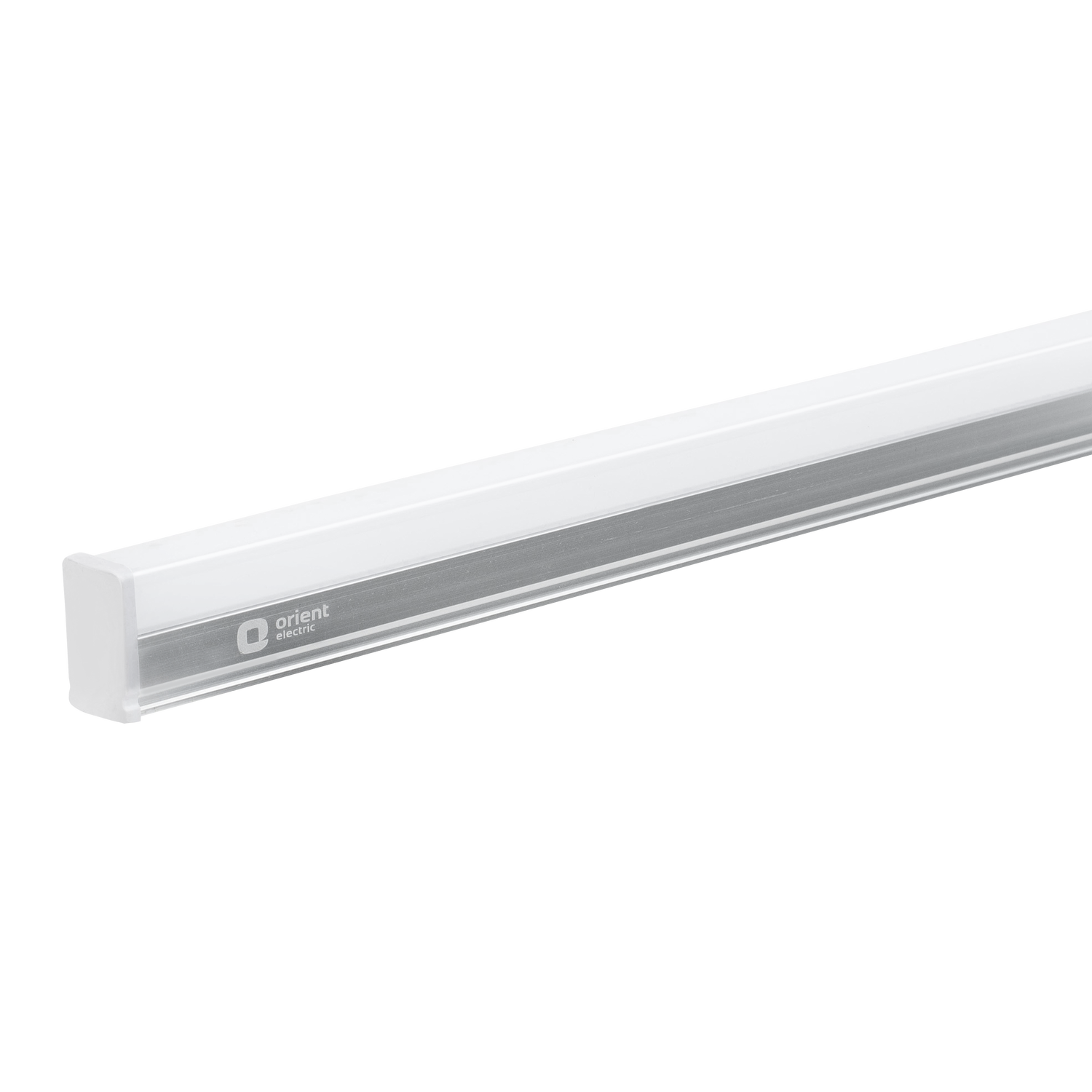

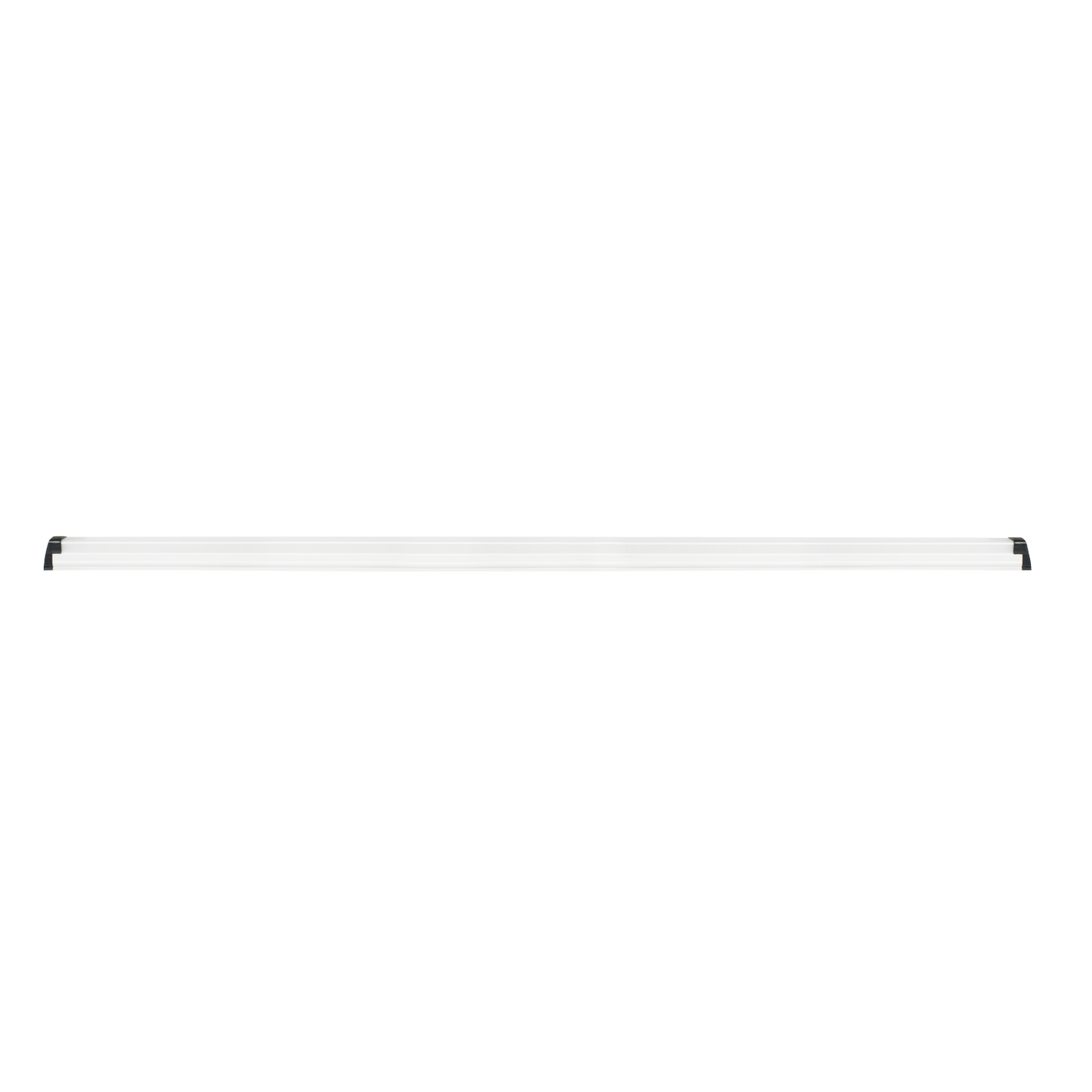

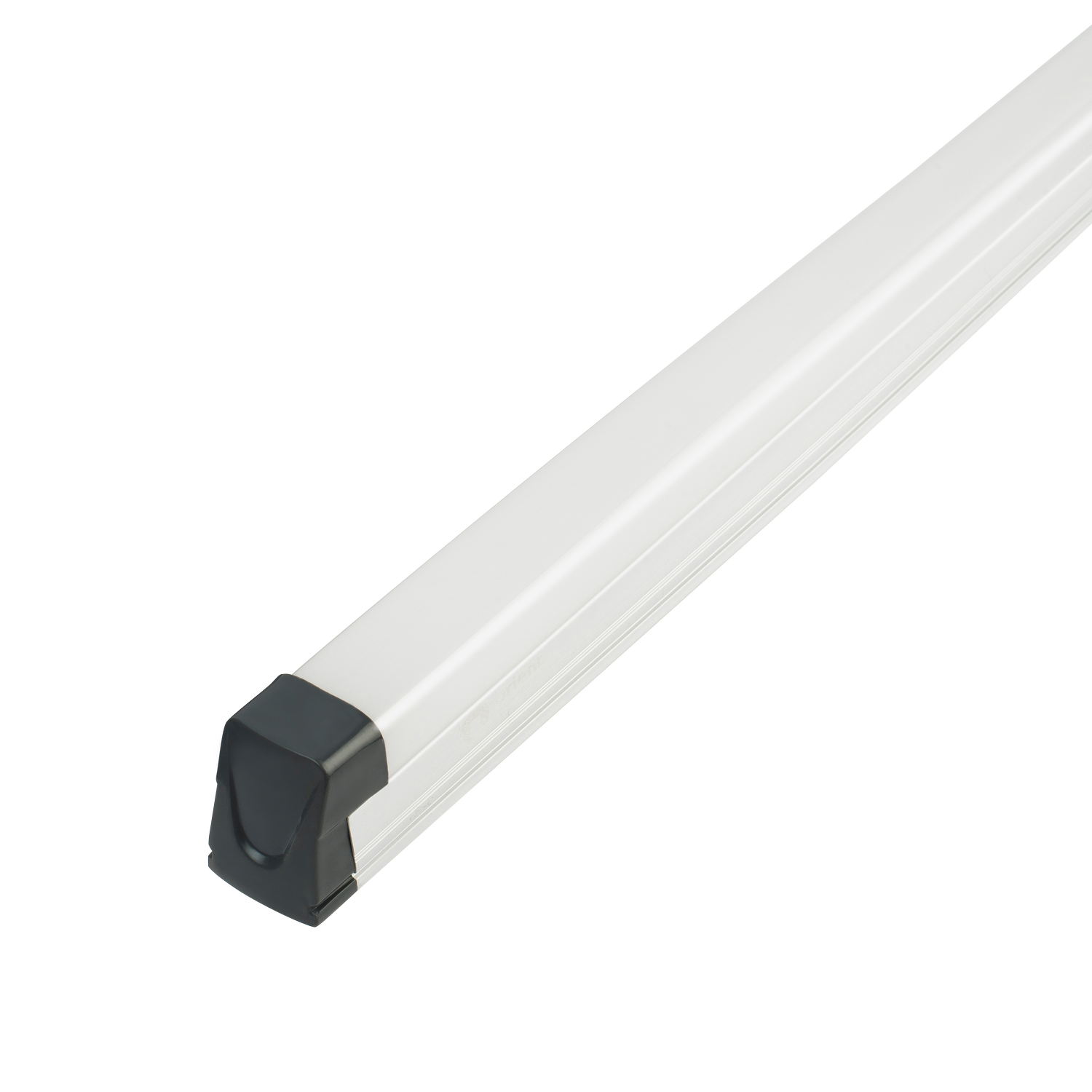

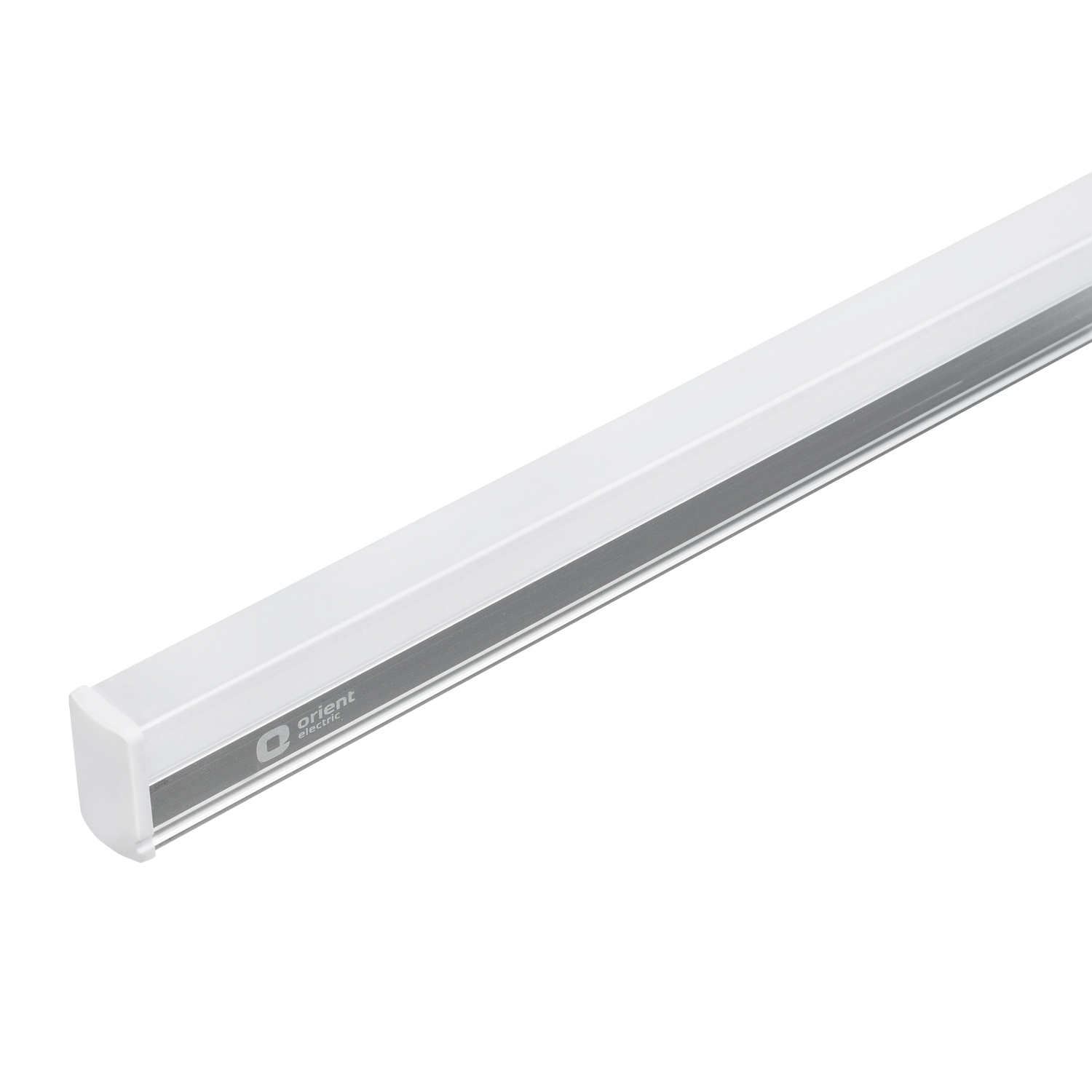

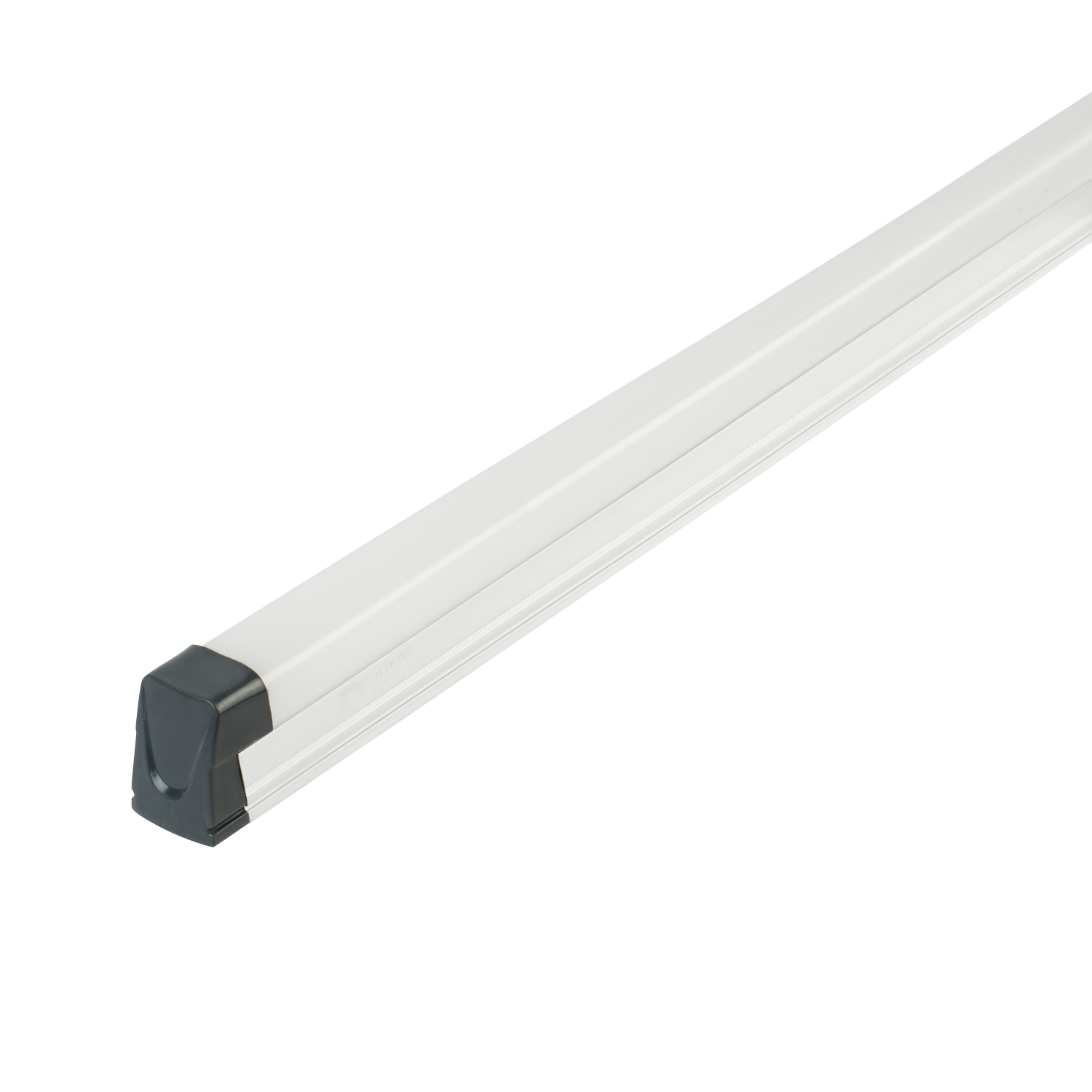

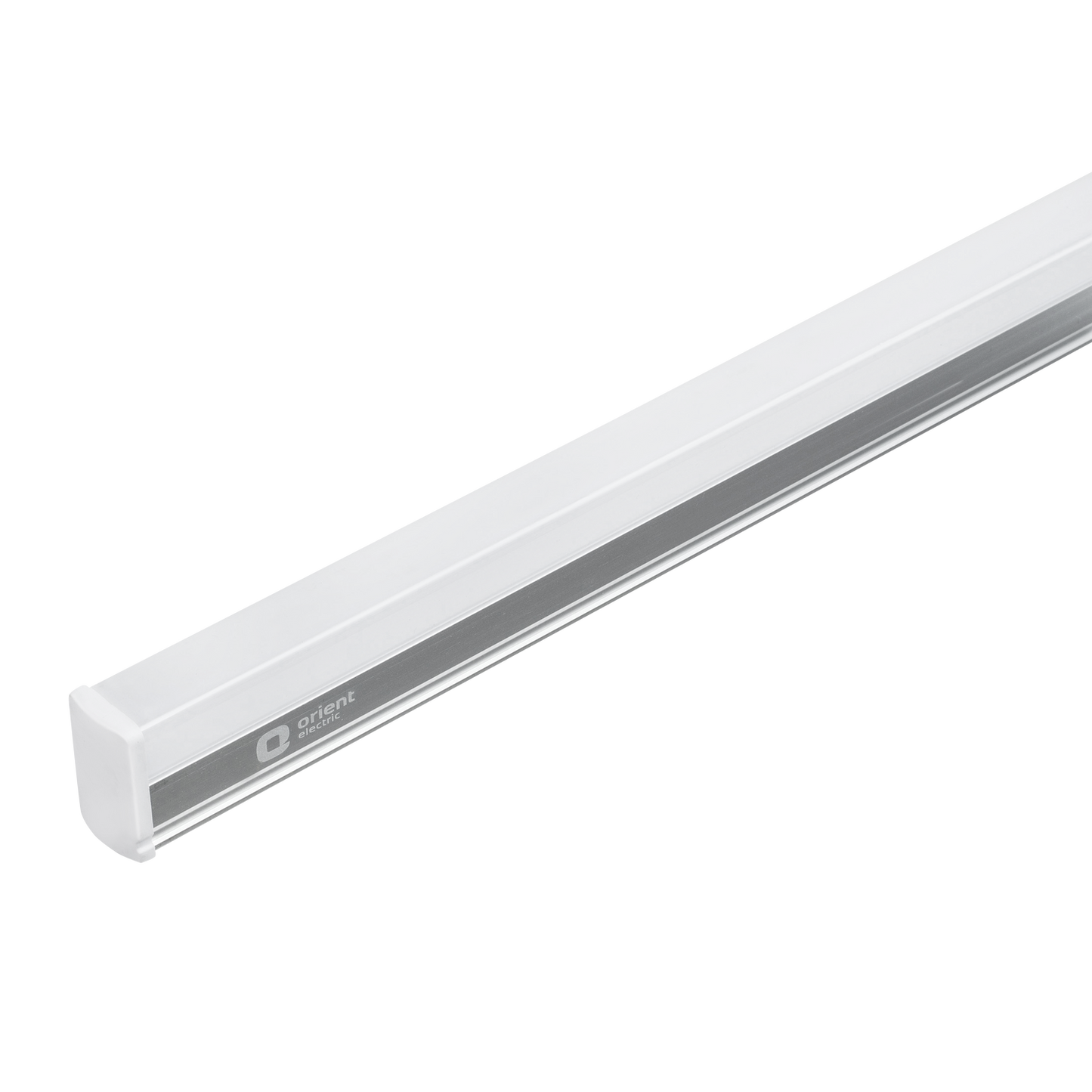

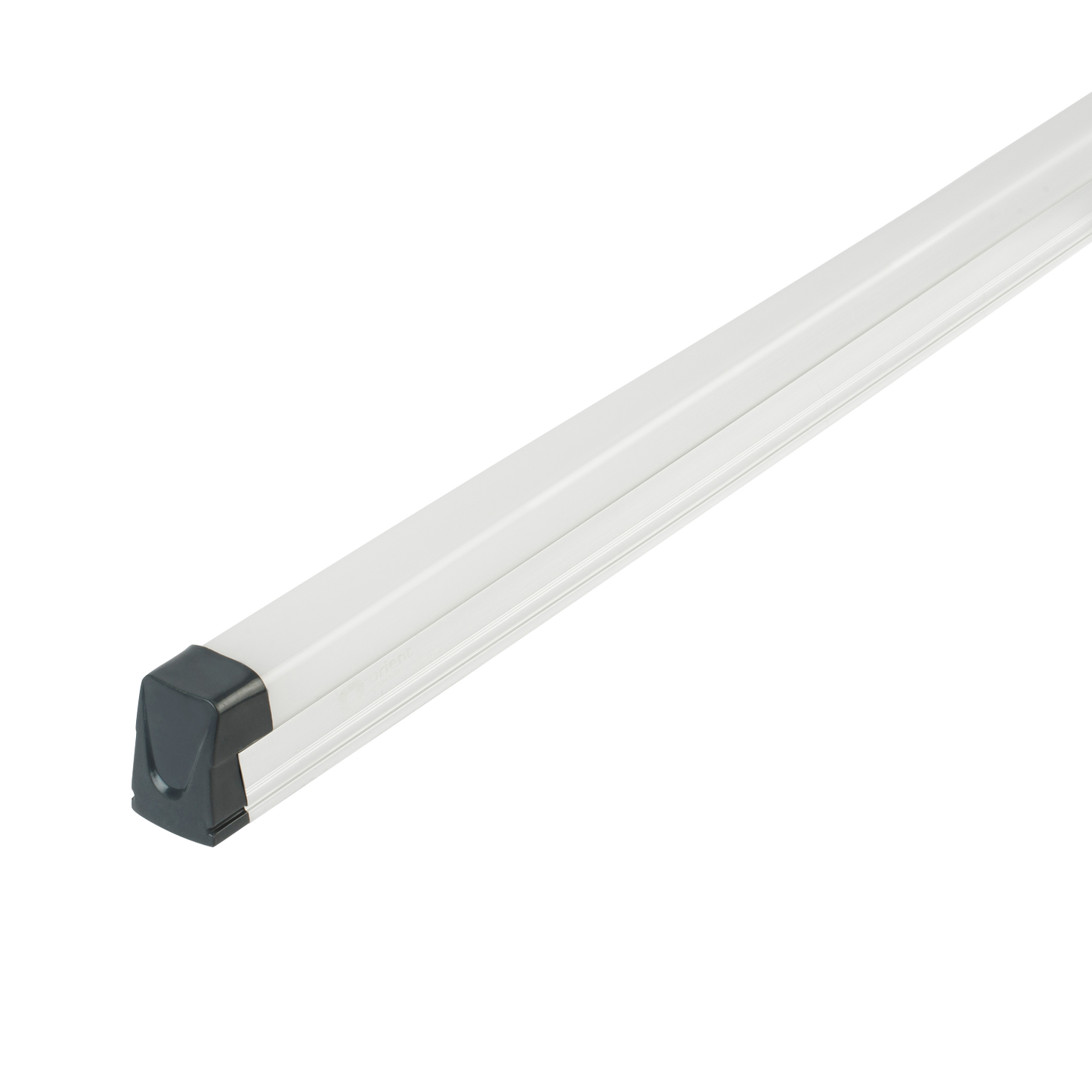

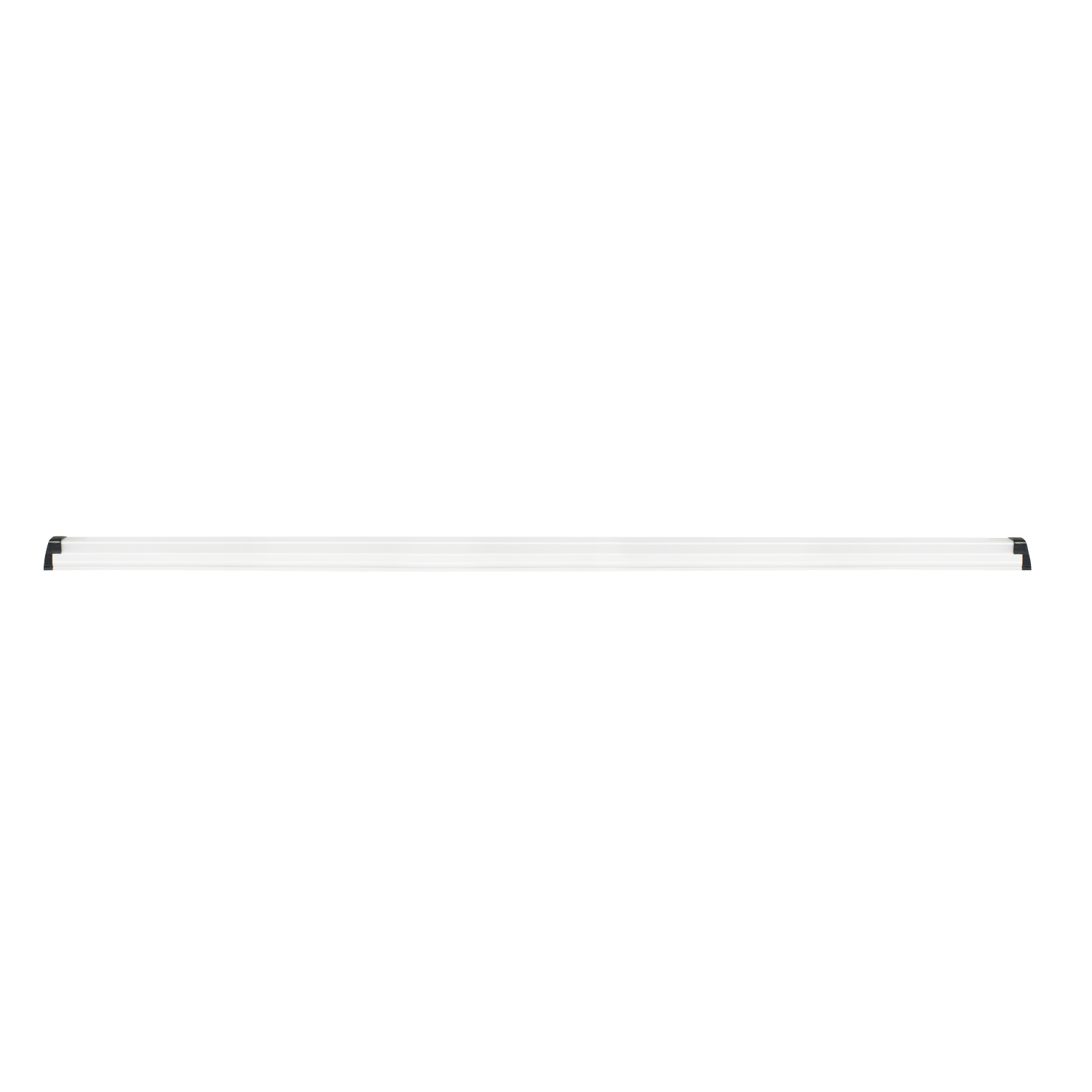

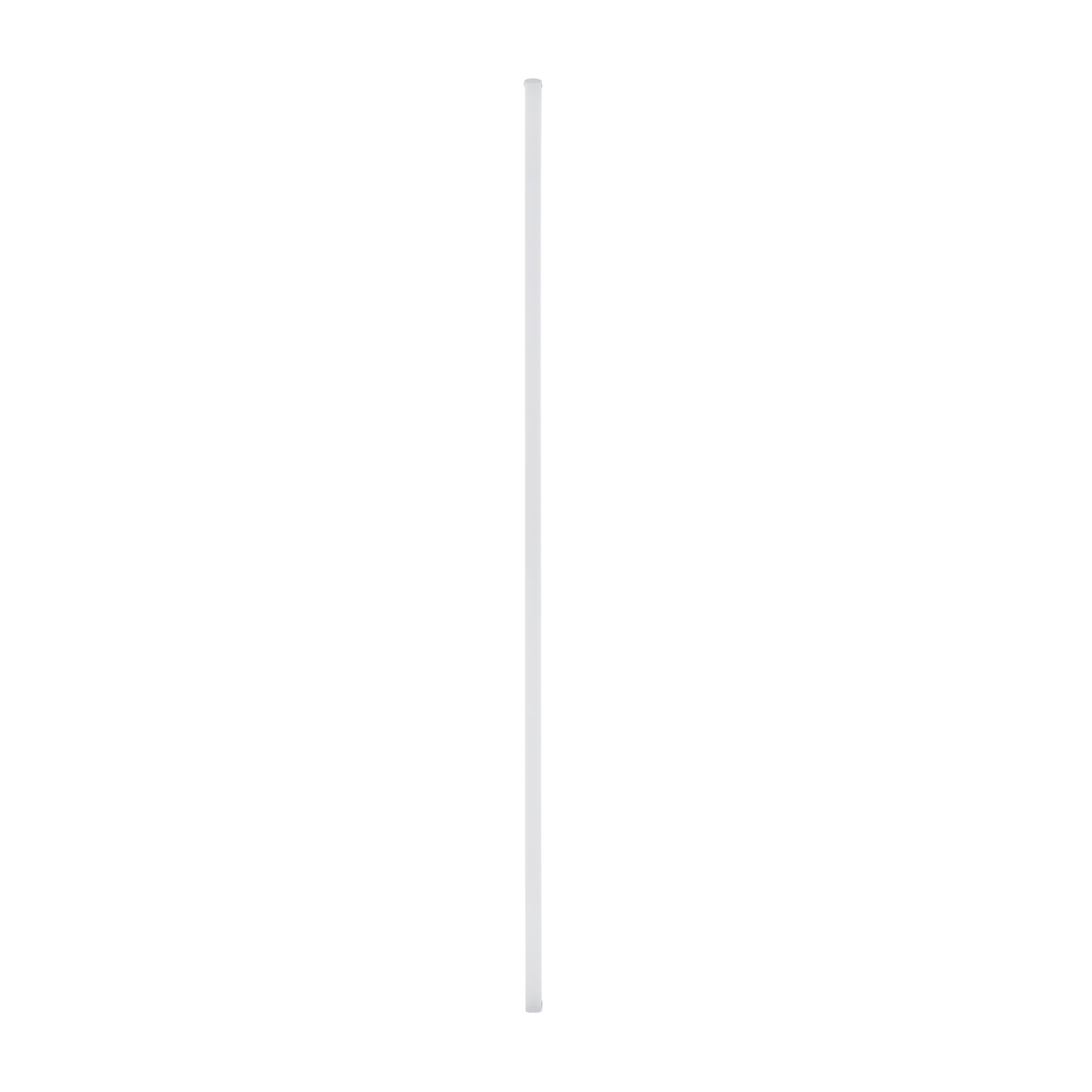

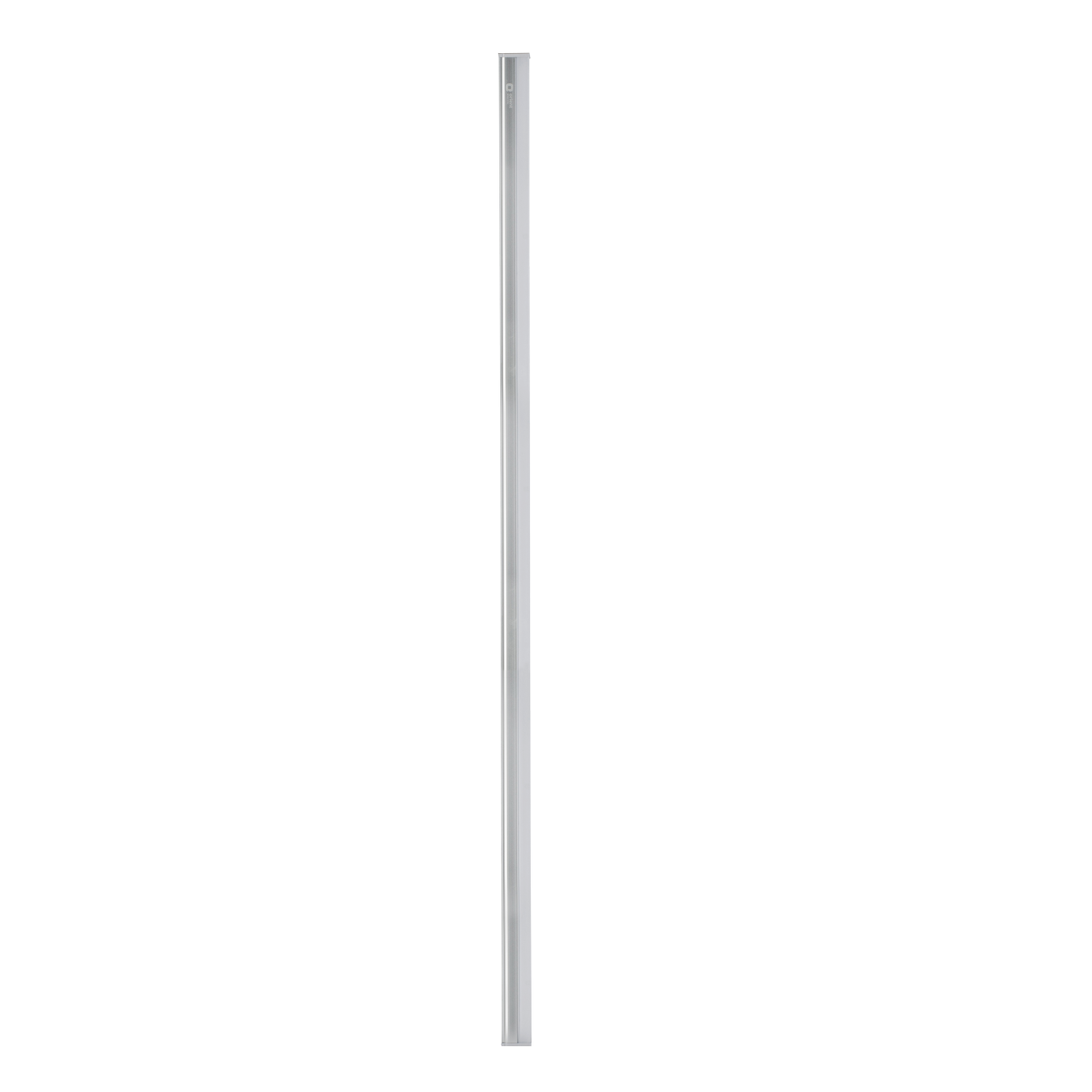

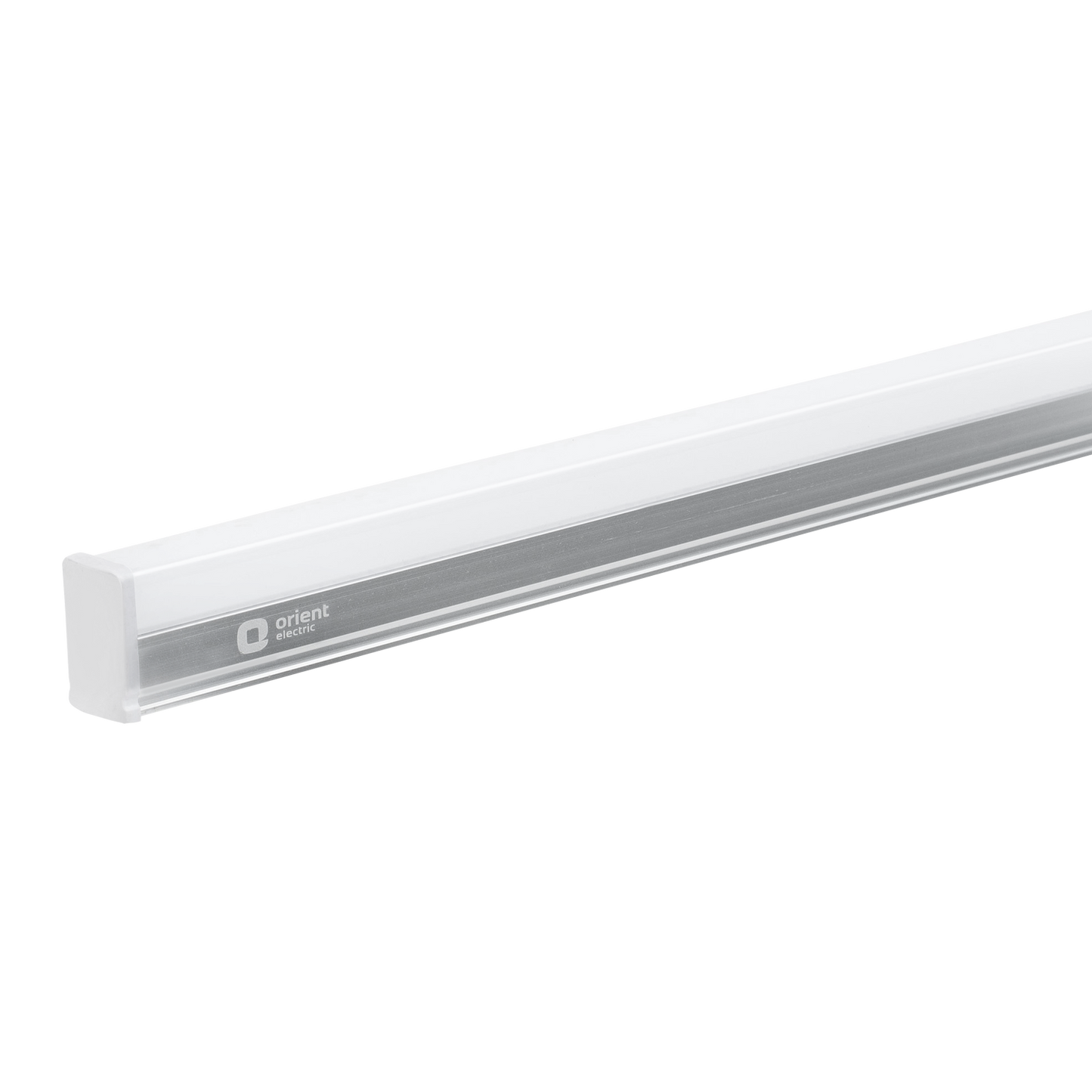

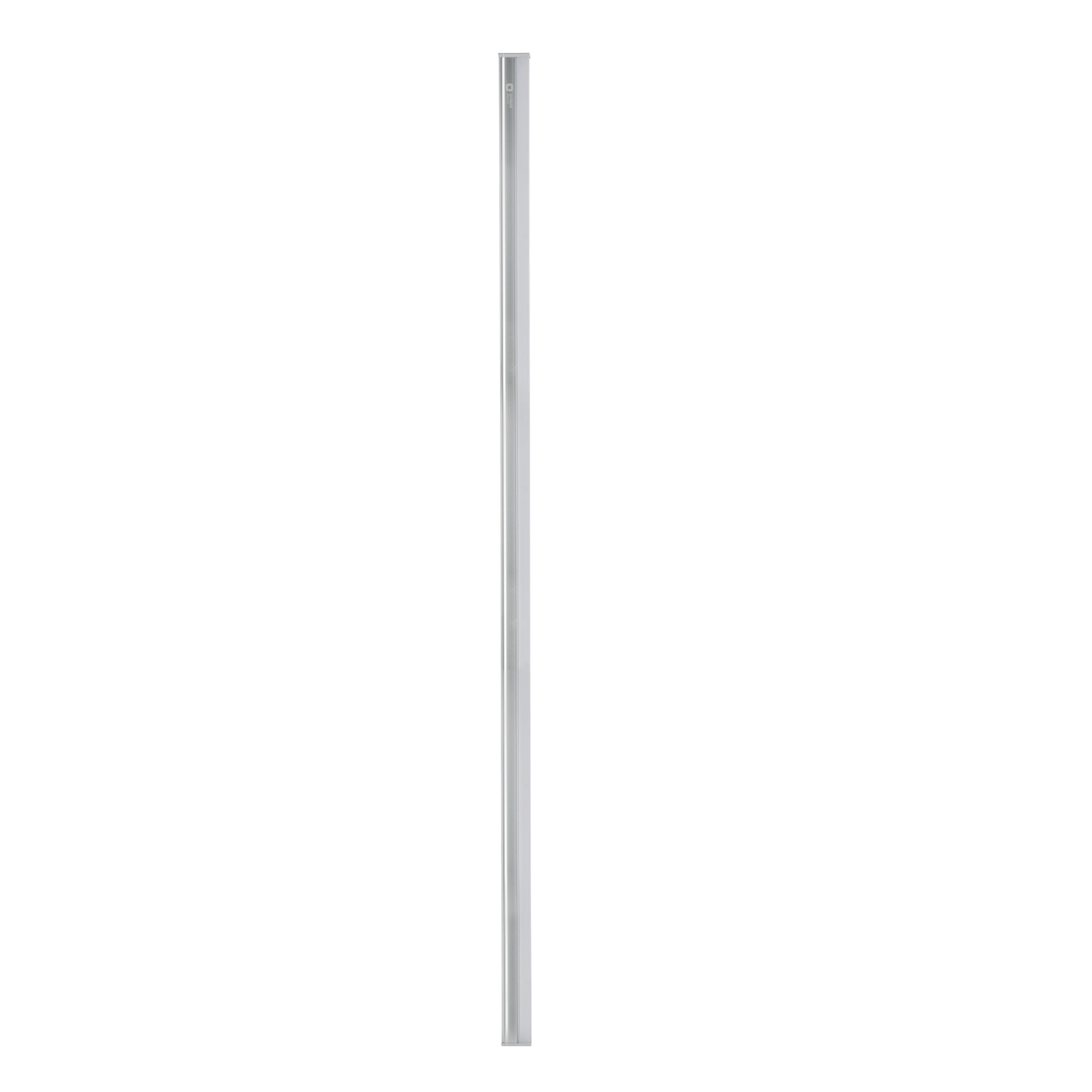

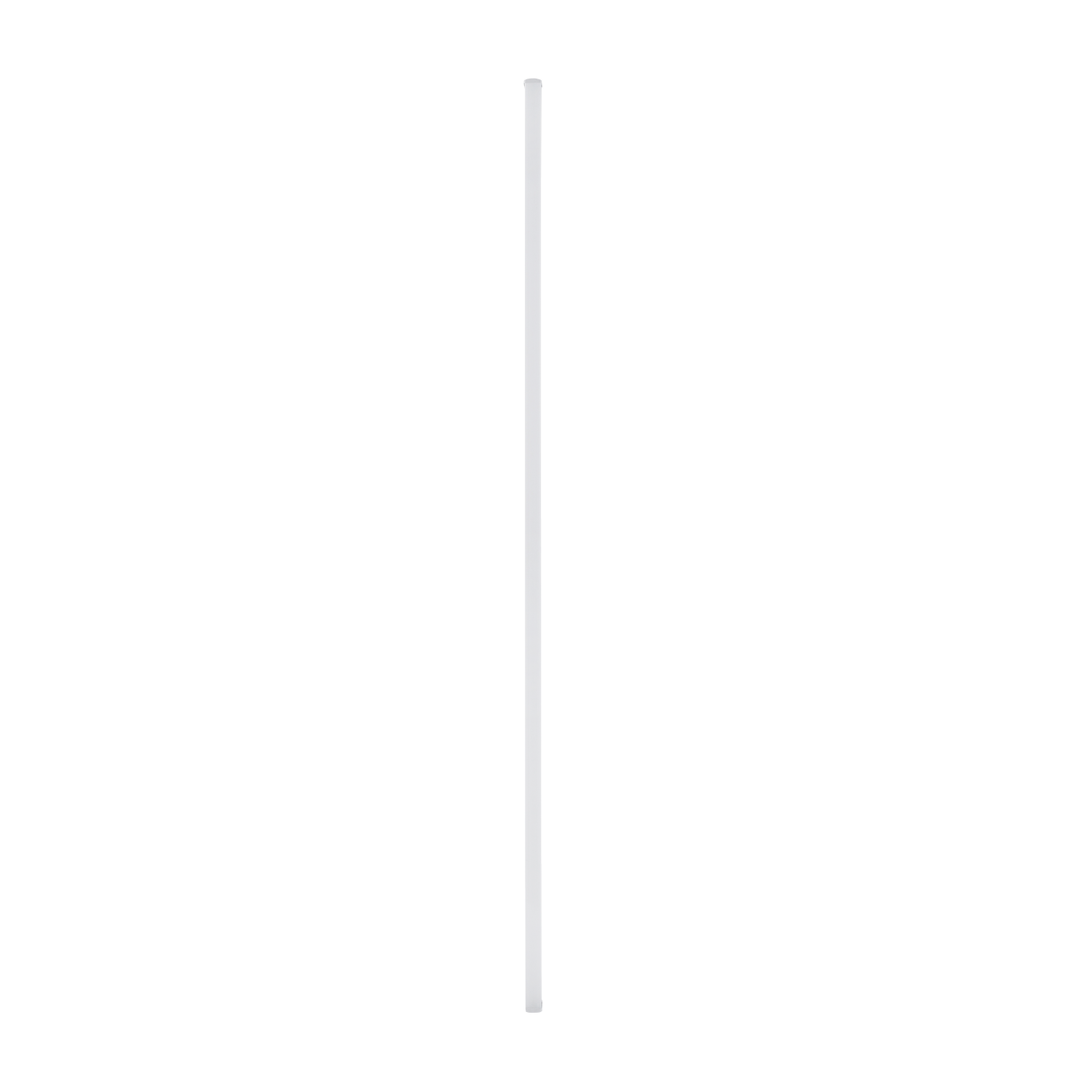

Slim LED batten with aluminium housing and diffuser is an ideal replacement solution for existing battens / fluorescent lamps with elegantly designed end caps.

View full details
  • General specification

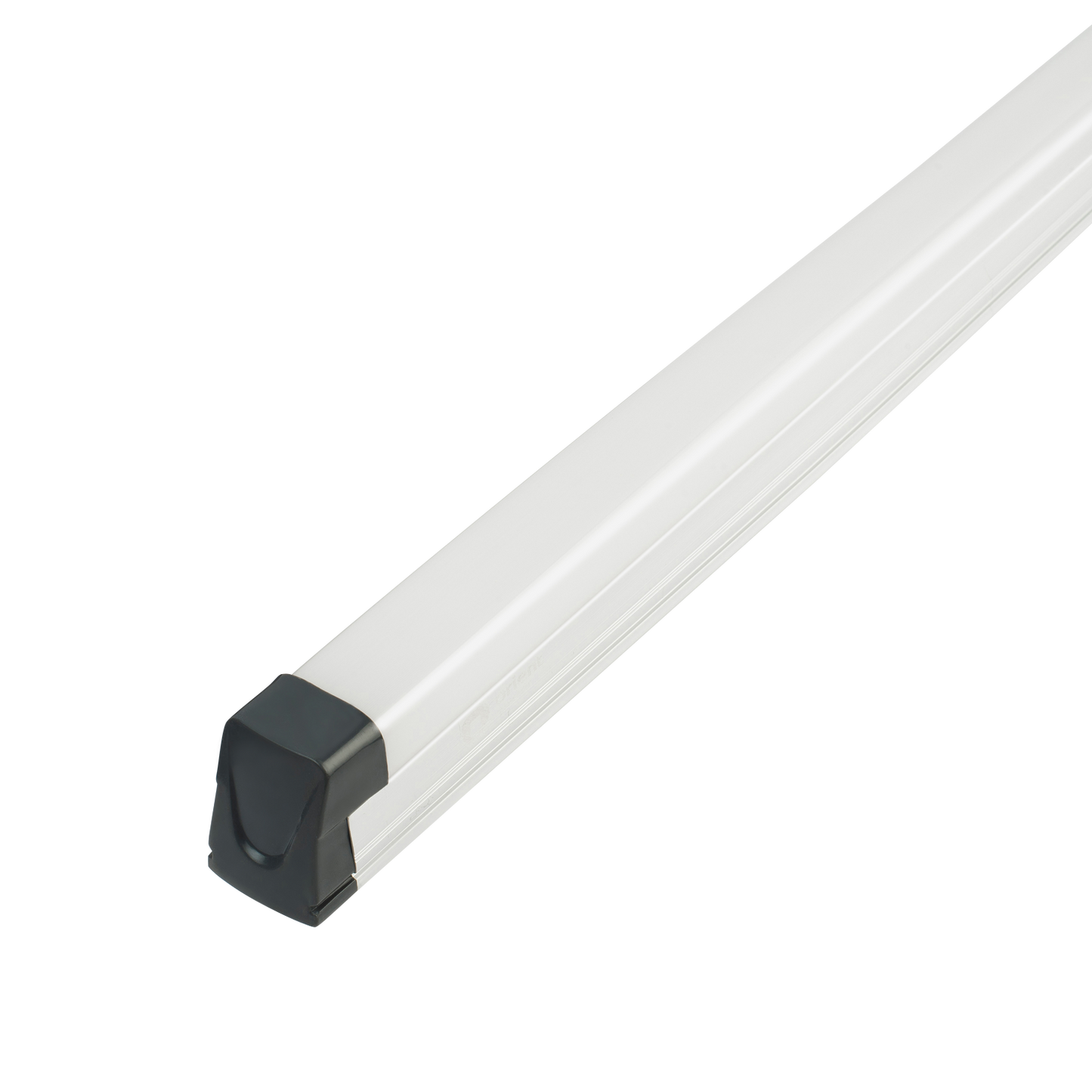

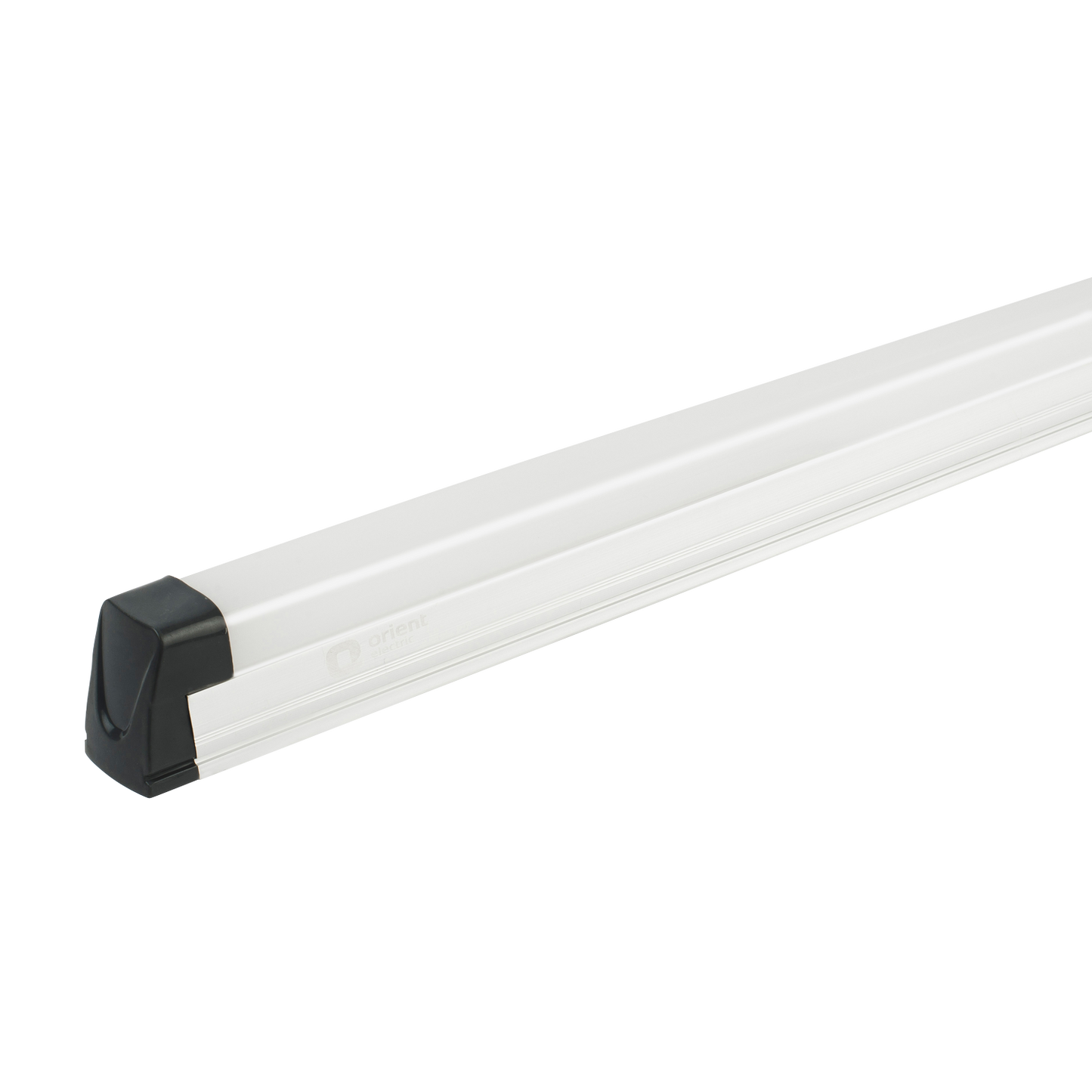

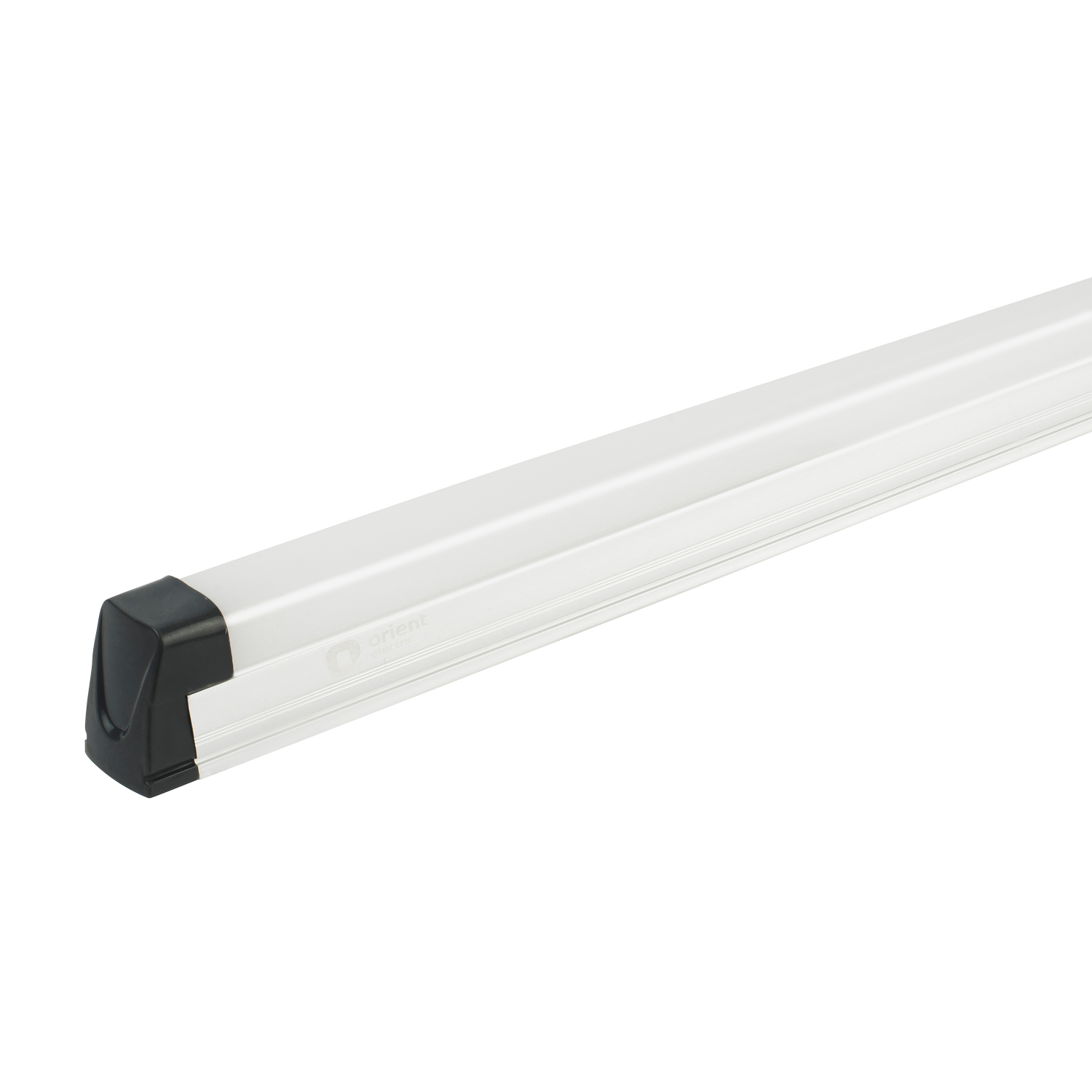

    Housing Epoxy powder-coated white extruded aluminium channel for efficient heat dissipation.White finish ABS end caps snap-fitted on the end cap to enhance the aesthetic of the fixture.
    Optics Polycarbonate diffuser to provide glare free uniform light distribution. High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Fix directly into the wall/ceiling by means of mounting SS clips provided with fixture.
    Control Gear Powered by an integral constant current driver suitable for 120-280 V AC working range.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 18W, 20W, 22W, 36W, 40W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100, ≥90, ≥85
Taskline SQ AL variants
Product Variants
Taskline SQ AL
LBLN-18-C-SQ-AL
Taskline SQ AL
LBLN-18-N-SQ-AL
Taskline SQ AL
LBLN-18-W-SQ-AL
Taskline SQ AL
LBLN-20-C-SQ-AL
Taskline SQ AL
LBLN-20-N-SQ-AL
Taskline SQ AL
LBLN-20-W-SQ-AL
Taskline SQ AL
LBLN-22-C-SQ-AL
Taskline SQ AL
LBLN-22-N-SQ-AL
Taskline SQ AL
LBLN-22-W-SQ-AL
Taskline SQ AL
LBLN-36-C-AL-E
Taskline SQ AL
LBLN-36-N-AL-E
Taskline SQ AL
LBLN-36-W-AL-E
Taskline SQ AL
LBLN-40-C-AL-E
Taskline SQ AL
LBLN-40-N-AL-E
Taskline SQ AL
LBLN-40-W-AL-E
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
18W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1180
21
37
18W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1180
21
37
18W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1180
21
37
20W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1180
21
37
20W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1180
21
37
20W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1180
21
37
22W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1175
22
36
22W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1175
22
36
22W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1175
22
36
36W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1200
30
37
36W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1200
30
37
36W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1200
30
37
40W
6500K
≥80
240V AC
≥0.95
≤10%
≥100
1200
30
37
40W
4000K
≥80
240V AC
≥0.95
≤10%
≥90
1200
30
37
40W
3000K
≥80
240V AC
≥0.95
≤10%
≥85
1200
30
37
