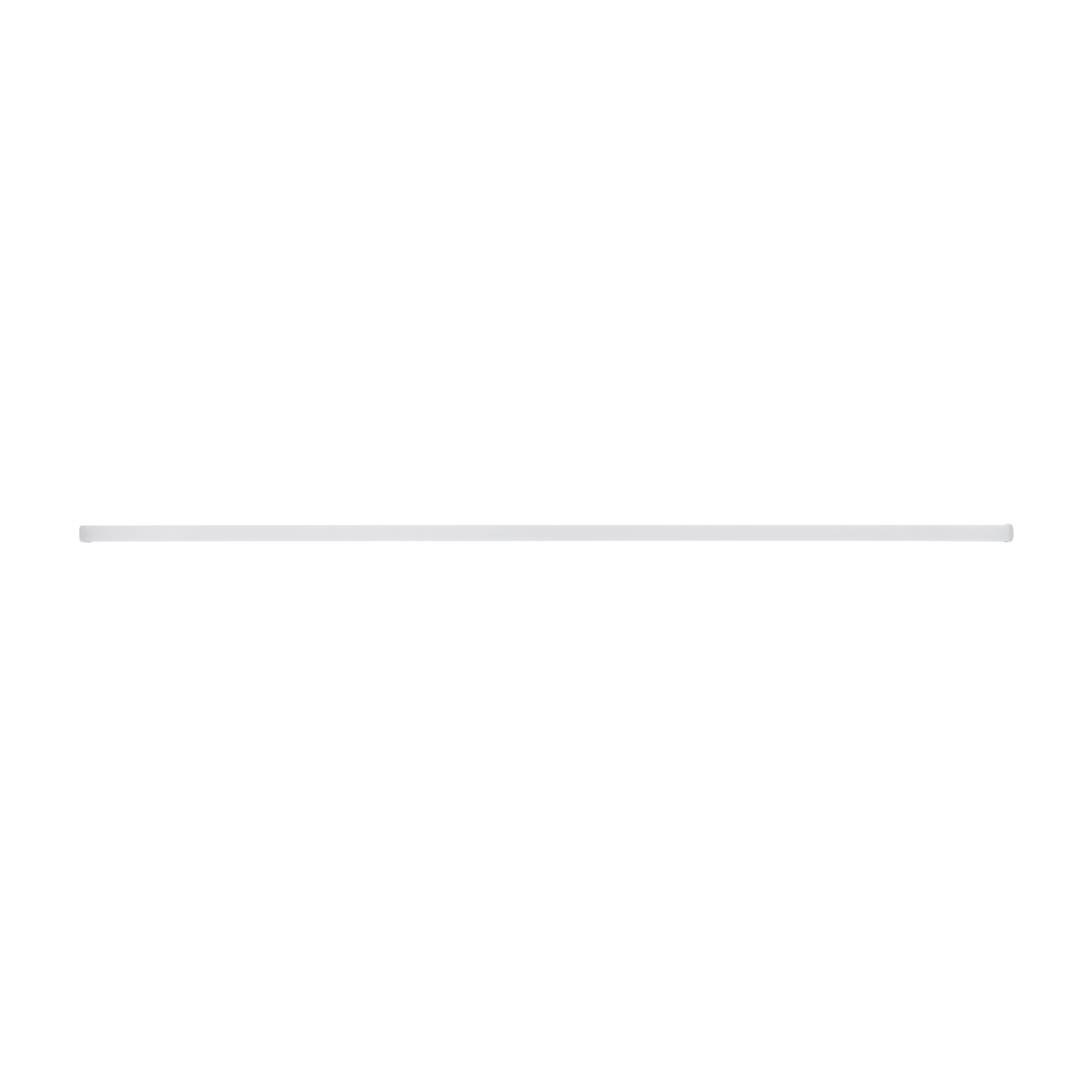

Taskline SQ AL FC

Taskline SQ AL FC

Taskline SQ AL FC

Product Overview

Slim LED batten in Aluminum housing with polycarbonate diffuser and elegantly designed end caps is an ideal replacement solution for existing battens/fluorescent lamps with revolutionary Flicker controlled technology to reduce harmful invisible flicker present in LED lighting sources.

View full details
  • General specification
    Housing Epoxy powder-coated white extruded aluminium channel for efficient heat dissipation.White finish ABS end caps snap-fitted on the end cap to enhance the aesthetic of the fixture.
    Optics Polycarbonate diffuser to provide glare - free uniform light distribution.High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Fix directly into the wall/ceiling by means of mounting SS clips provided with fixture.
    Control Gear Powered by an integral constant current driver suitable for 120-280 V AC working range.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 18W
    CCT 6500K,4000K,3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤15%
    System efficacy (lm/W) ≥100,≥90,≥85
Taskline SQ AL FC variants
Product Variants
Taskline SQ AL FC
LBLN-18-C-SQ-AL-FC
Taskline SQ AL FC
LBLN-18-N-SQ-AL-FC
Taskline SQ AL FC
LBLN-18-W-SQ-AL-FC
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
18W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
1180
21
37
18W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
1180
21
37
18W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
1180
21
37
