Product Overview

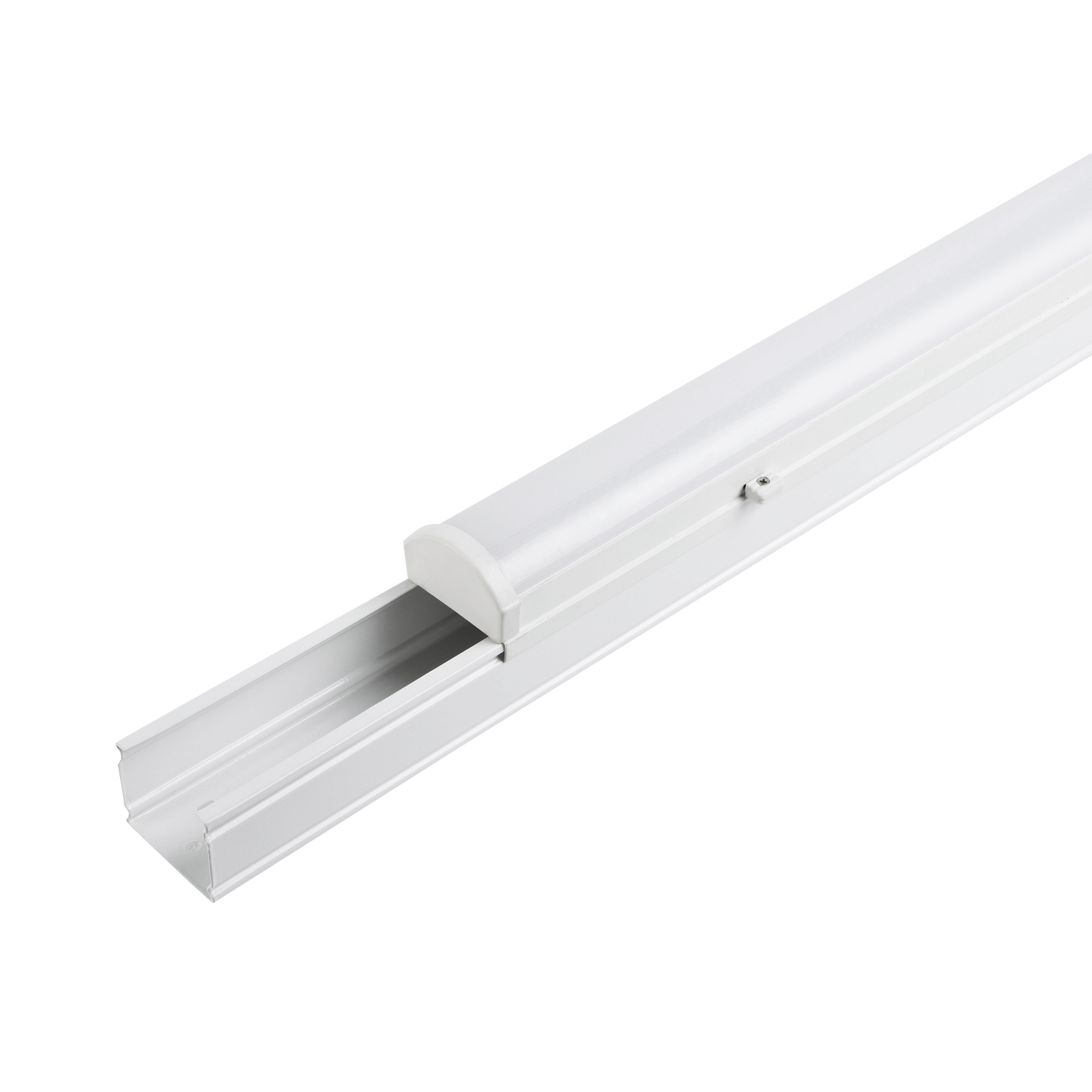

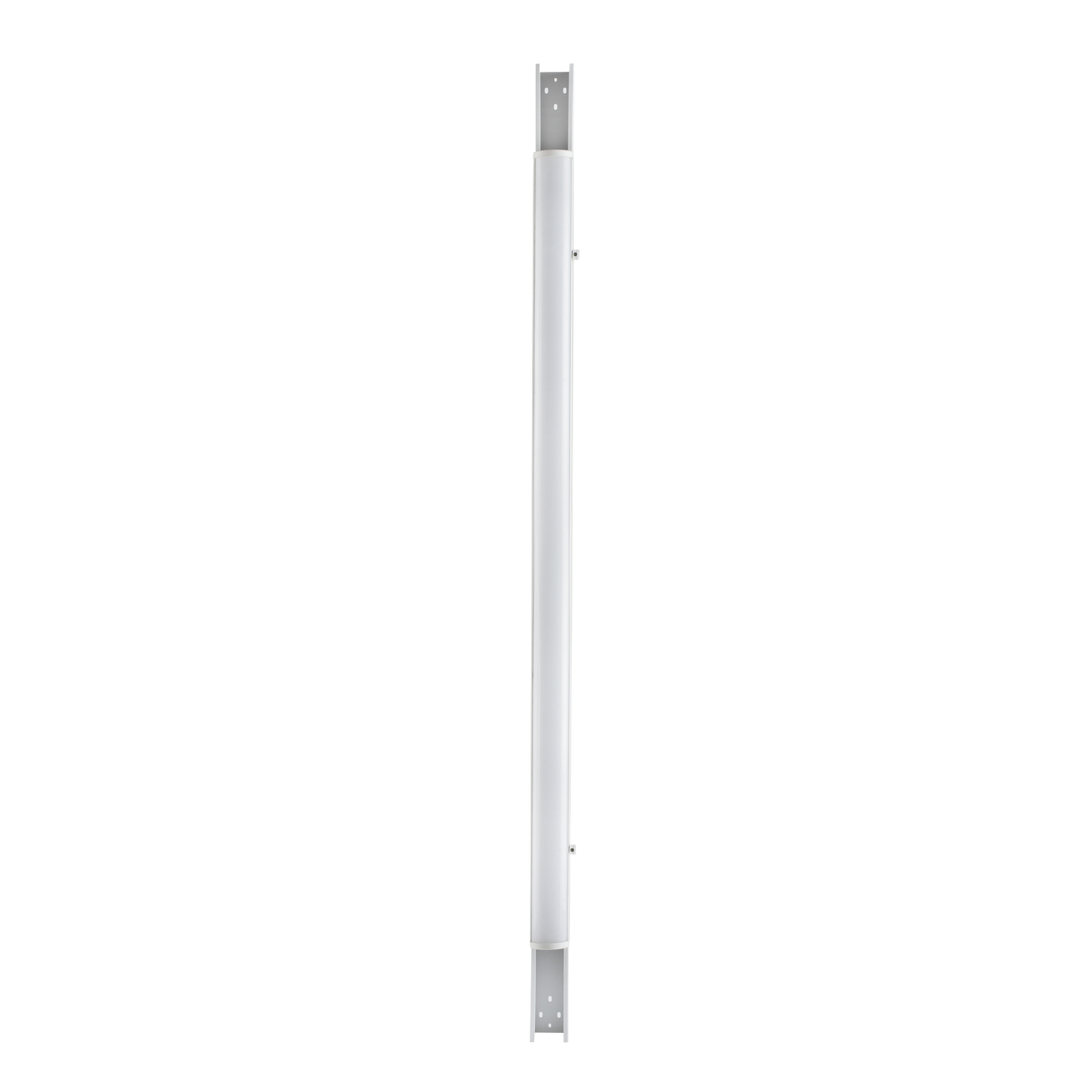

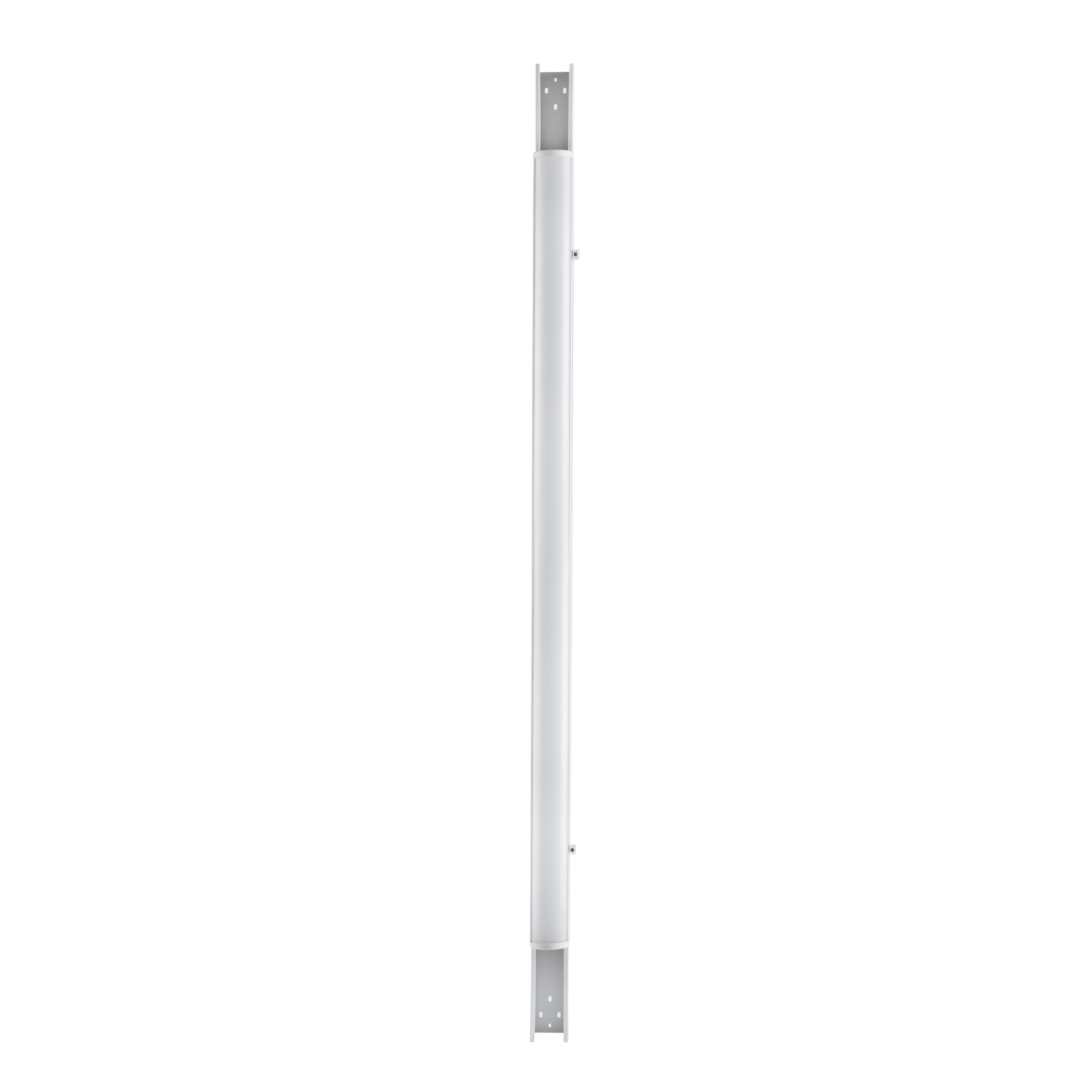

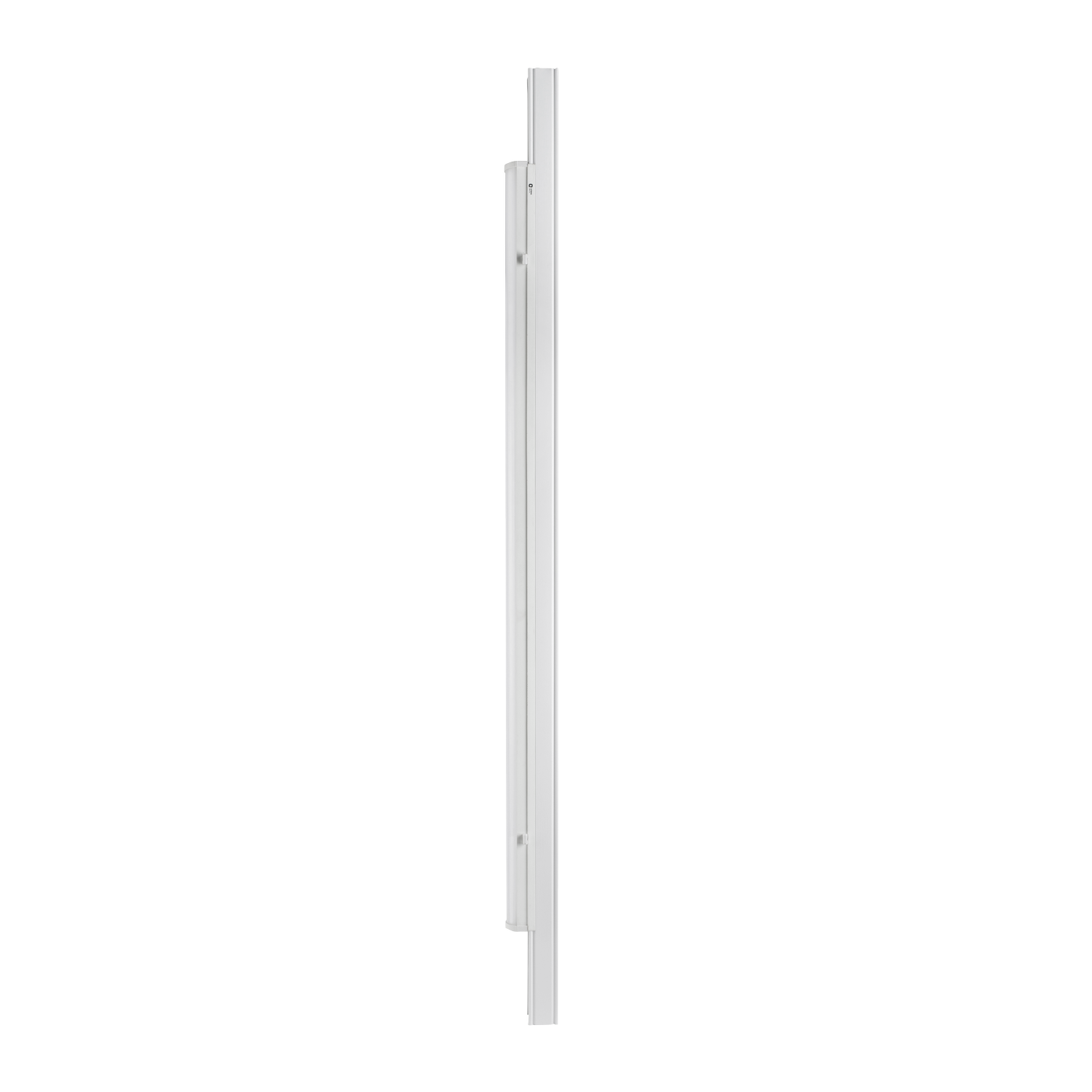

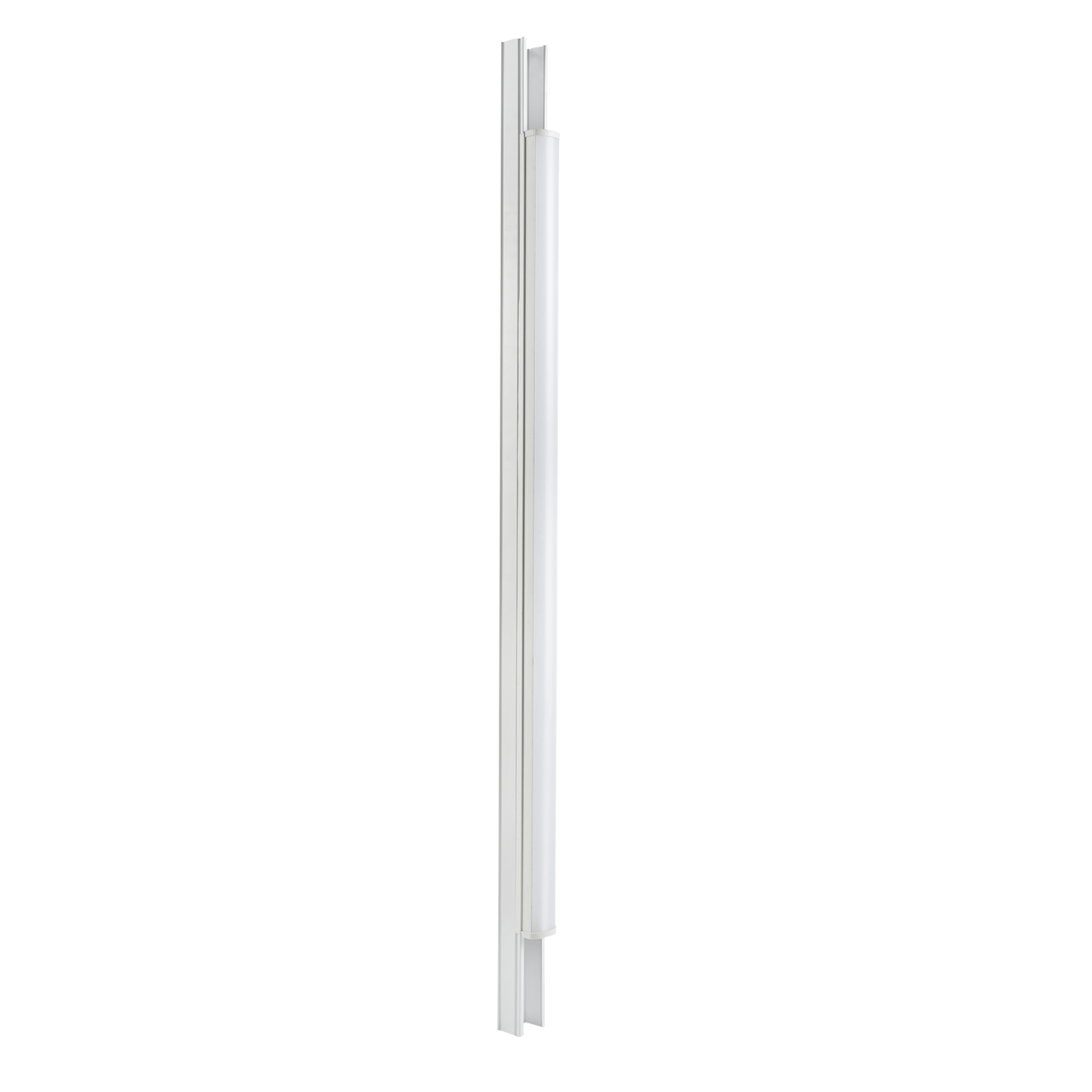

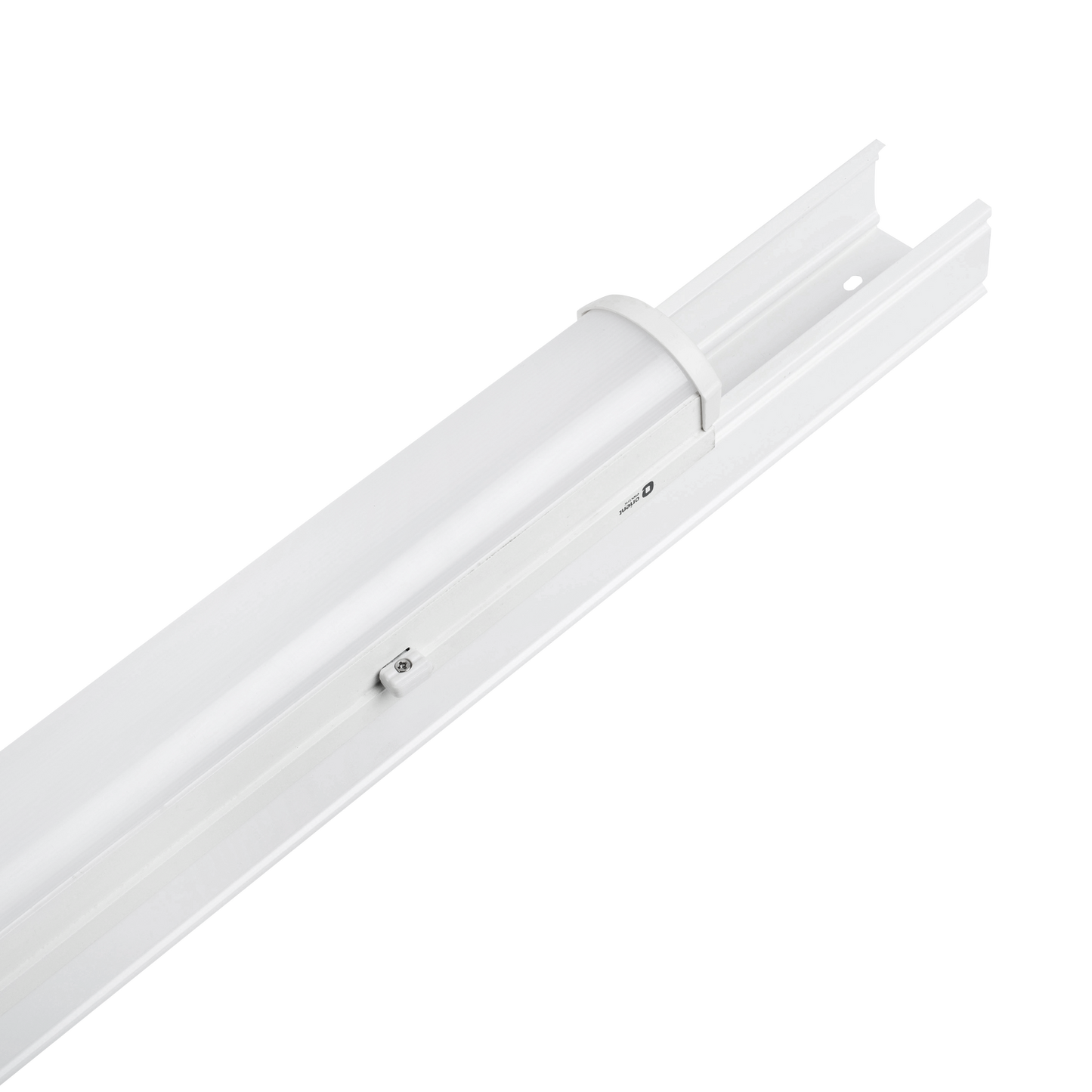

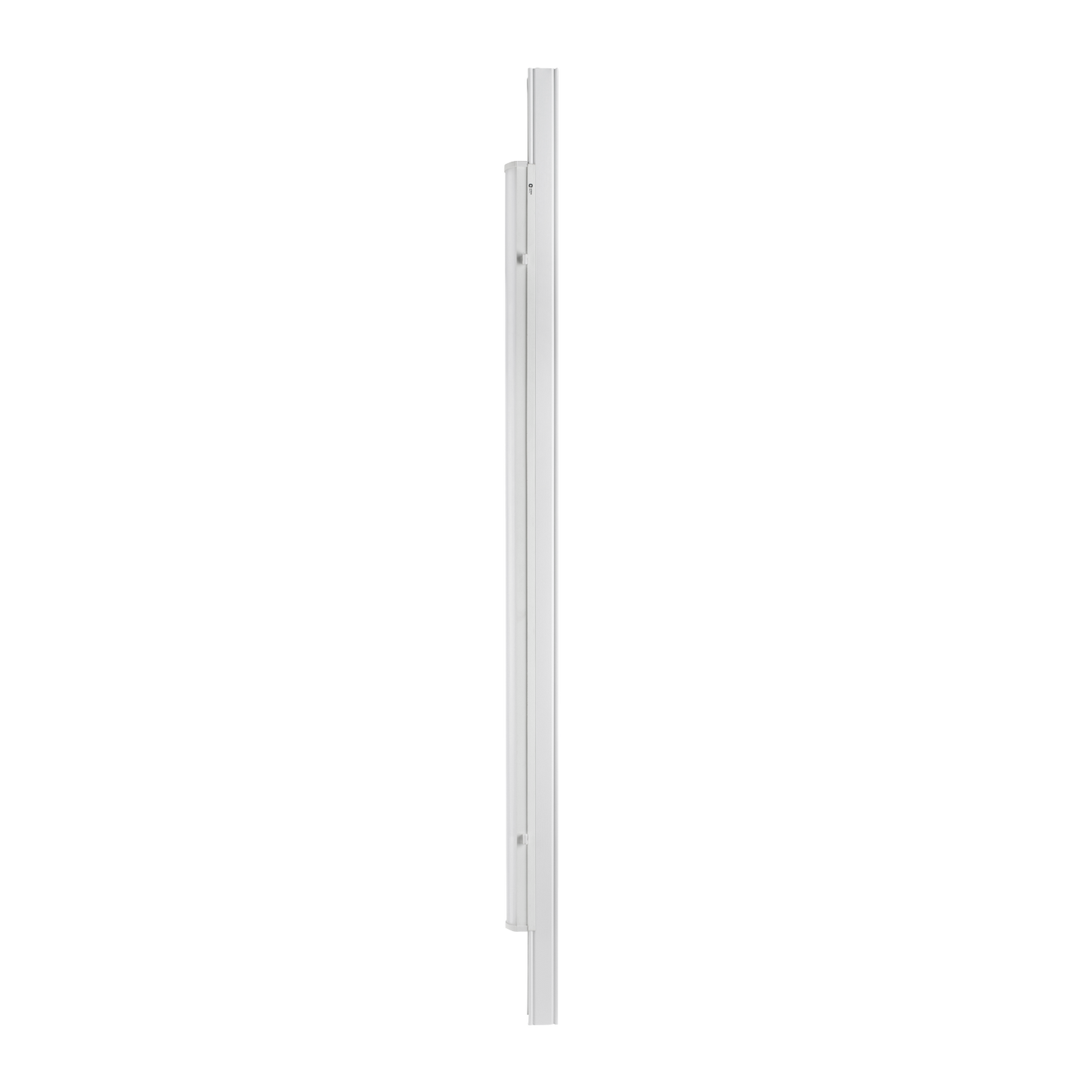

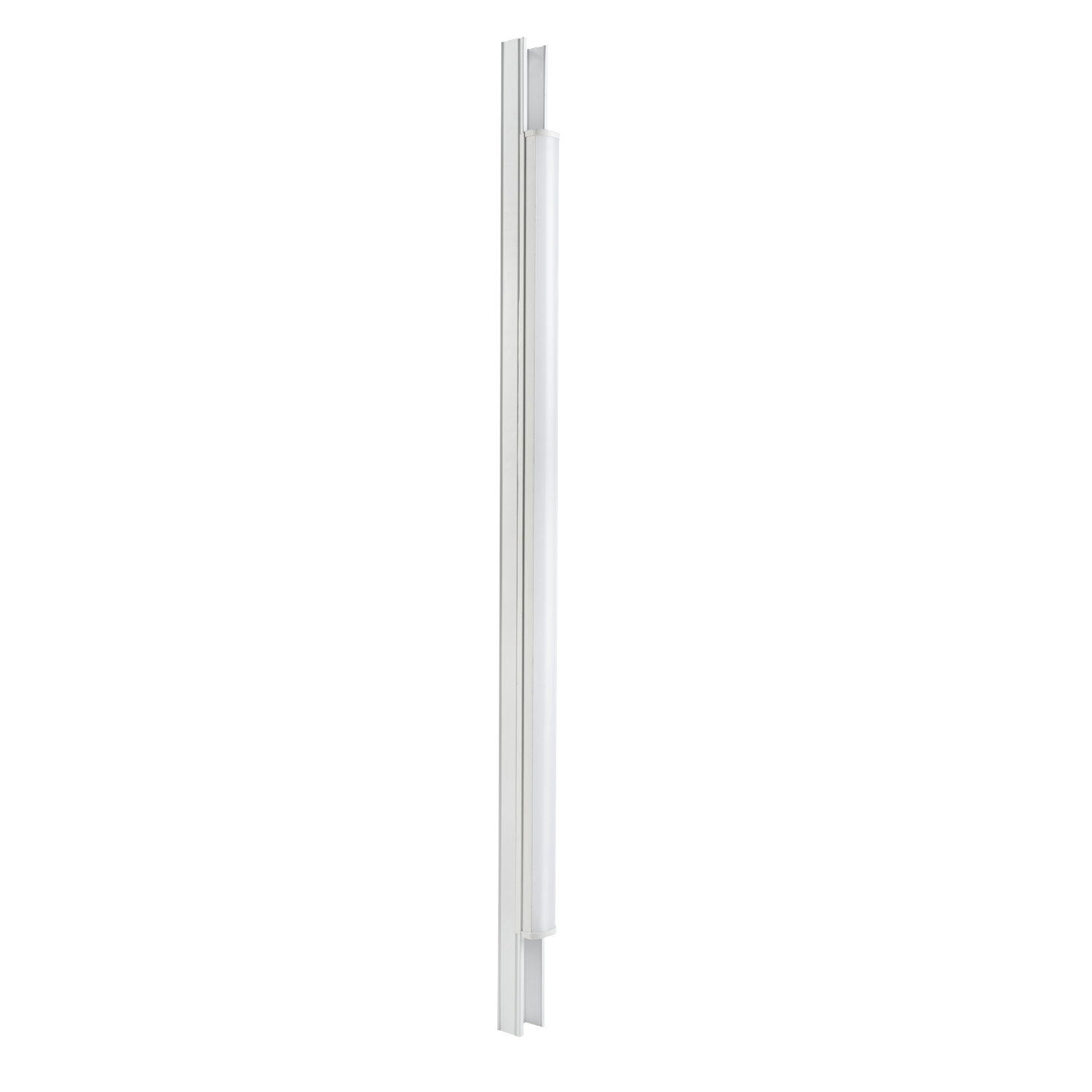

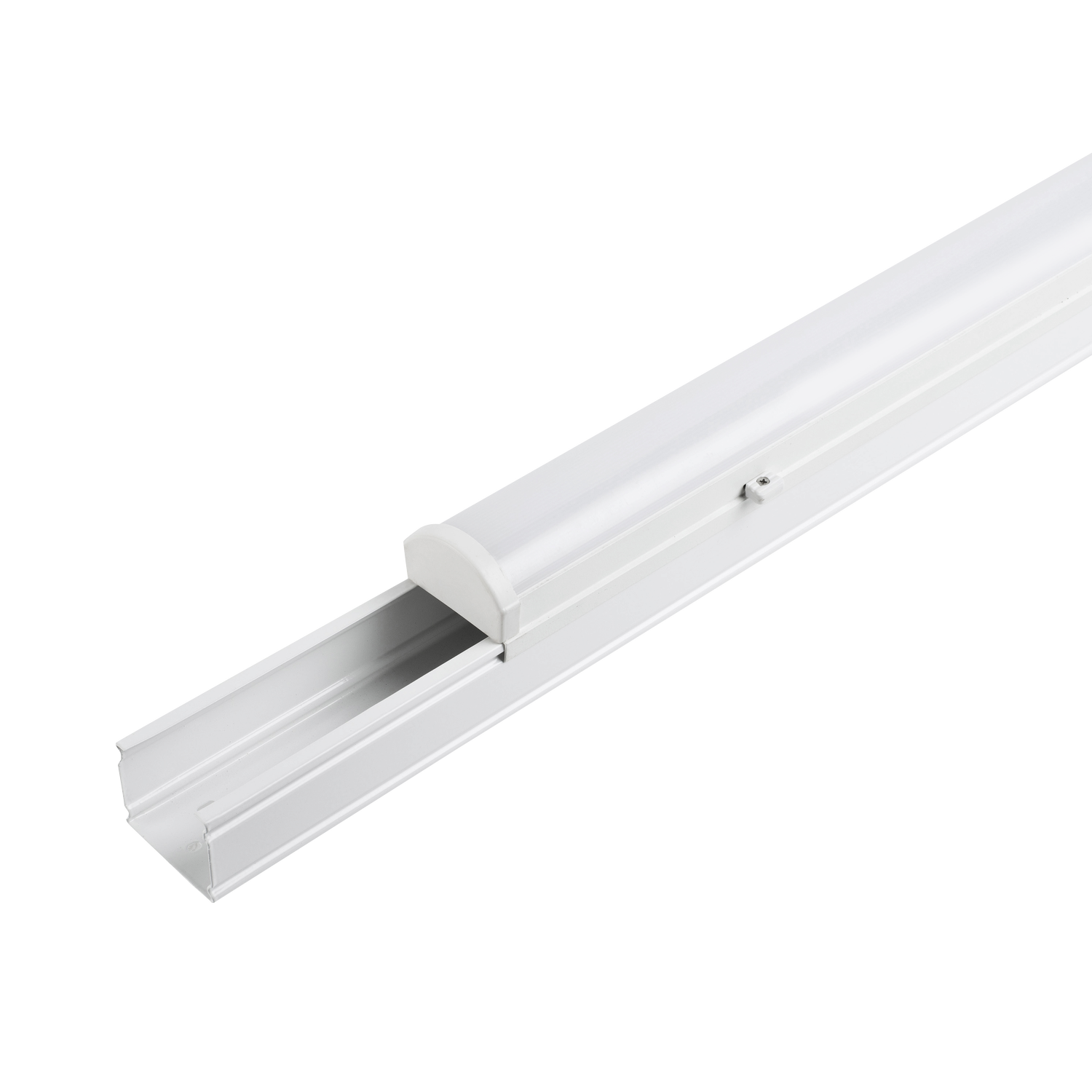

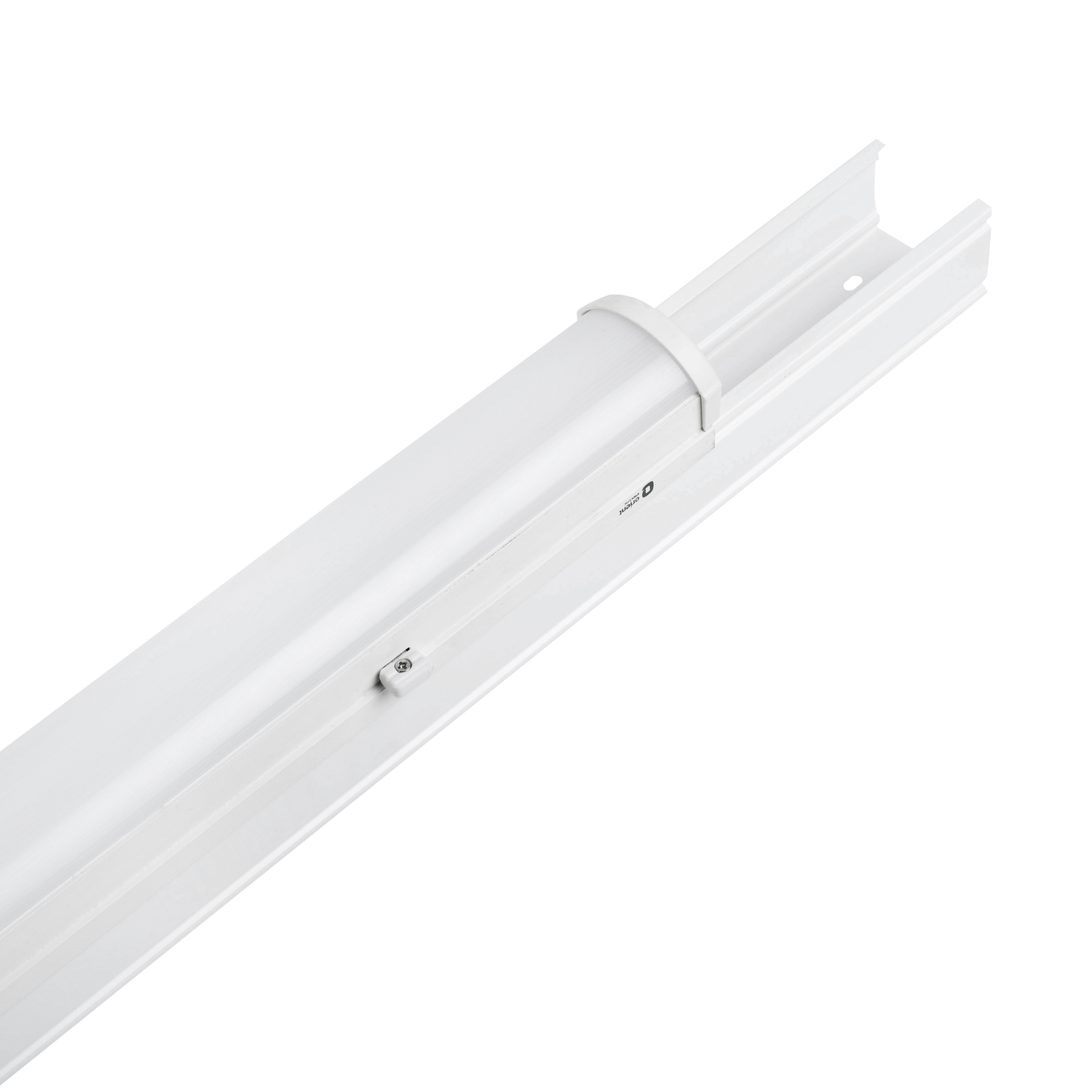

Track-based LED batten with high-efficiency makes it ideal for lighting-up retail spaces with bright and uniform light throw. With glare control and uniformity

*LCSTT-59-V1 : Trunking to be ordered separately

*Trunk length as on demand.

View full details
  • General specification
    Housing MS Trunking system with enclouser made of aluminium housing with powder coating finish which acts as passive heat sink.
    Optics Extruded diffuser for higher light transmission.
    Mounting Track based
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 54
  • Technical Specifications
    System Wattage 30W, 36W, 40W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System Efficacy (lm/W) ≥100, ≥90, ≥85
TLINE variants
Product Variants
TLINE
LCSTL-30-C-V1
TLINE
LCSTL-30-N-V1
TLINE
LCSTL-30-W-V1
TLINE
LCSTL-36-C-V1
TLINE
LCSTL-36-N-V1
TLINE
LCSTL-36-W-V1
TLINE
LCSTL-40-C-V1
TLINE
LCSTL-40-N-V1
TLINE
LCSTL-40-W-V1
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
30W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
30W
4000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
30W
3000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
36W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
36W
4000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
36W
3000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
40W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
40W
4000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
40W
3000K
≥80
240V AC
≥0.95
<10%
≥100
1500
55
90
