UDline

UDline

UDline

Product Overview

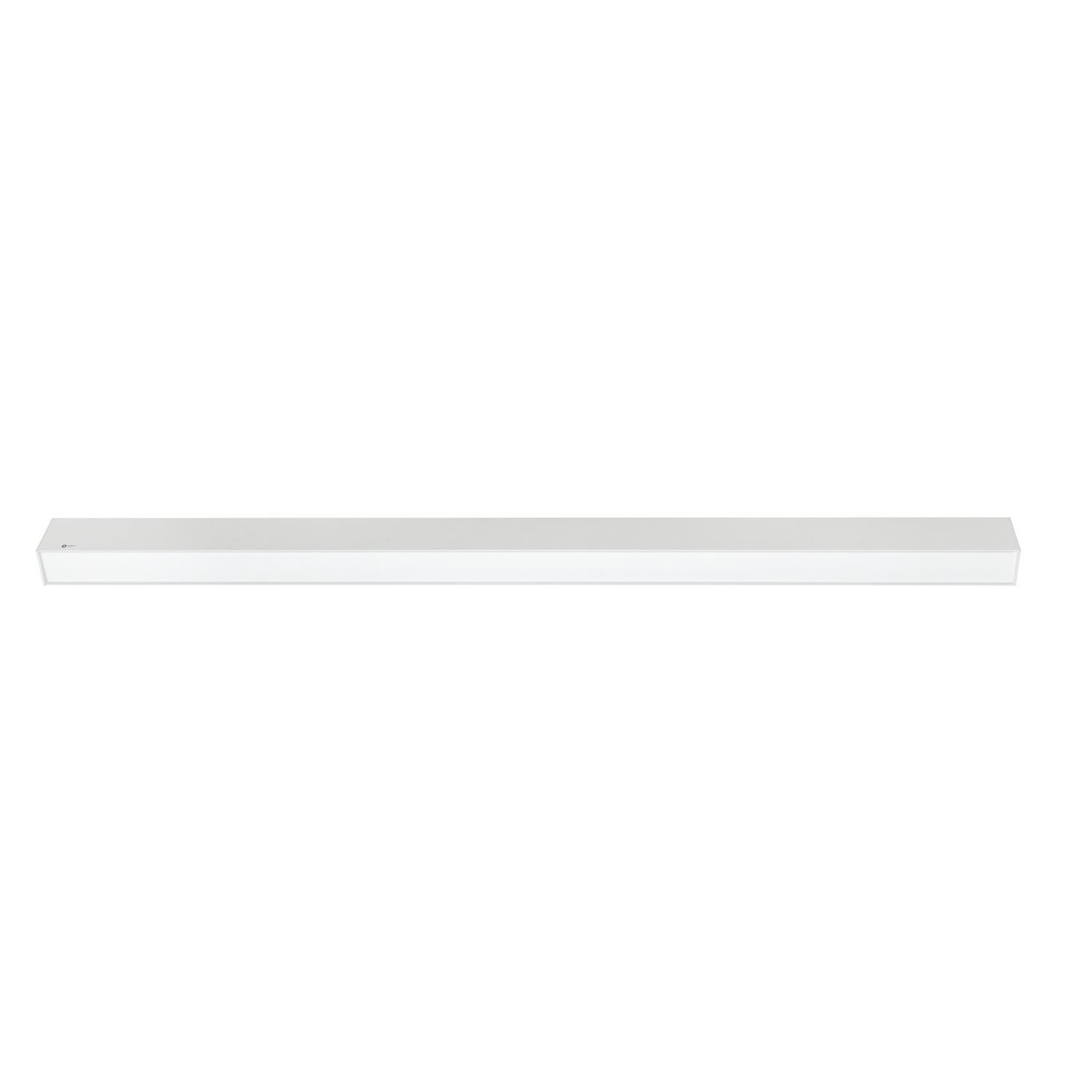

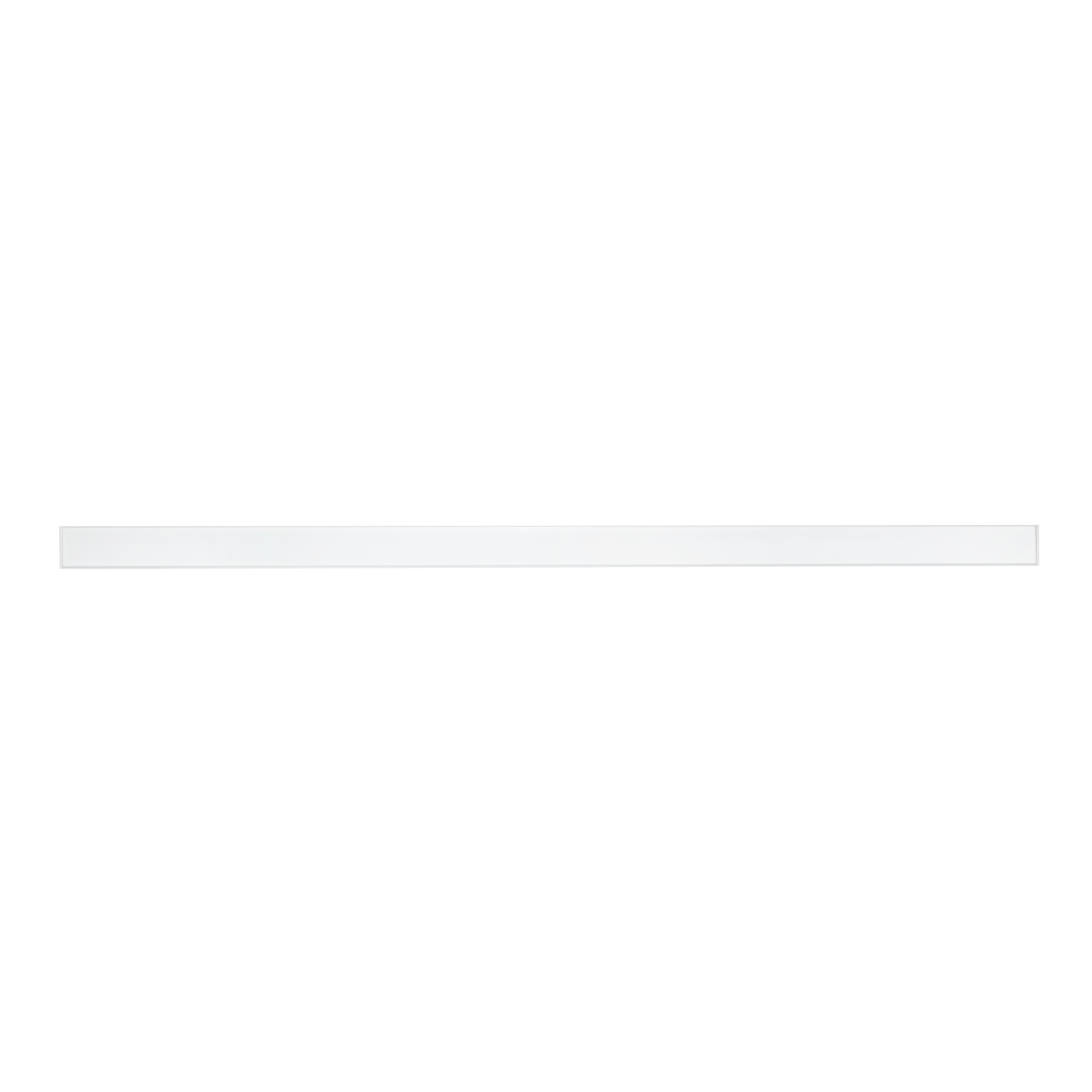

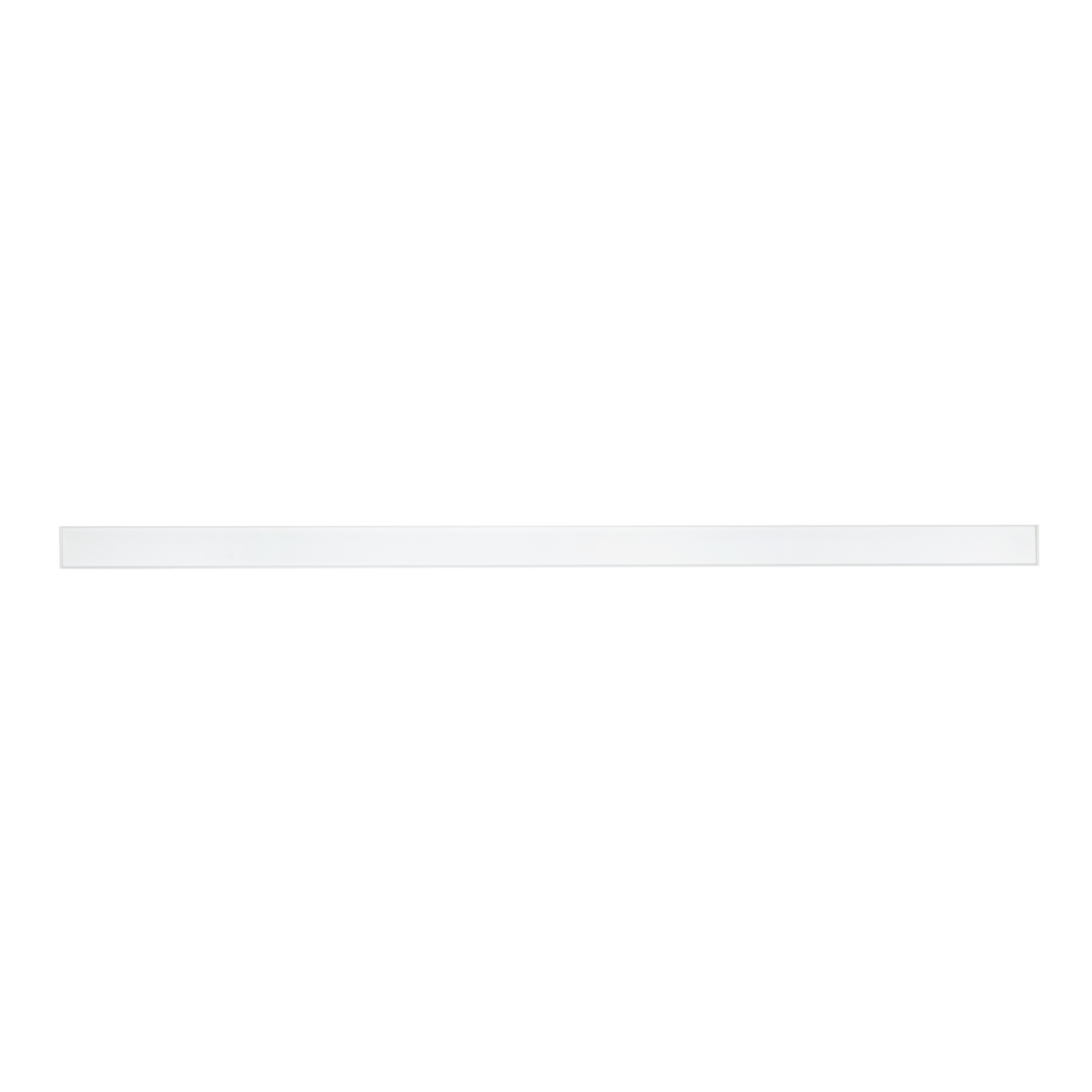

Seamless LED up-downlight luminaire in pendant mounting in extruded aluminium for indoor architectural lighting solution, offering excellent energy saving and maintenance-free operation. Luminaires can be connected end-to-end to make a continuous lighting system of any length to uplift visual ambience.

Best suited for

Workstations

Reception

Waiting Lounge

Meeting Rooms

View full details
  • General specification

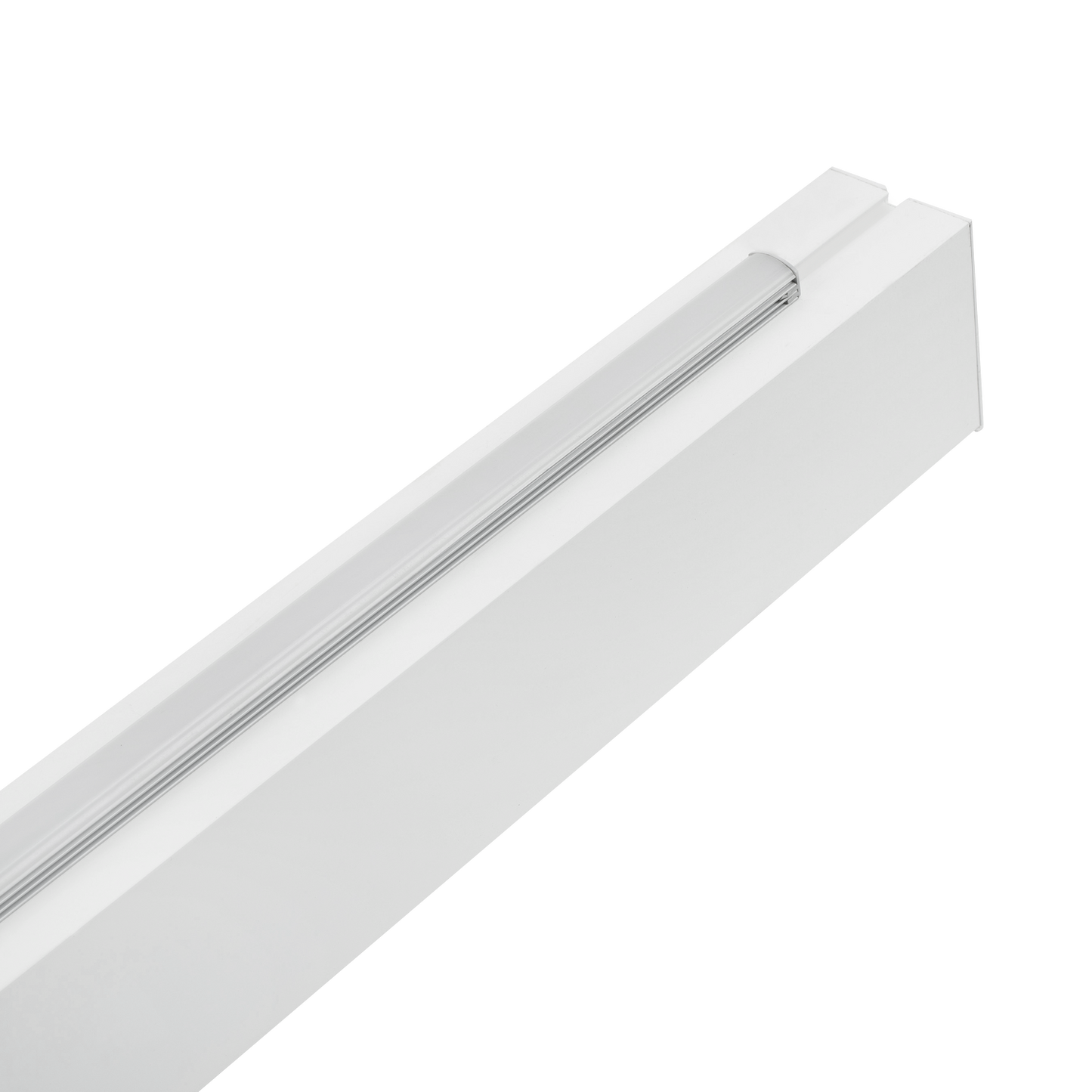

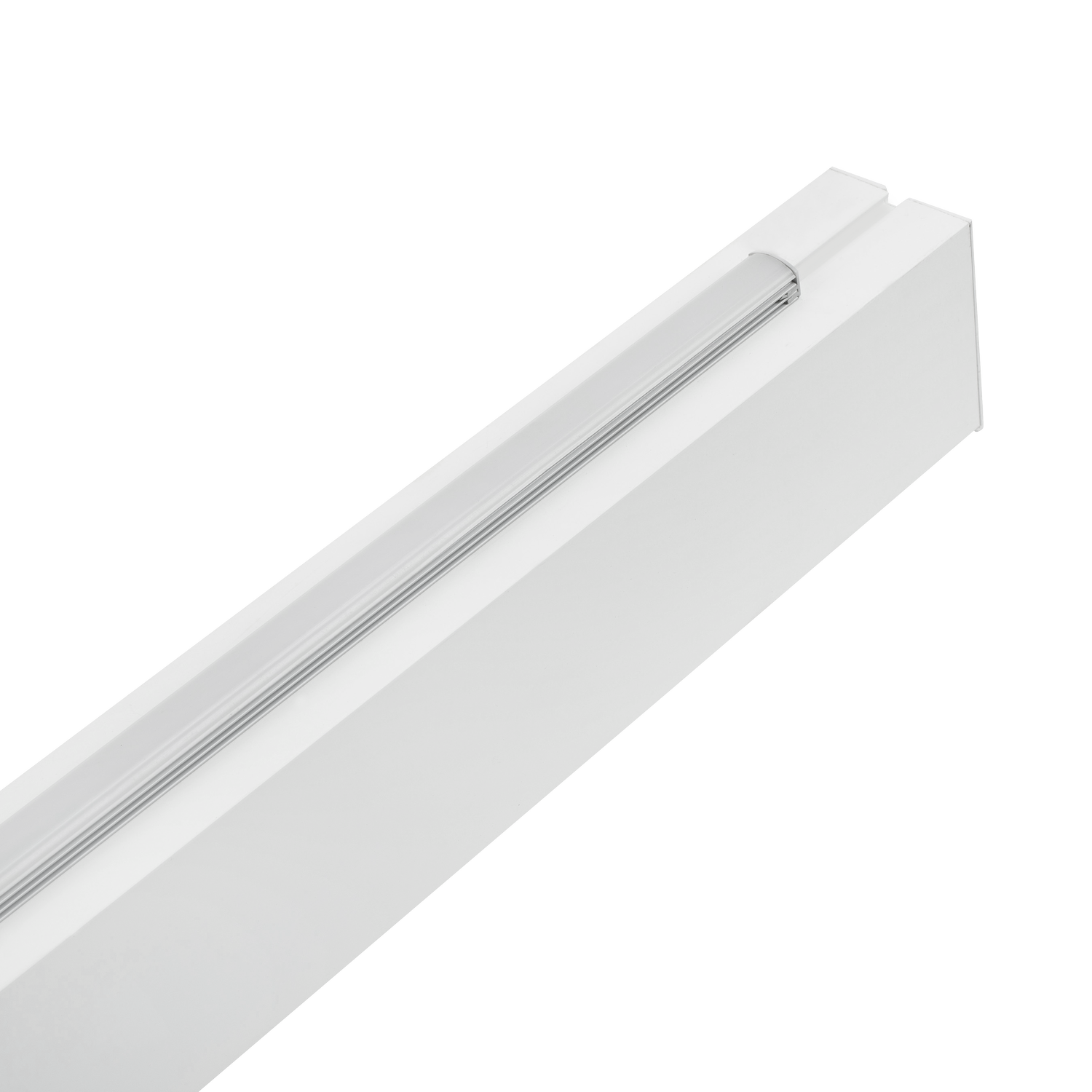

    Housing Designed with excellent thermally managed aluminium housing with heat dissipating larger surface area.

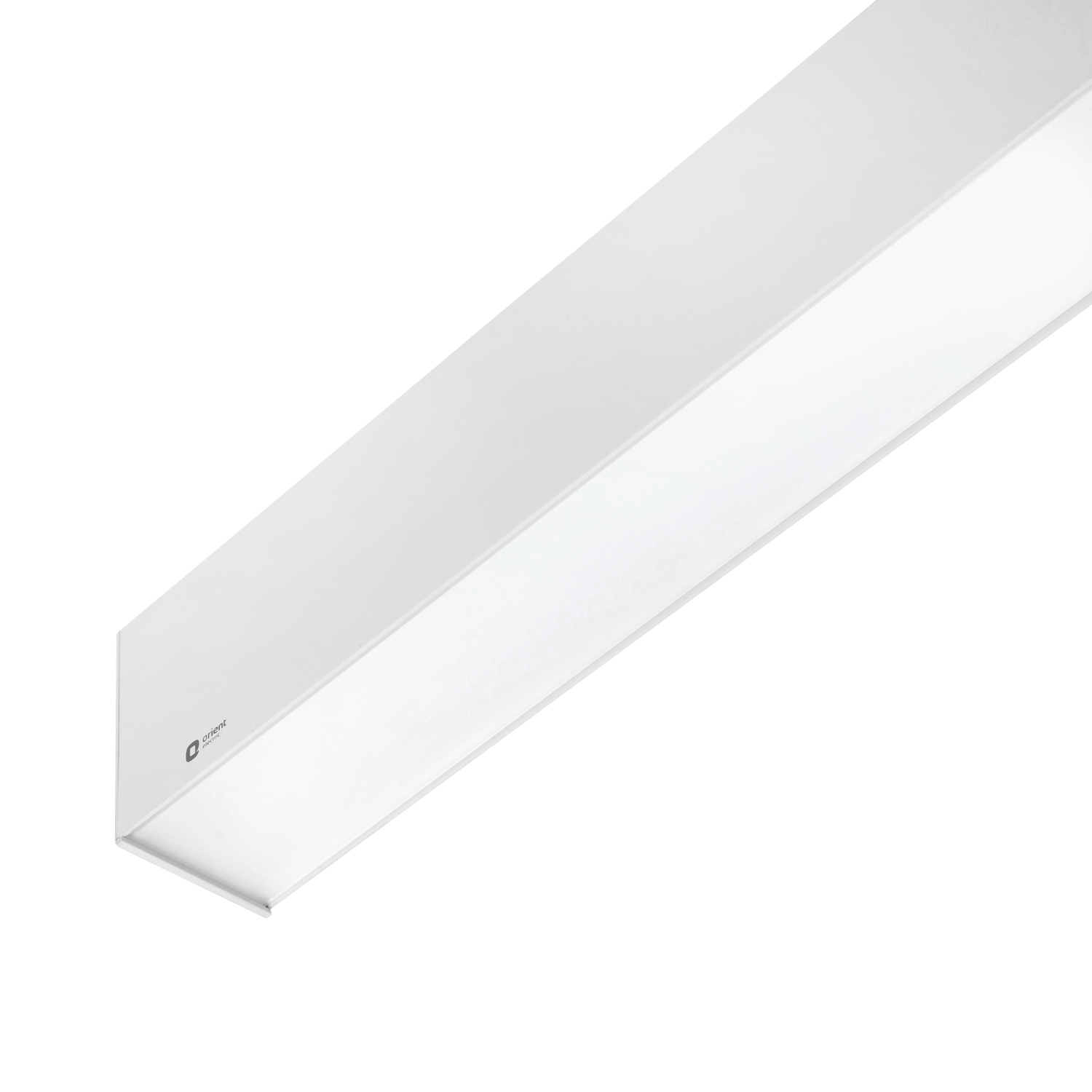

    Optics High quality polycarbonate opal diffuser for glare-free up and down uniform light distribution.

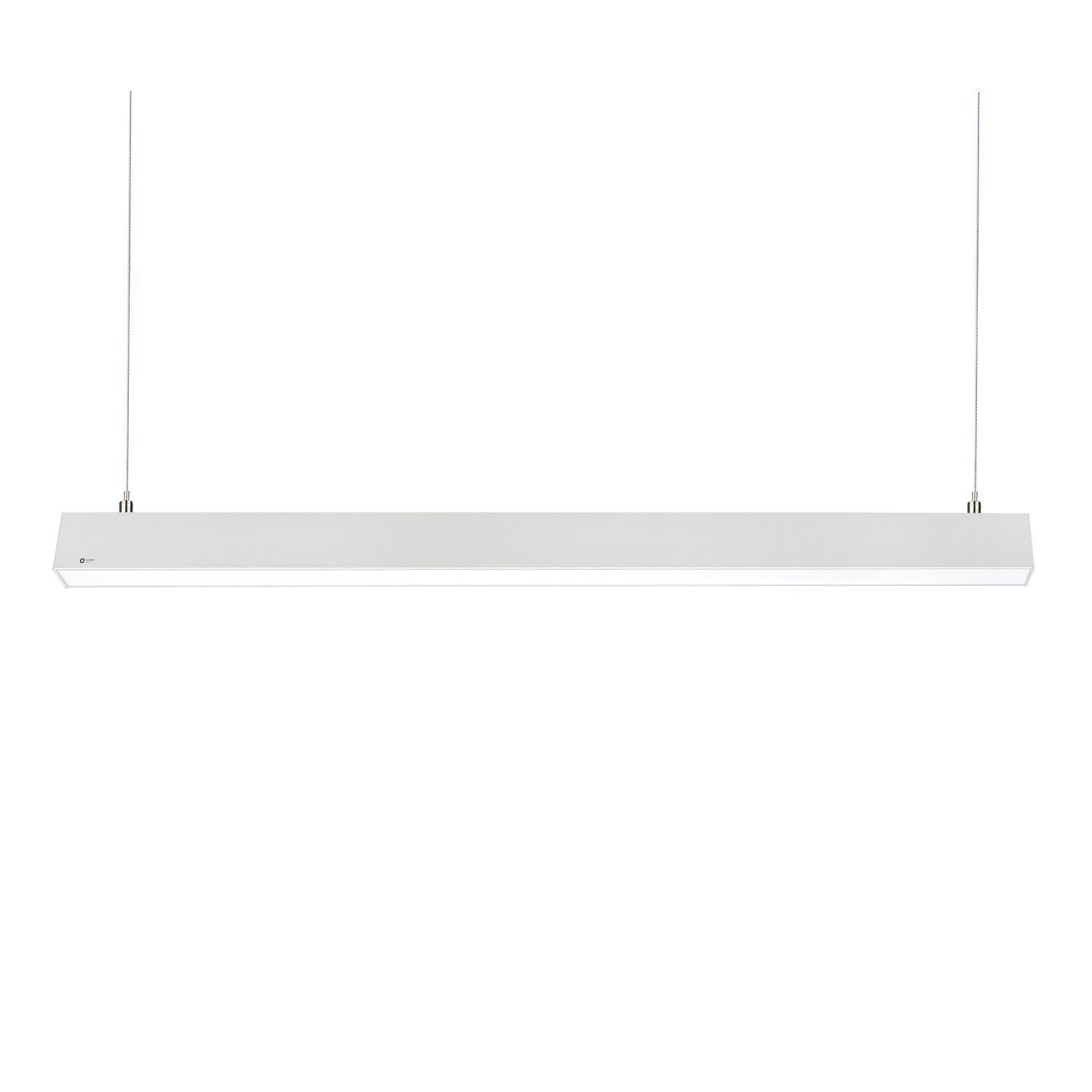

    Mounting Pendant mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 5W+25W, 10W+50W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <10%
    System efficacy (lm/W) ≥100 , ≥90 , ≥85
UDline variants
Product Variants
UDline
LCPUD4-30-C-50
UDline
LCPUD4-30-N-50
UDline
LCPUD4-30-W-50
UDline
LCPUD8-60-C-50
UDline
LCPUD8-60-N-50
UDline
LCPUD8-60-W-50
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
5W+25W
6500K
≥80
240V AC
≥0.95
<10%
≥100
1196
50
70
5W+25W
4000K
≥80
240V AC
≥0.95
<10%
≥90
1196
50
70
5W+25W
3000K
≥80
240V AC
≥0.95
<10%
≥85
1196
50
70
10W+50W
6500K
≥80
240V AC
≥0.95
<10%
≥100
2388
50
70
10W+50W
4000K
≥80
240V AC
≥0.95
<10%
≥90
2388
50
70
10W+50W
3000K
≥80
240V AC
≥0.95
<10%
≥85
2388
50
70
