Product Overview

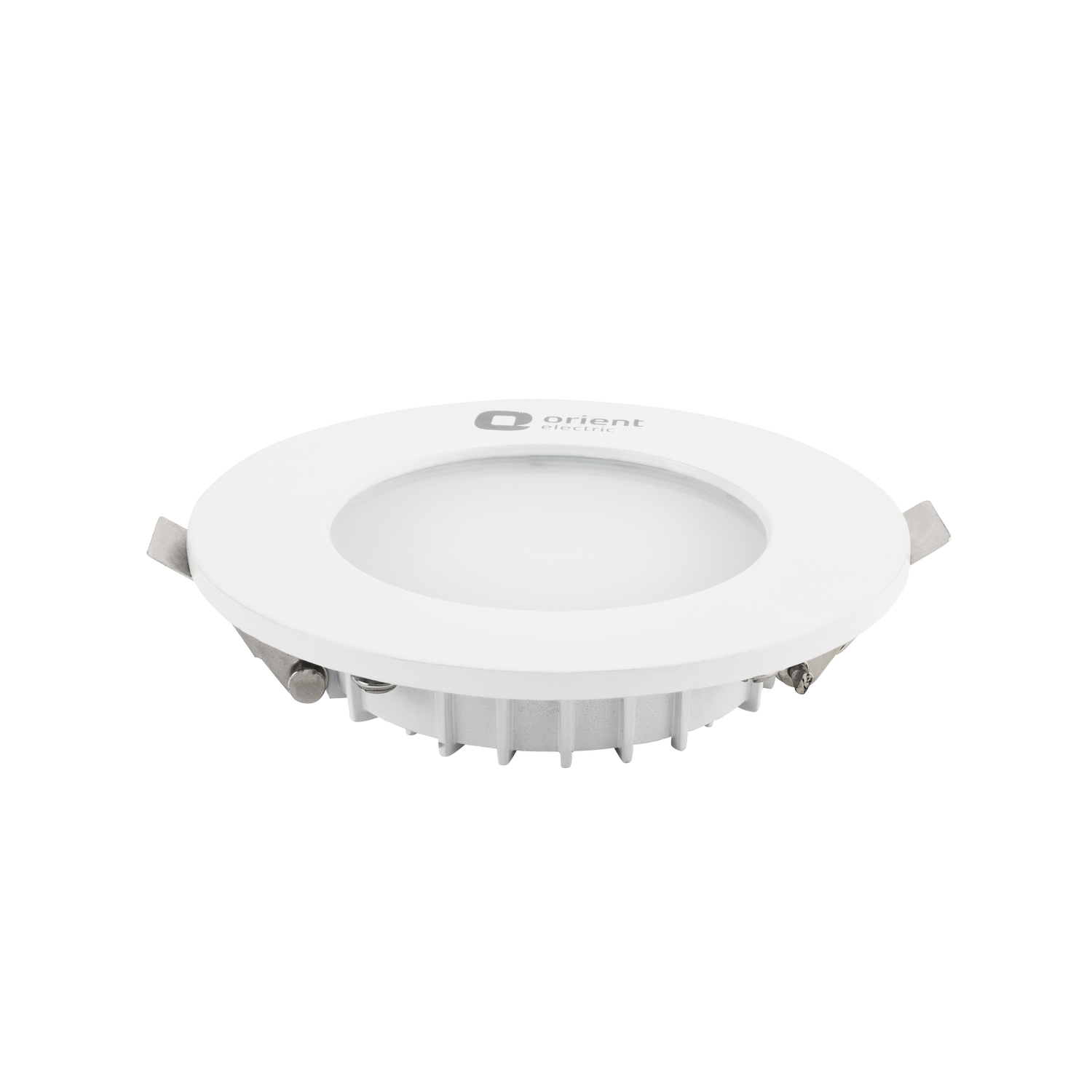

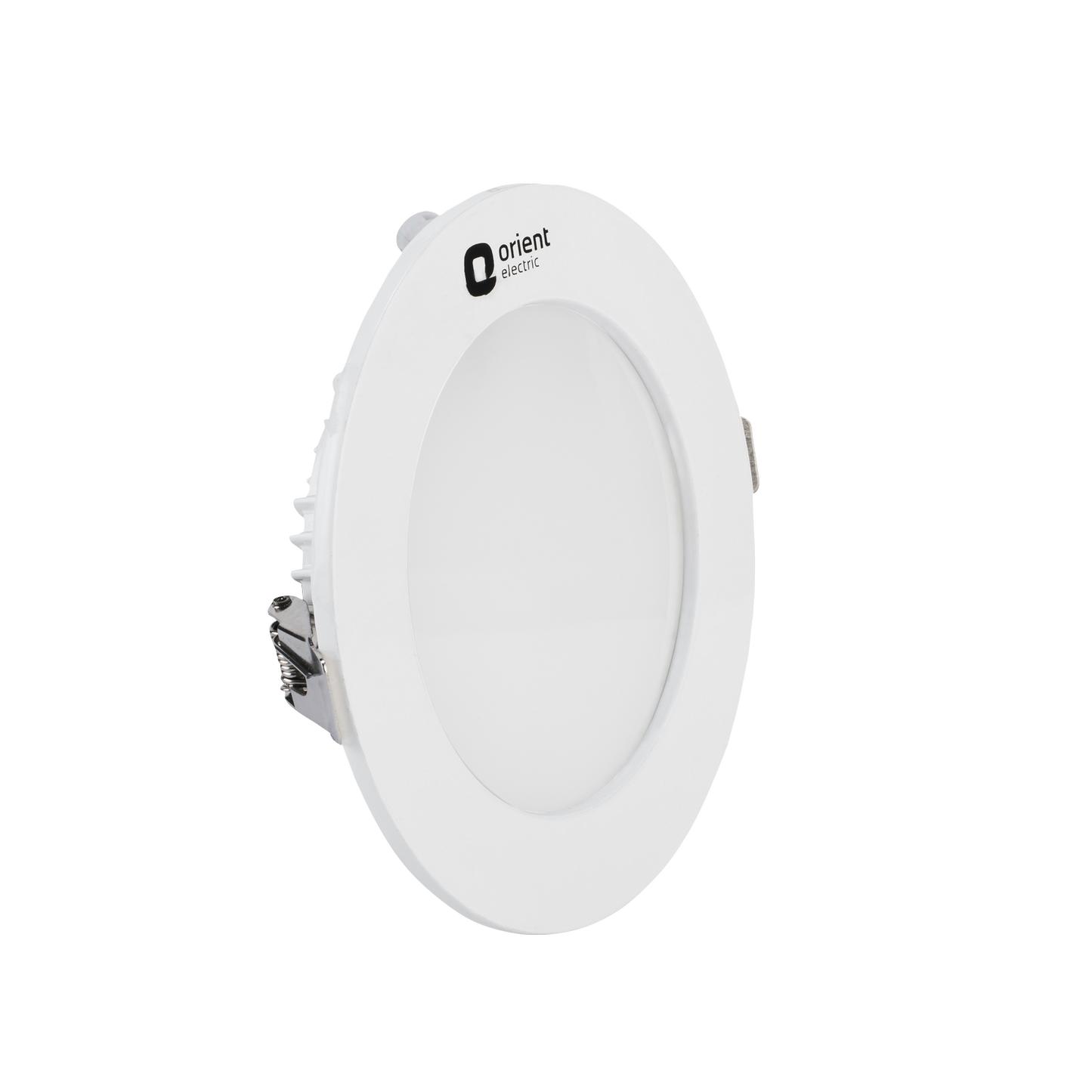

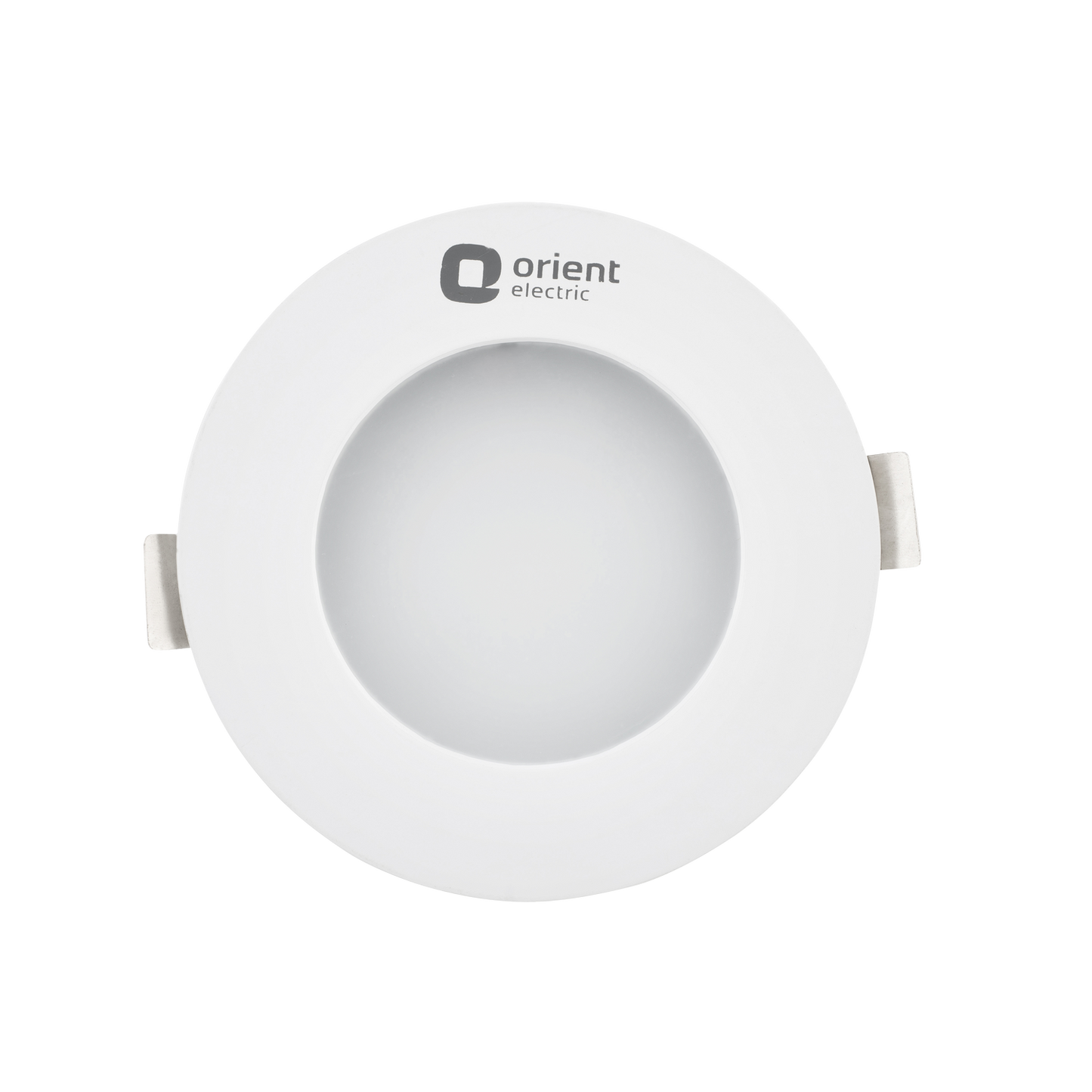

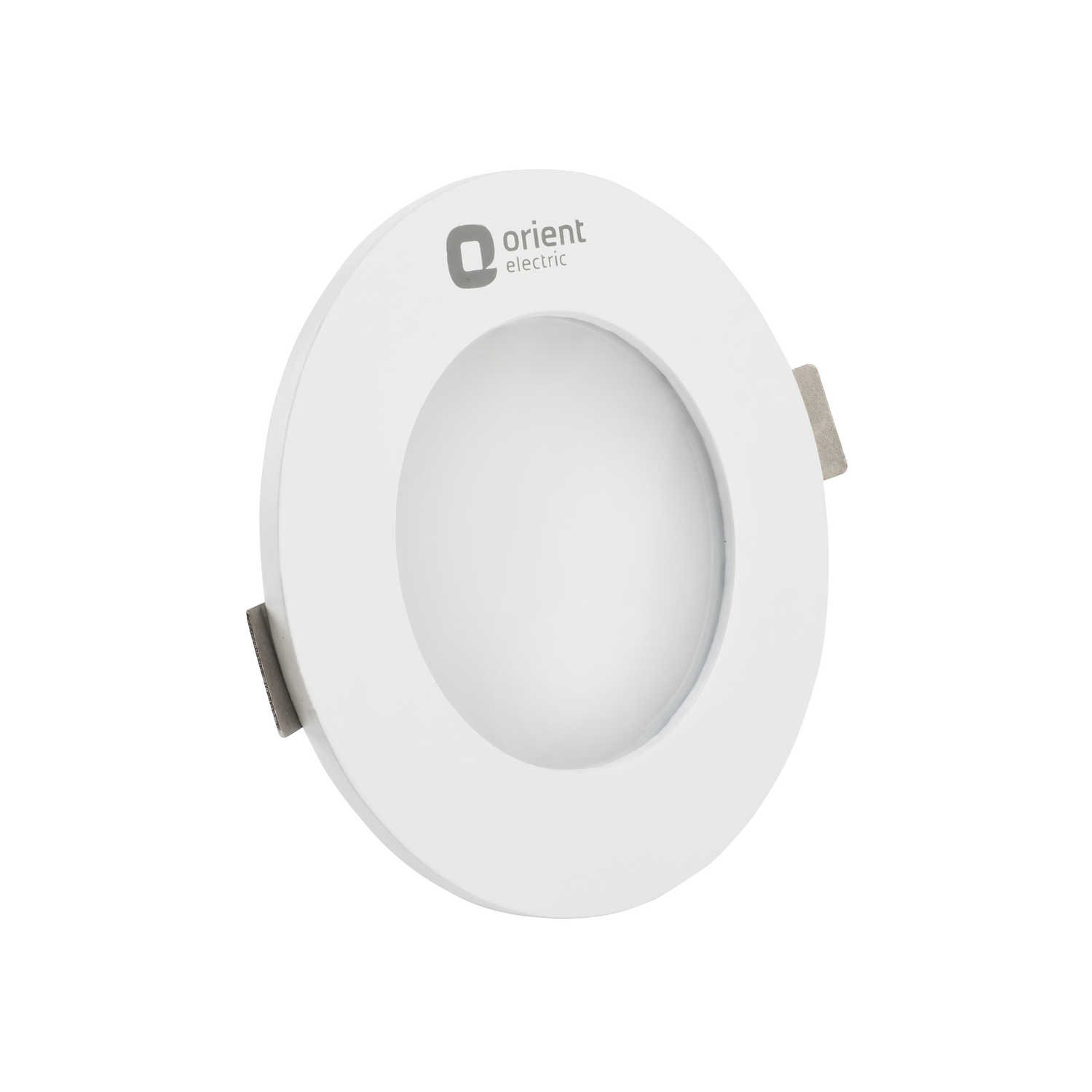

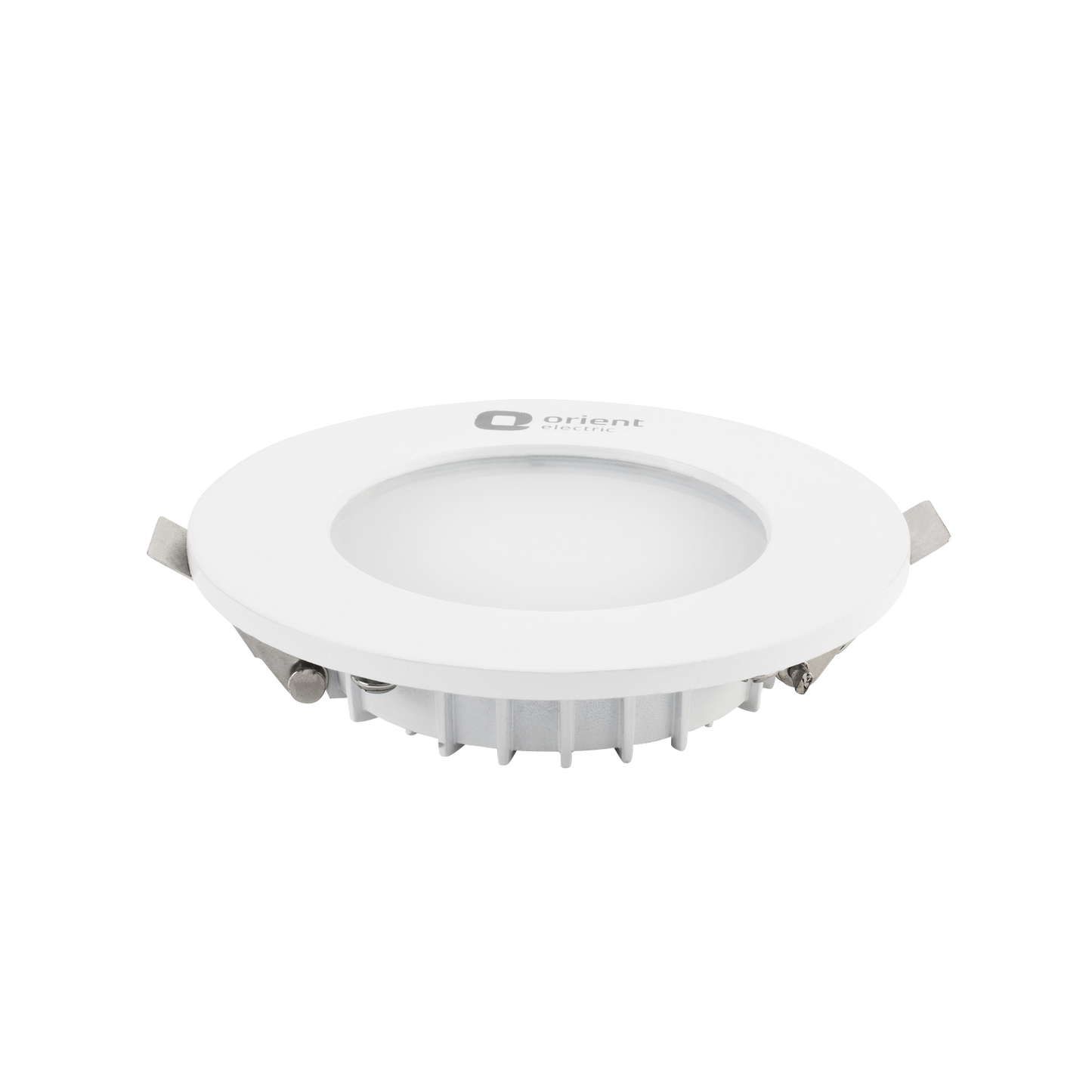

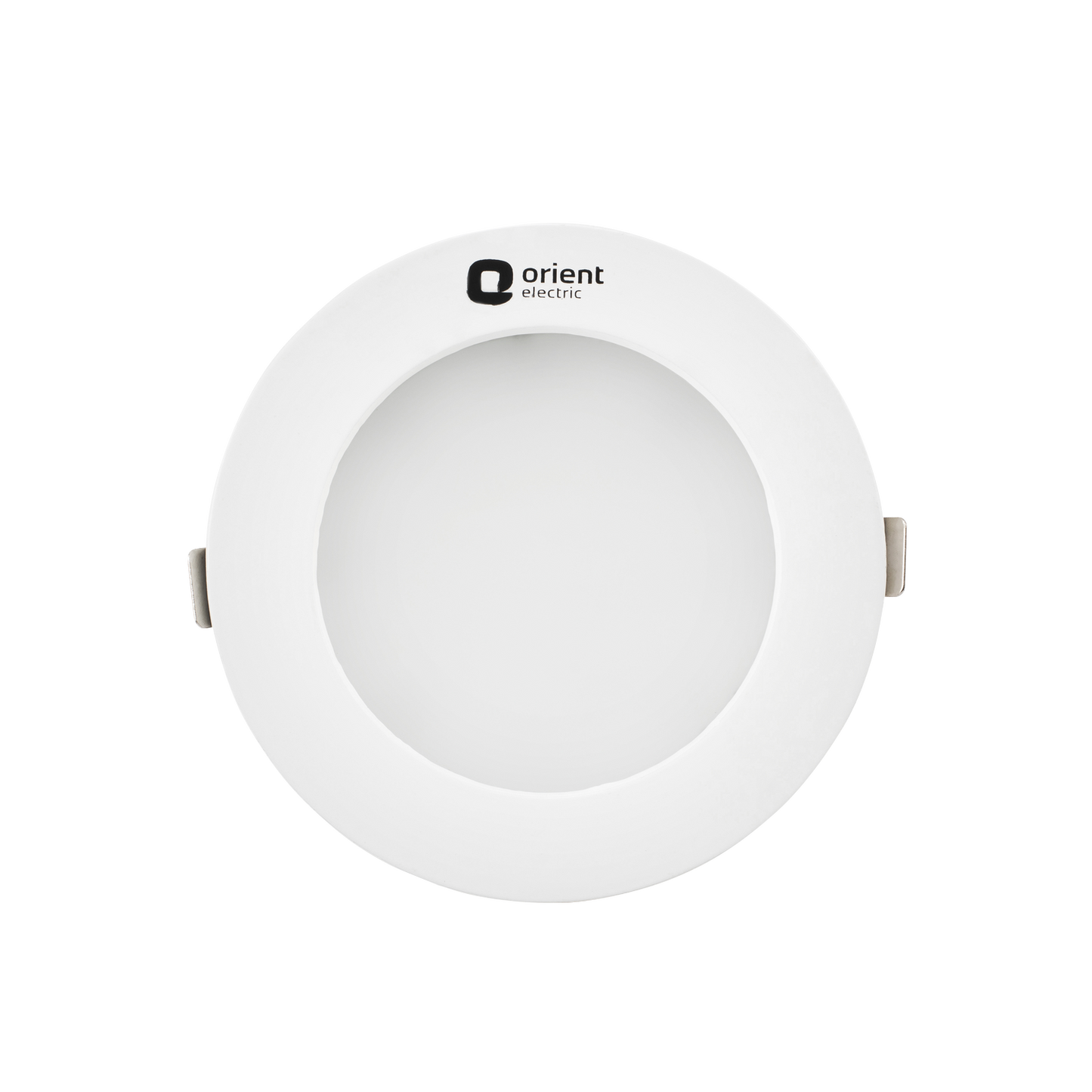

Recess mounting round LED downlighter designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.

Best suited for

Banks & Back offices

Reception

Waiting Lounge

Meeting Rooms

Corridors

View full details
  • General specification
    Housing Designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.
    Optics High quality polycarbonate frosted diffuser for glare free uniform light distribution.
    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 10W, 15W, 18W, 20W, 24W
    CCT 6500K , 4000K , 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤15%
    System Efficacy (lm/W) ≥100 , ≥90 , ≥85
Venus recess variants
Product Variants
Venus recess
LDRVS-010-C-V2
Venus recess
LDRVS-010-N-V2
Venus recess
LDRVS-010-W-V2
Venus recess
LDRVS-015-C-V2
Venus recess
LDRVS-015-N-V2
Venus recess
LDRVS-015-W-V2
Venus recess
LDRVS-018-C-V2
Venus recess
LDRVS-018-N-V2
Venus recess
LDRVS-018-W-V2
Venus recess
LDRVS-020-C-V2
Venus recess
LDRVS-020-N-V2
Venus recess
LDRVS-020-W-V2
Venus recess
LDRVS-024-C-V2
Venus recess
LDRVS-024-N-V2
Venus recess
LDRVS-024-W-V2
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Cut out Diameter (in mm)
Height (in mm)
10W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
118
95
32
10W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
118
95
32
10W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
118
95
32
15W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
148
125
32
15W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
148
125
32
15W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
148
125
32
18W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
148
125
32
18W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
148
125
32
18W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
148
125
32
20W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
168
140
32
20W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
168
140
32
20W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
168
140
32
24W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
168
140
32
24W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
168
140
32
24W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
168
140
32
