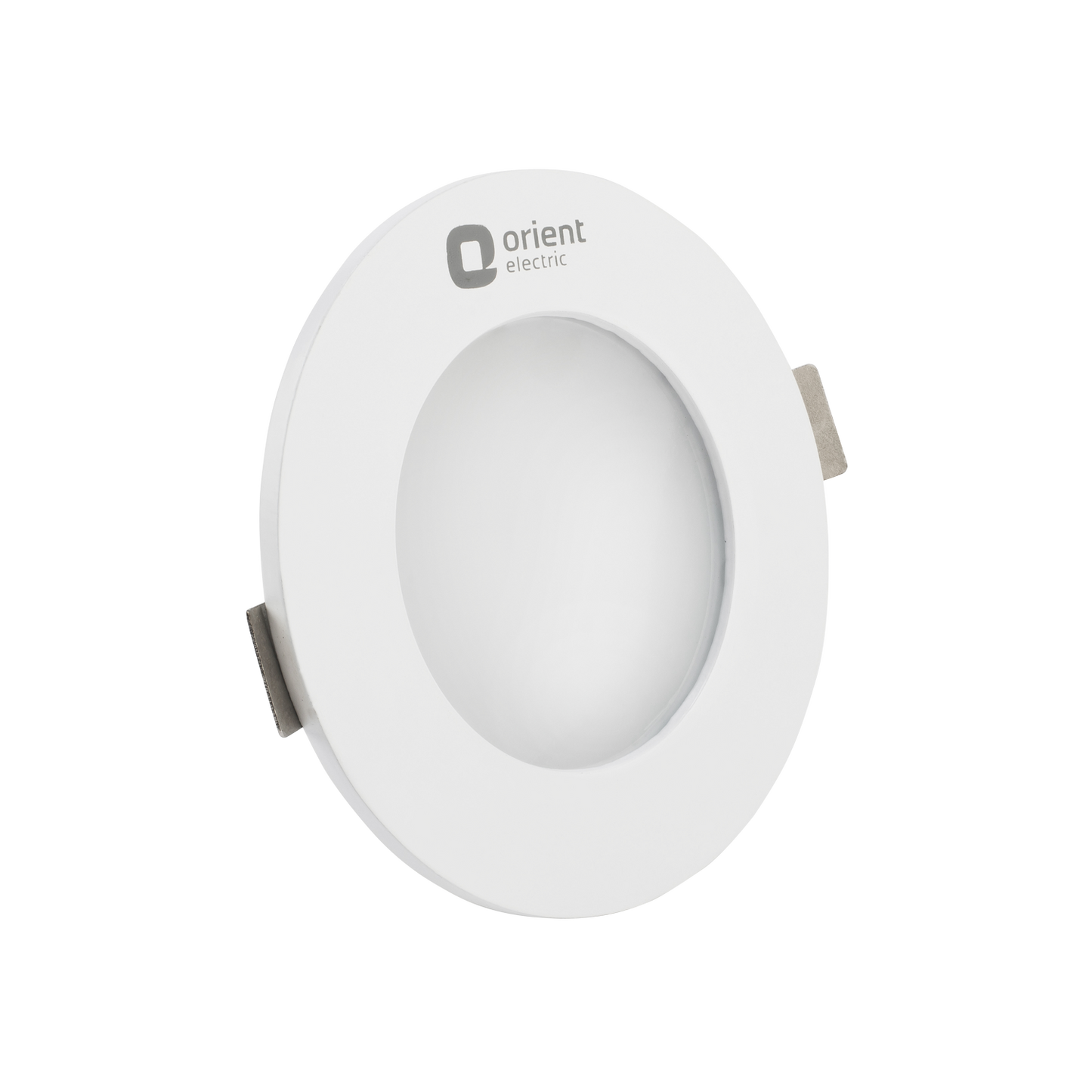

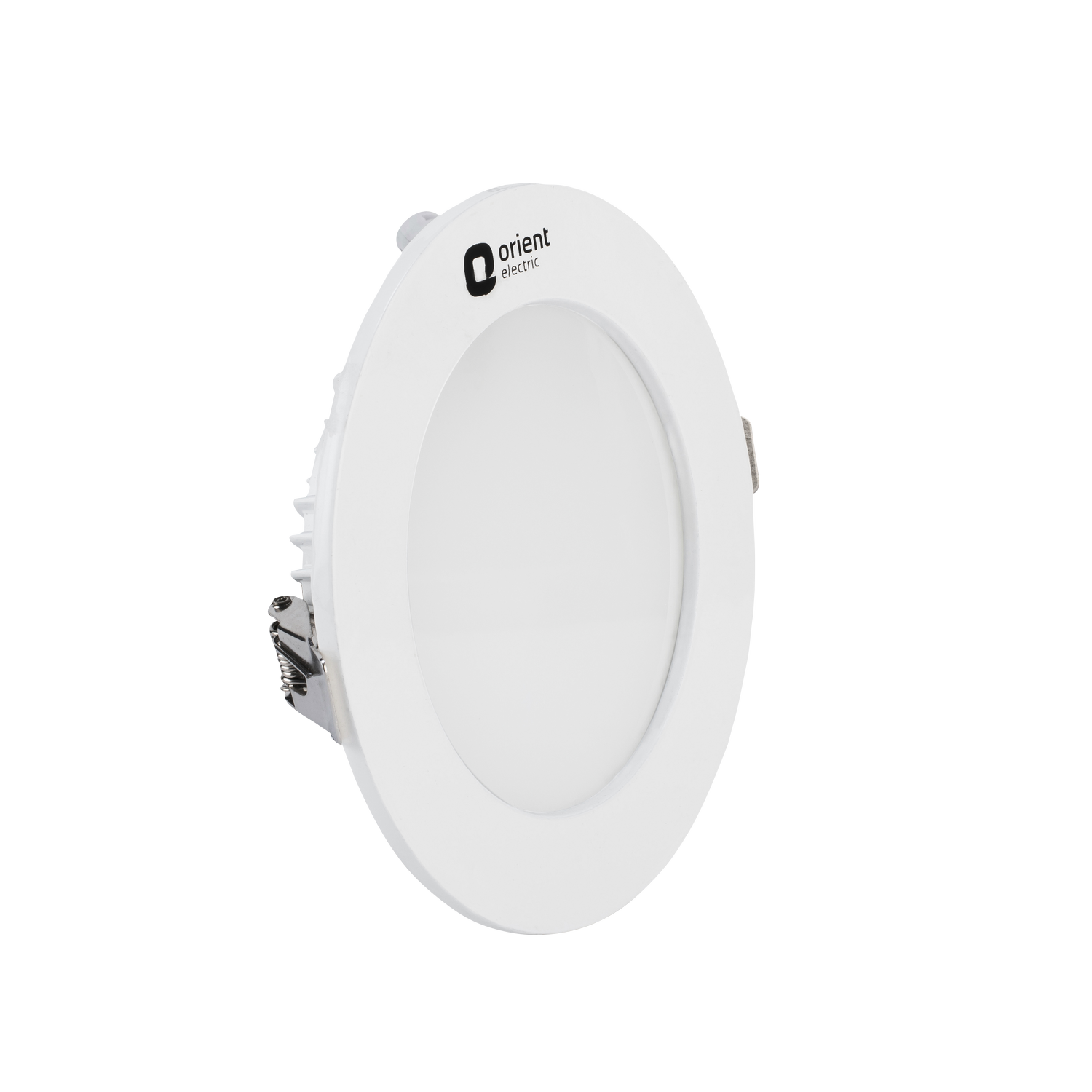

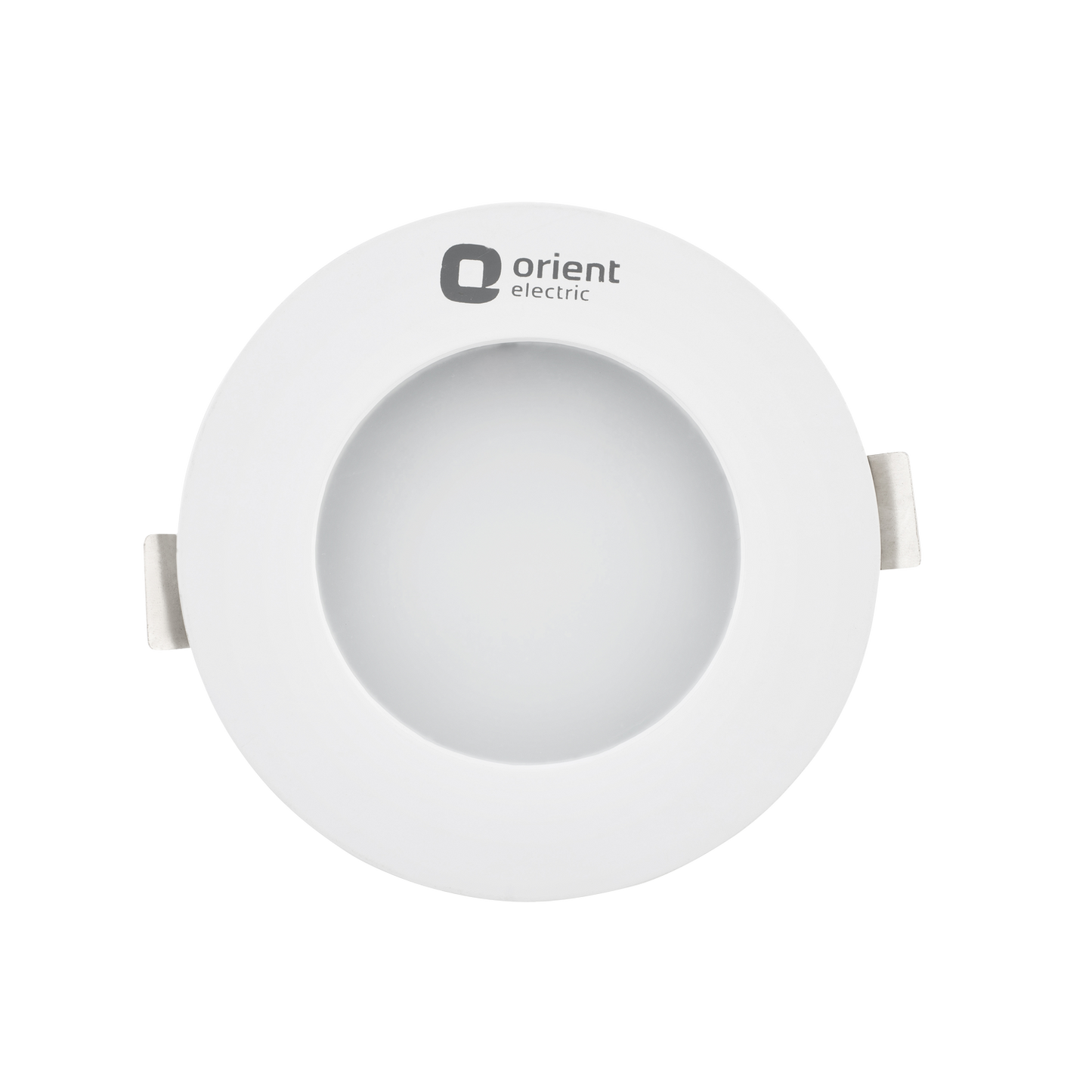

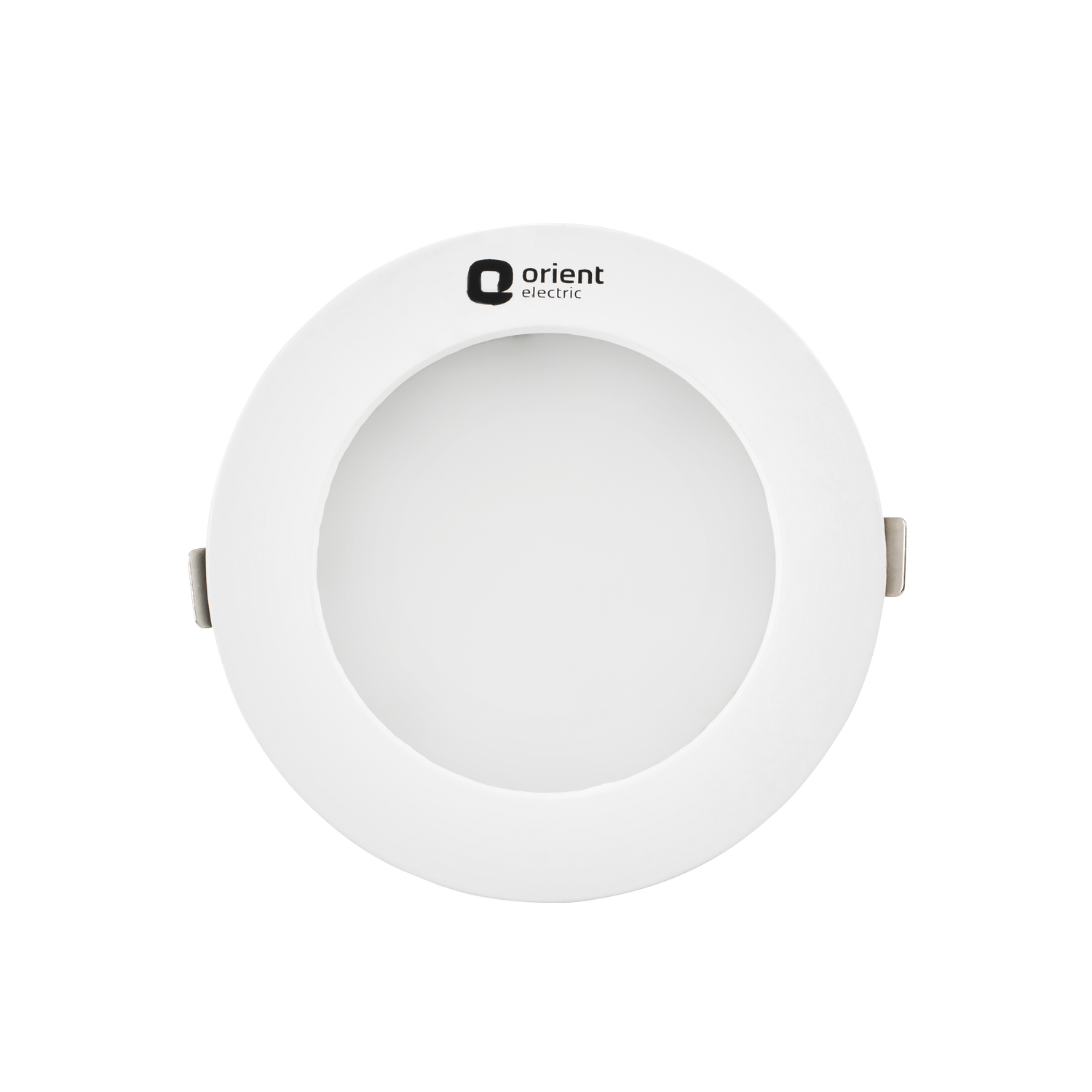

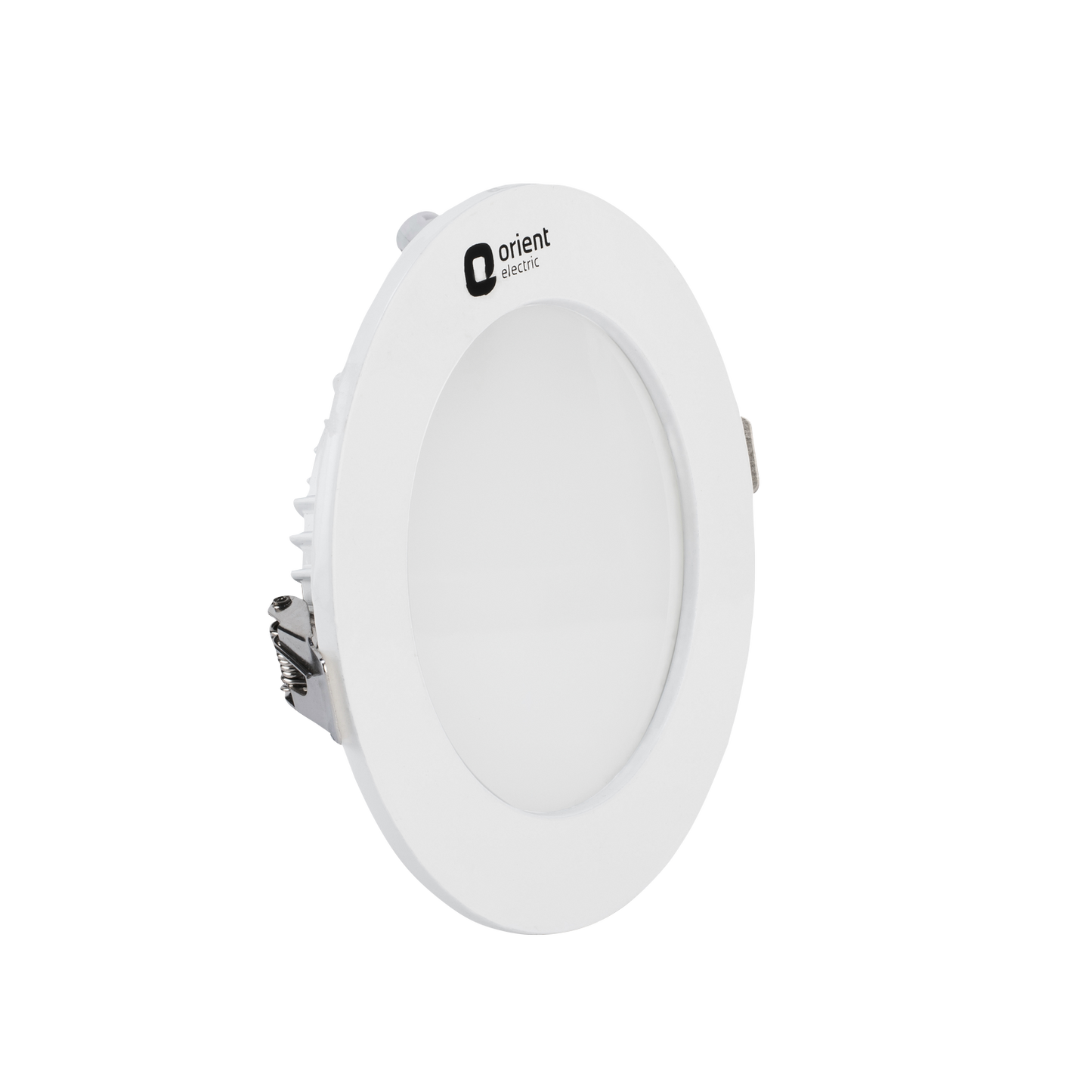

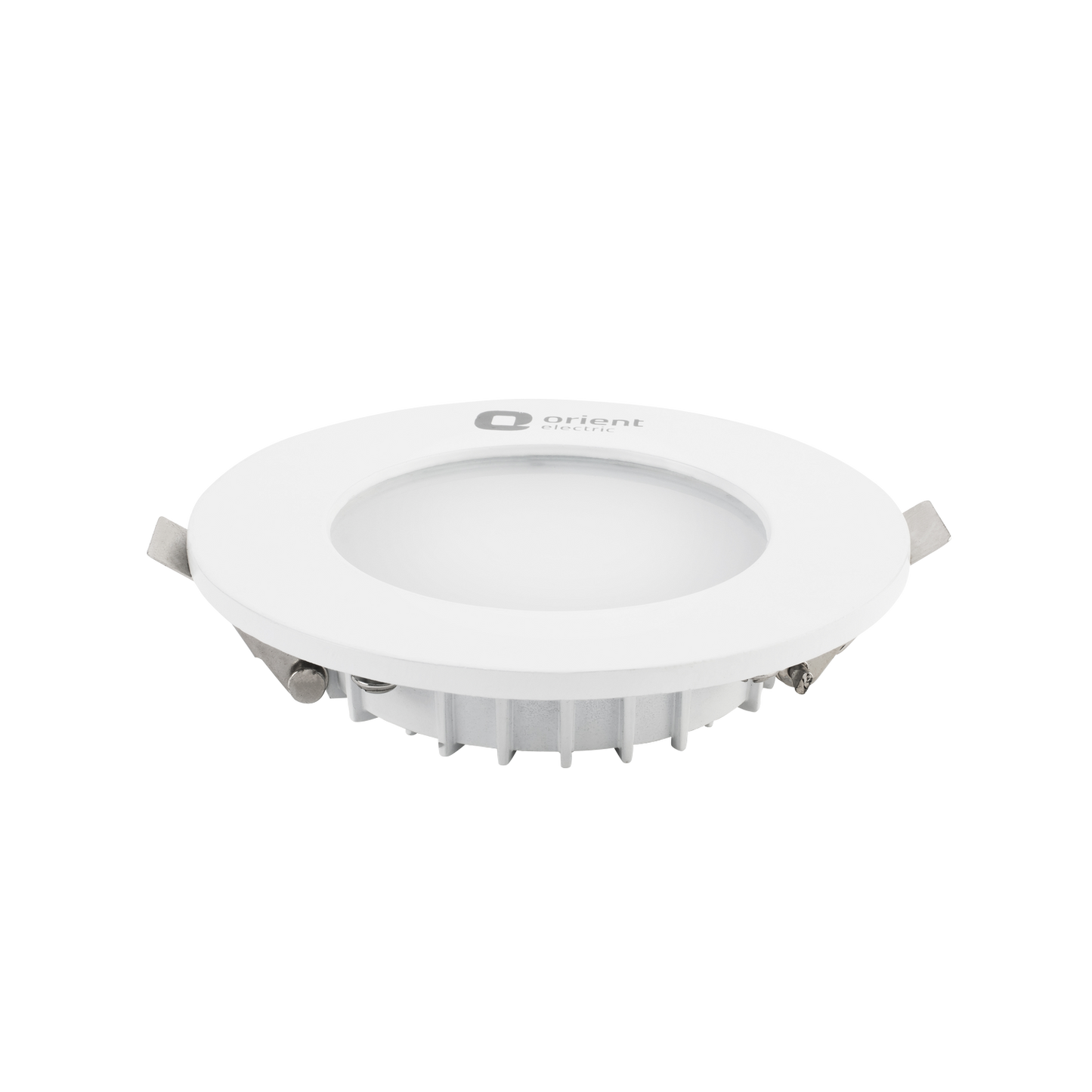

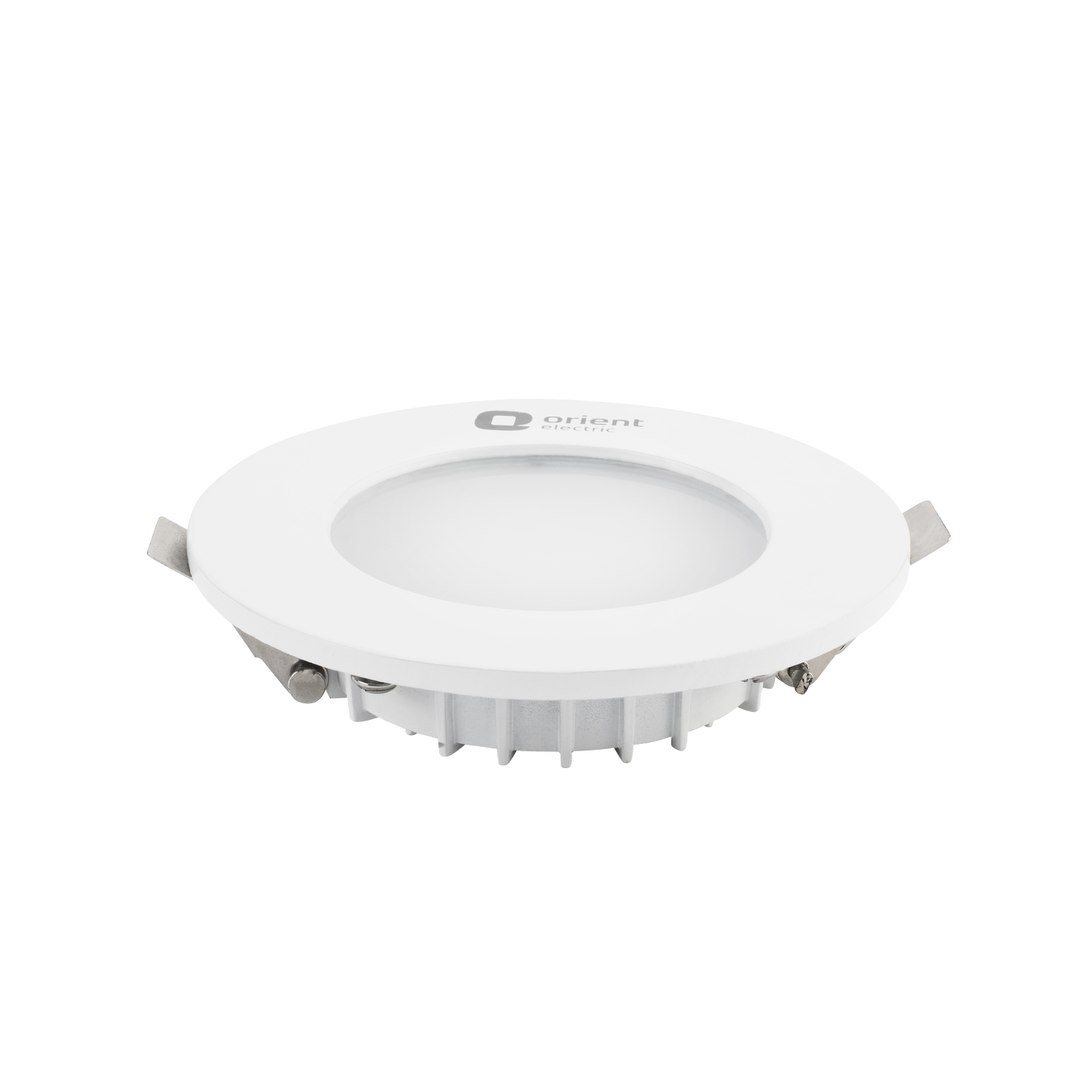

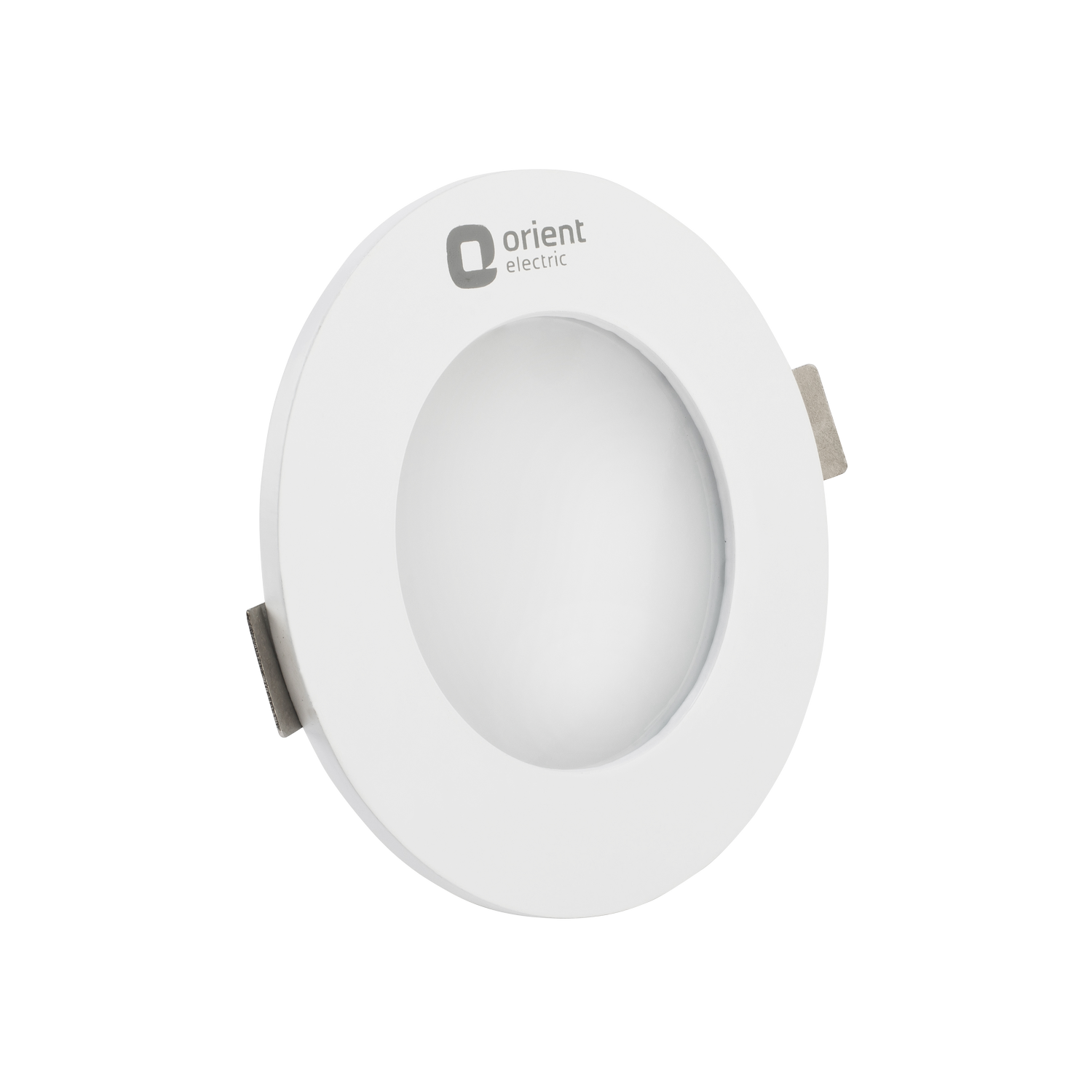

Venus Smart Recess

Venus Smart Recess

Venus Smart Recess

Product Overview

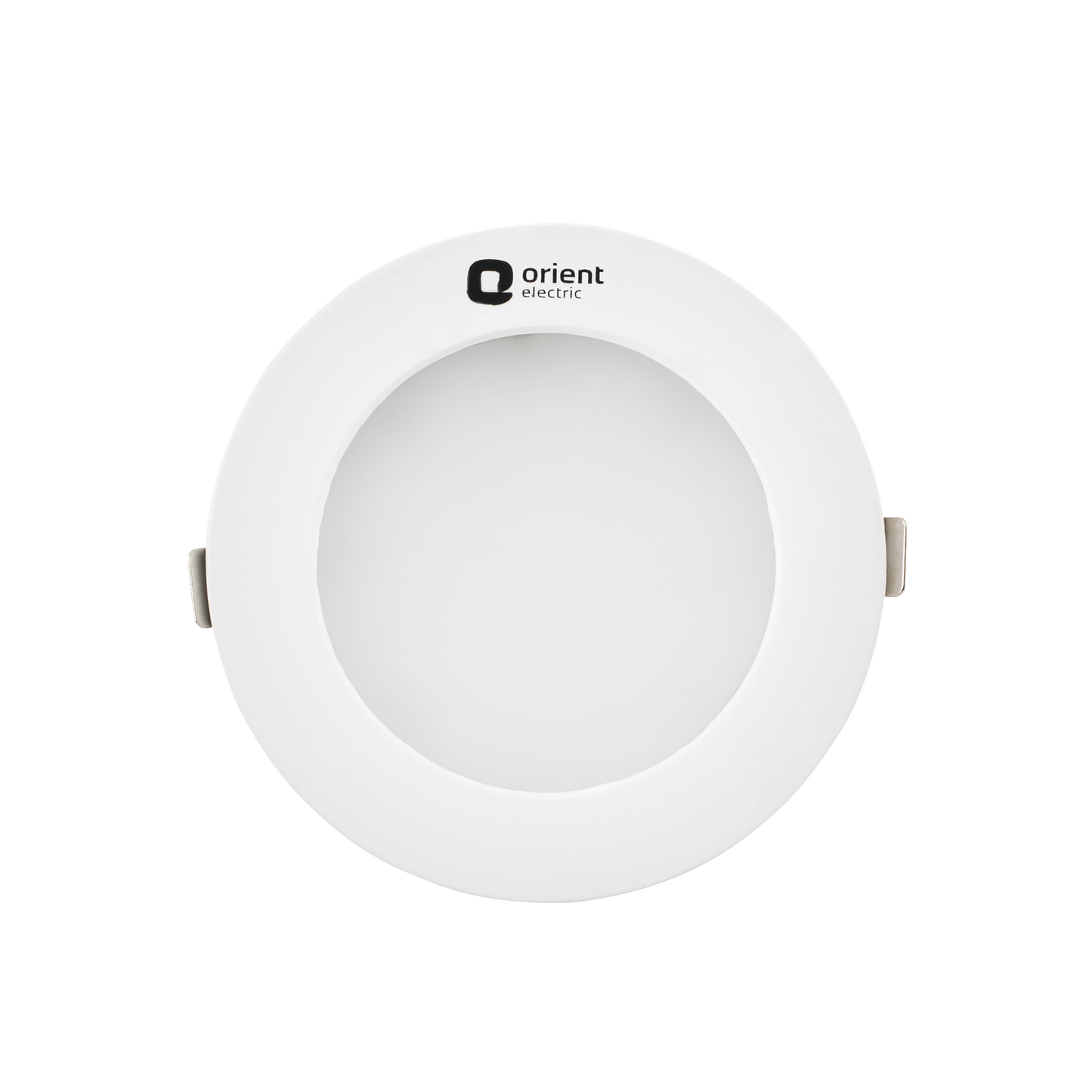

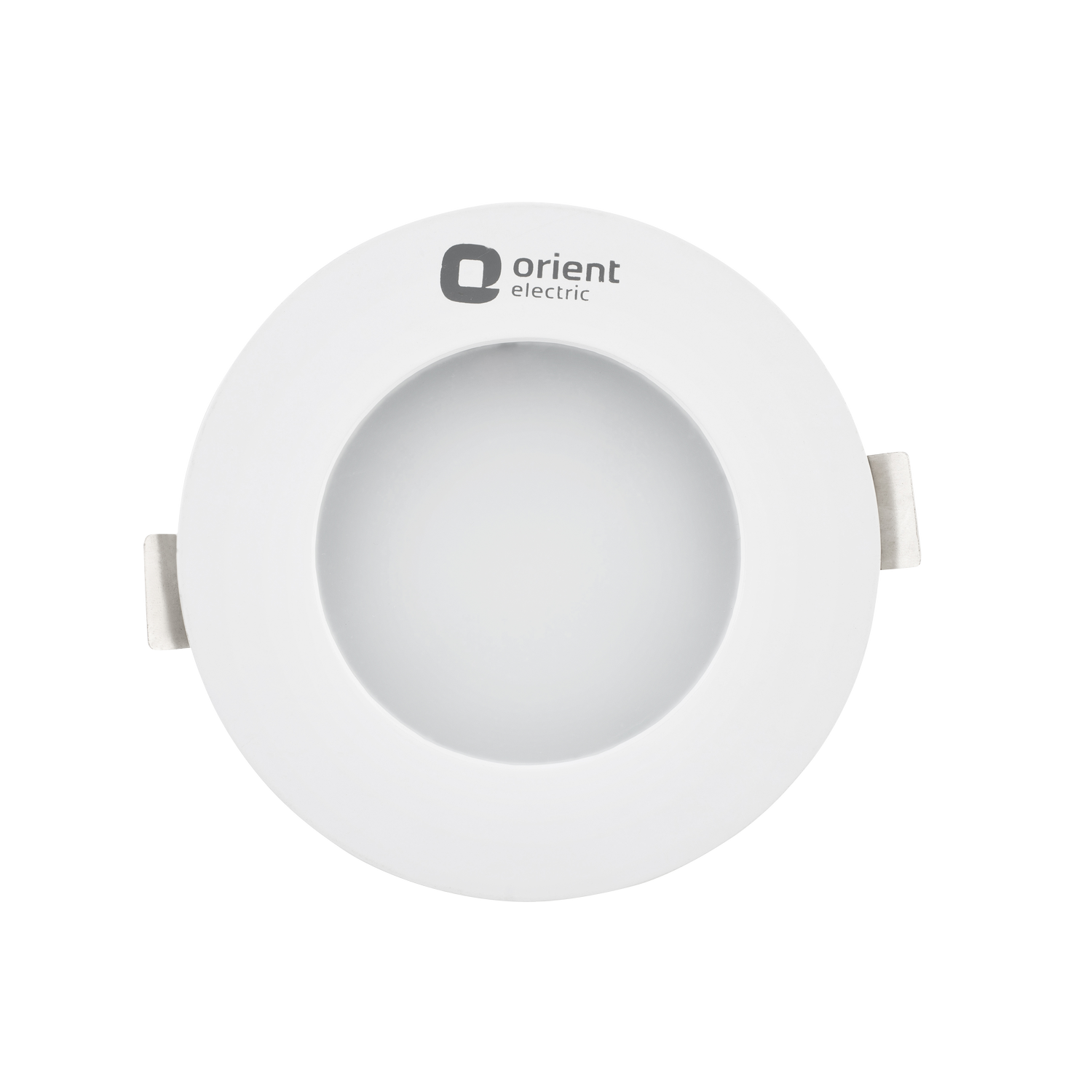

Smart-integrated recess mounted LED Downlighter with seamless dimming via DALI/PoE, ensuring uniform illumination, energy efficiency, and adaptive lighting control.

View full details
  • General specification

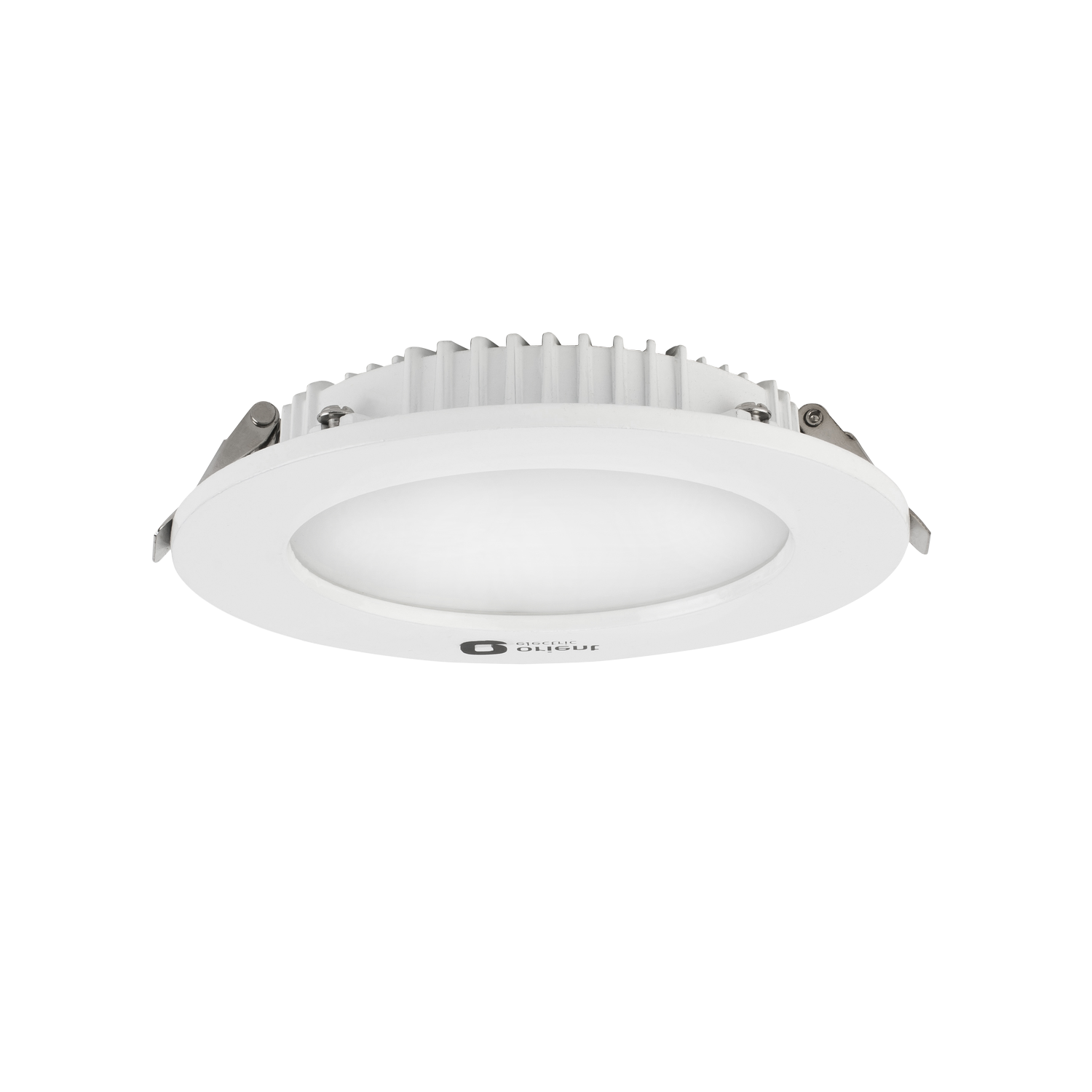

    Housing Designed with excellent thermally managed aluminium housing with heat dissipating fins for larger surface area finished in epoxy powder coated white.
    Optics Polycarbonate diffuser to provide glare free uniform light distribution.High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Fixing into false ceiling by means of spring & clips provided
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection,Surge protection & other reliability tests
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 15W ,20W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤15%
    System efficacy (lm/W) ≥100, ≥90, ≥85
Venus Smart Recess variants
Product Variants
Venus Smart Recess
LDRVSS-15-C
Venus Smart Recess
LDRVSS-15-N
Venus Smart Recess
LDRVSS-15-W
Venus Smart Recess
LDRVSS-20-C
Venus Smart Recess
LDRVSS-20-N
Venus Smart Recess
LDRVSS-20-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Outer Diameter (in mm)
Cutout Diameter (in mm)
Height (in mm)
15W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
148
125
32
15W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
148
125
32
15W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
148
125
32
20W
6500K
≥80
240V AC
≥0.95
≤15%
≥100
168
140
32
20W
4000K
≥80
240V AC
≥0.95
≤15%
≥90
168
140
32
20W
3000K
≥80
240V AC
≥0.95
≤15%
≥85
168
140
32
