Vertex Spiral 1

Vertex Spiral 1

Vertex Spiral 1

Product Overview

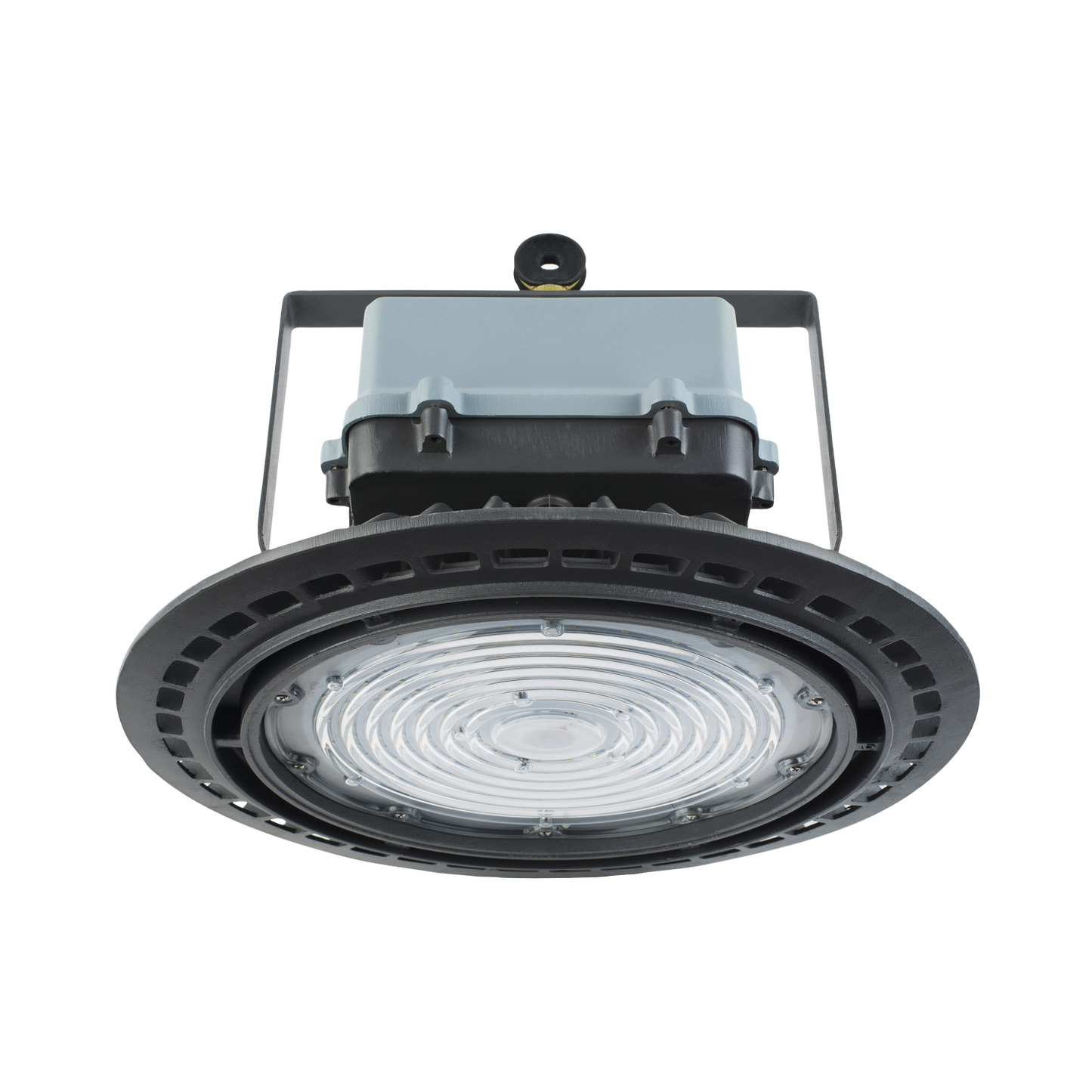

LED Highbay designed with excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area with satin finish powder coating and fitted with polycarbonate integrated lens in the front for the desired Ingress Protection.

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing having heat dissipating fins for larger surface area with satin finish powder coating.
    Optics Polycarbonate integrated lens in the front of LEDs. Available in 60° & 90° beam angles.
    Mounting Eyebolt provided for chain suspension
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV
    IP 66
  • Technical Specifications
    System Wattage 80W, 100W, 120W, 150W, 180W, 200W, 250W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥110, ≥100
Vertex Spiral 1 variants
Product Variants
Vertex Spiral 1
LHVXS1-080-C
Vertex Spiral 1
LHVXS1-080-W
Vertex Spiral 1
LHVXS1-100-C
Vertex Spiral 1
LHVXS1-100-W
Vertex Spiral 1
LHVXS1-120-C
Vertex Spiral 1
LHVXS1-120-W
Vertex Spiral 1
LHVXS1-150-C
Vertex Spiral 1
LHVXS1-150-W
Vertex Spiral 1
LHVXS1-180-C
Vertex Spiral 1
LHVXS1-180-W
Vertex Spiral 1
LHVXS1-200-C
Vertex Spiral 1
LHVXS1-200-W
Vertex Spiral 1
LHVXS1-250-C
Vertex Spiral 1
LHVXS1-250-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
80W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
292
160
80W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
292
160
100W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
292
160
100W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
292
160
120W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
292
160
120W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
292
160
150W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
292
160
150W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
292
160
180W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
346
141
180W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
346
141
200W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
346
141
200W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
346
141
250W
5700K
≥70
240V AC
≥0.95
≤10%
≥110
400
165
250W
3000K
≥70
240V AC
≥0.95
≤10%
≥100
400
165
