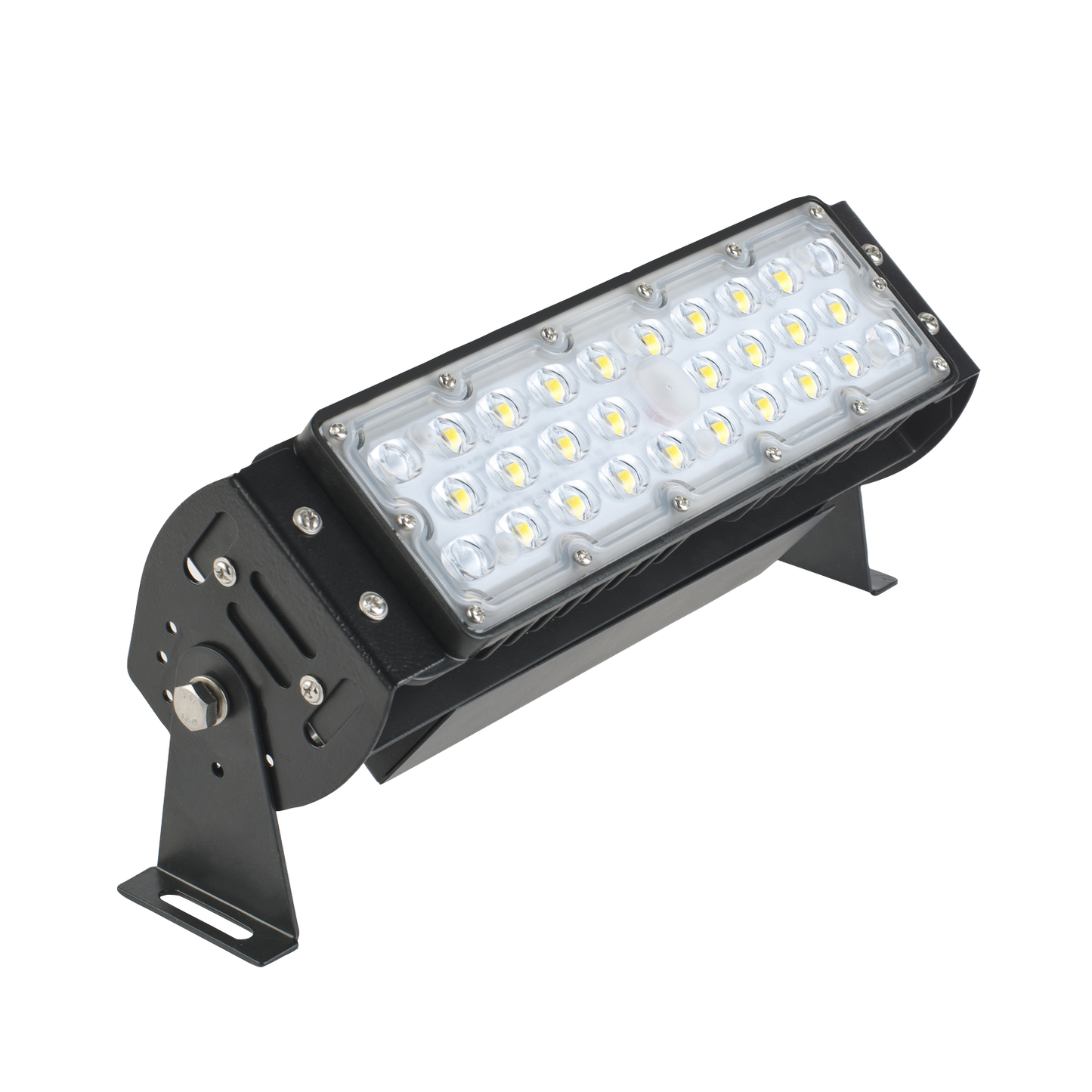

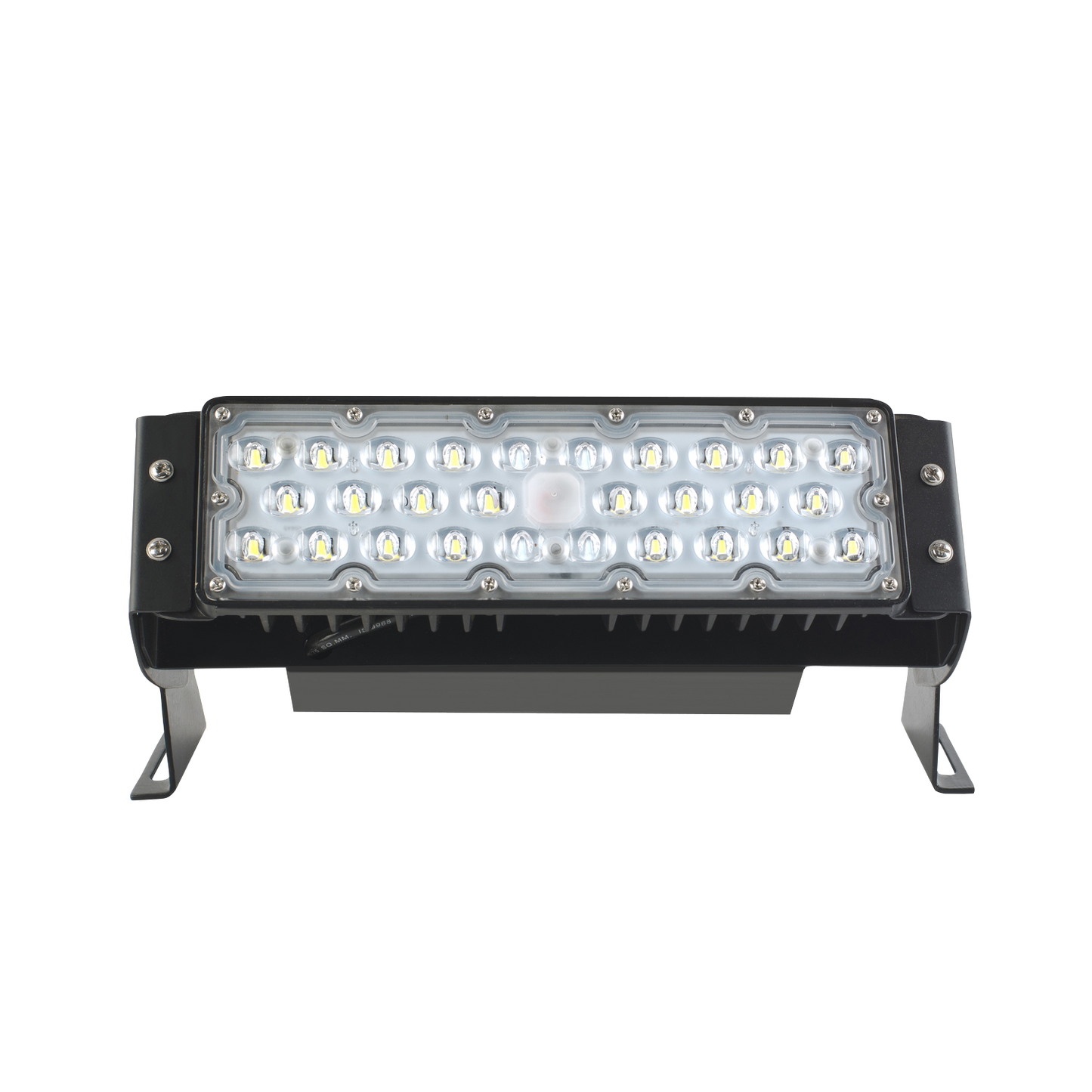

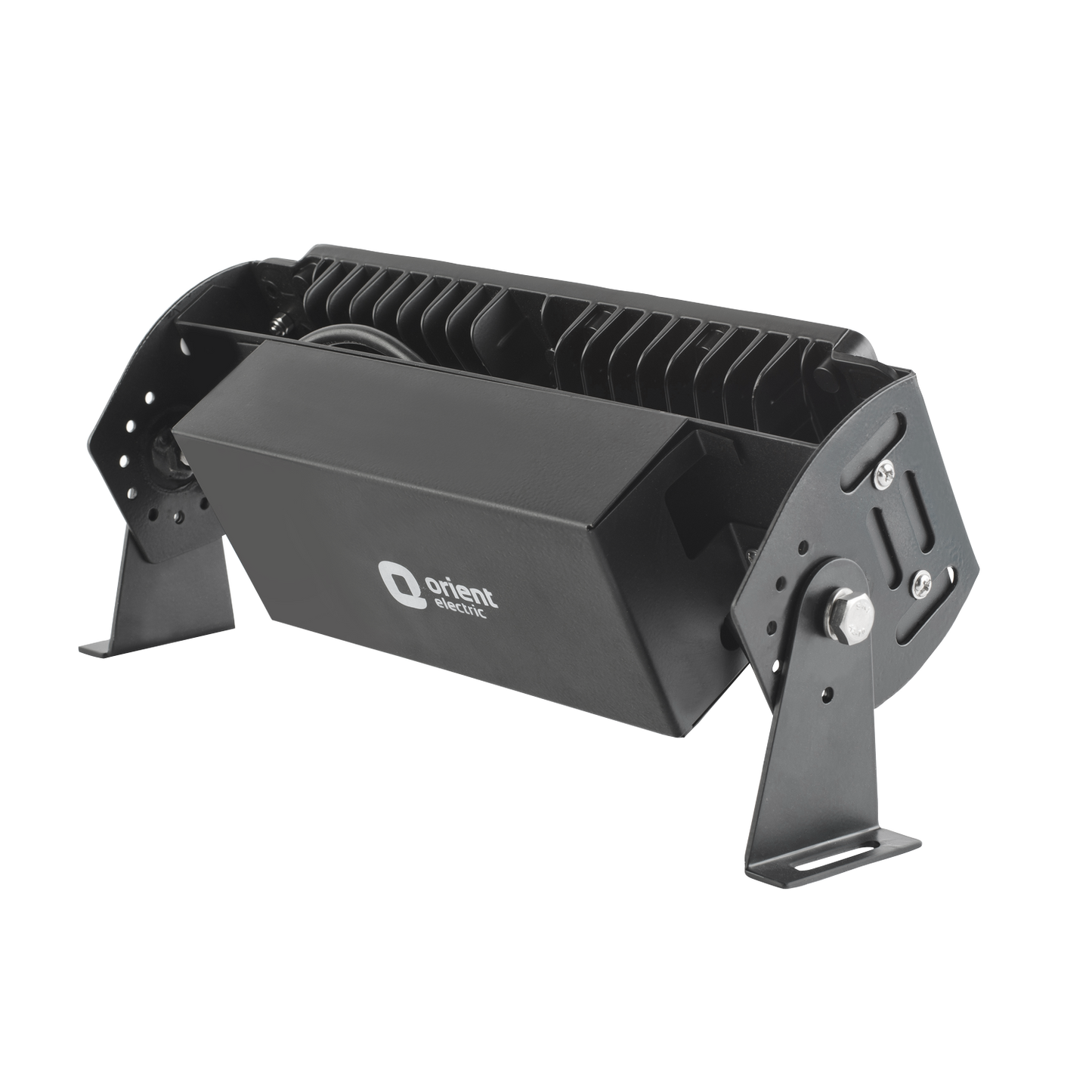

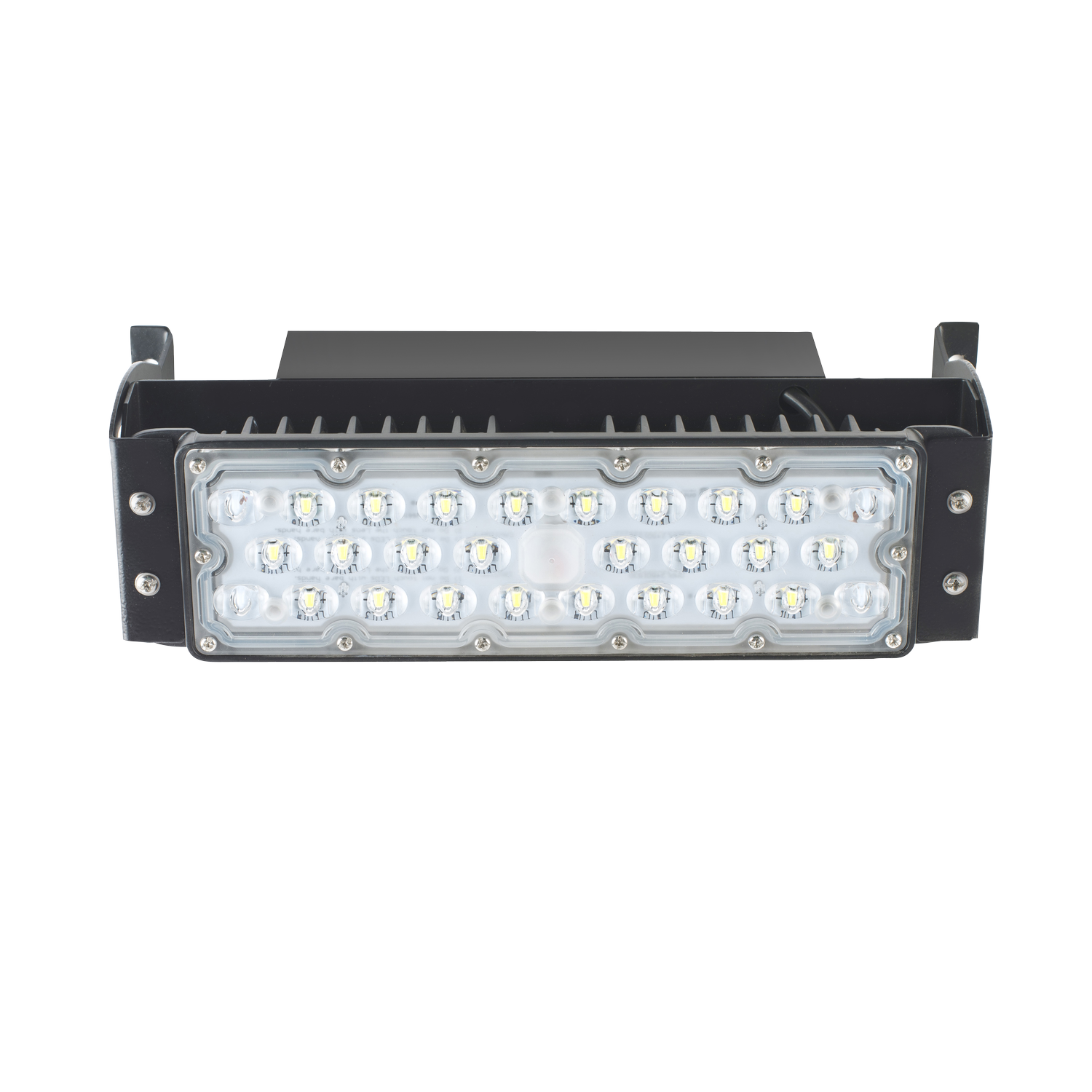

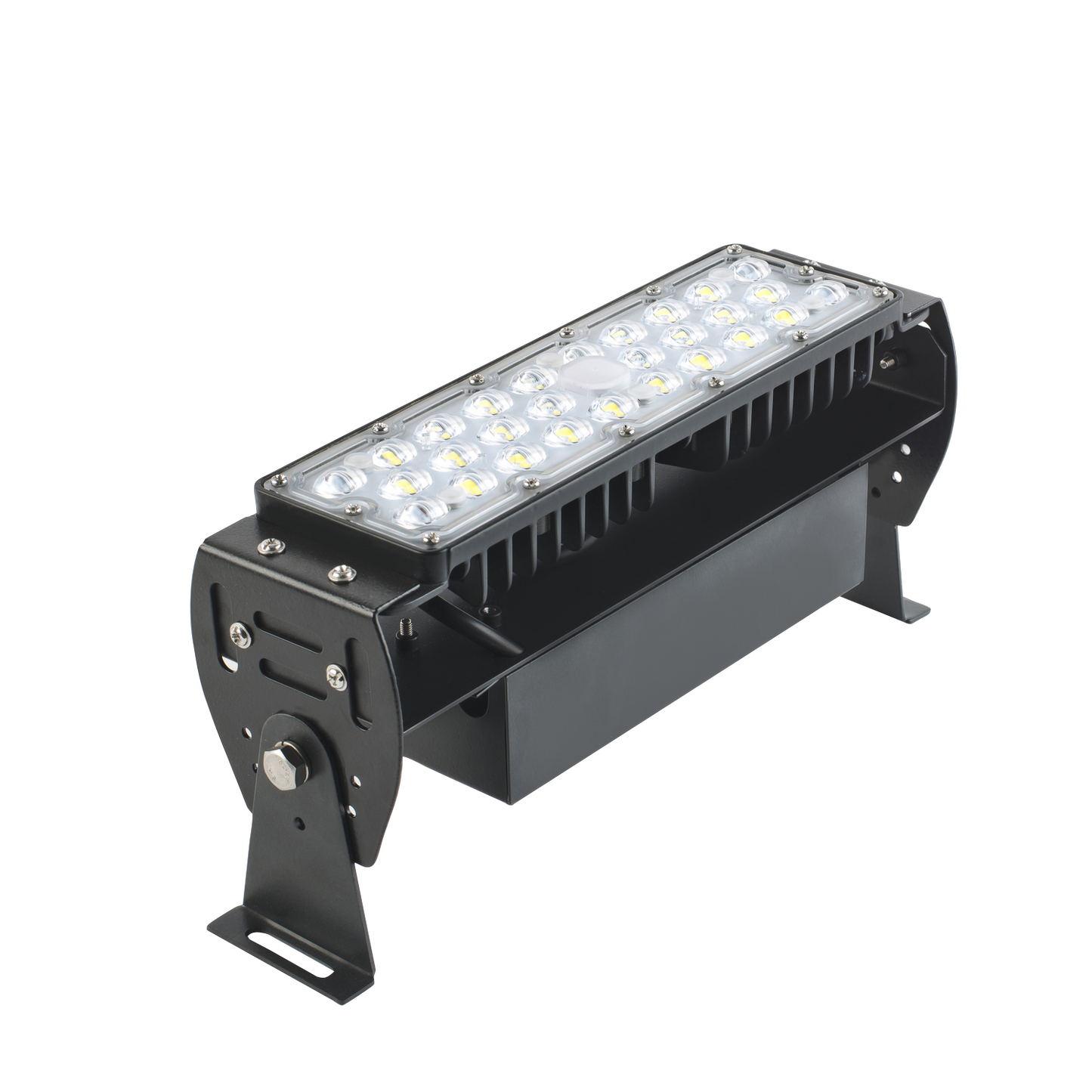

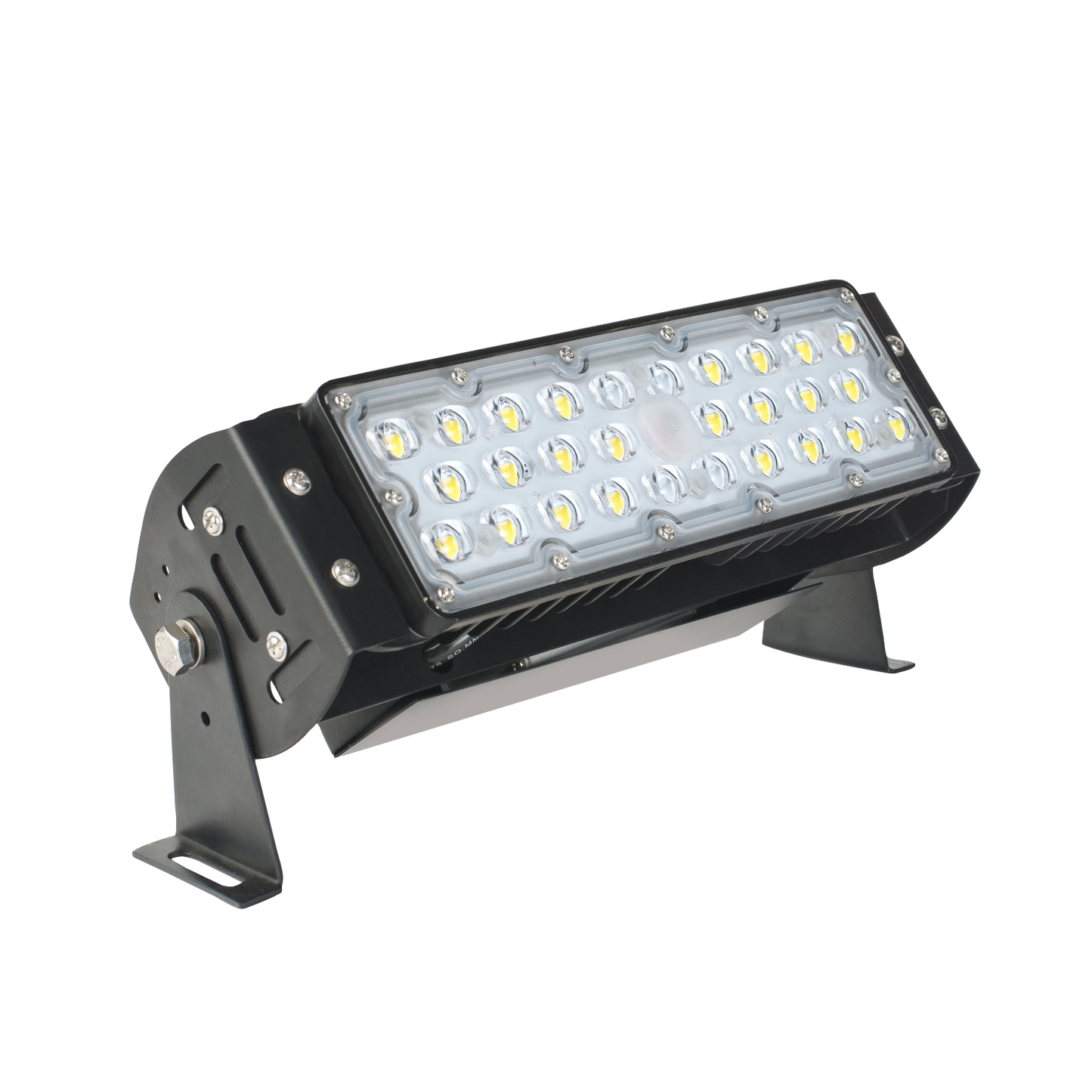

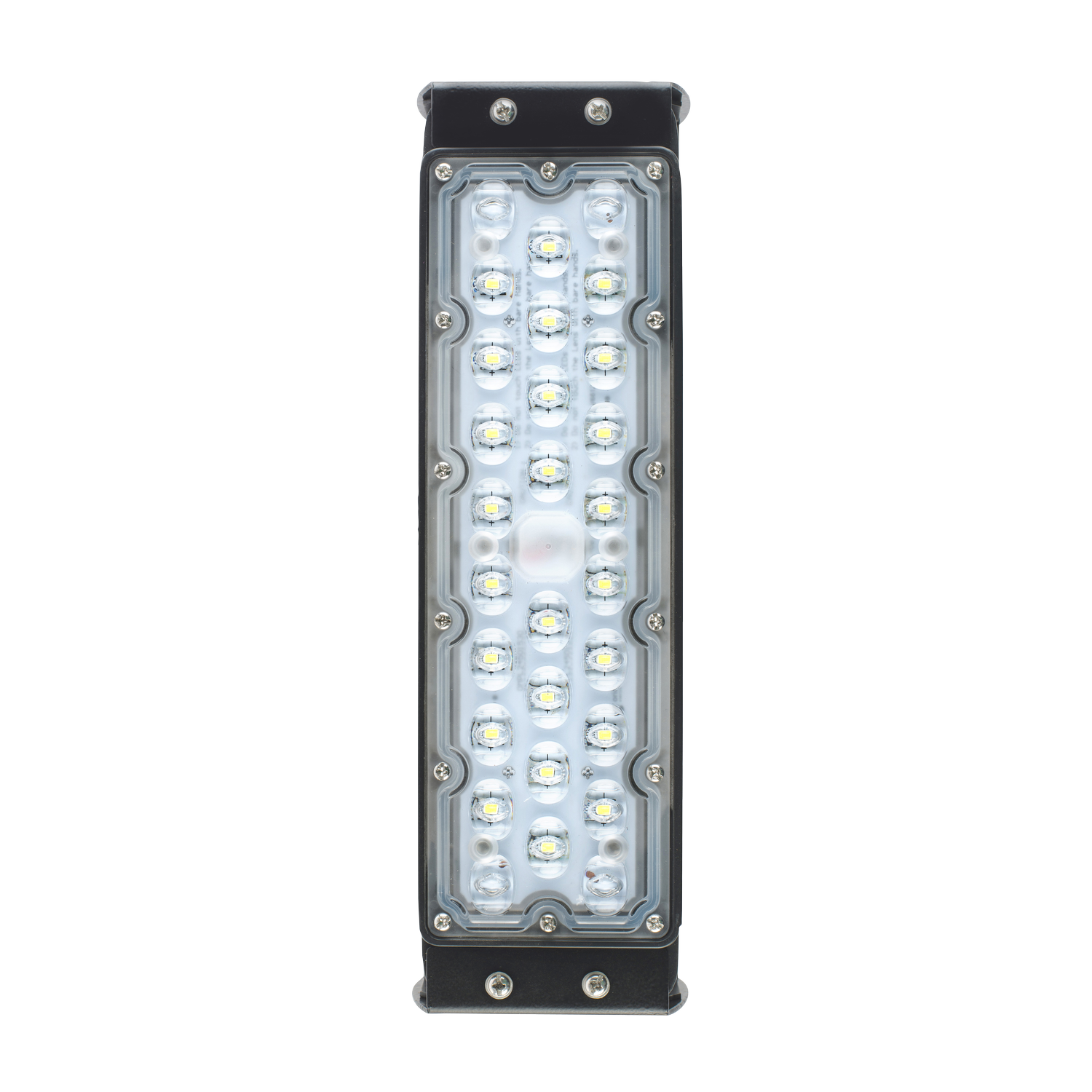

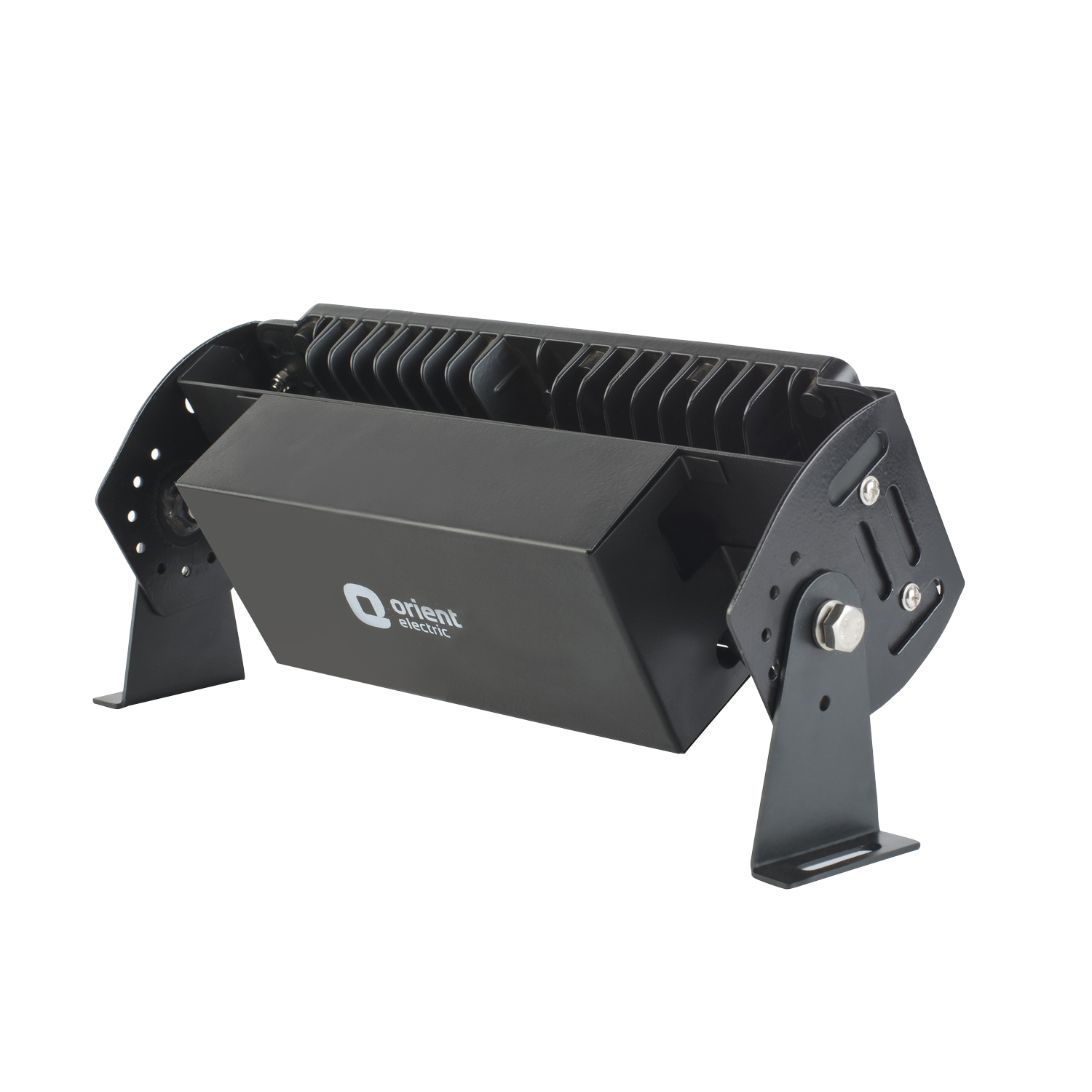

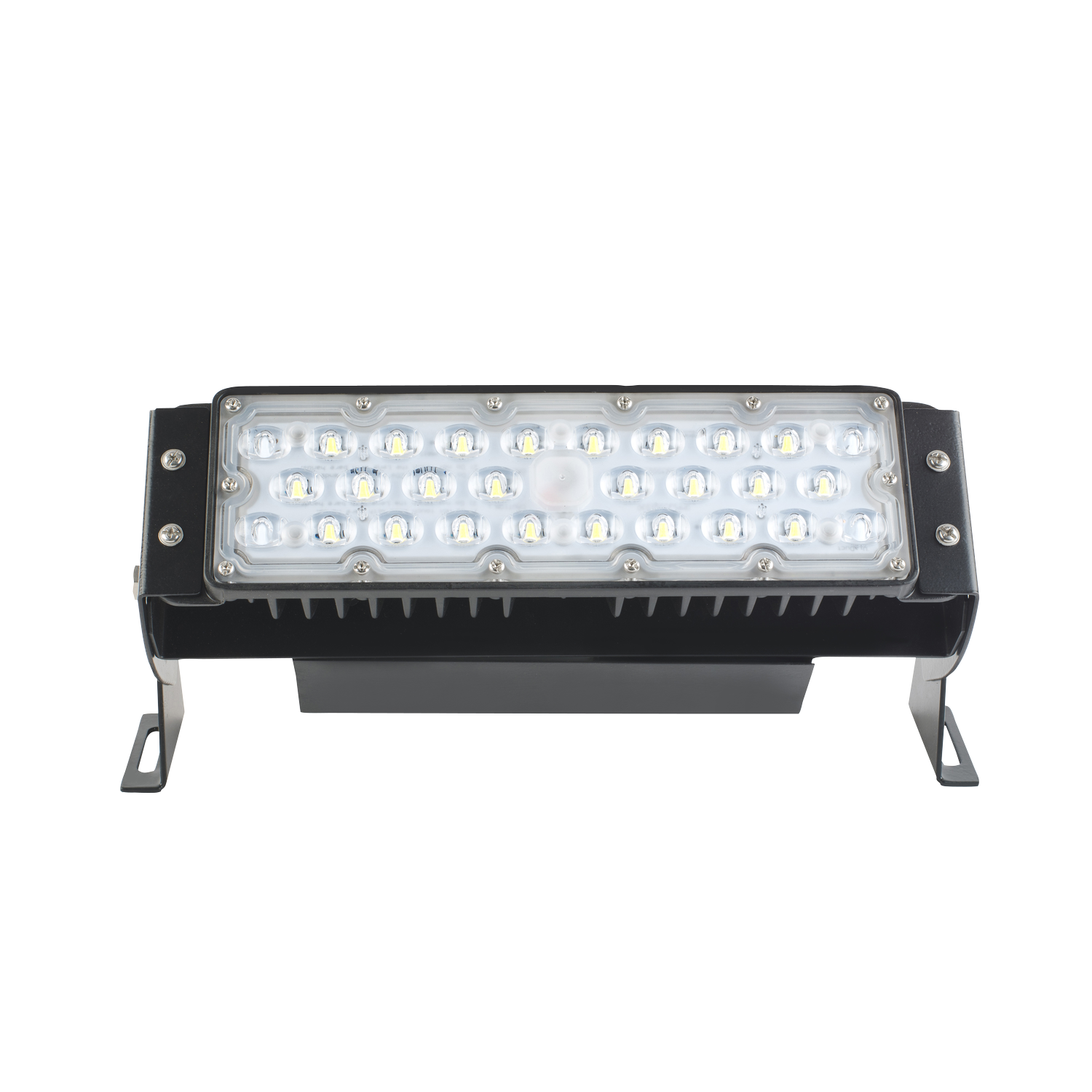

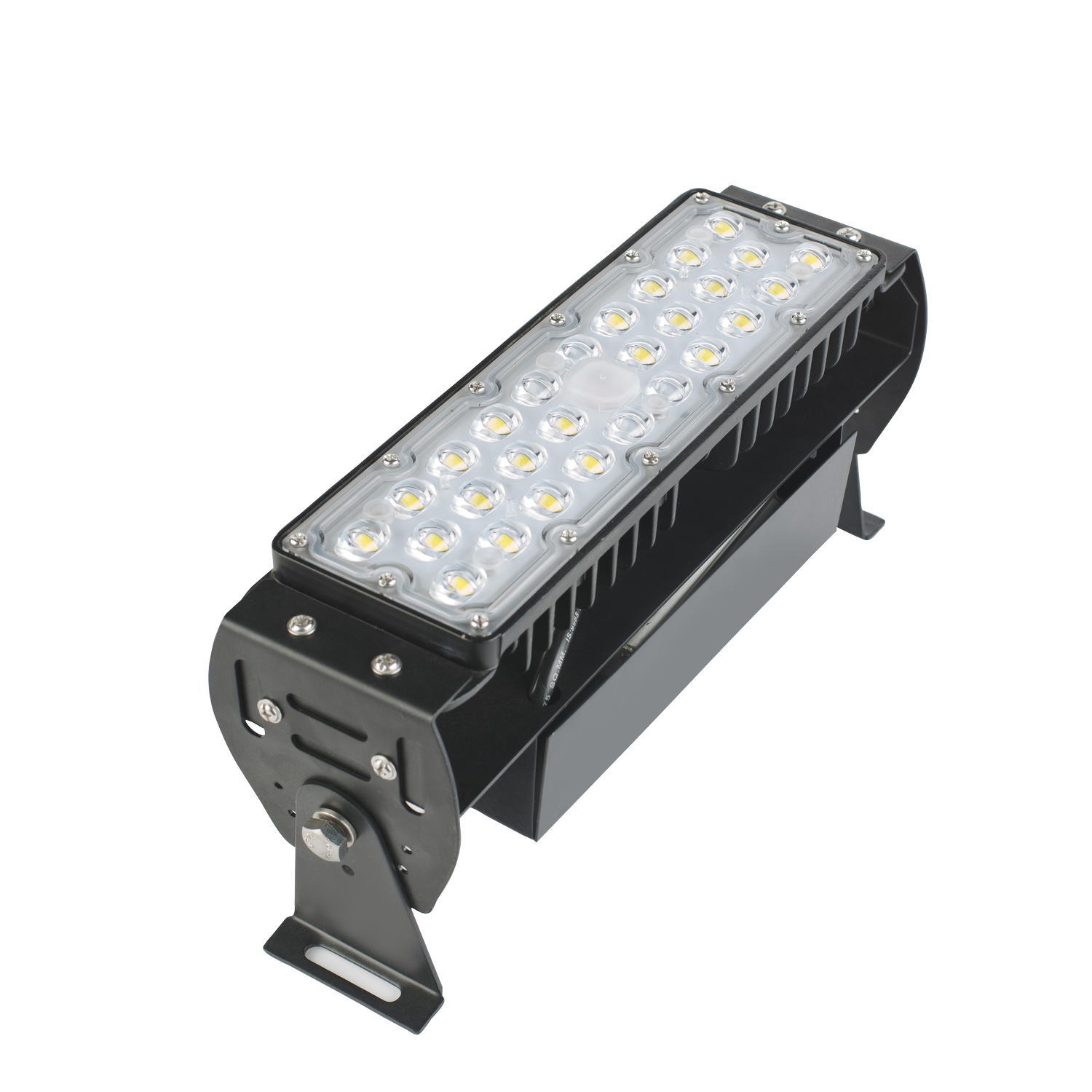

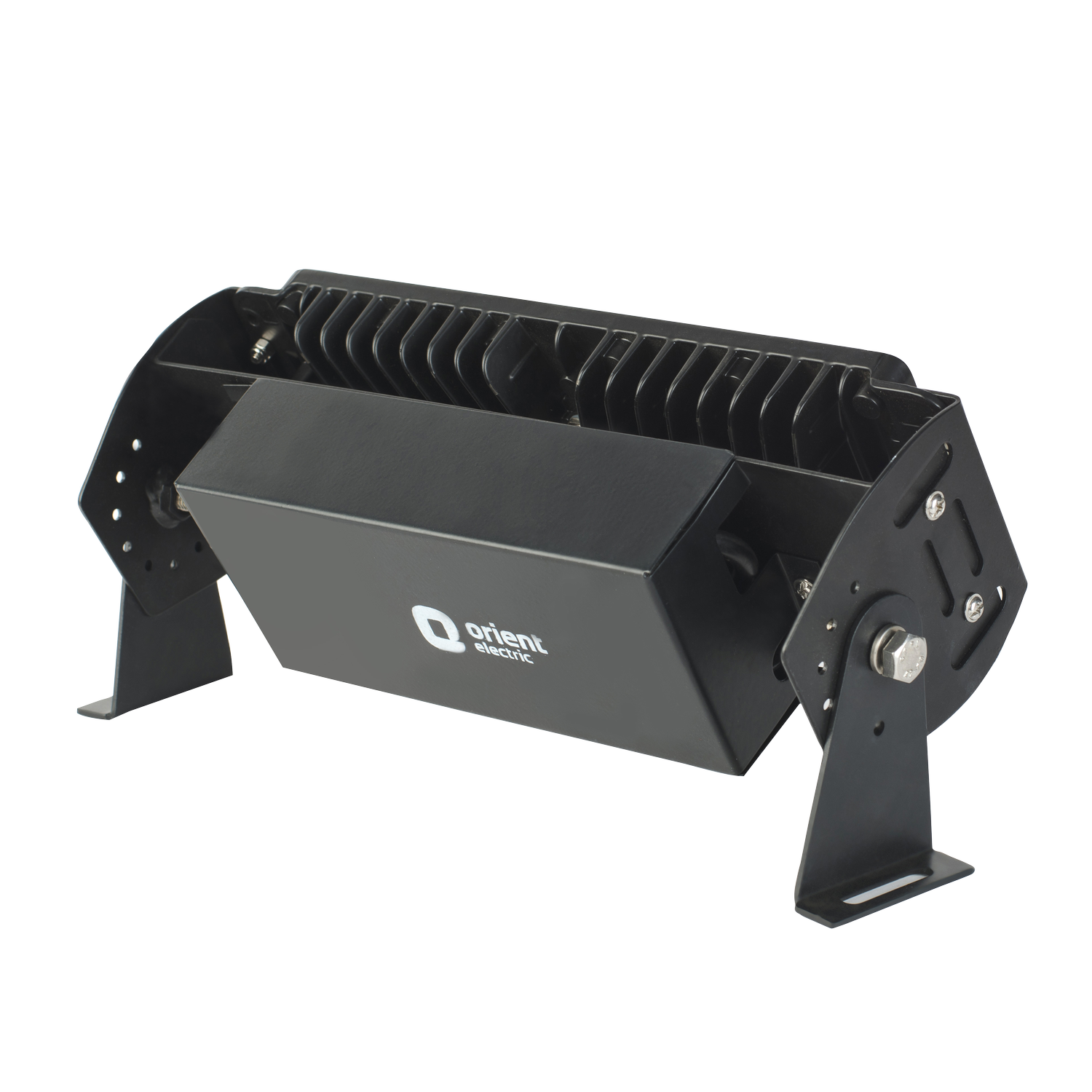

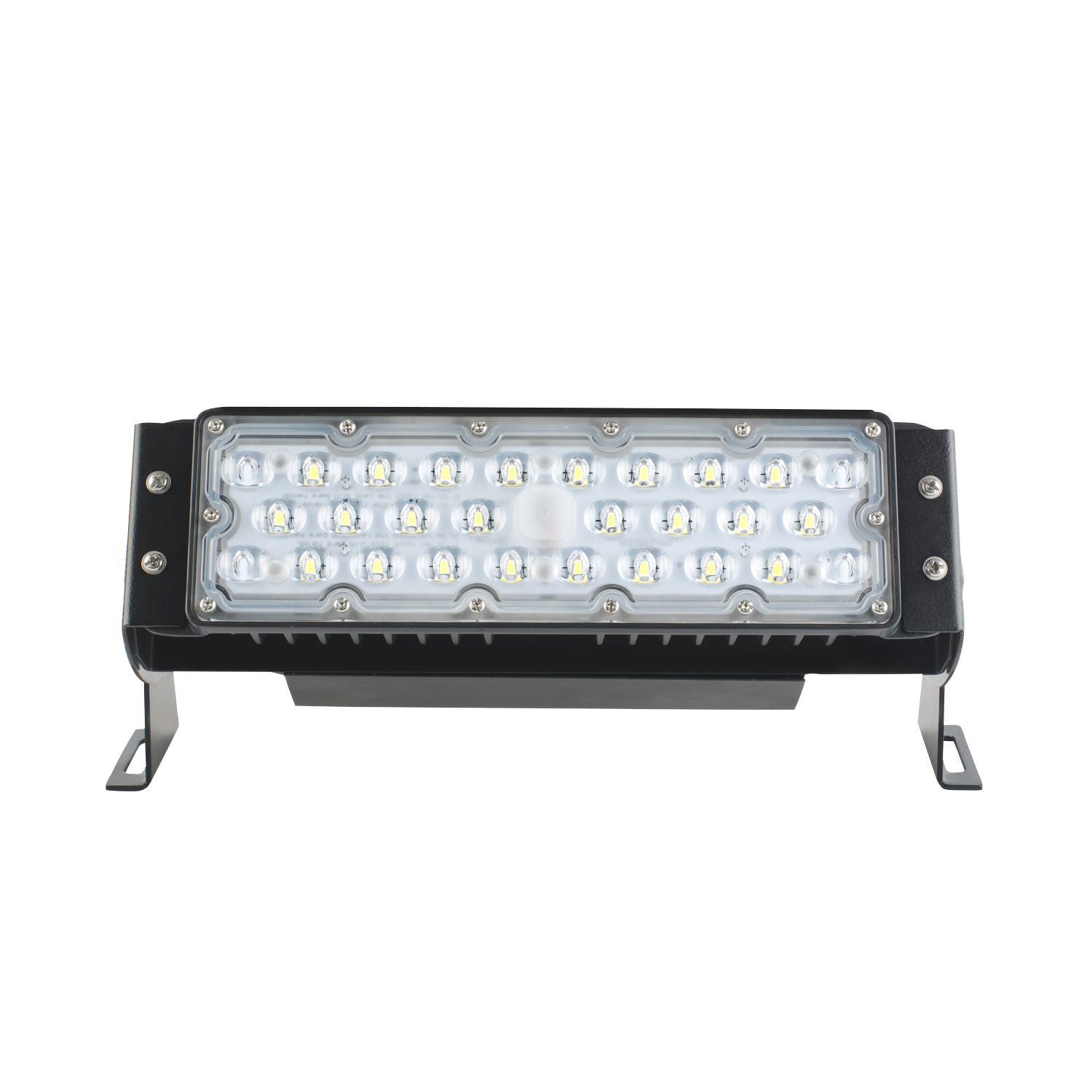

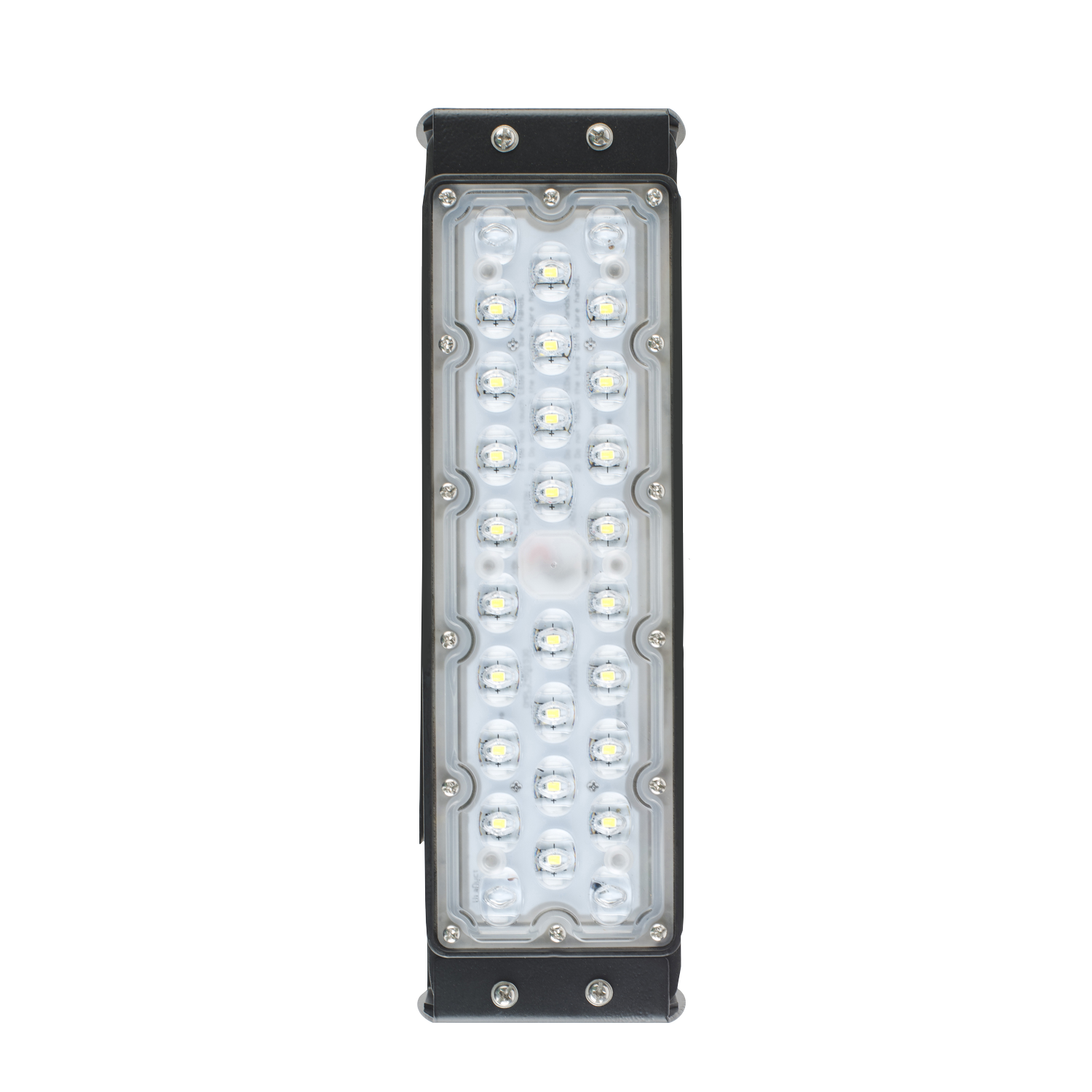

Product Overview

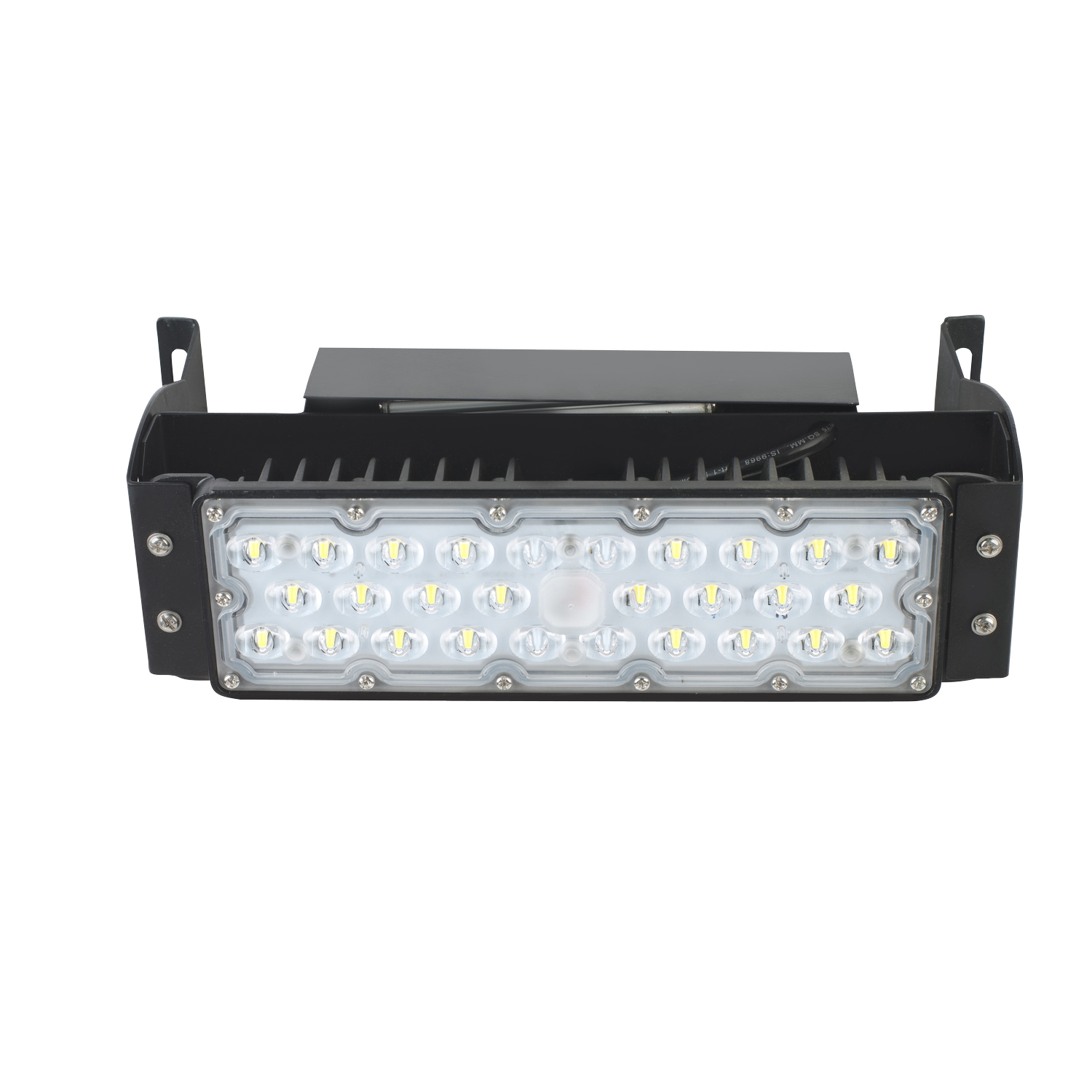

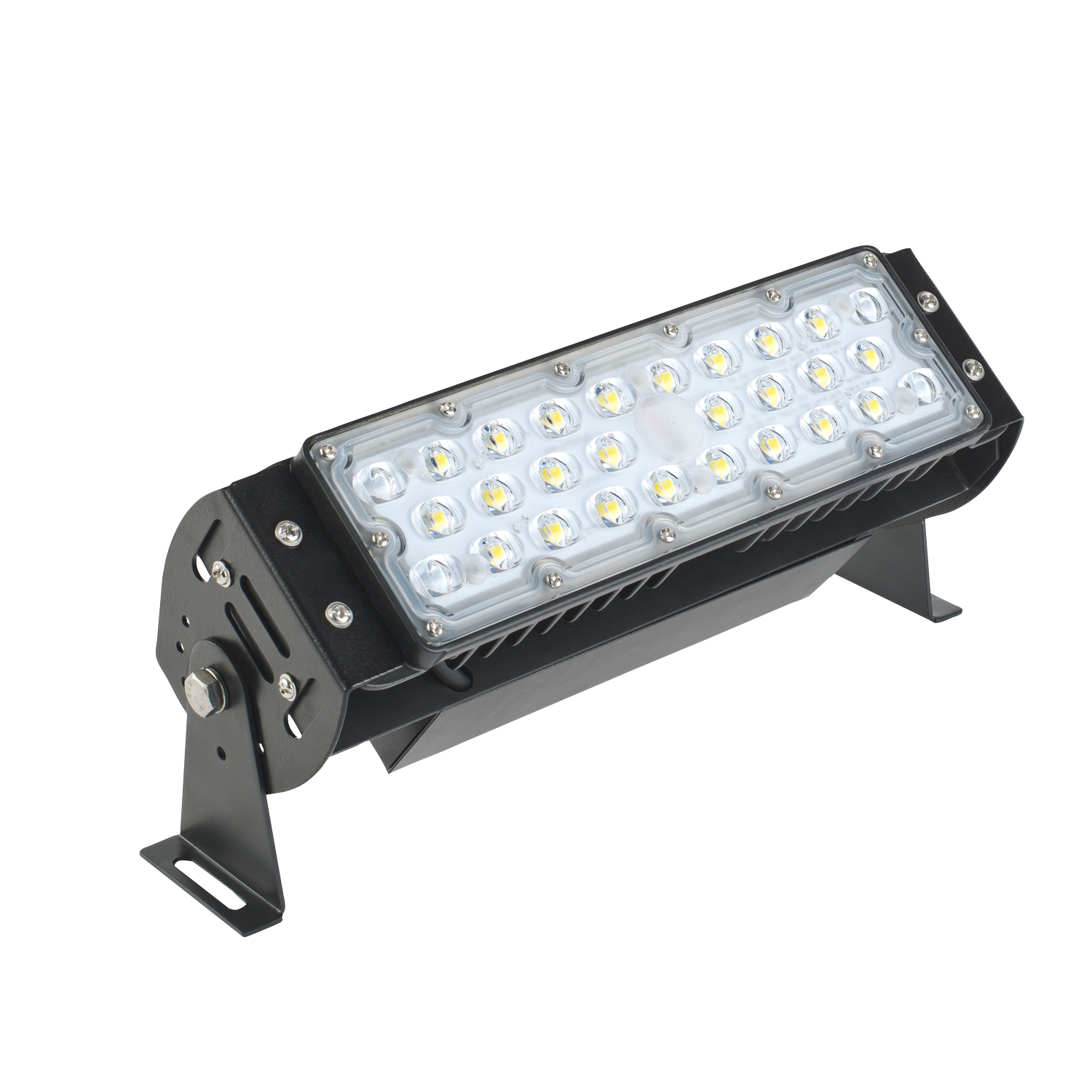

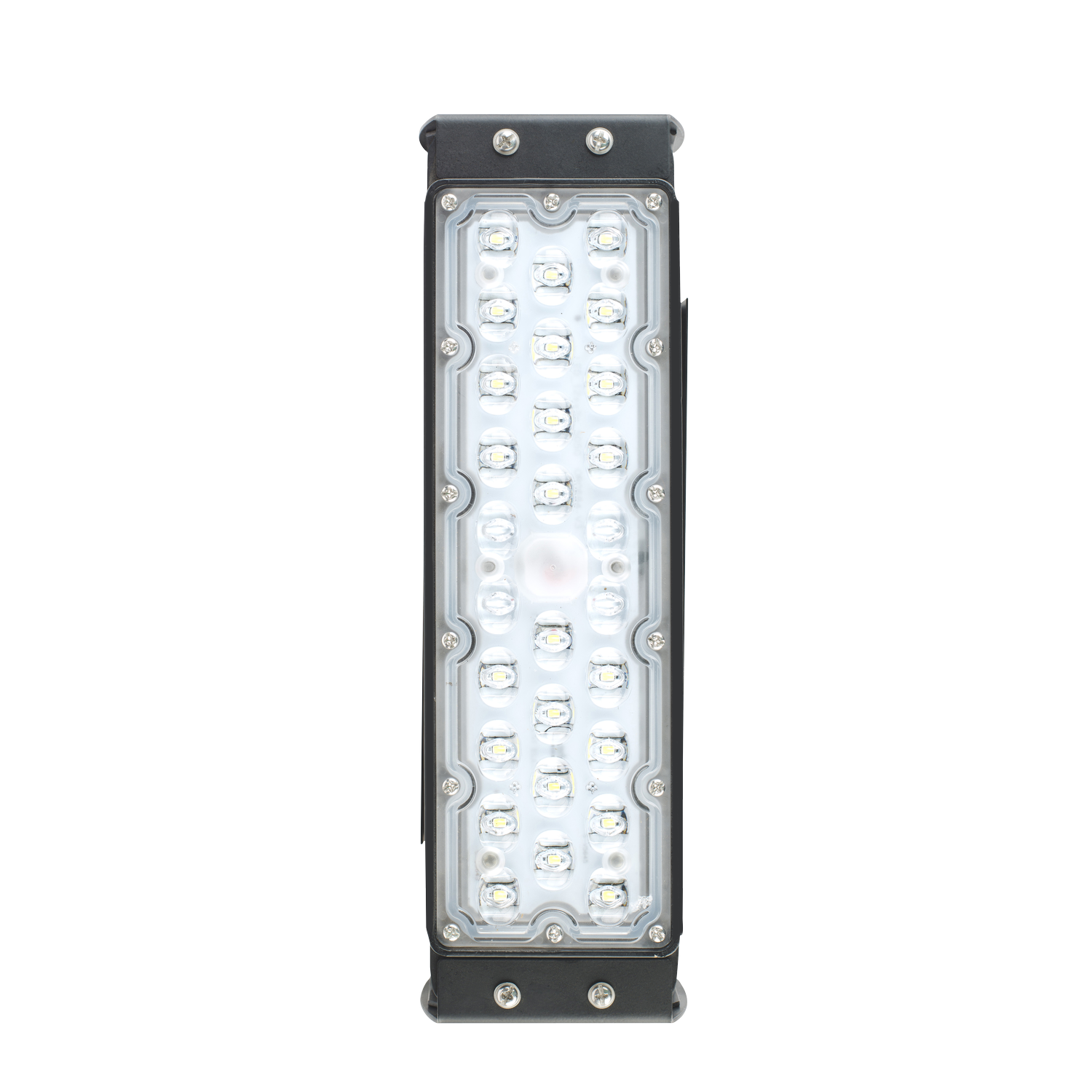

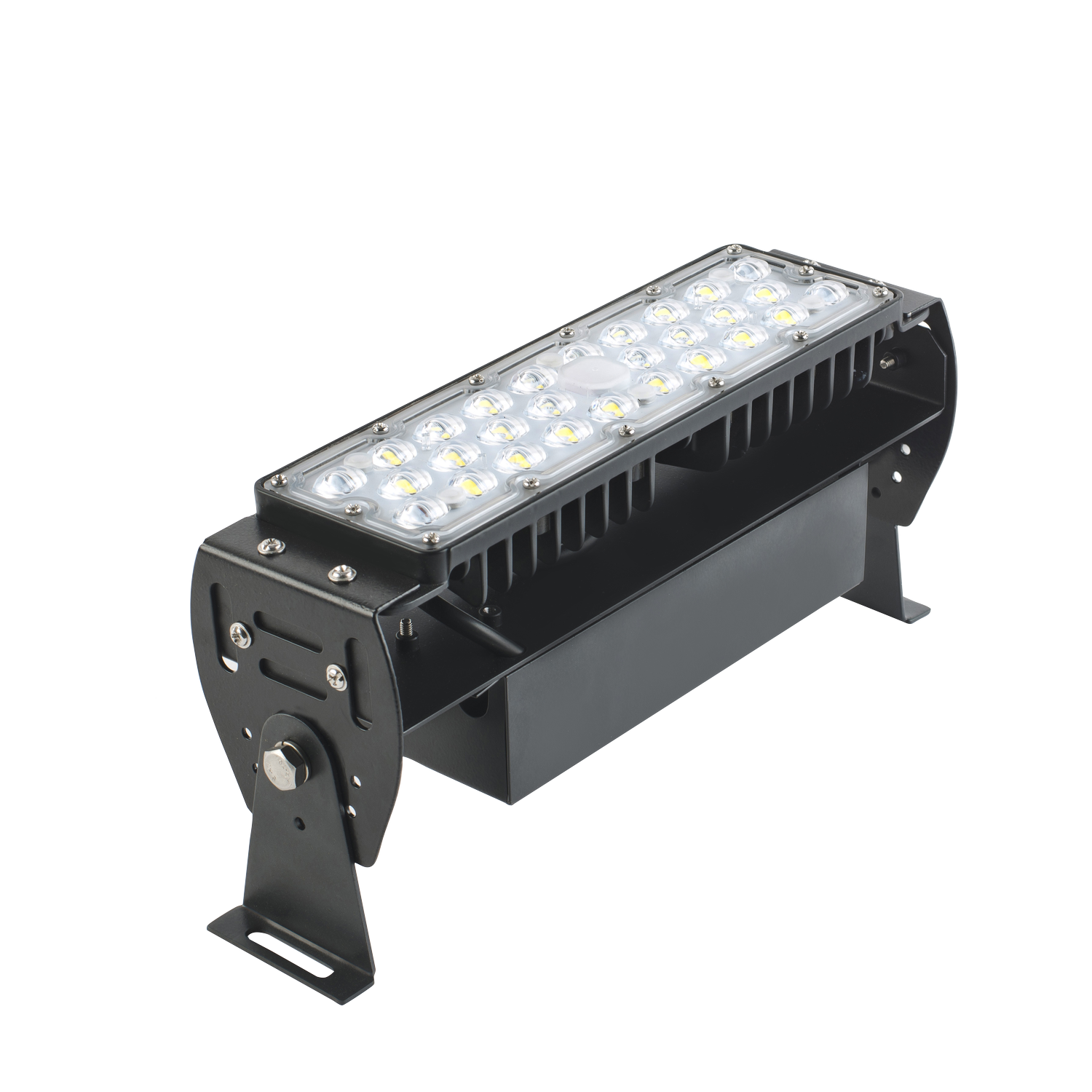

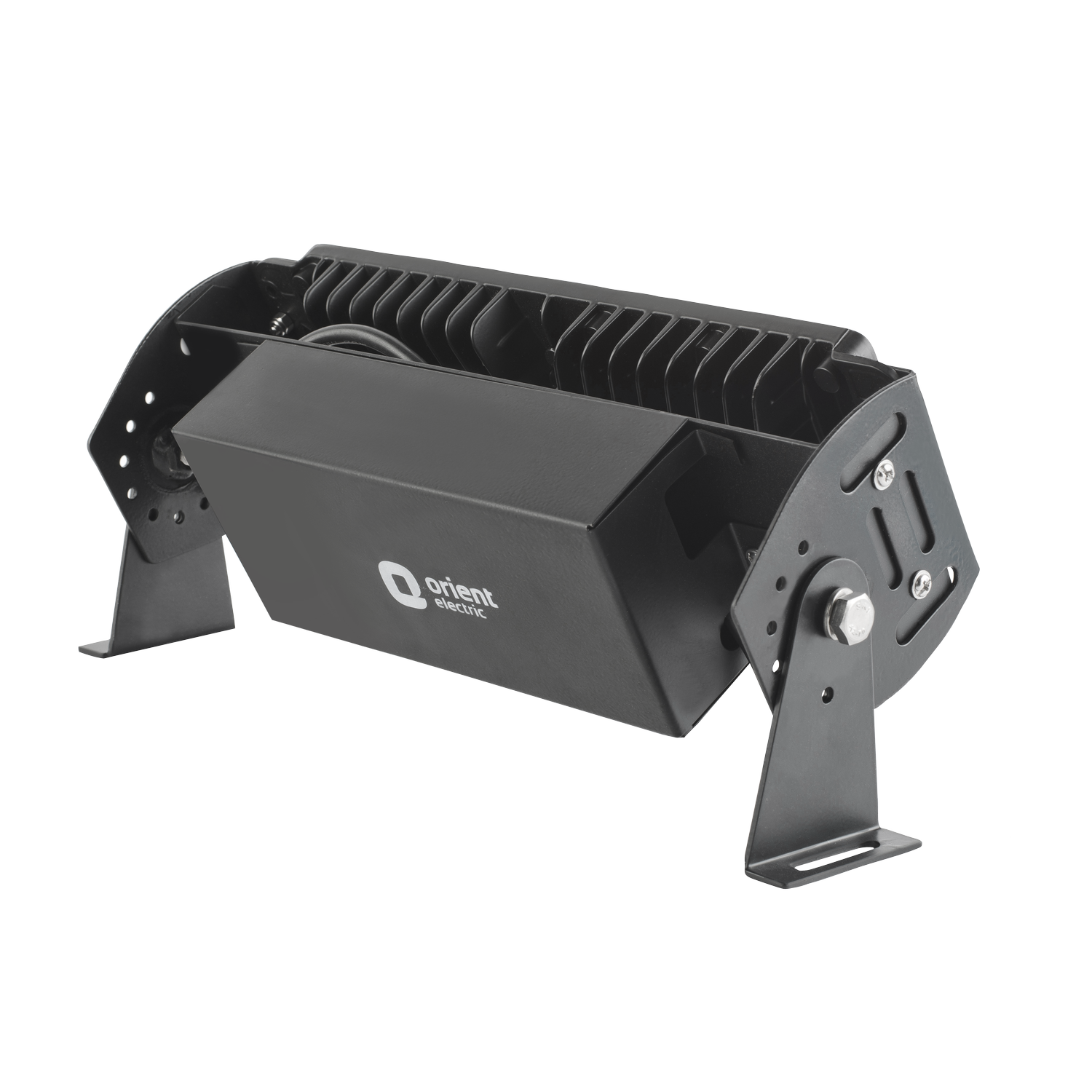

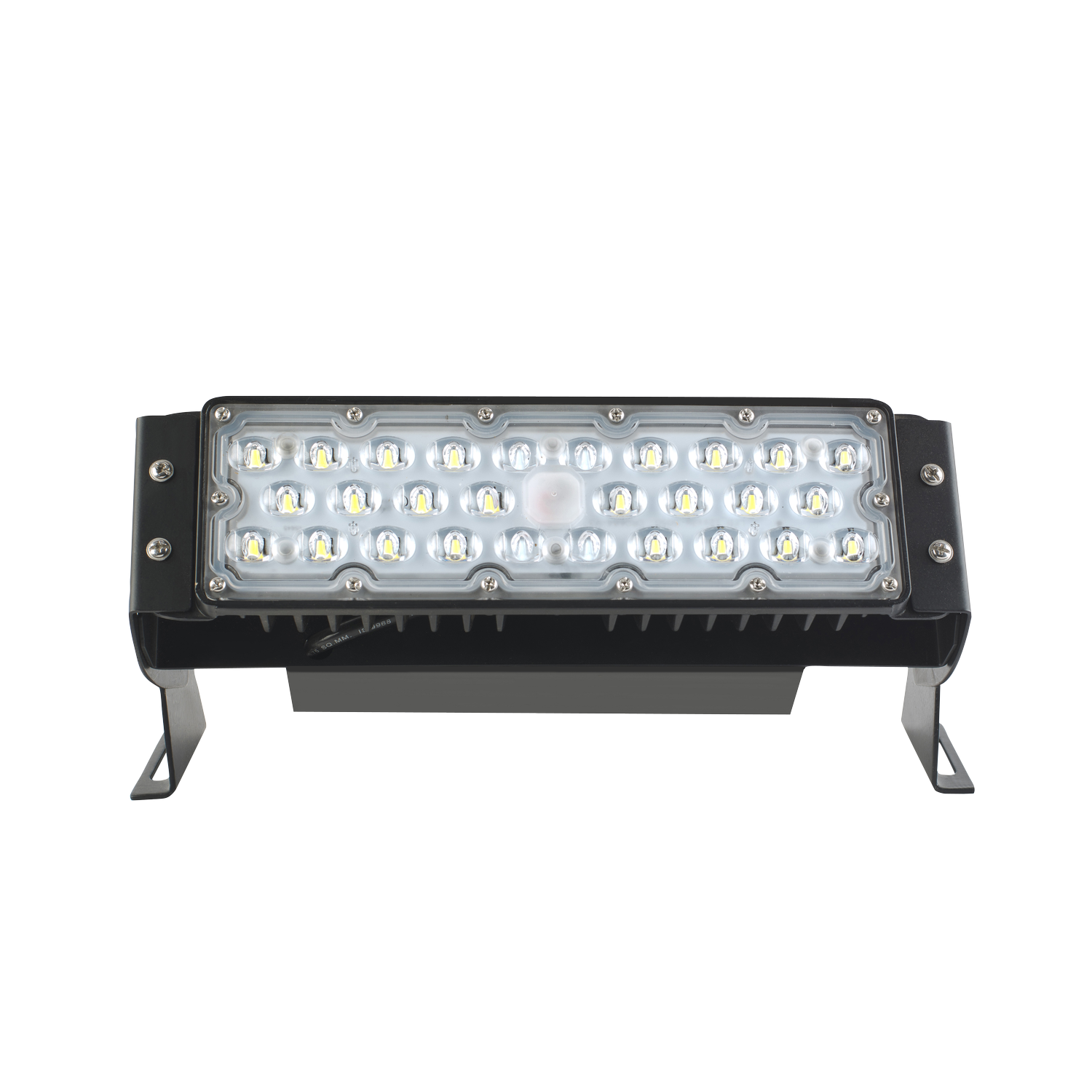

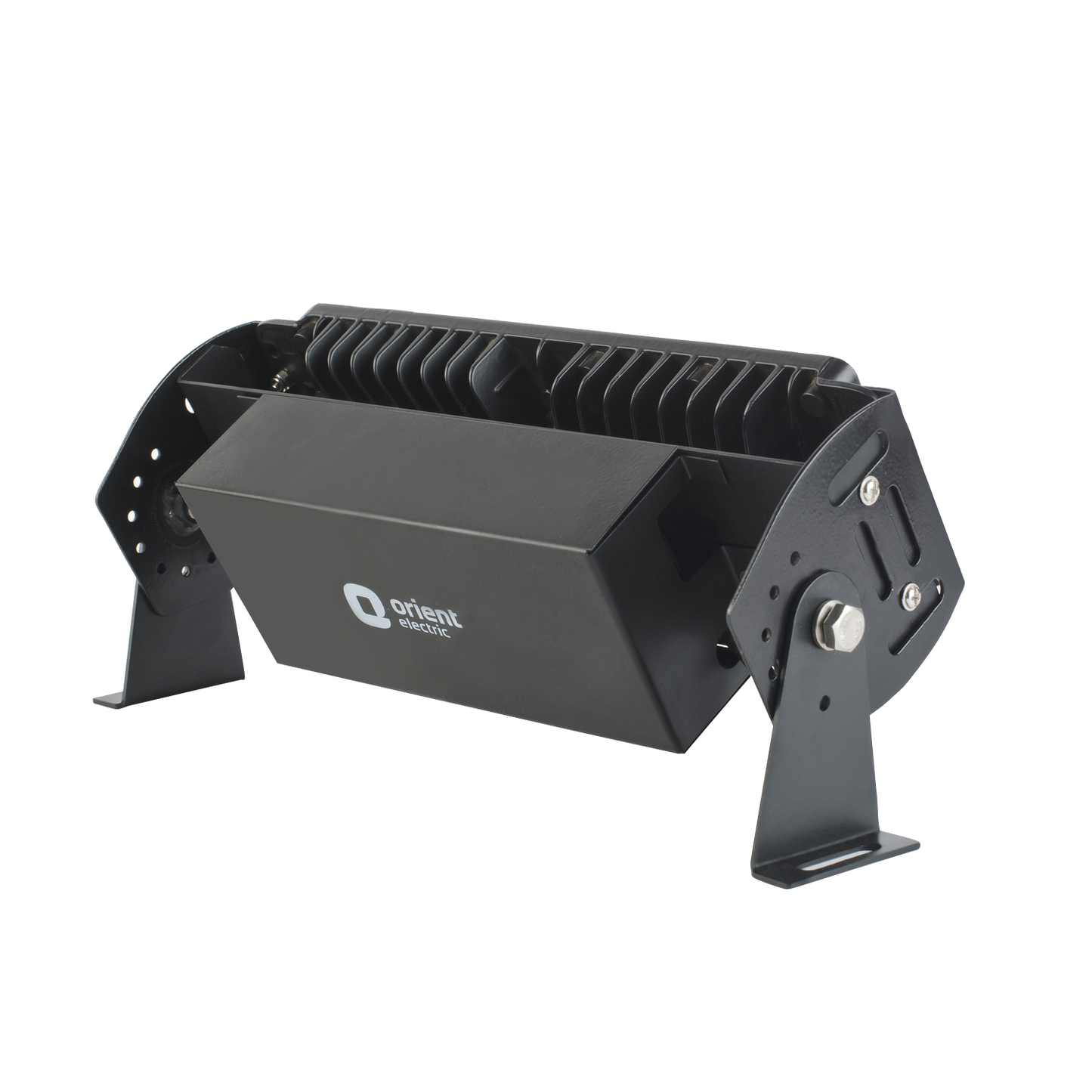

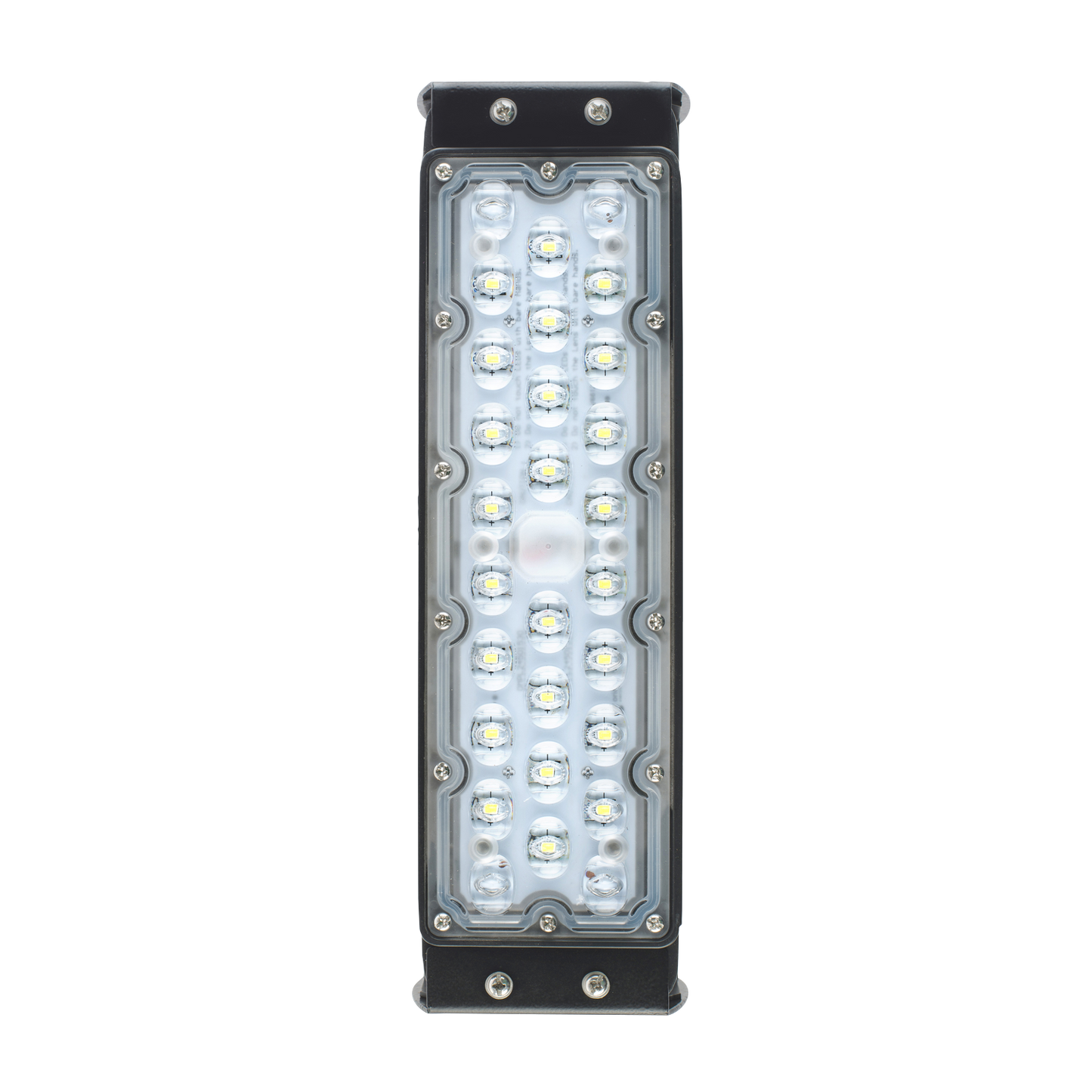

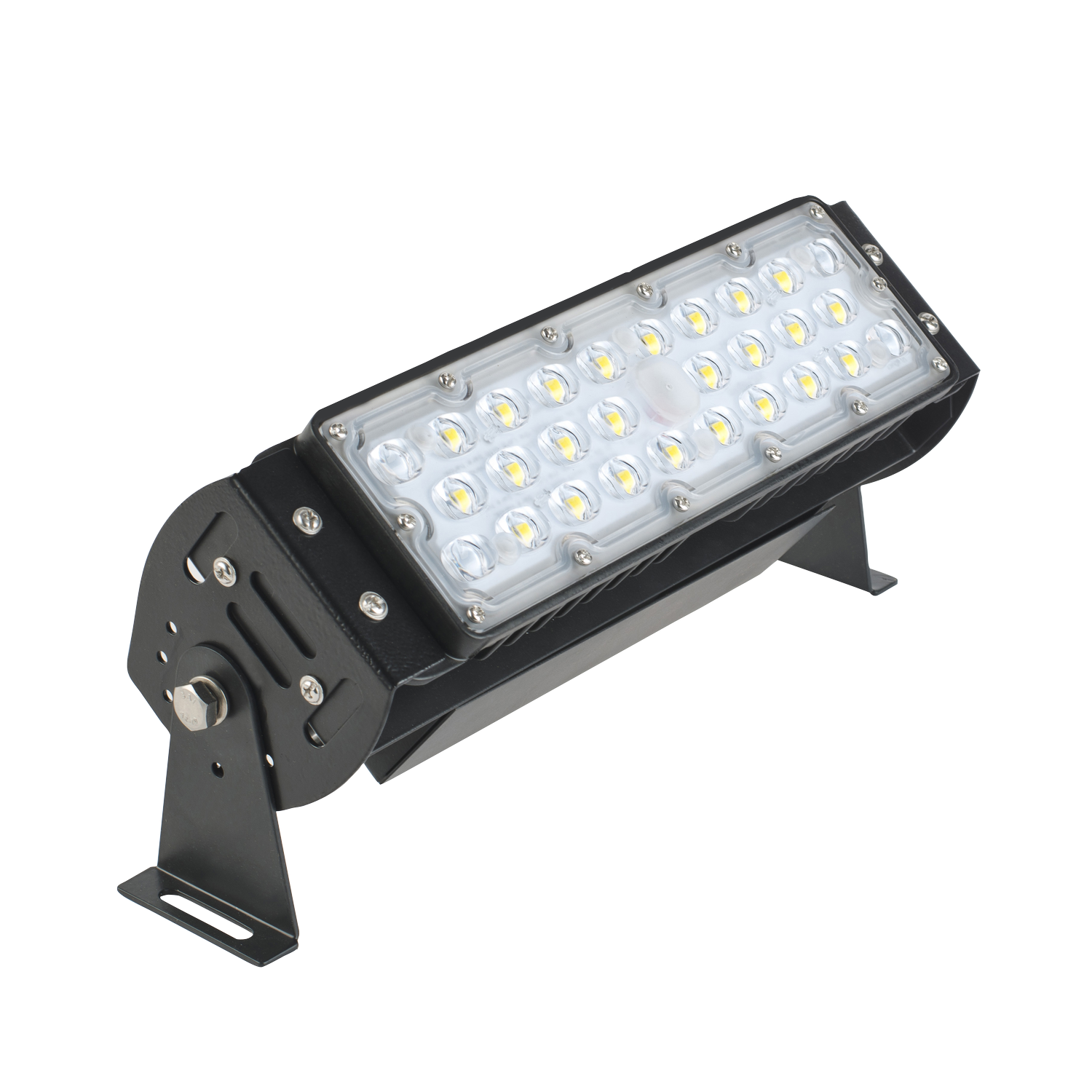

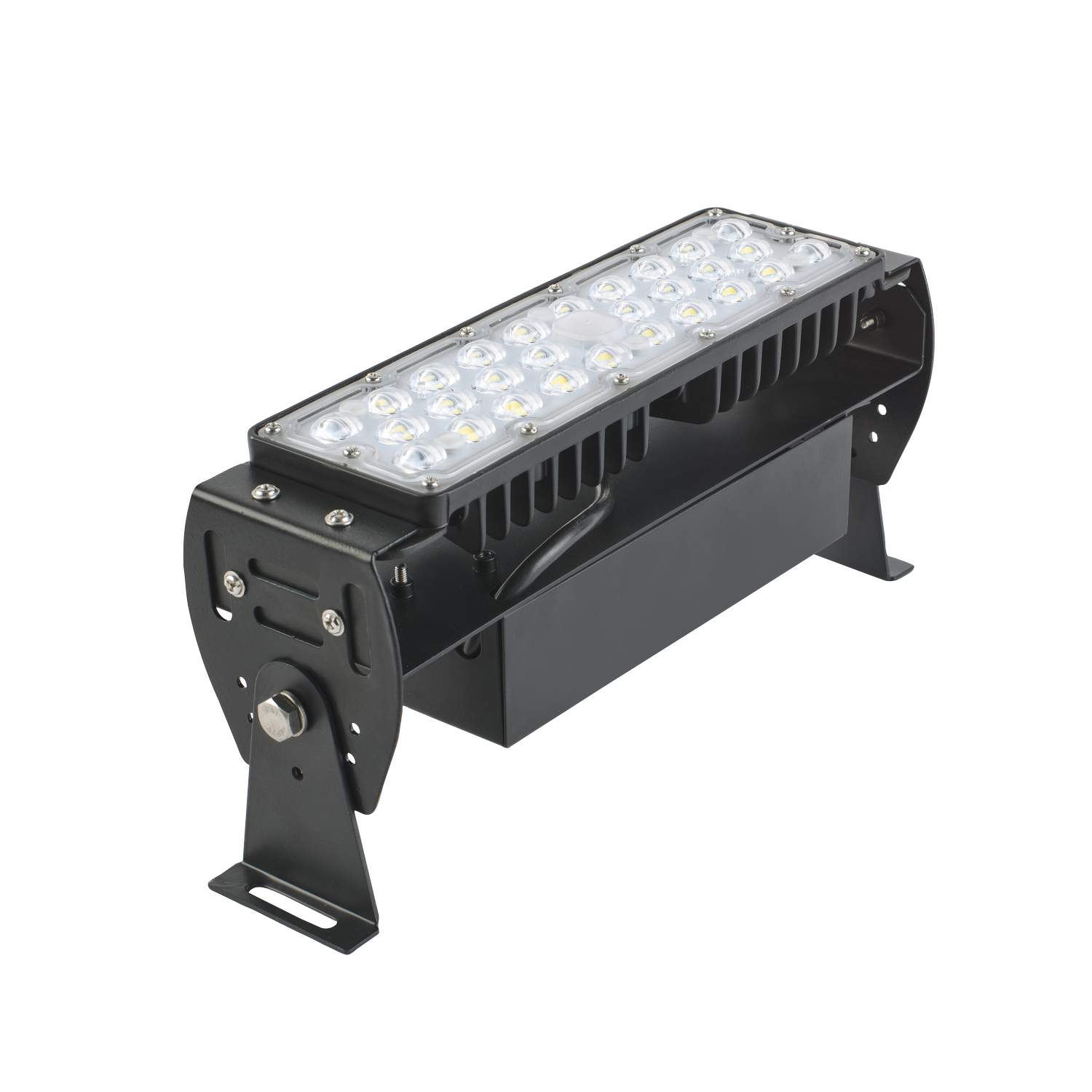

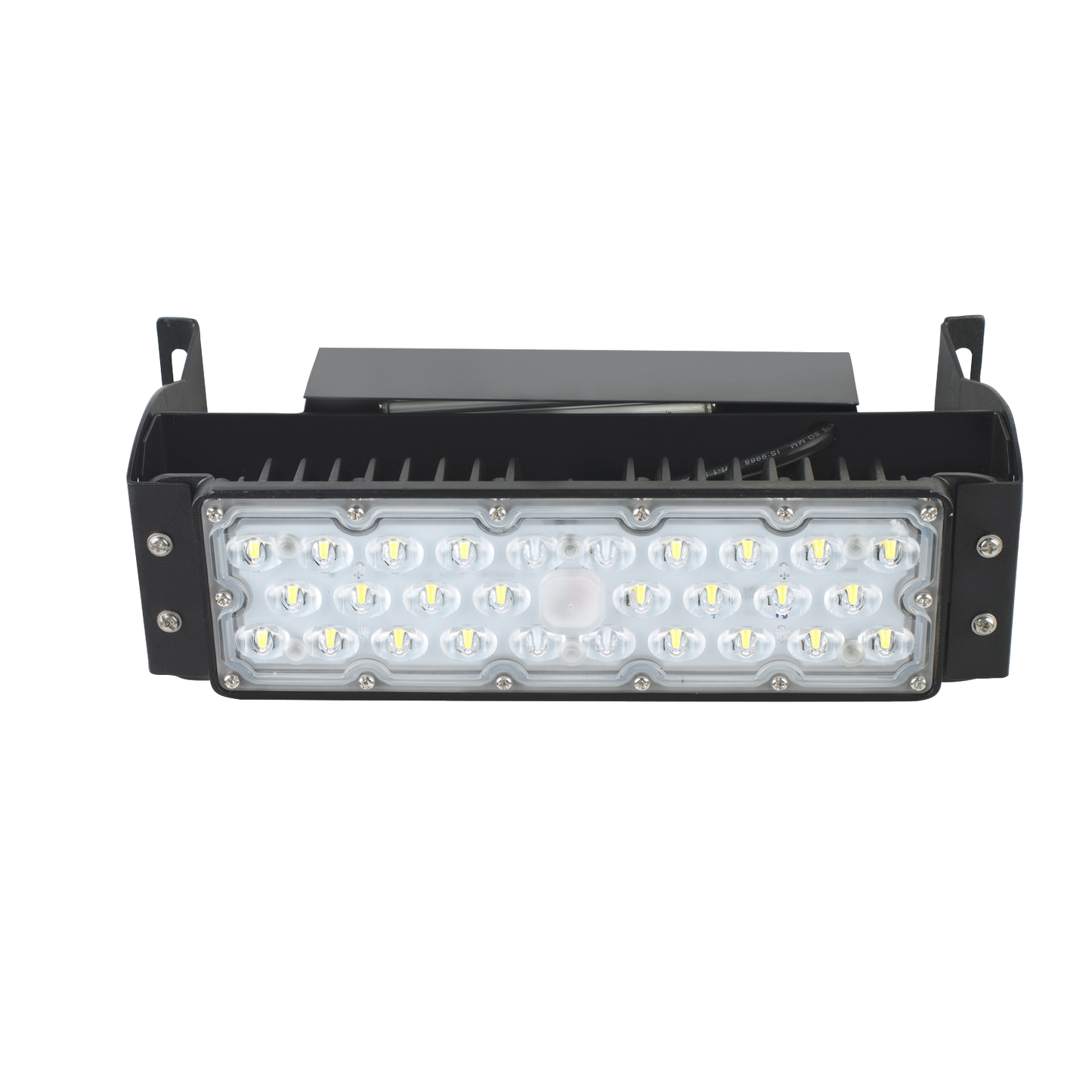

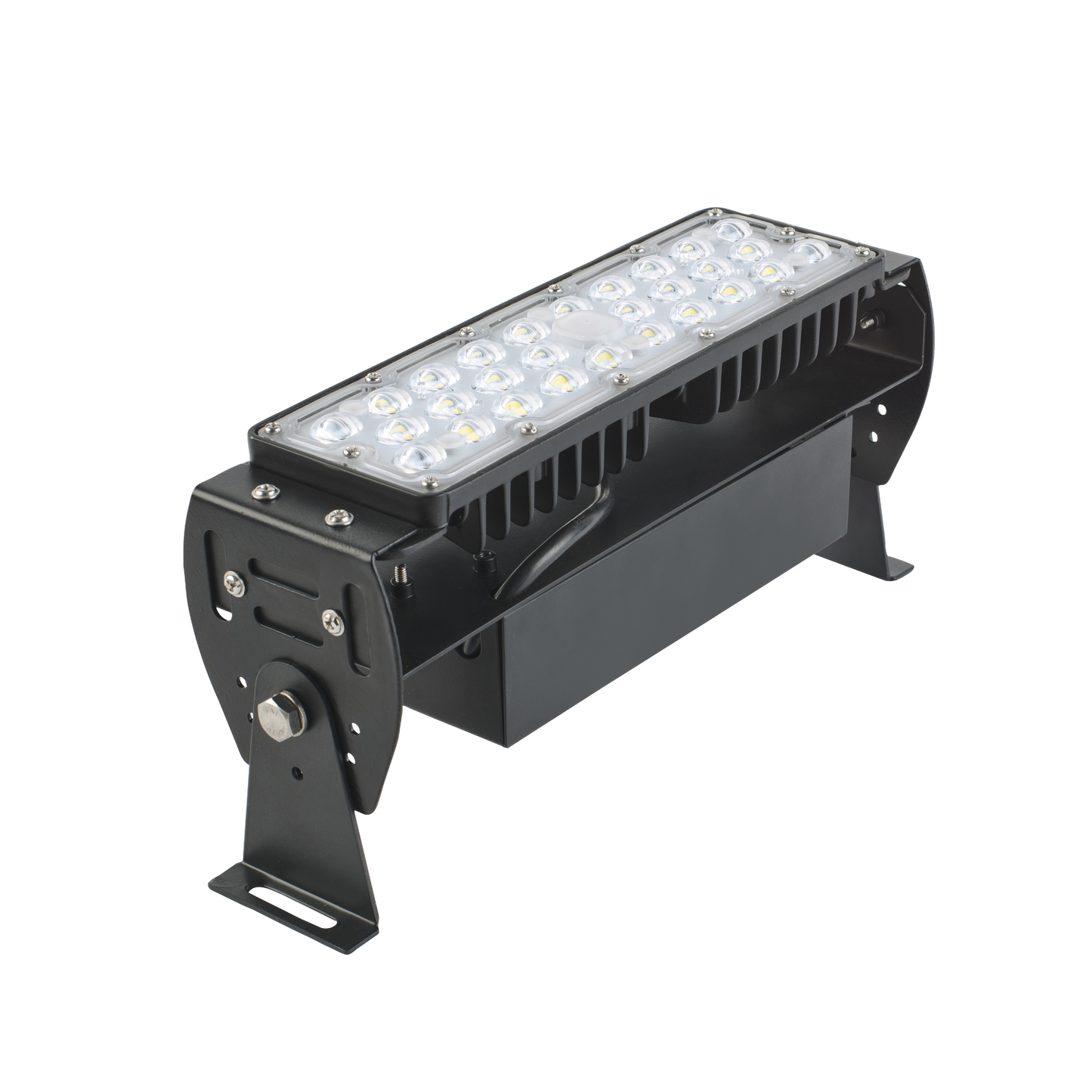

High-efficiency LED viaduct lighting system for metro applications, featuring precision optics for uniform luminance, high-lumen efficacy, and low-glare output. Engineered with an IP66/IK10-rated, corrosion-resistant housing and robust vibration-resistant design to withstand extreme weather, mechanical stress, and urban transit conditions. Ensures optimal visibility, safety, and long-term performance with minimal maintenance.

Best suited for

Metro Rail Tunnels

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing.
    Optics PC diffuser with integrated Lens
    Mounting Bracket provided for mounting
    Control Gear Powered by an integral electronic LED driver (SMPS based constant current supply) with Output Short-circuit protection, Surge protection & other reliability tests
    Surge Protection Upto 4 KV (optional 10 KV SPD)
    IP 66
  • Technical Specifications
    System Wattage 20W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System efficacy (lm/W) ≥120 , ≥110
Viaduct light variants
Product Variants
Viaduct light
LFVDTL-20-C
Viaduct light
LFVDTL-20-W
Viaduct light
LFVDTL-30-C
Viaduct light
LFVDTL-30-W
Viaduct light
LFVDTL-40-C
Viaduct light
LFVDTL-40-W
Viaduct light
LFVDTL-50-C
Viaduct light
LFVDTL-50-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System efficacy (lm/W)
Length (in mm)
Width (in mm)
Height (in mm)
20W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
272
120
262
20W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
272
120
262
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
272
120
262
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
272
120
262
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
272
120
262
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
272
120
262
50W
5700K
≥70
240V AC
≥0.95
≤10%
≥120
272
120
262
50W
3000K
≥70
240V AC
≥0.95
≤10%
≥110
272
120
262
