Product Overview

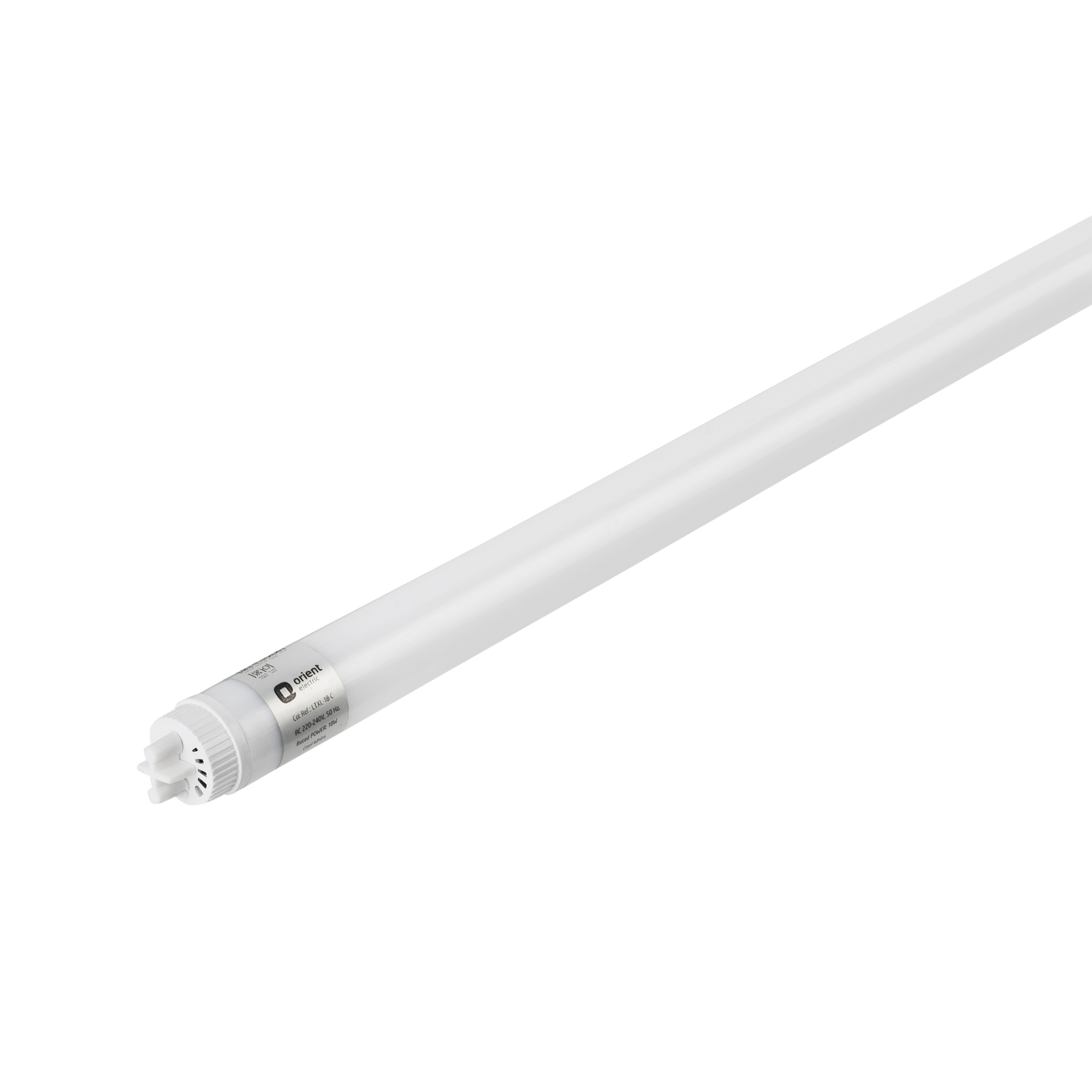

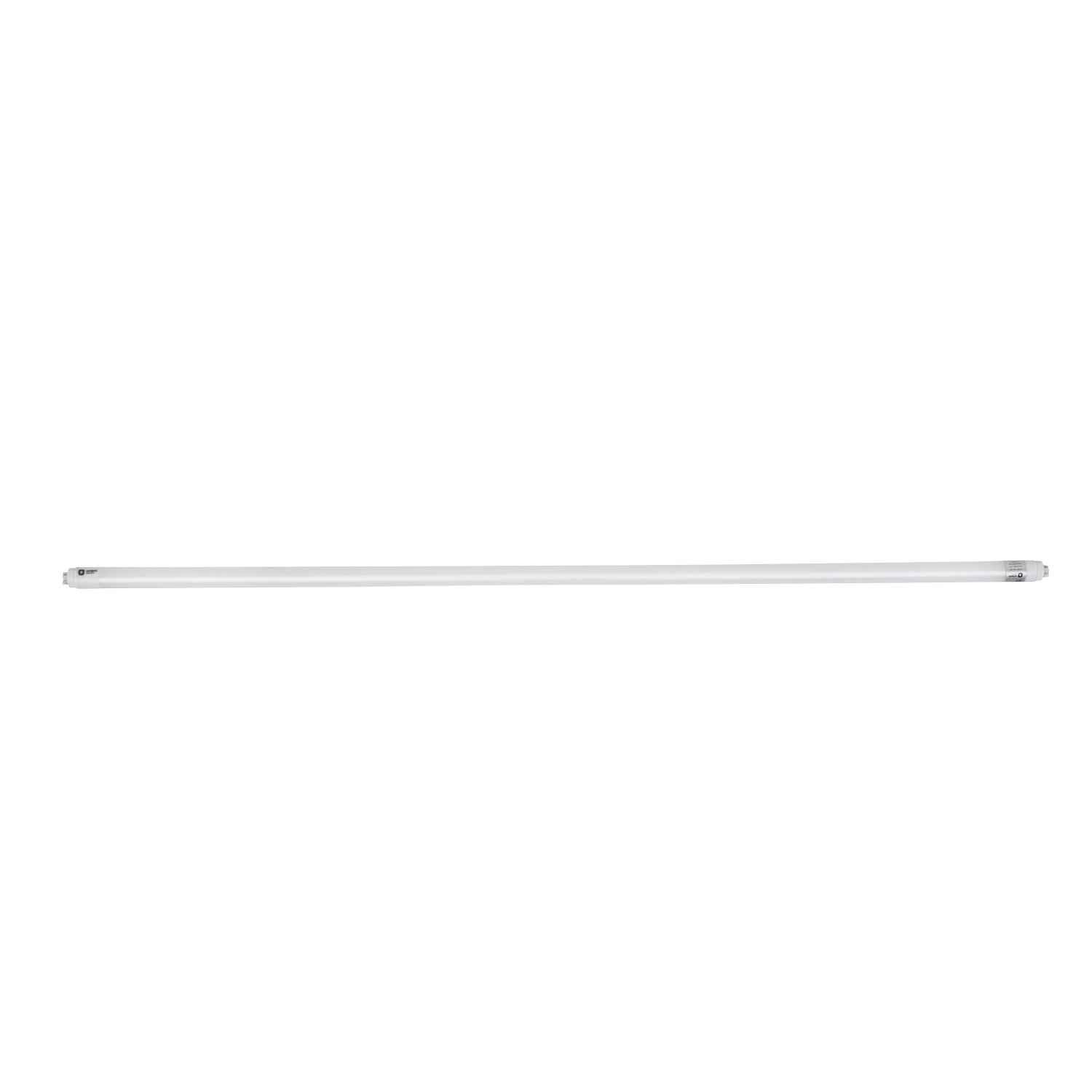

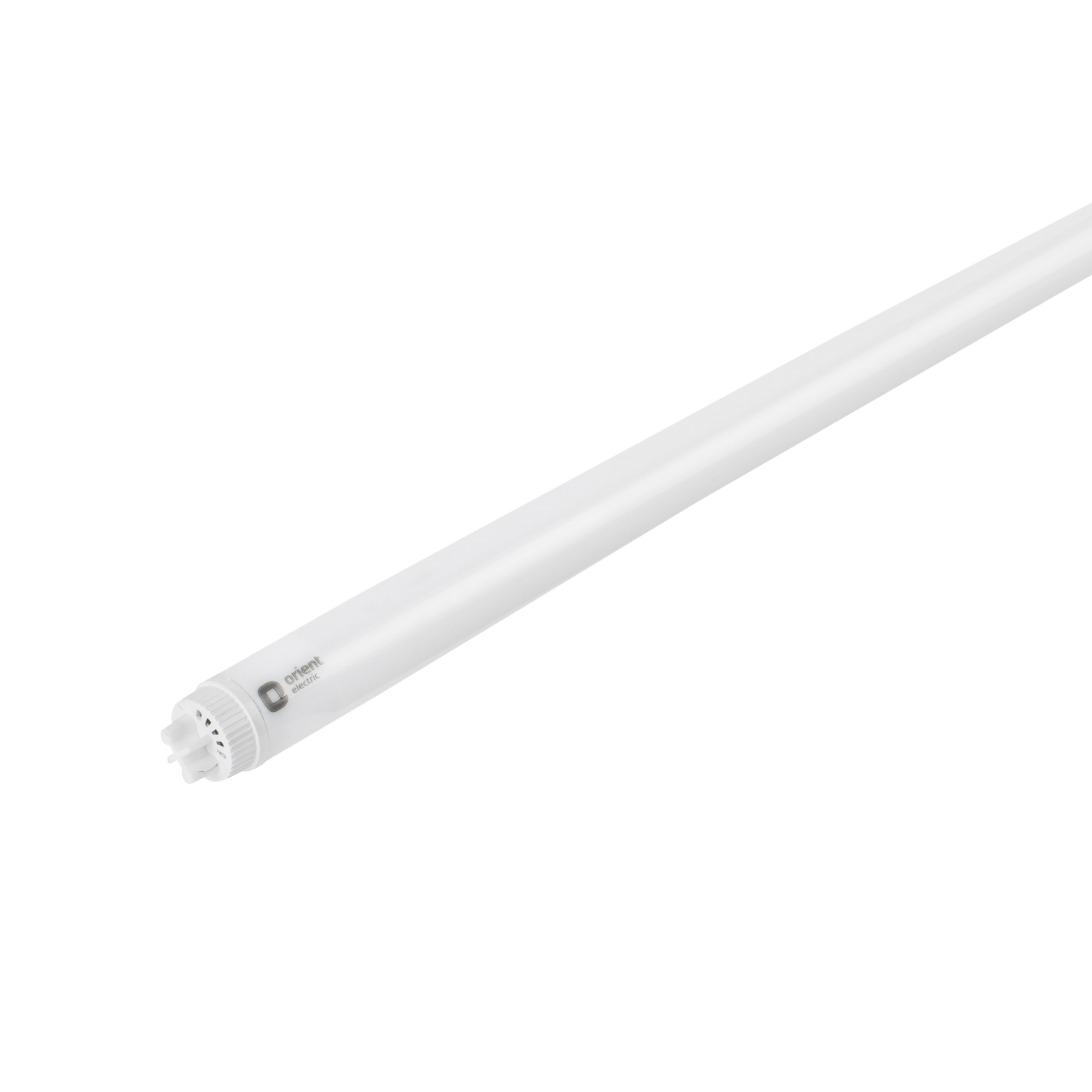

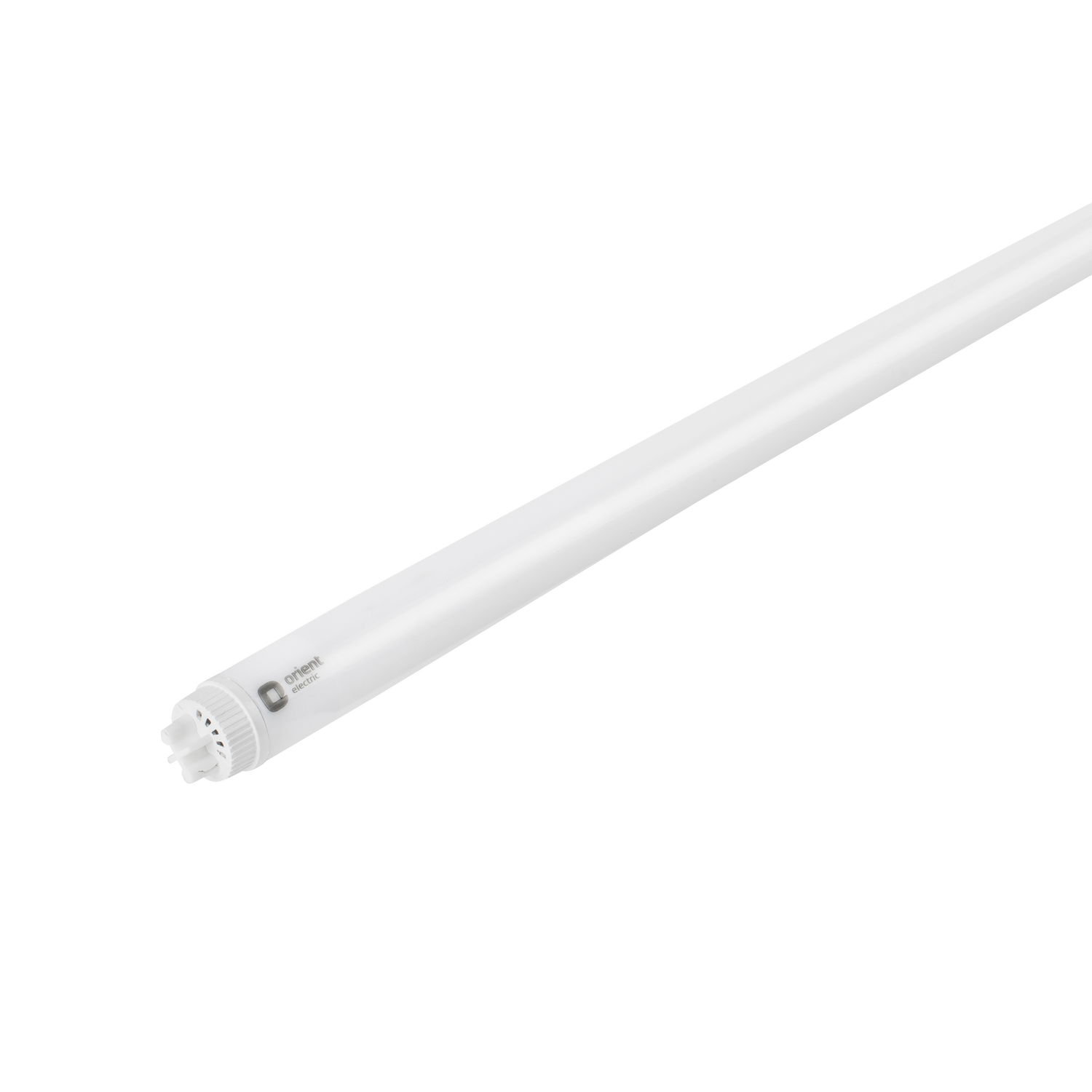

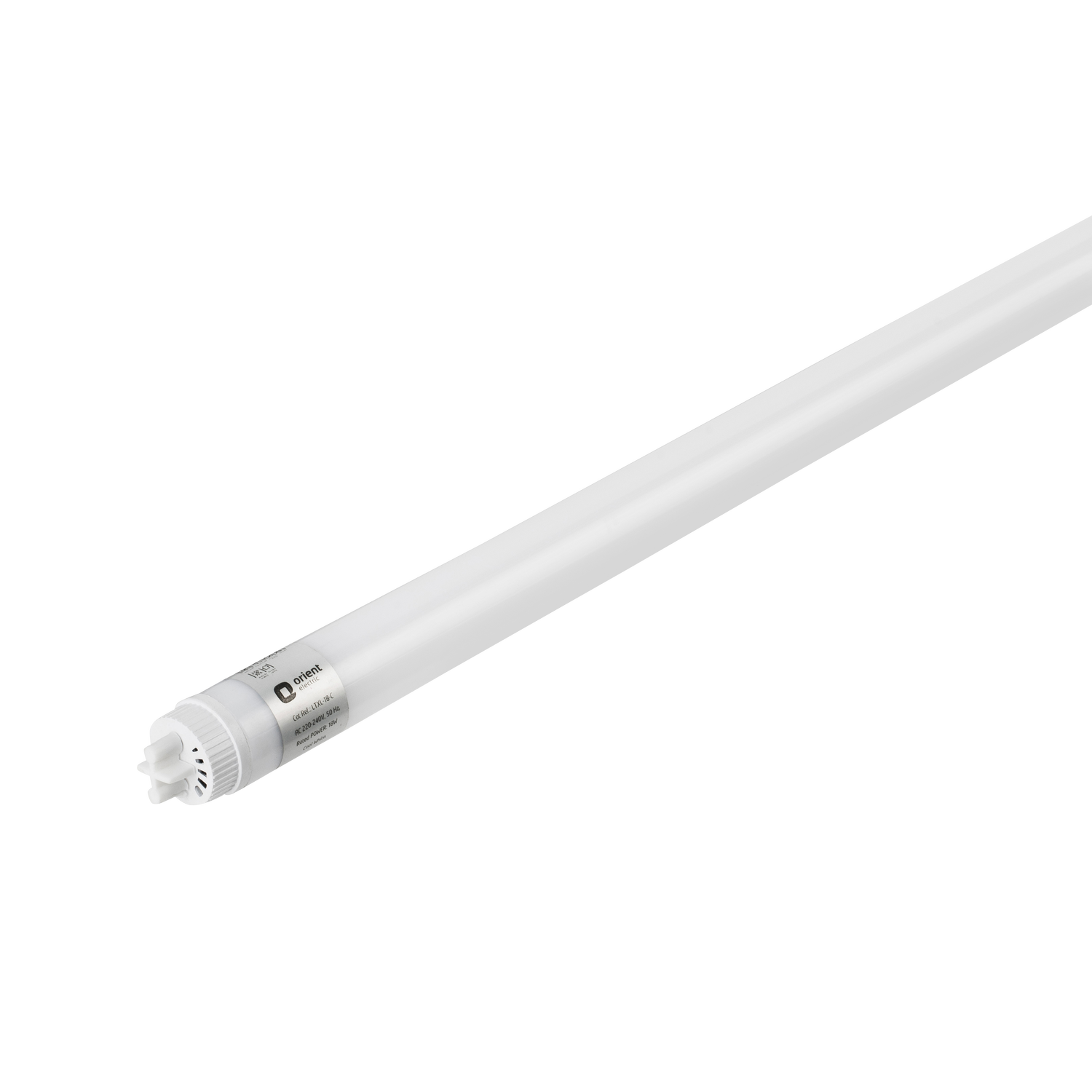

Ultrabright polycarbonate LED retrofit tube light with high efficacy suitable for replacement of existing T8 & T12 fluorescent tube light with G13 lamp holder with single side connection.

View full details
  • General specification
    Housing Elegantly designed polycarbonate housing with opal finish to provide glare-free uniform light distribution.High quality polycarbonate end caps are snap - fitted to the housing.
    Optics Polycarbonate diffuser to provide glare - free uniform light distribution. High lumen efficacy LED with viewing angle of 120° used to enhance the lumen output.
    Mounting Directly installed in existing T8/T12 FTL conventional lighting fixtures.
    Control Gear Powered by an integral constant - current driver suitable for 120-280 V AC working range.
    Surge Protection Upto 2.5 KV
    IP 20
  • Technical Specifications
    System Wattage 9W ,18W, 20W
    CCT 6500K | 4000K | 3000K
    CRI ≥80
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD <15%
    System Efficacy ≥100 , ≥90 , ≥85
XLINE variants
Product Variants
XLINE
LTXL-09-C
XLINE
LTXL-09-N
XLINE
LTXL-09-W
XLINE
LTXL-18-C
XLINE
LTXL-18-N
XLINE
LTXL-18-W
XLINE
LTXL-20-C
XLINE
LTXL-20-N
XLINE
LTXL-20-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Length (in mm)
Height (in mm)
9W
6500K
≥80
240V AC
≥0.95
<15%
≥100
602
28
9W
4000K
≥80
240V AC
≥0.95
<15%
≥90
602
28
9W
3000K
≥80
240V AC
≥0.95
<15%
≥85
602
28
18W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1212
28
18W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1212
28
18W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1212
28
20W
6500K
≥80
240V AC
≥0.95
<15%
≥100
1212
28
20W
4000K
≥80
240V AC
≥0.95
<15%
≥90
1212
28
20W
3000K
≥80
240V AC
≥0.95
<15%
≥85
1212
28
