Product Overview

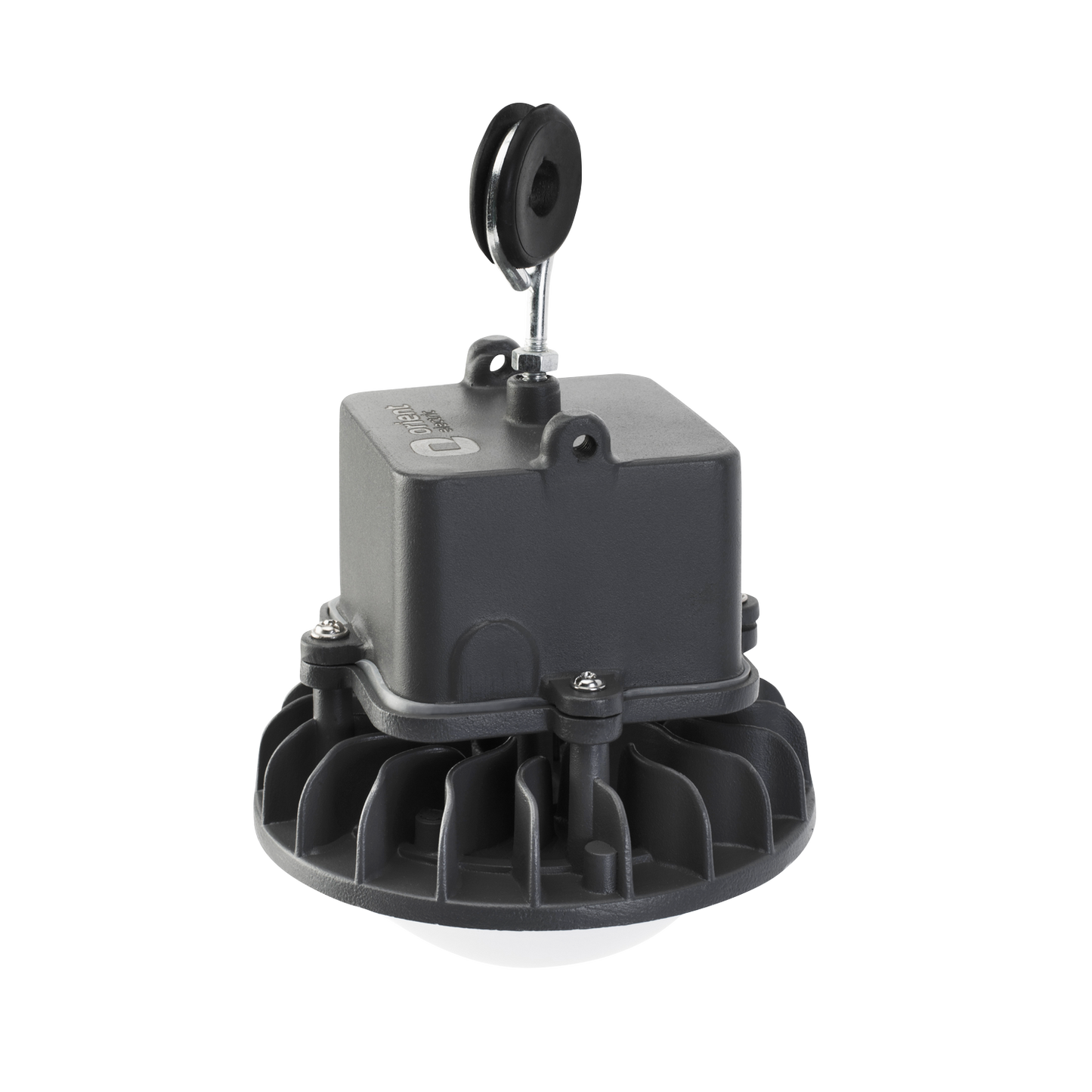

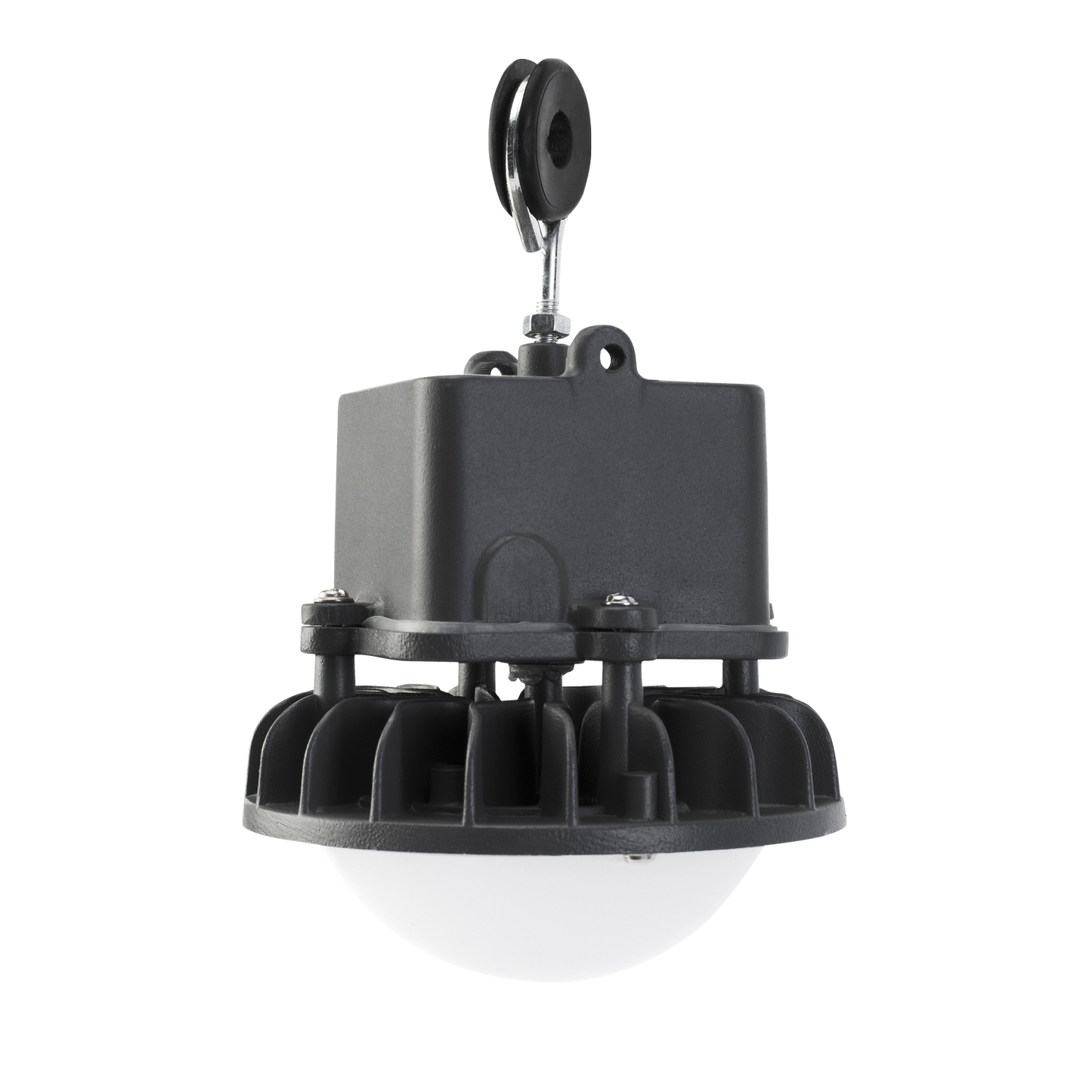

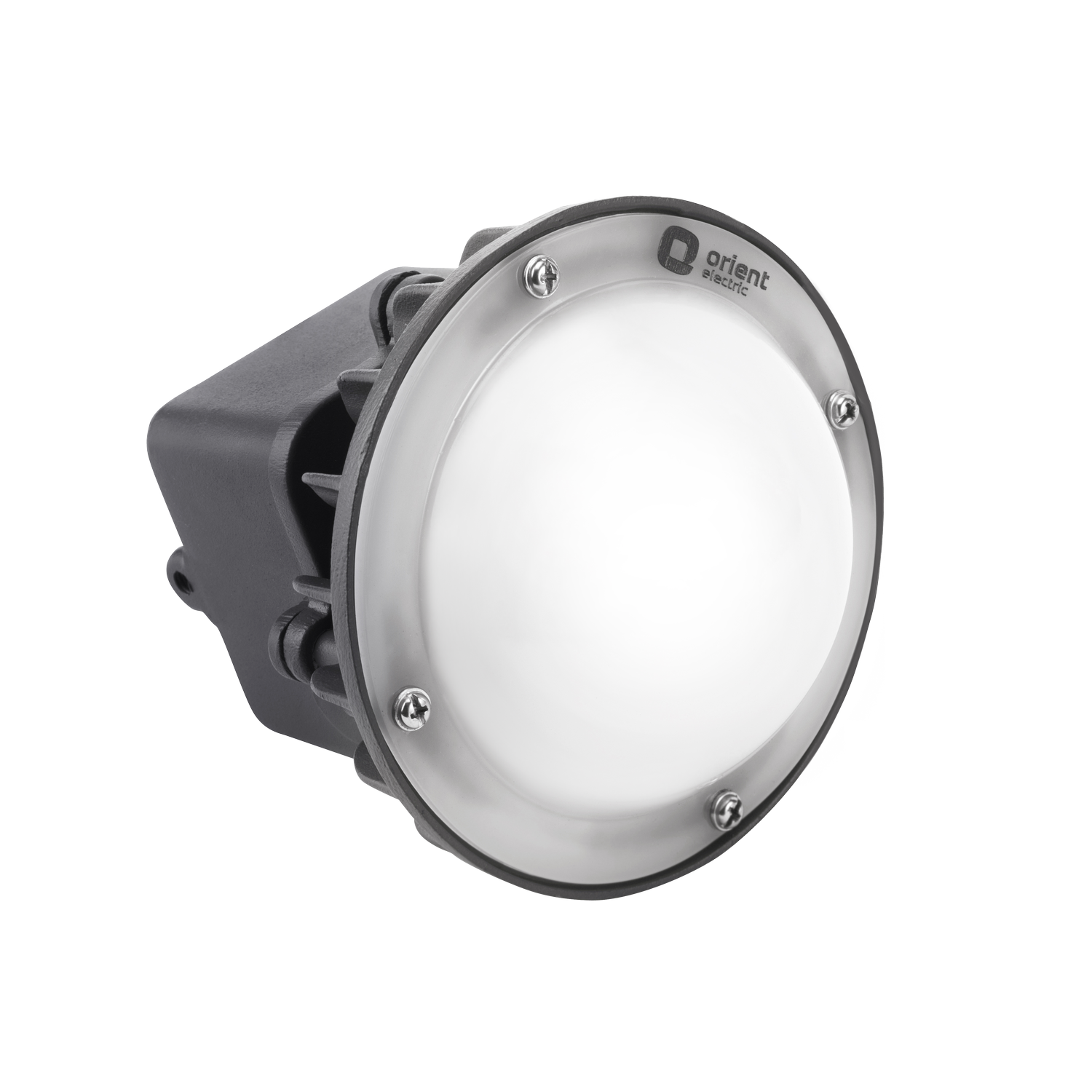

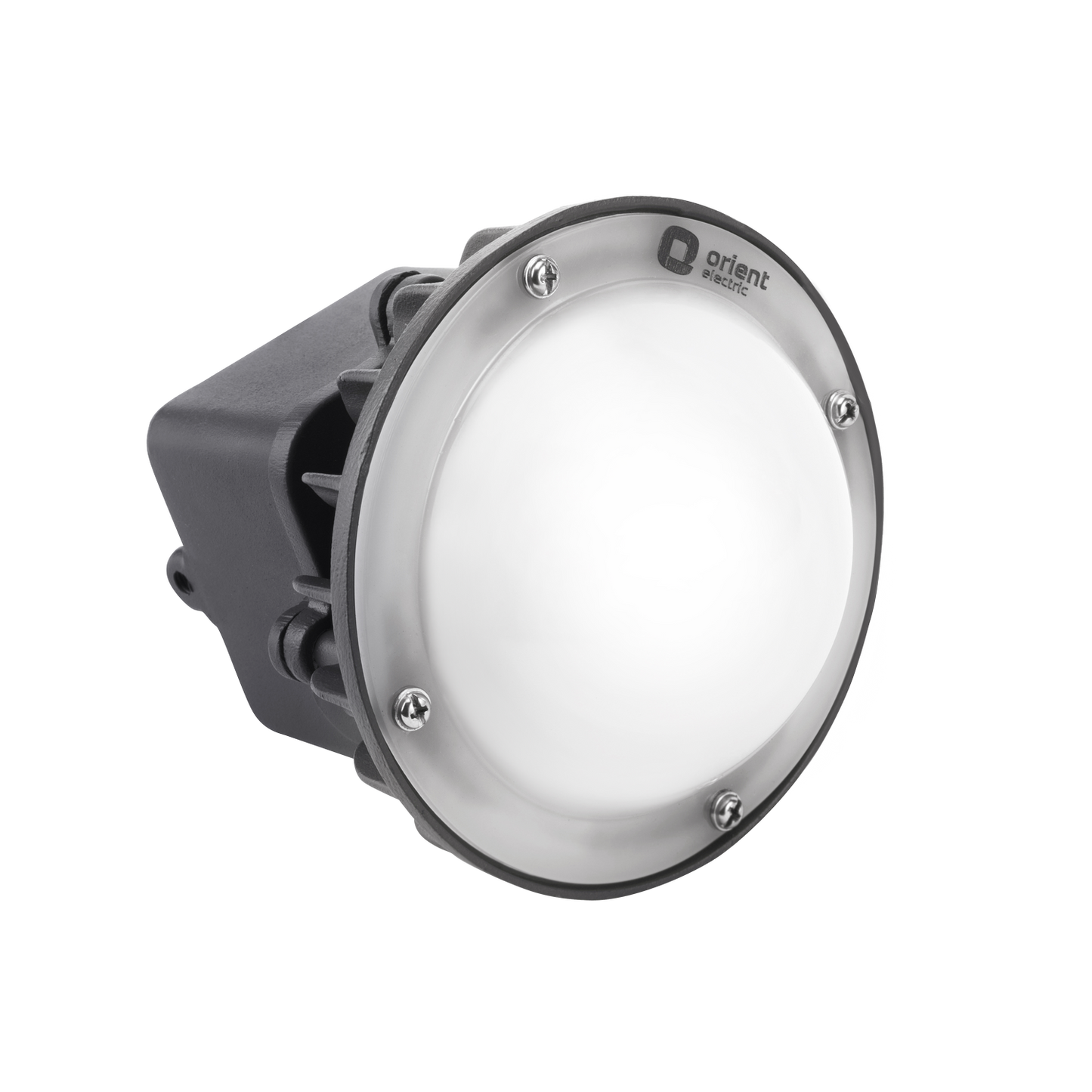

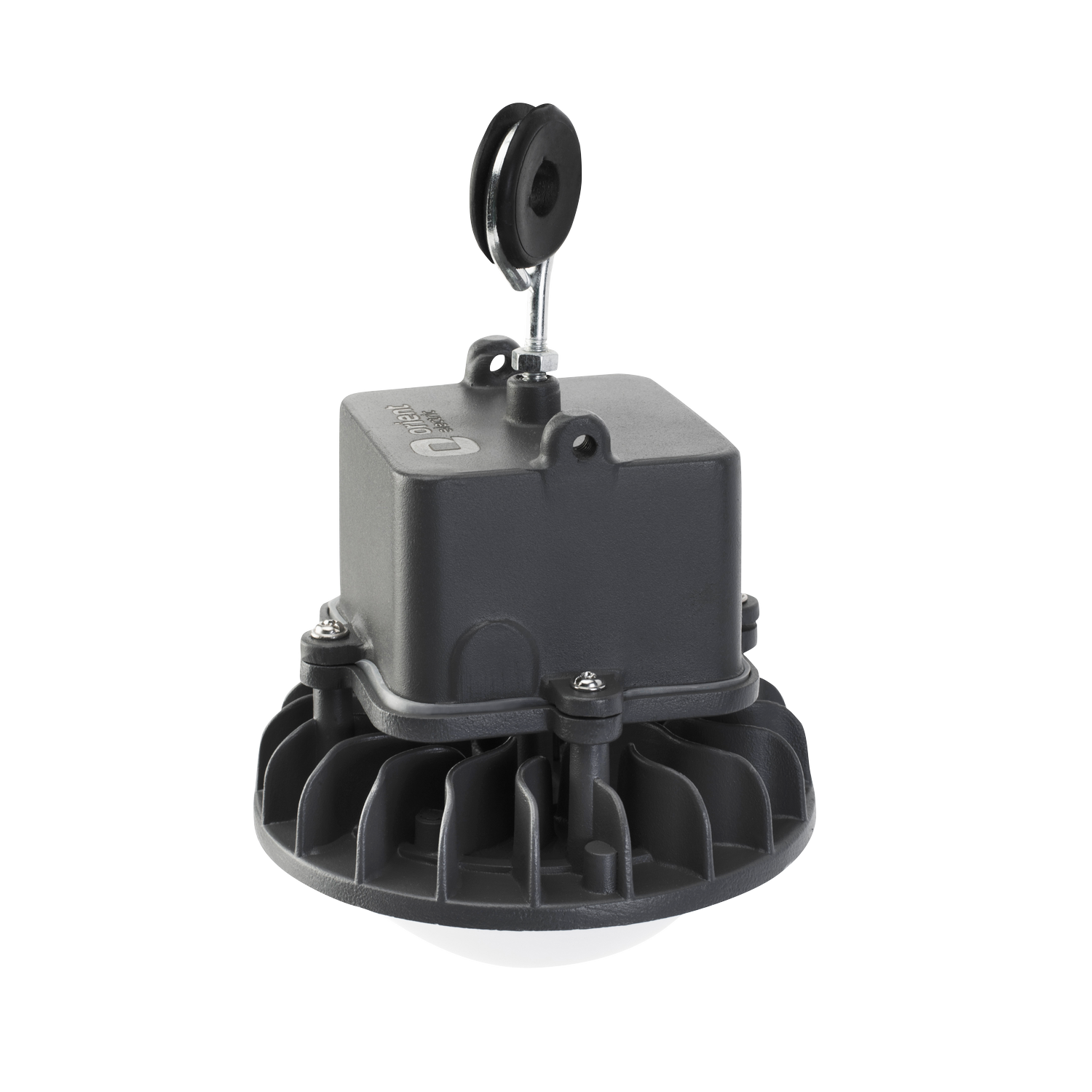

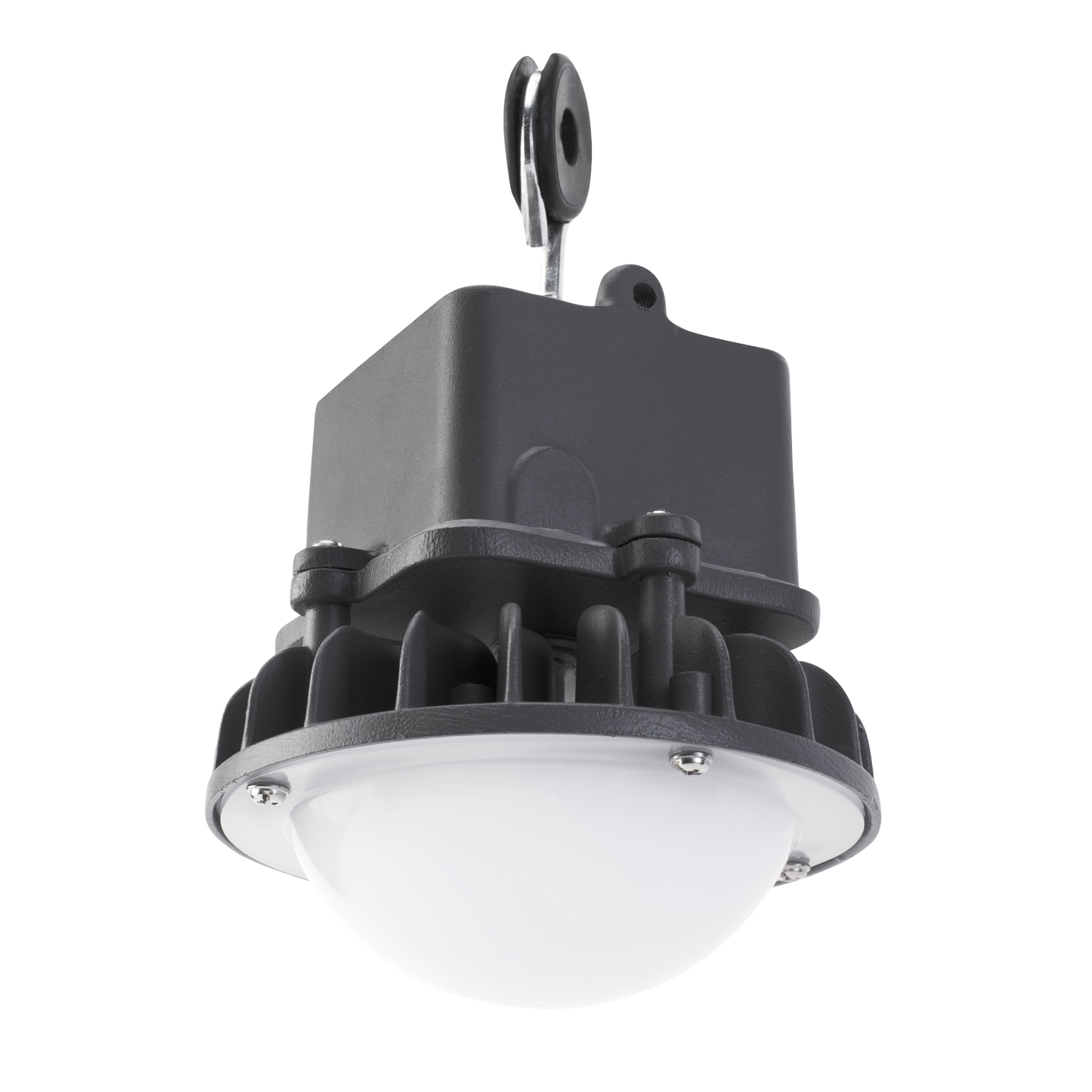

IP65 LED Wellglass designed with excellent thermally managed aluminium die cast housing with heat resistant polycarbonate diffuser in front.

View full details
  • General specification
    Housing Excellent thermally managed aluminium die cast housing.
    Optics Heat resistant Polycarbonate diffuser
    Mounting Eyebolt provided for chain suspension
    Control Gear Powered by an independent electronic LED driver (SMPS based constant current supply) with Output Short circuit protection, Surge protection & other reliability tests.
    Surge Protection Upto 4 KV; optional 10 KV SPD
    IP 65
  • Technical Specifications
    System Wattage 25W, 30W, 36W, 40W, 45W
    CCT 5700K | 3000K
    CRI ≥70
    Rated Voltage 240V AC
    Power Factor ≥0.95
    THD ≤10%
    System Efficacy (lm/W) ≥100, ≥90
Zenon variants
Product Variants
Zenon
LWZN-25-C
Zenon
LWZN-25-W
Zenon
LWZN-30-C
Zenon
LWZN-30-W
Zenon
LWZN-36-C
Zenon
LWZN-36-W
Zenon
LWZN-40-C
Zenon
LWZN-40-W
Zenon
LWZN-45-C
Zenon
LWZN-45-W
System Wattage
CCT
CRI
Rated Voltage
Power Factor
THD
System Efficacy (lm/W)
Outer Diameter (in mm)
Height (in mm)
25W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
135
120
25W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
135
120
30W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
135
120
30W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
135
120
36W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
135
120
36W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
135
120
40W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
135
120
40W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
135
120
45W
5700K
≥70
240V AC
≥0.95
≤10%
≥100
135
120
45W
3000K
≥70
240V AC
≥0.95
≤10%
≥90
135
120
